Description:

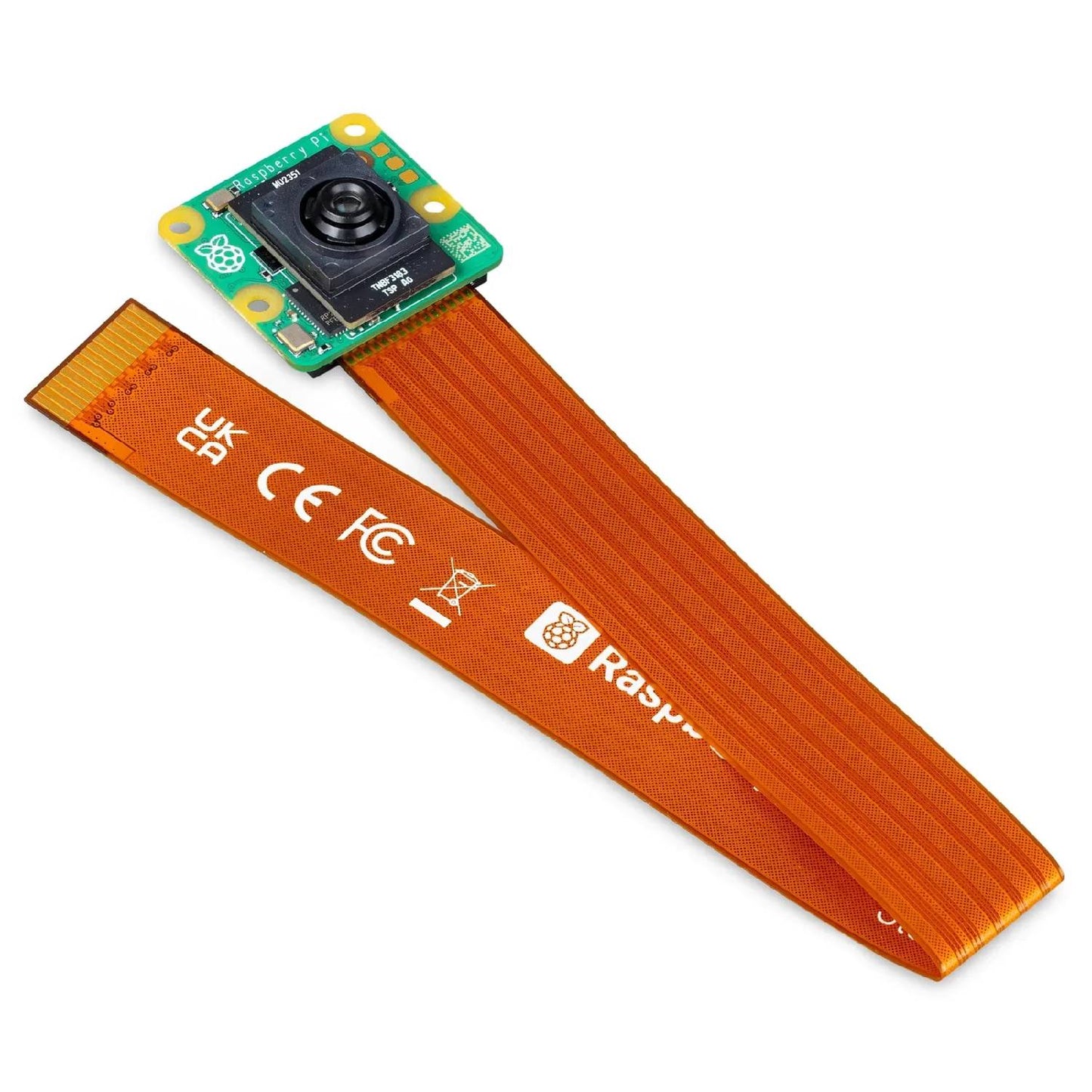

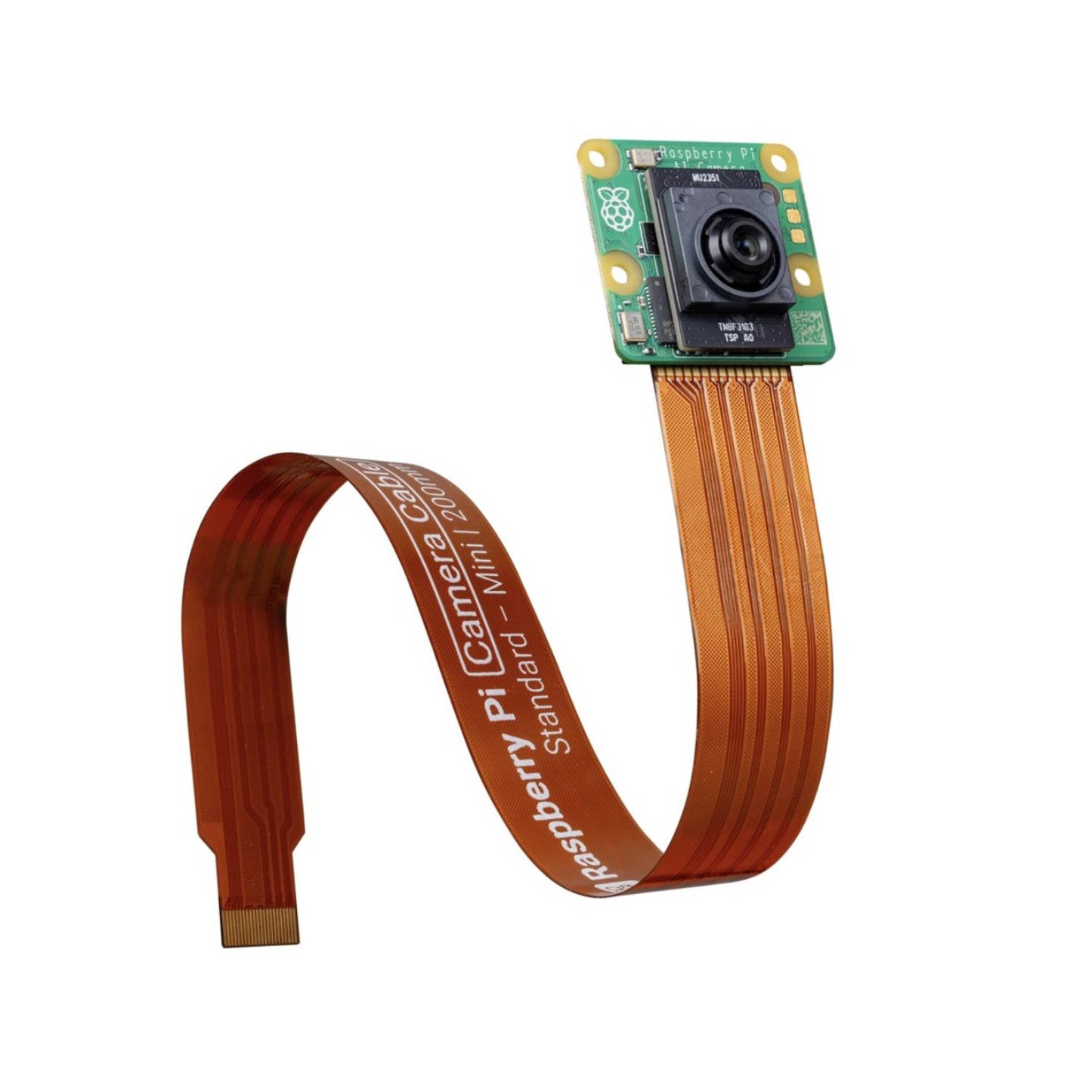

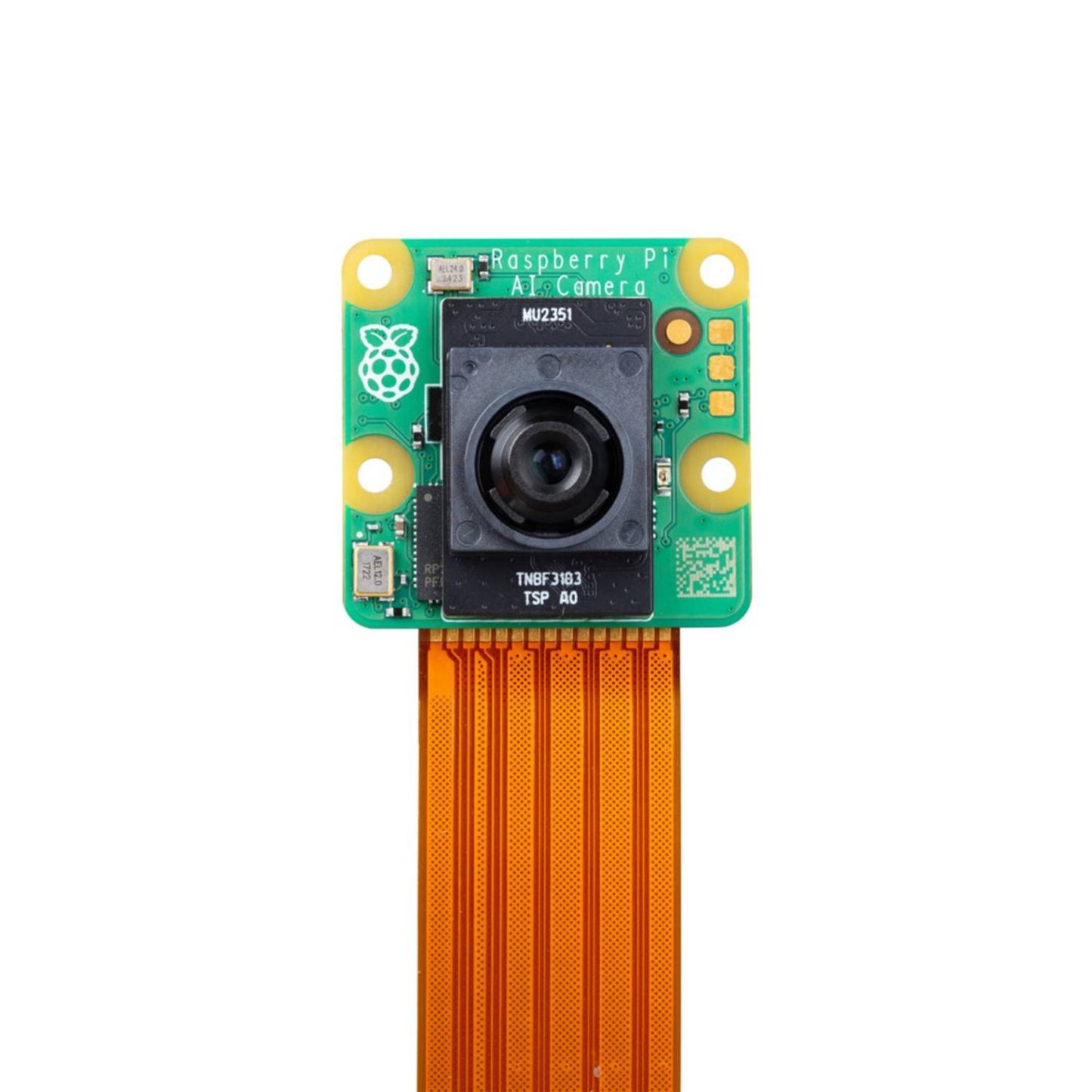

The Raspberry Pi AI Camera is a compact camera module from Raspberry Pi, based on the Sony IMX500 Intelligent Vision Sensor. IMX500 combines a 12-megapixel CMOSimage sensor with onboard inferencing acceleration for a variety of common neural network models, enabling users to develop sophisticated vision-based AI applications
without the need for a separate accelerator.
The AI Camera transparently augments captured still images or video with tensor metadata, leaving the processor in the host Raspberry Pi free to perform other operations. Support for tensor metadata in the libcamera and Picamera2 libraries, and in the rpicam-apps application suite, make it easy for beginners to use, while offering advanced users with unparalleled power and flexibility.
The Raspberry Pi AI Camera is compatible with all Raspberry Pi computers. The PCB outline and mounting hole locations are identical to those of the Raspberry Pi Camera Module 3, while the overall depth is greater to accommodate the larger IMX500 sensor and optical subassembly.
Specifications:
- Sensor: Sony IMX500
- Resolution: 12.3 megapixels
- Sensor Size: 7.857 mm (type 1/2.3)
- Pixel Size: 1.55 μm × 1.55 μm
- Horizontal/vertical: 4056 × 3040 pixels
- IR Cut Filter: Integrated
- Autofocus System: Manual adjustable focus
- Focus Range: 20 cm – ∞
- Focal Length: 4.74 mm
- Horizontal Field of View: 66 ±3 degrees
- Vertical Field of View: 52.3 ±3 degrees
- Focal Ratio (F-stop): F1.79
- Infrared Sensitive: No
- Output: Image (Bayer RAW10), ISP output (YUV/RGB), ROI, metadata
- Input Tensor Maximum Size: 640(H) × 640(V)
- Input Data Type: 'int8' or 'uint8'
- Memory Size: 8388480 bytes for firmware, network weight file, and working memory
- Framerate: 2×2 binned: 2028×1520 10-bit 30fps
- Full Resolution: 4056×3040 10-bit 10fps
- Dimensions: 25 × 24 × 11.9 mm
- Ribbon Cable Length: 200 mm
- Cable Connector: 15 × 1 mm FPC or 22 × 0.5 mm FPC
- Operating Temperature: 0°C to 50°C
Features:
- 12.3 MP Sony IMX500 Intelligent Vision Sensor with a powerful neural network accelerator
- Framerates: 2×2 binned: 2028×1520 10-bit 30fps, Full resolution: 4056×3040 10-bit 10fps
- 7.857 mm sensor size
- 1.55 μm × 1.55 μm pixel size
- 78.3 (±3) degree FoV with manual/mechanical adjustable focus
- F1.79 focal ratio
- 25 × 24 × 11.9 mm module dimensions
- Integrated RP2040 for neural network firmware management
- Works with all Raspberry Pi models, using our standard camera connector cable.
Useful Links:
Package Included:
1 x Raspberry Pi AI Camera 12MP with Sony IMX500 Intelligent Vision Sensor Object Detection Camera Facial Recognition Camera
