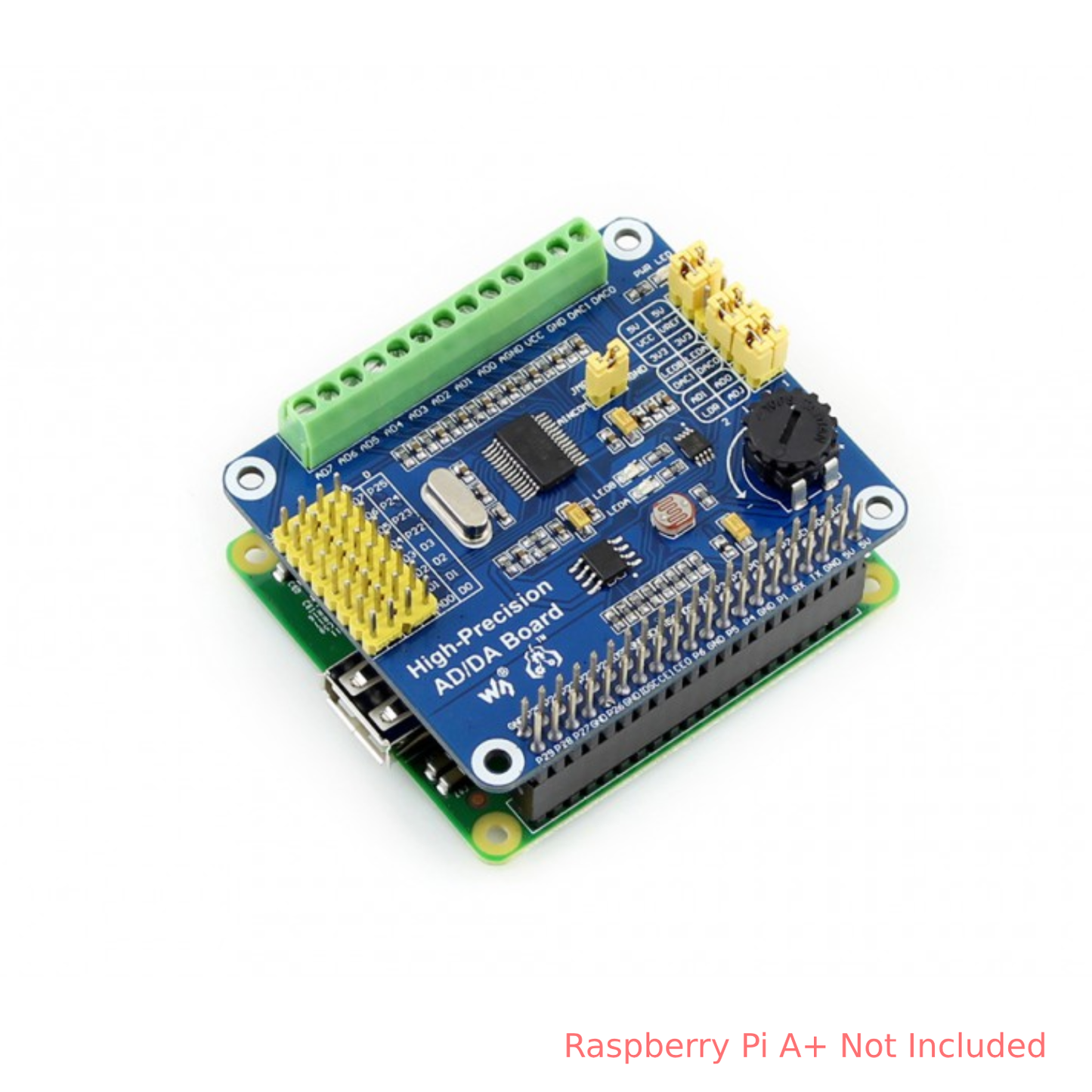

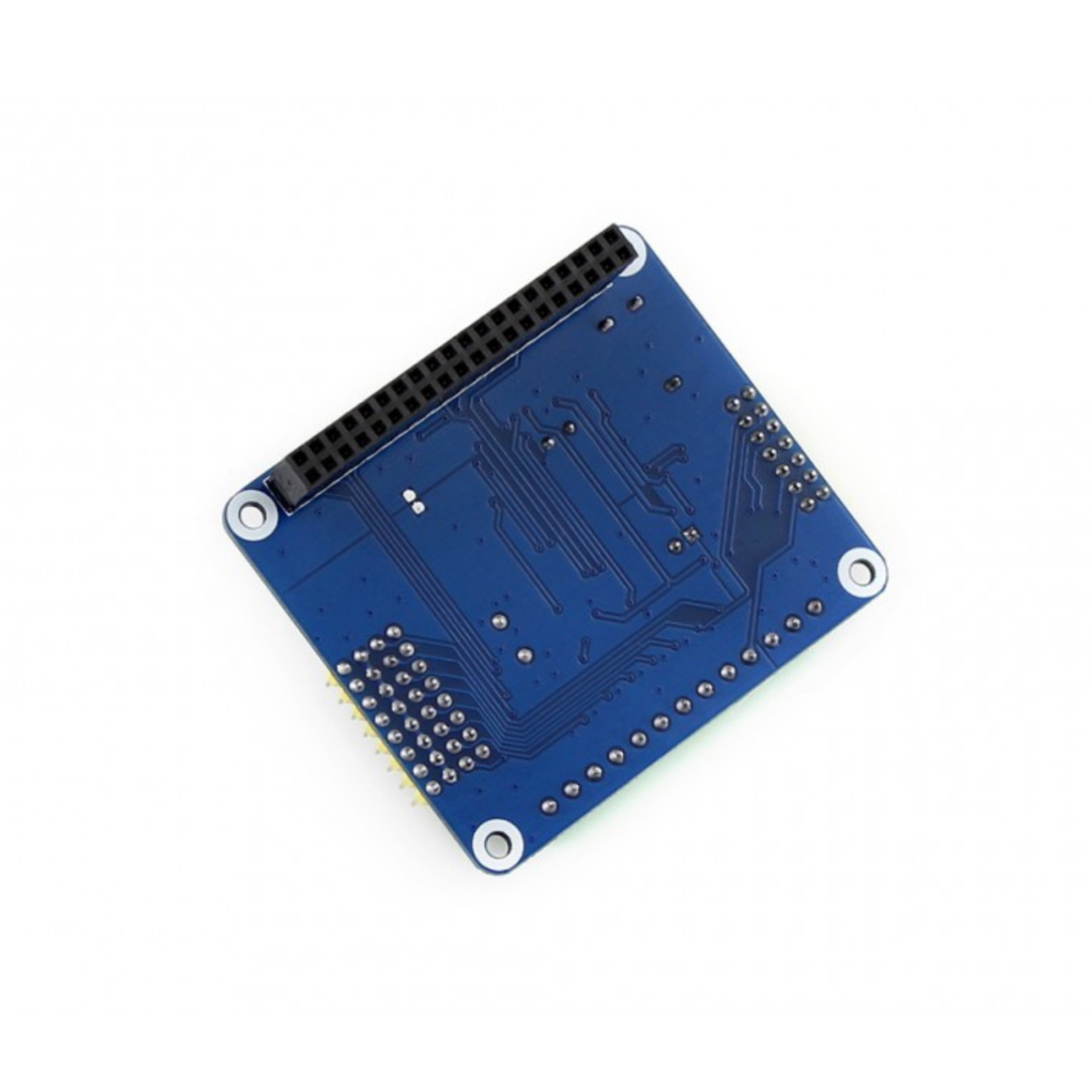

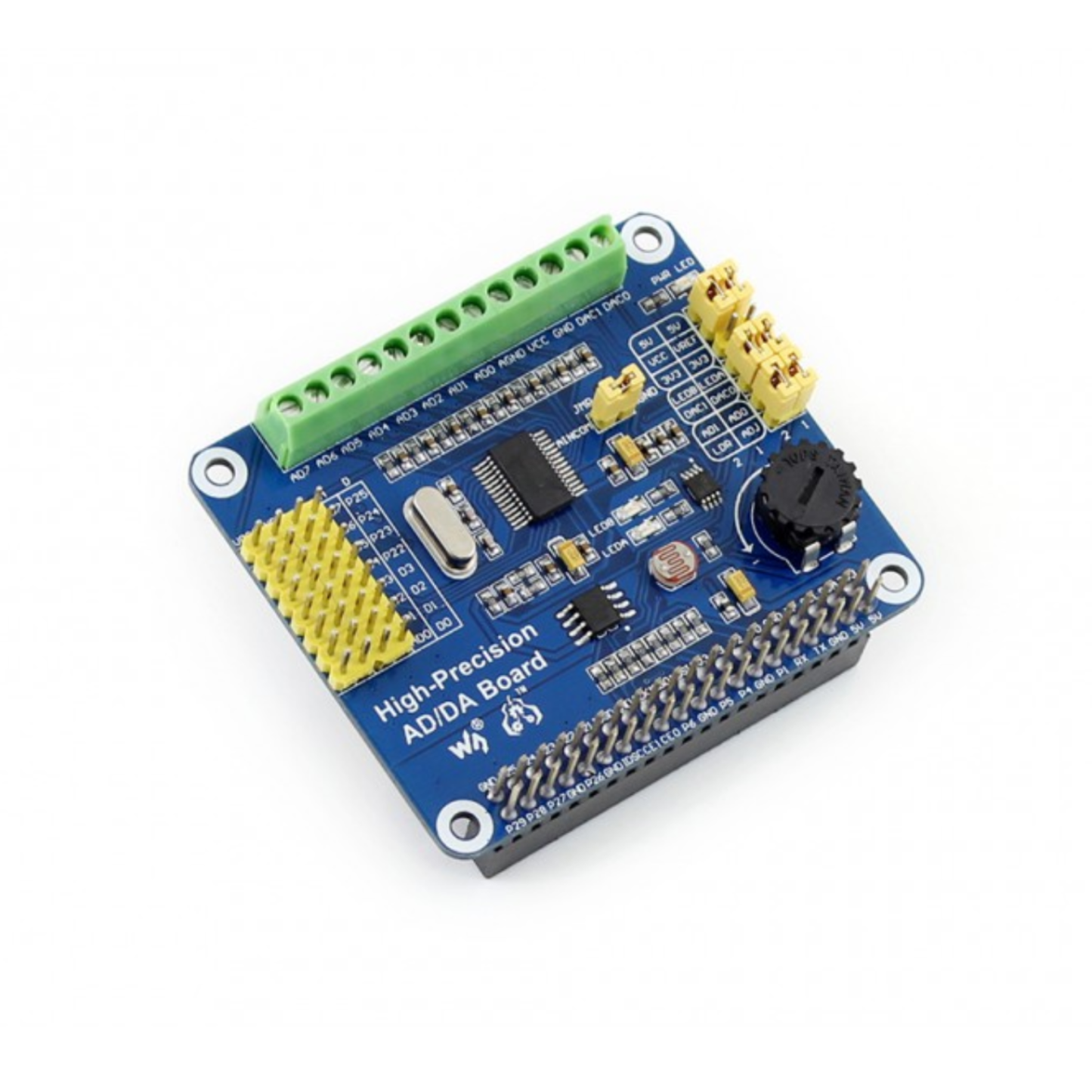

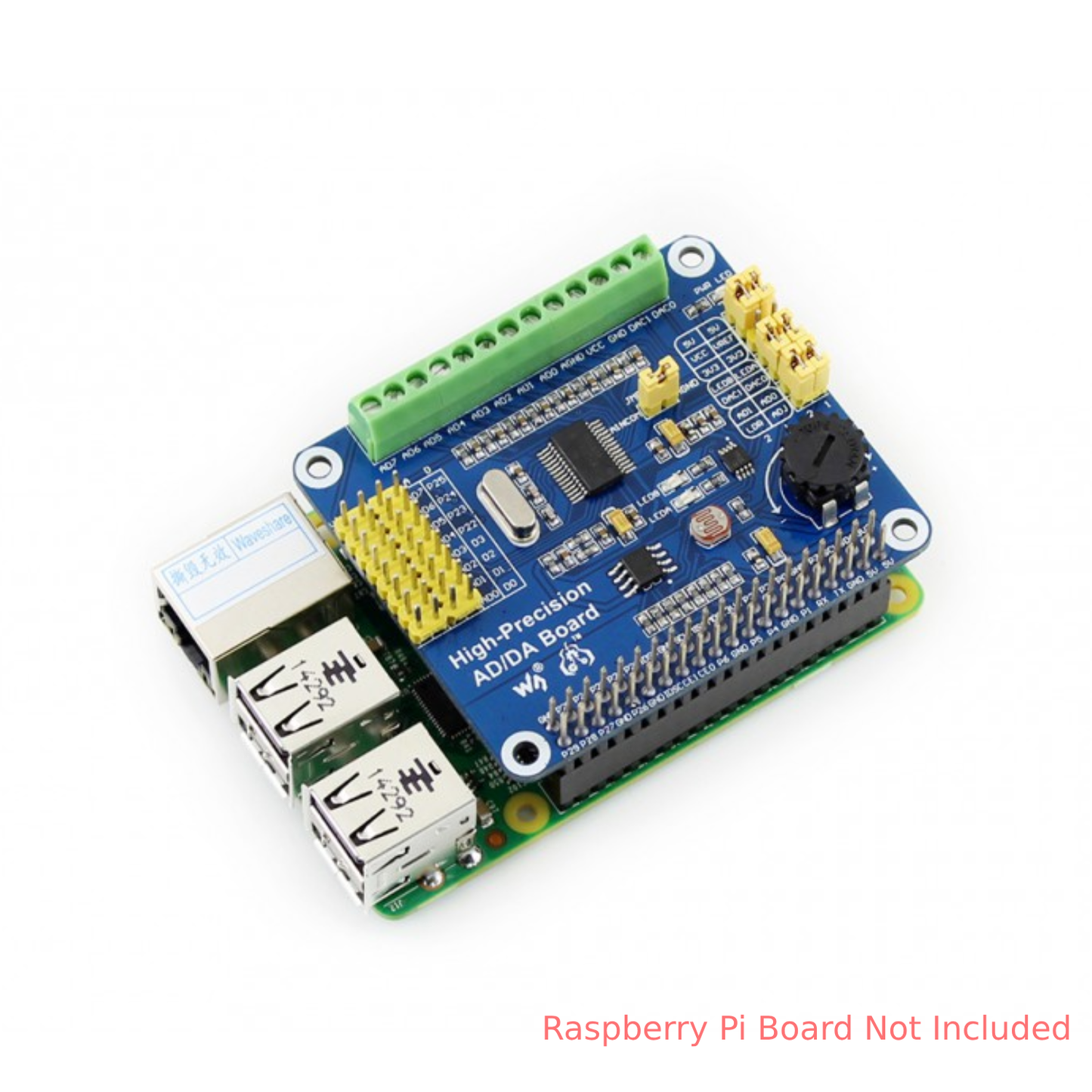

Raspberry Pi AD/DA ADS1256 DAC8552 Sensor Supports Adding High-Precision AD/DA Functions to Raspberry Pi - RS1001

Raspberry Pi AD/DA ADS1256 DAC8552 Sensor Supports Adding High-Precision AD/DA Functions to Raspberry Pi - RS1001

SKU:RS1001

In stock

Regular price Rs. 7,970.00
Regular price Sale price Rs. 7,970.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
  • Onboard ADS1256, 8ch 24bit high-precision ADC (4ch differential input), 30ksps sampling rate
  • Onboard DAC8552, 2ch 16bit high-precision DAC

Description:

There's no AD/DA function on the Raspberry Pi GPIO interface, this may trouble you in the Pi development. However, it won't be a problem anymore. The High-Precision AD/DA Board allows you to add high-precision AD/DA functions to the Raspberry Pi.

Features:

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
  • Onboard ADS1256, 8ch 24bit high-precision ADC (4ch differential input), 30ksps sampling rate
  • Onboard DAC8552, 2ch 16bit high-precision DAC
  • Onboard input interface via pin-headers, for connecting analog signal
  • Onboard input/output interface via screw terminals, for connecting analog/digital signal
  • Features AD/DA detect circuit, easy for signal demonstration

Pin Description :

PIN SYMBOL DESCRIPTION
1, 17 3.3V Power supply (3.3V)
2, 4 5V Power supply (5V)
3, 5, 7, 8, 10, 18, 22, 24, 26, 27, 28, 29, 32, 36, 38, 40 NC NC
6, 9, 14, 20, 25, 30, 34, 39 GND Ground
11 DRDY ADS1256 data ready output, low active
12 RESET ADS1256 reset input
13 PDWN ADS1256 sync/power off input, low active
15 CS0 ADS1256 chip select, low active
16 CS1 DAC8552 chip select, low active
19 DIN SPI data input
21 DOUT SPI data output
23 SCK SPI clock
31, 33, 35, 37 GPIO extend to sensor interface

Package Included:

1 x Raspberry Pi AD/DA ADS1256 DAC8552 Sensor Supports Adding High-Precision AD/DA Functions to Raspberry Pi
