Description:

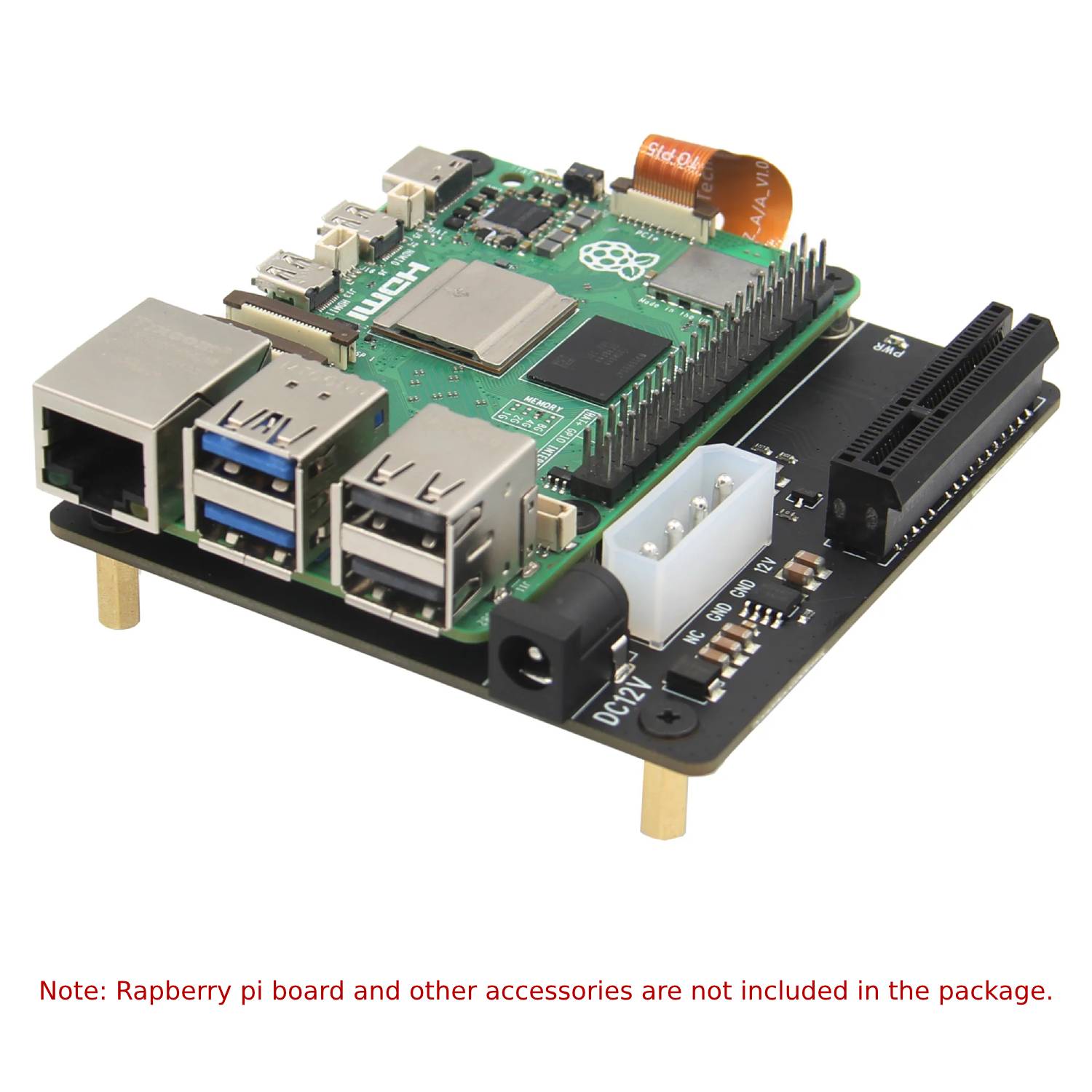

Unlock the full potential of your Raspberry Pi 5 with the X1010 PCIe expansion board. This board provides a standard PCIe x4 slot, allowing you to connect a wide range of add-on cards, including graphics cards (GPUs), RAID controllers, USB expansion cards, high-speed Ethernet adapters, Wi-Fi cards, and even SSDs.

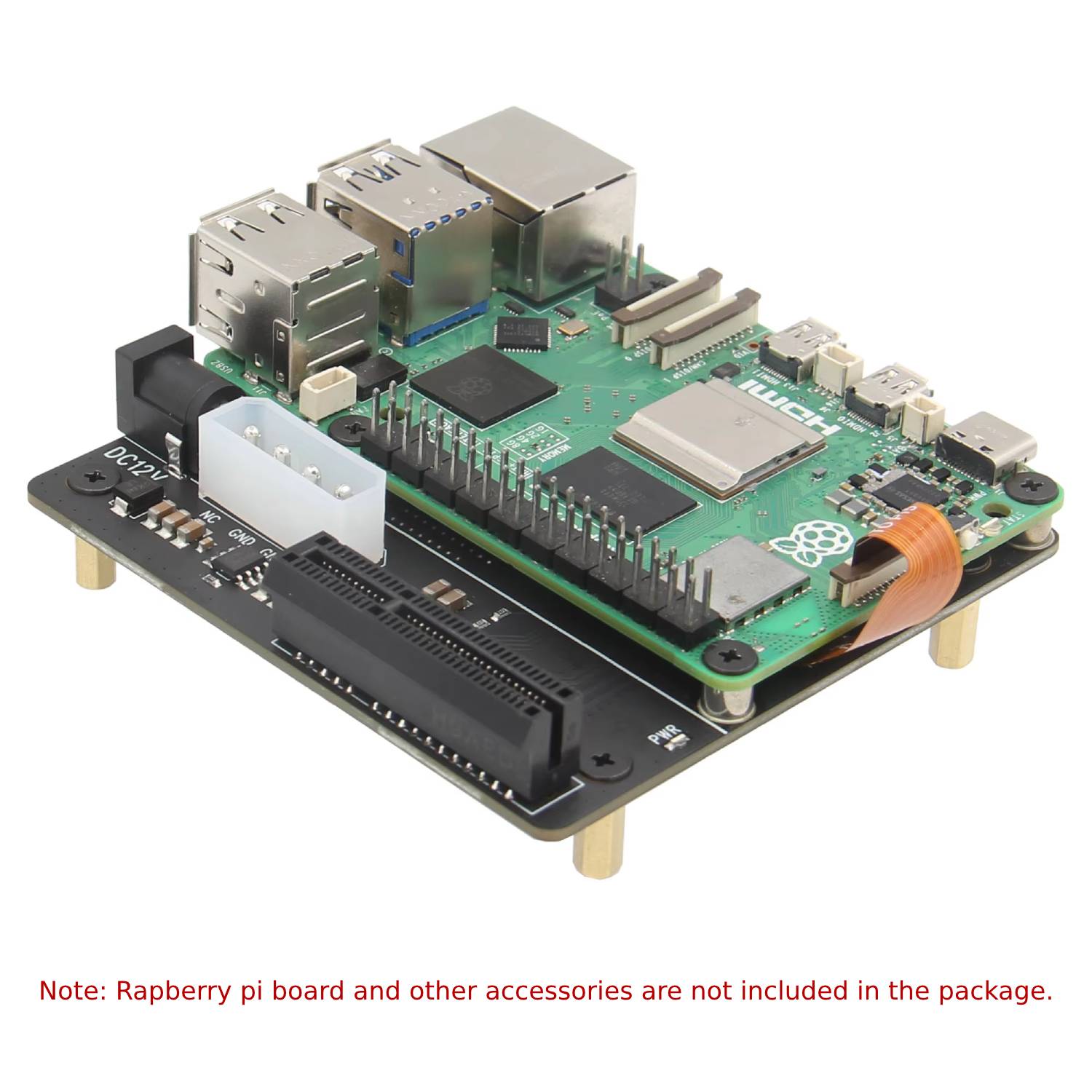

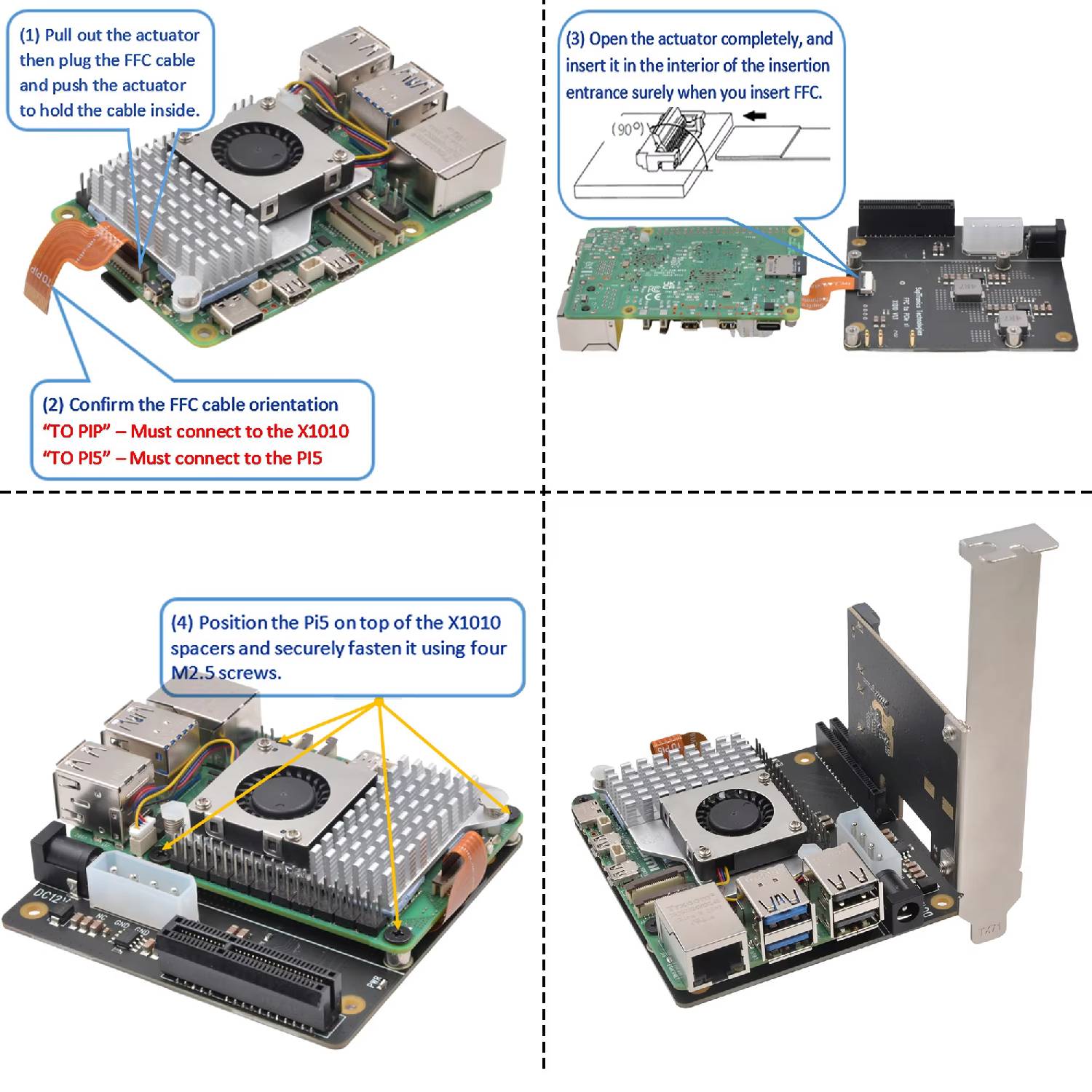

The X1010 offers versatile power input options with a standard DC jack and an ATX 4-pin peripheral connector, and its efficient DC/DC converters deliver up to 5.5A for the Pi 5 and 3.3V at 5.5A for the PCIe device. Designed for seamless integration, the X1010 connects to the underside of the Pi 5, maintaining full compatibility with your existing HATs.
Specifications:
- Model: X1010
- Connector Type: PCIe 2.0×1 FFC connector to standard PCIe x4 slot
Features:
- Pi 5 Compatible: Designed for Raspberry Pi 5.
- PCIe x4 Expansion: Converts the Pi 5's PCIe FFC connector to a standard PCIe x4 slot.
- Auto PCIe Detection: Automatically detects connected PCIe devices at boot.

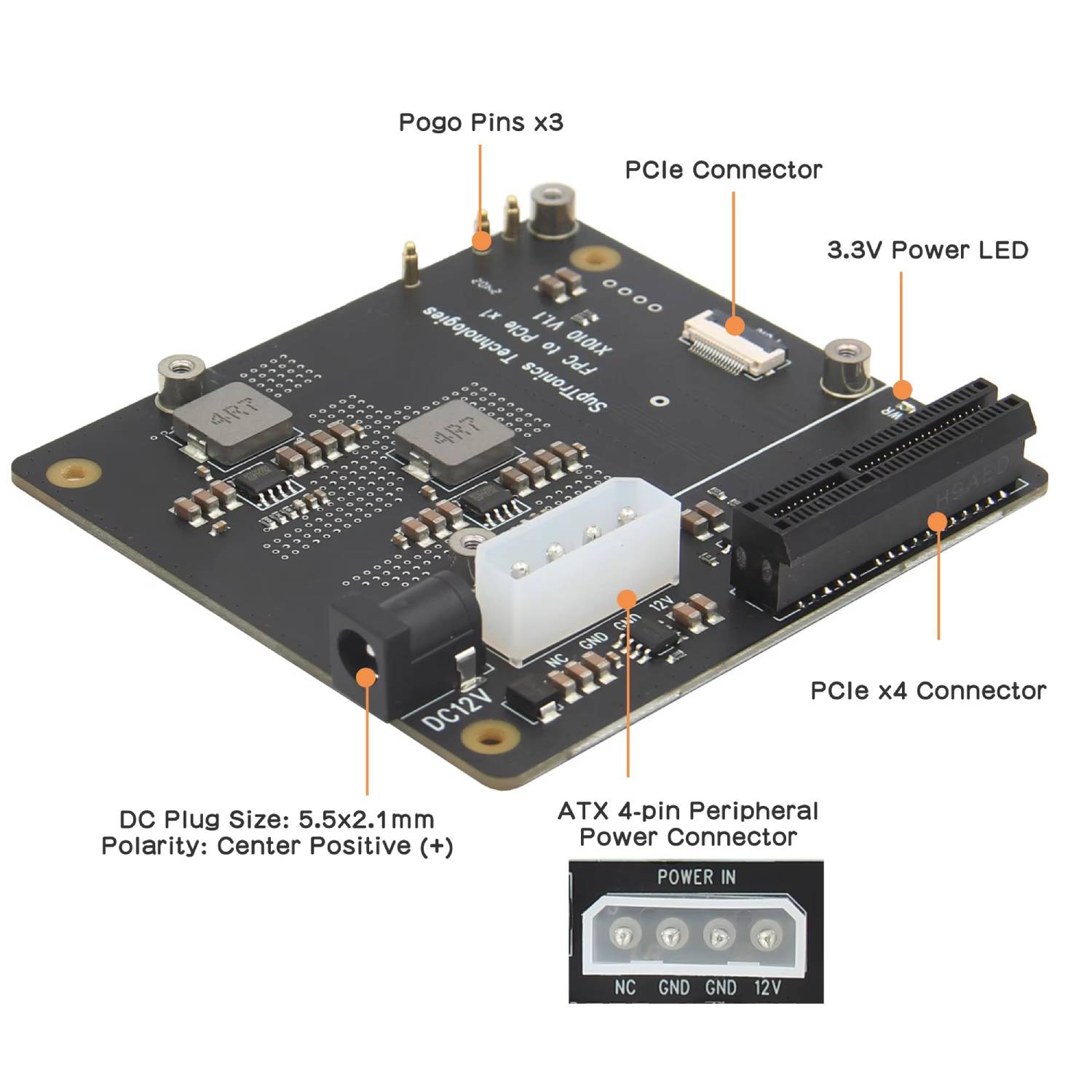

- Flexible Powering: Accepts 12V DC via DC jack or ATX 4-pin connector.
- Streamlined Power Delivery: Powers the Pi 5 via pogo pins from the same power source.
- High-Efficiency Power: Provides up to 5.5A for the Raspberry Pi 5.
- HAT+ Standby Compatible: Automatically powers off PCIe devices when the Pi 5 shuts down

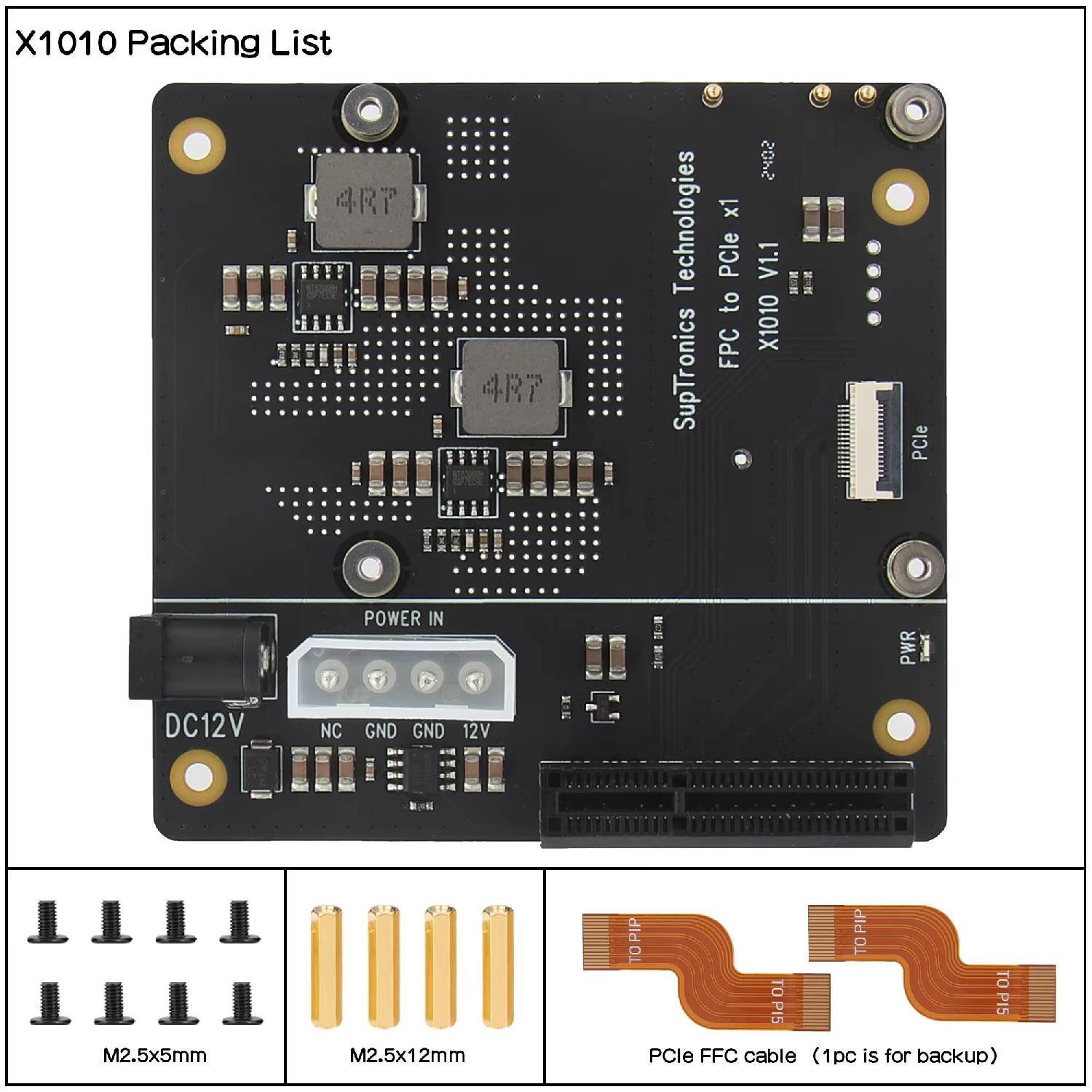

Package Included:
1 x Raspberry Pi 5 PCIe x4 Expansion Board X1010
