Description:

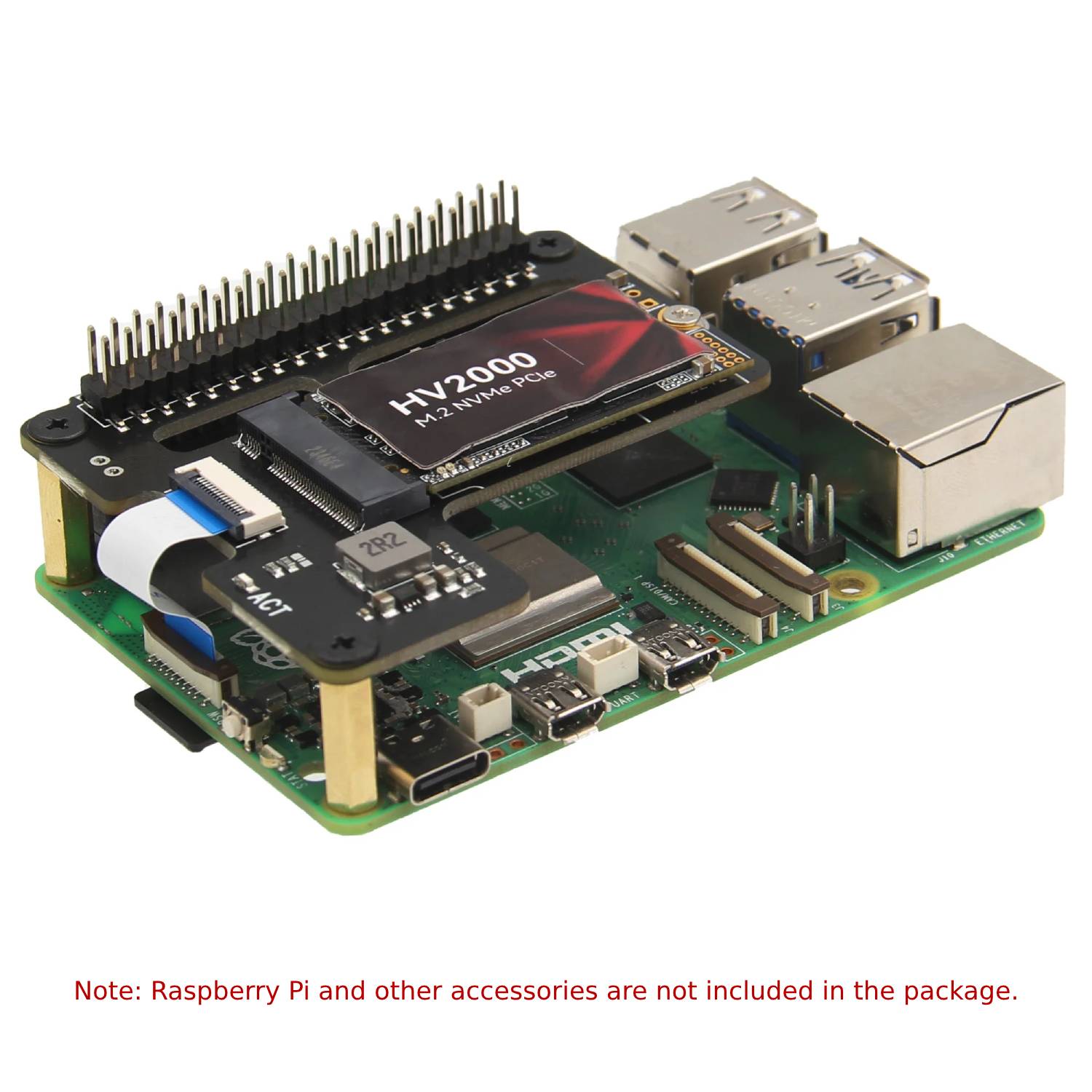

This hardware kit simplifies the installation of M.2 NVMe SSDs with PCIe shields on your Raspberry Pi 5. It includes a variety of copper spacers and screws to ensure compatibility with different shield designs and SSD sizes.
The kit features four copper pillar lengths: 17mm (for 2280 NVMe SSDs), 15mm (for 2230/2242 SSDs), 6mm, and 5mm. Both male/female and female/female threaded options are included for increased installation flexibility. The 15mm spacers are designed to provide adequate clearance for most heatsinks, including the official Active Cooler and Argon THRML cooler, which require approximately 14mm of space.
Specifications:
- Model: X1000
- Model Type: NVMe
- Connector Type: USB
Features:
- Complete Mounting Kit: Provides spacers and screws for Raspberry Pi 5 PCIe to M.2 NVMe shields.
- Versatile Spacers: Includes 17mm, 15mm, 6mm, and 5mm copper spacers with male/female and female/female options.
- Optimized for NVMe SSDs: 17mm spacers for 2280 SSDs; 15mm spacers for 2230/2242 SSDs and heatsink clearance (e.g., Active Cooler, Argon THRML).

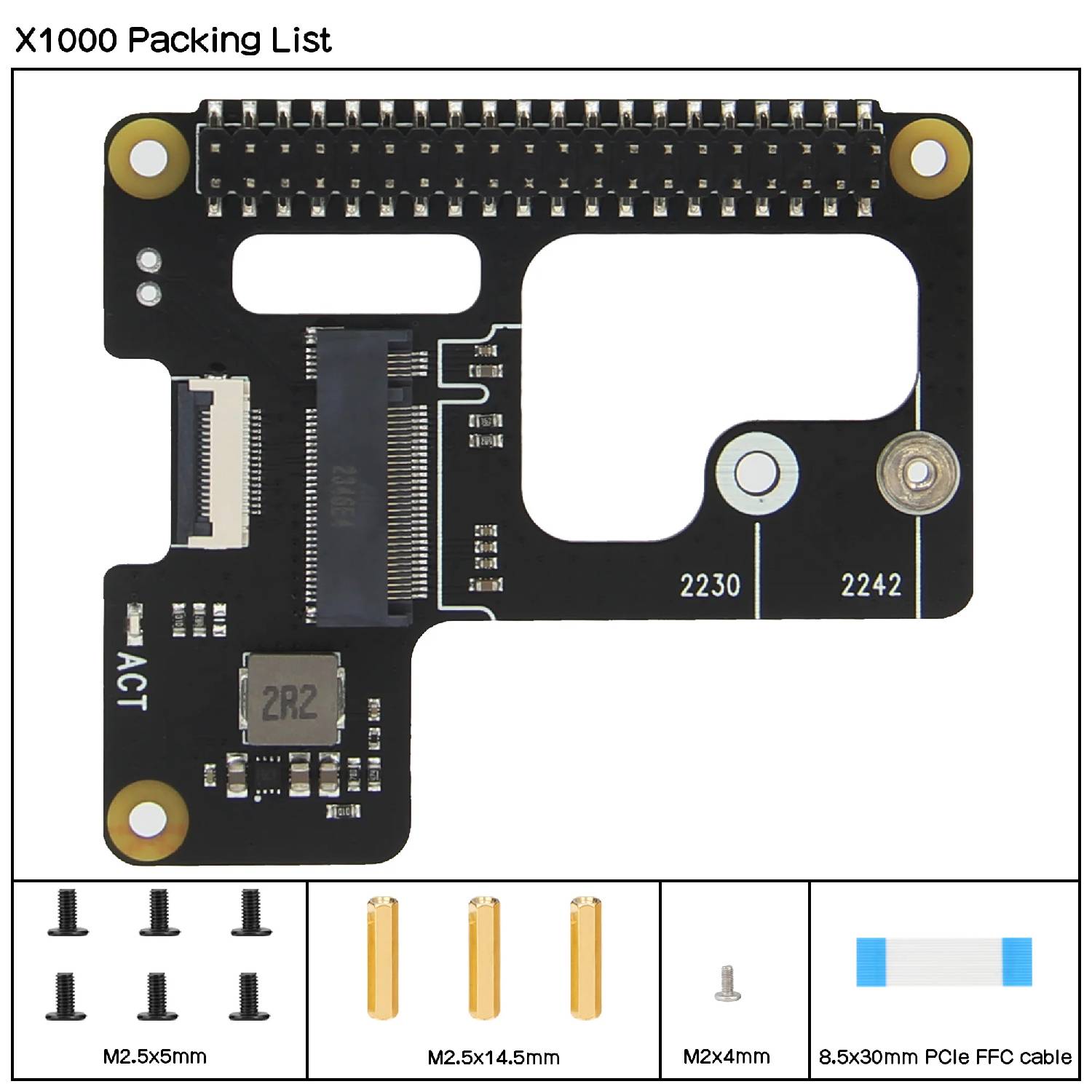

Package Included:

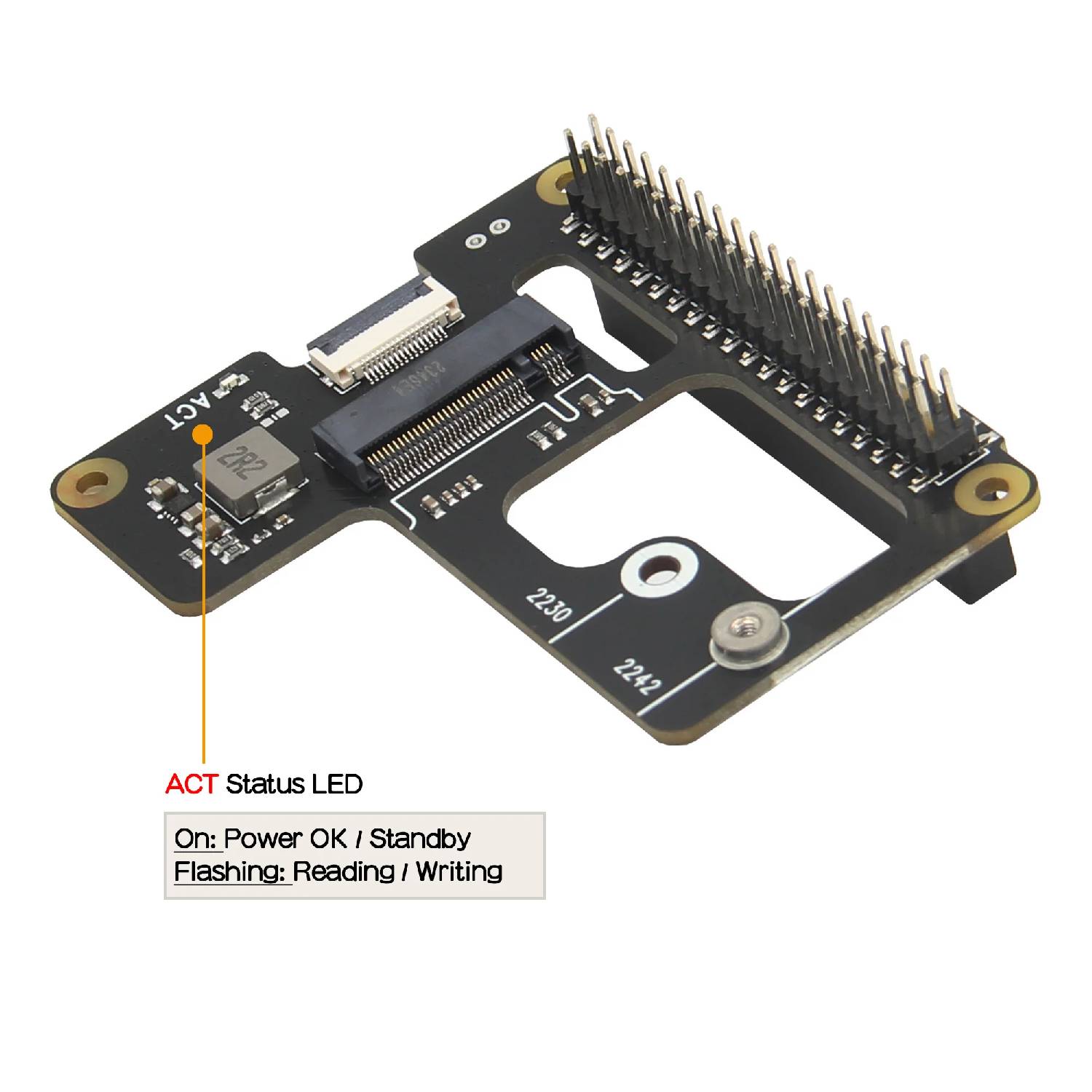

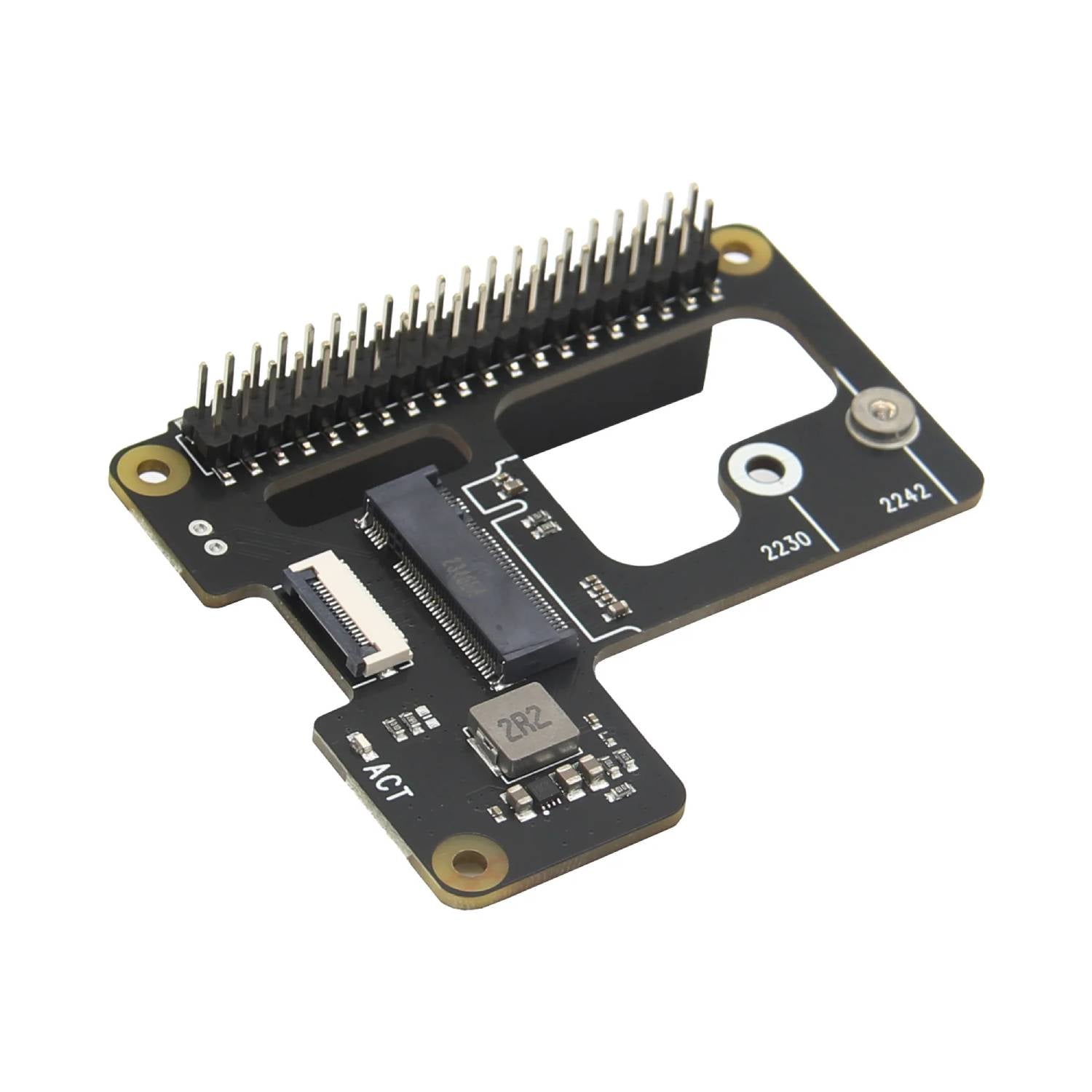

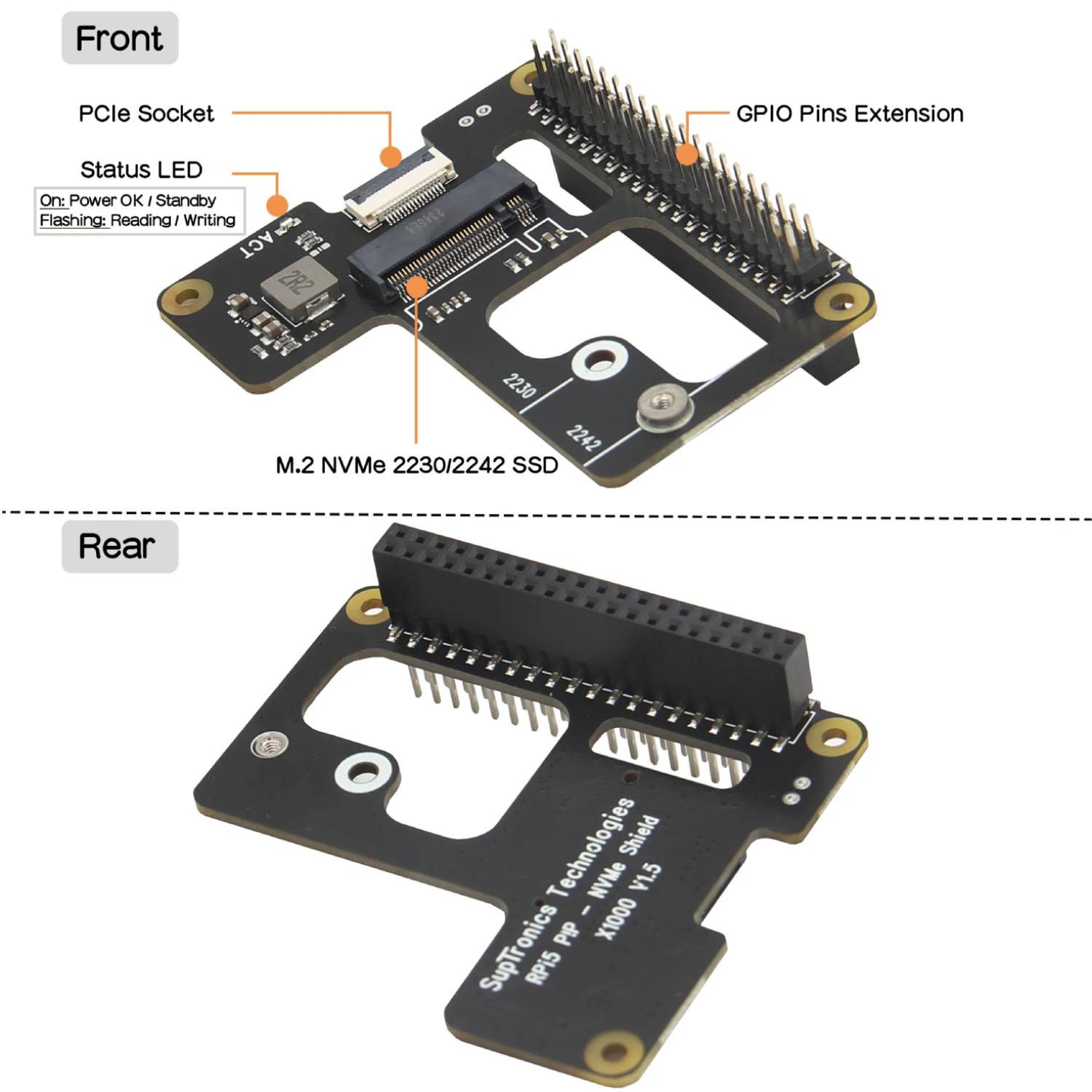

1 x Raspberry Pi 5 M.2 NVMe SSD Adapter X1000
