Description:

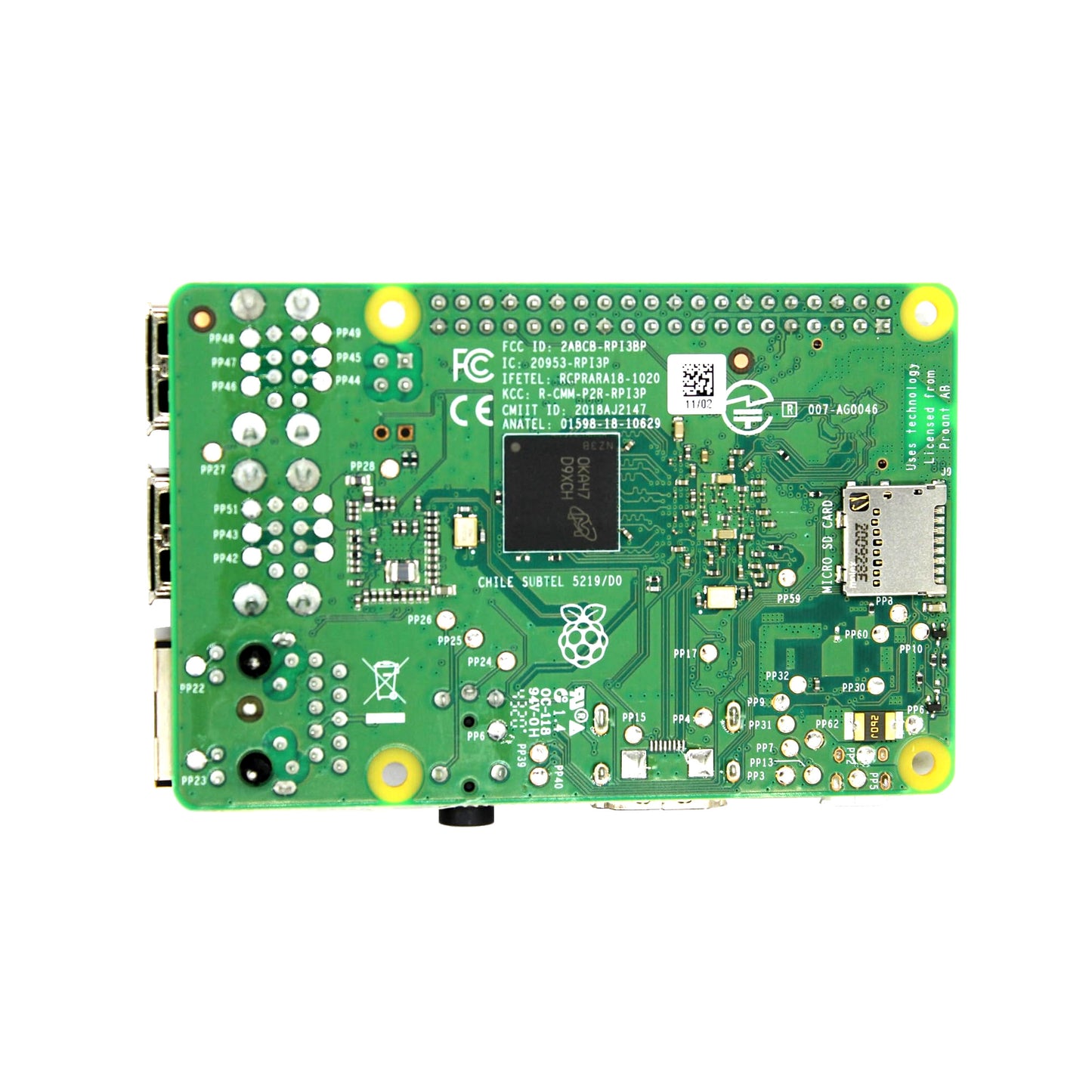

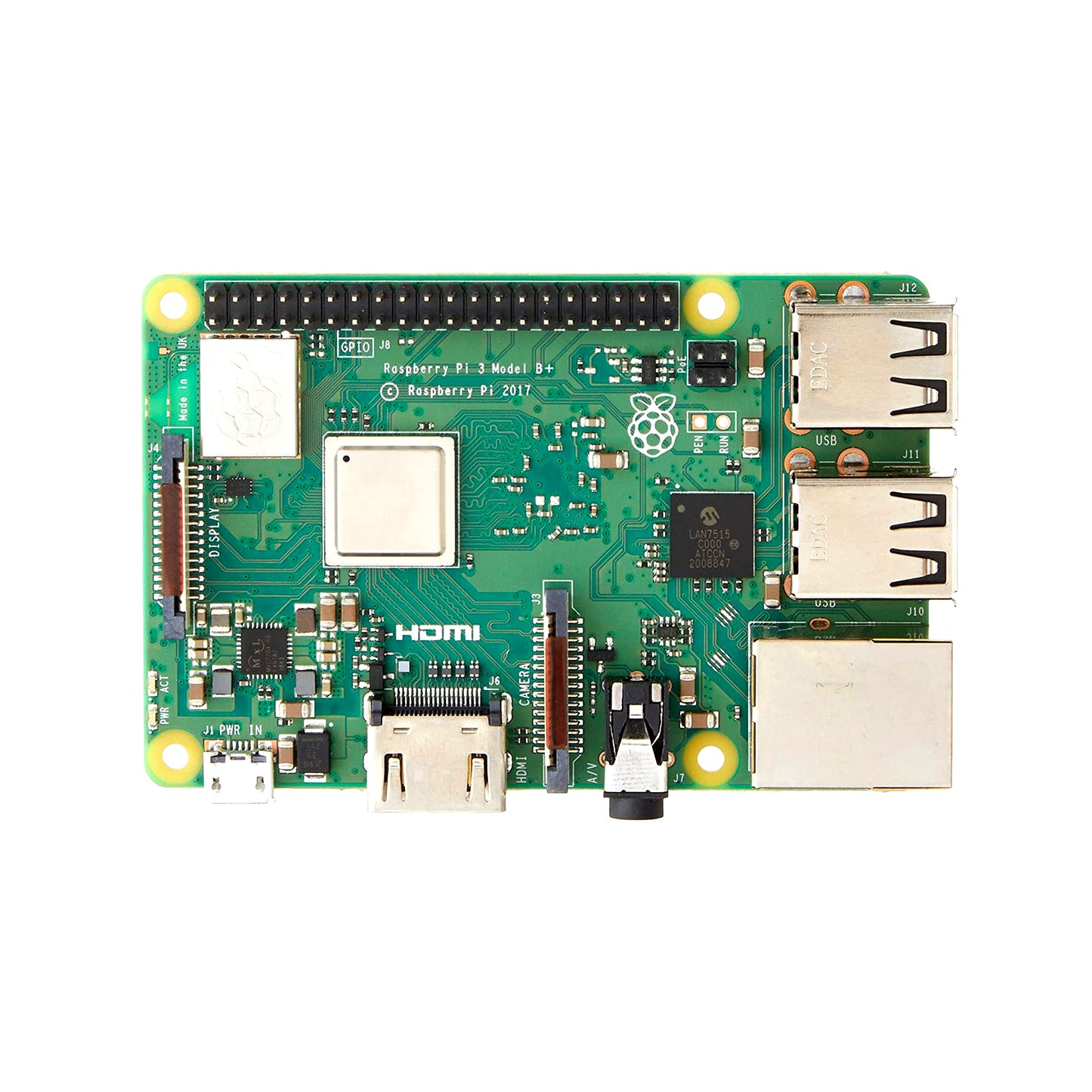

The Raspberry Pi 3 Model B+ is the latest product in the Raspberry Pi 3 range, boasting a 64-bit quad-core processor running at 1.4GHz, dual-band 2.4GHz and 5GHz wireless LAN, Bluetooth 4.2/BLE, faster Ethernet, and PoE capability via a separate PoE HAT. The dual-band wireless LAN comes with modular compliance certification, allowing the board to be designed into end products with significantly reduced wireless LAN compliance testing, improving both cost and time to market. The Raspberry Pi 3 Model B+ maintains the same mechanical footprint as both the Raspberry Pi 2 Model B and the Raspberry Pi 3 Model B.
Built on the latest Broadcom 2837 ARMv8 64-bit processor, Raspberry Pi 3 Model B+ is faster and more powerful than its predecessors. It has improved power management to support more powerful external USB devices and now comes with built-in wireless and Bluetooth connectivity. To take full advantage of the improved power management on the Raspberry Pi 3 and provide support for even more powerful devices on the USB ports, a 2.5A adapter is required.
Specifications & Features:
- Broadcom processor - BCM2837B0, Cortex 64-bit SoC @1.4GHz
- 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
- Improved thermal management
- Faster Ethernet (Gigabit Ethernet over USB 2.0, maximum throughput of 300Mbps)
- Power over Ethernet (PoE) enabled RJ45, giving PoE capability via new PoE HAT
- 1GB RAM
- 40-pin Extended GPIO

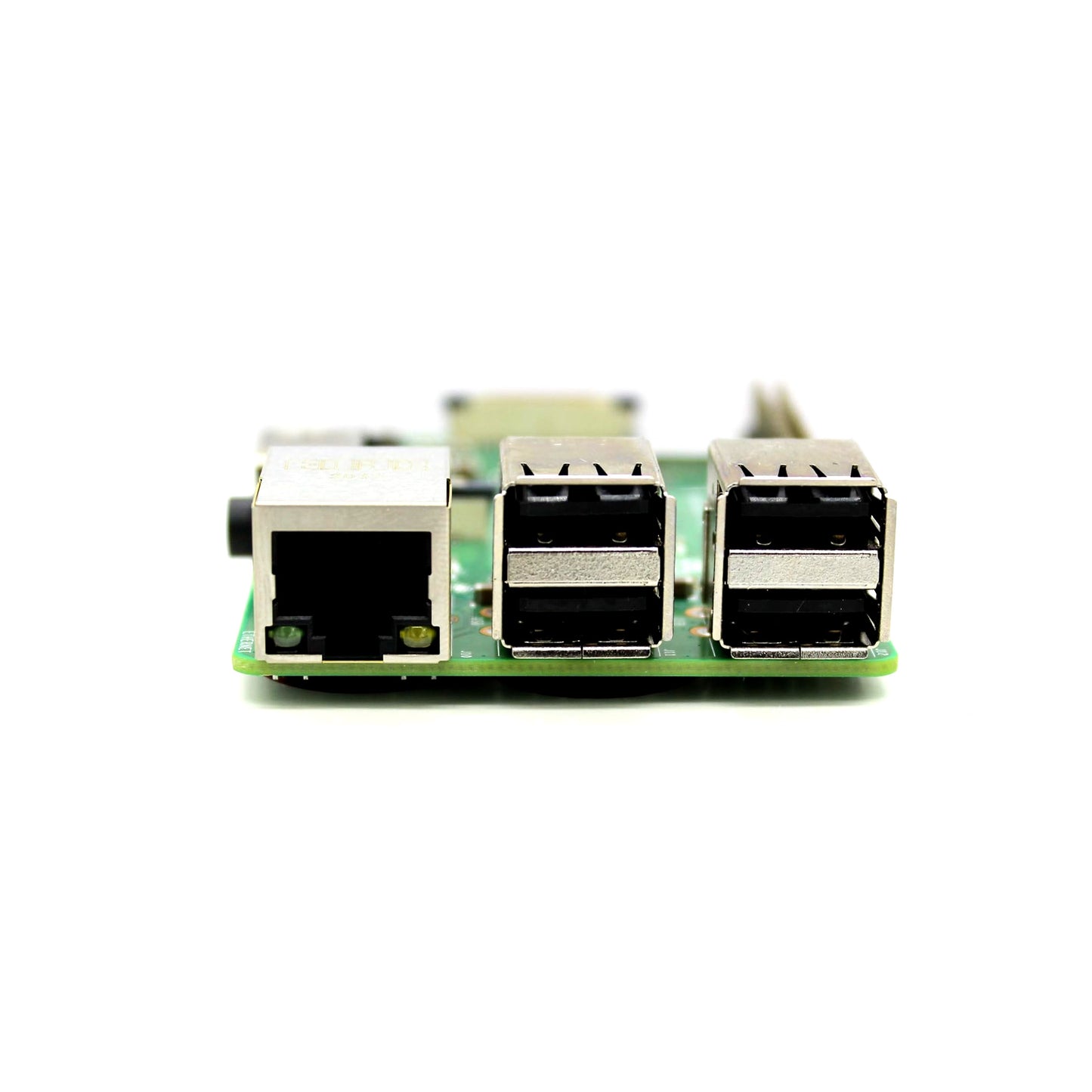

- 4x USB 2 ports
- 4 Pole stereo output and composite video port
- Full-size HDMI
- CSI camera port for connecting a Raspberry Pi camera
- DSI display port for connecting a Raspberry Pi touchscreen display
- Micro SD port for loading your operating system and storing data
Key Improvements from Pi 3 Model B to Pi 3 Model B+:
- Improved compatibility for network booting and new support for Power over Ethernet
- Processor speed has increased from 1.2 GHz on Pi 3 to 1.4 GHz, with improved thermal management
- New dual-band wireless LAN chip, 2.4GHz and 5GHz with embedded antenna
- Bluetooth 4.2 Low Energy onboard
- Faster onboard Ethernet, up to 300 Mbps!
Software and OS:
Raspberry Pi OS is the recommended operating system for normal use on a Raspberry Pi.
Raspberry Pi Imager is the quick and easy way to install Raspberry Pi OS and other operating systems to a microSD card, ready to use with your Raspberry Pi.
Find help with installing Raspberry Pi OS on your Pi in the online Getting Started guide.
You can browse basic examples to help you get started with some of the software available in Raspberry Pi OS, find more details about Raspberry Pi OS, or read information on fundamental Linux usage and commands for navigating the Raspberry Pi and managing its file system and users
Package Included:
1 x Raspberry Pi 3 Model B+
