Description:
The Raspberry Pi 3 Model A+ delivers big performance in a small footprint. It's a key part of the powerful Raspberry Pi 3 range, perfect for space-constrained applications.
Despite its smaller size, the Pi 3 Model A+ packs serious power! Like the Pi 3 Model B+, it features a 64-bit quad-core 1.4 GHz processor, dual-band 2.4 GHz and 5 GHz wireless LAN, and Bluetooth 4.2/BLE. All this in a tiny 29g board with a 65mm x 52.5mm footprint.
The dual-band wireless LAN on this board features modular compliance certification. This means you can design it into your end products with significantly reduced wireless testing, saving you both time and cost in getting your product to market.
To keep its size and cost down, the Raspberry Pi 3 Model A+ features a single USB port. If you're connecting a keyboard and mouse, we recommend our Official Raspberry Pi Keyboard & Mouse combo (which has a built-in hub to use just one port).
To power up your Raspberry Pi 3 Model A+, ensure you have a compatible Micro-USB power supply.
Specifications:
Processor:
- Broadcom BCM2837B0, Cortex-A53
- 64-bit SoC @ 1.4 GHz
- Memory: 512MB LPDDR2 SDRAM
Connectivity:
- 2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
- 1 × USB 2.0 port
Access:
- Extended 40-pin GPIO header
Video & sound:
- 1 × full-size HDMI
- MIPI DSI display port
- MIPI CSI camera port
- 4 pole stereo output and composite video port
Multimedia:
- H.264, MPEG-4 decode (1080p30);
- H.264 encode (1080p30);
- OpenGL ES 1.1, 2.0 graphics
SD card support:
- Micro SD format for loading operating system and data storage
- Input power: 5 V/2.5 A DC via micro USB connector
- 5 V DC via GPIO header
Environment:
- Operating temperature, 0–50°C
Features:
- Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC @ 1.4GHz
- 512MB LPDDR2 SDRAM
- 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
- Extended 40-pin GPIO header
- Full-size HDMI®
- Single USB 2.0 ports
- CSI camera port for connecting a Raspberry Pi Camera
- DSI display port for connecting a Raspberry Pi Touch Display
- 4-pole stereo output and composite video port
- Micro SD port for loading your operating system and storing data
- 5V/2.5A DC power input
Package Included:

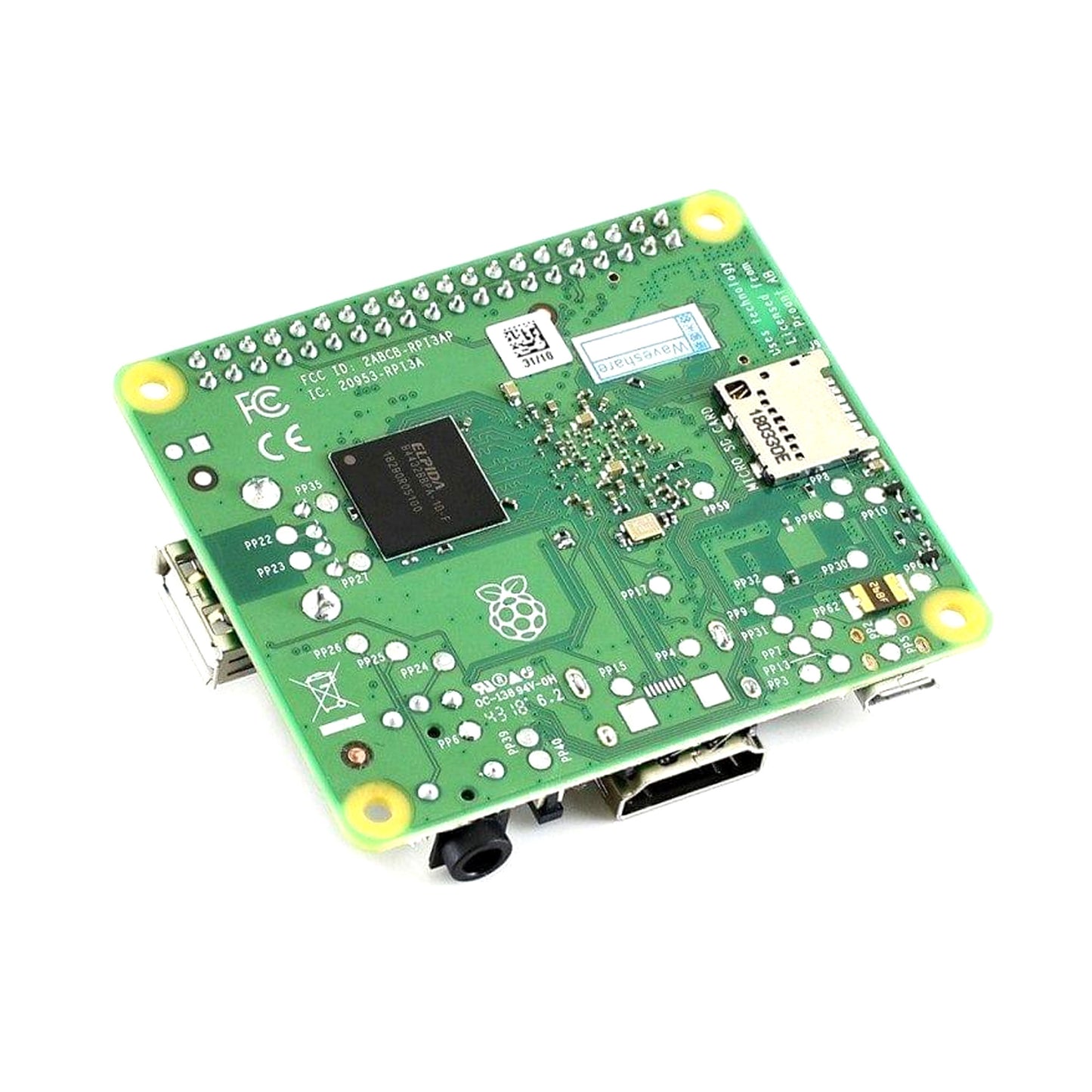

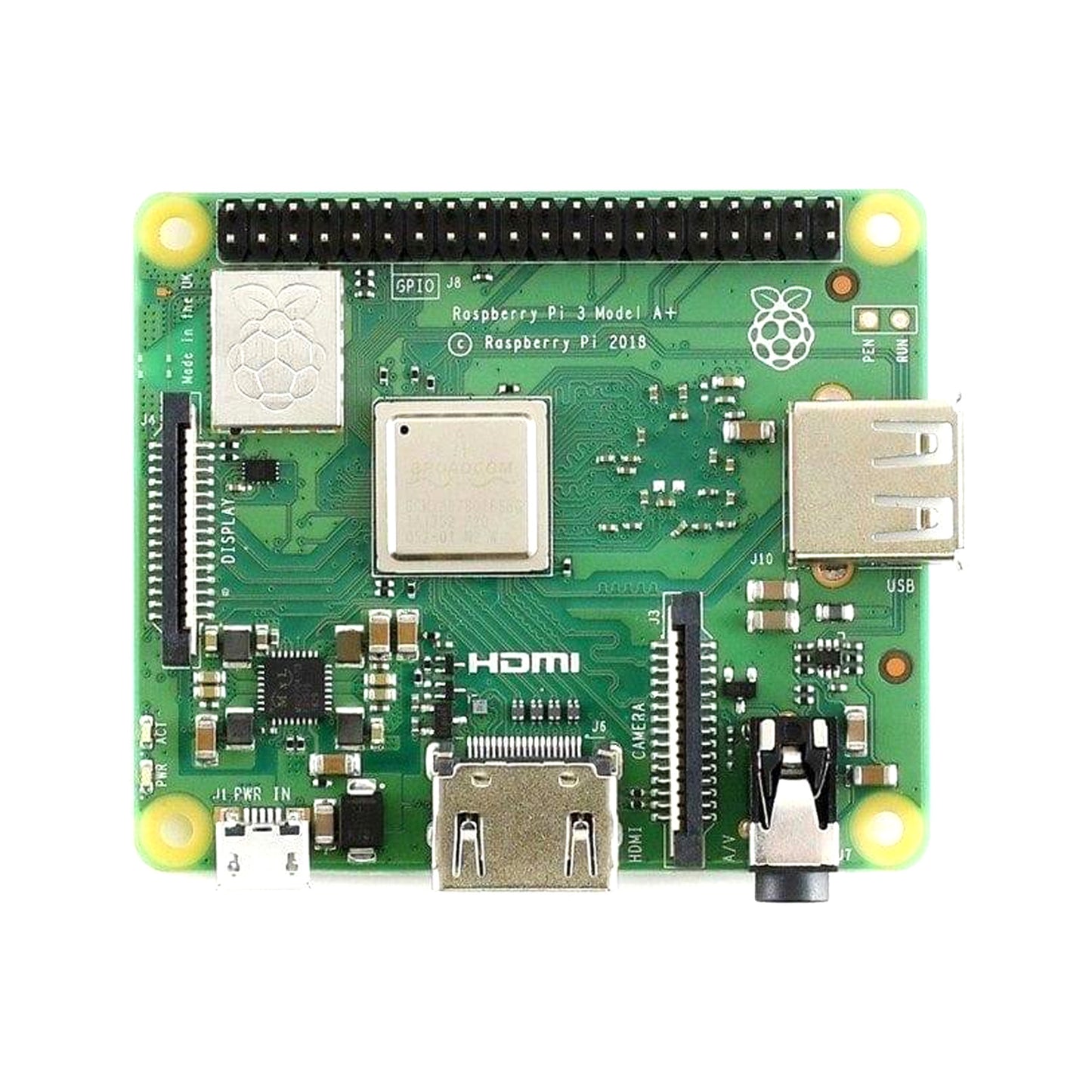

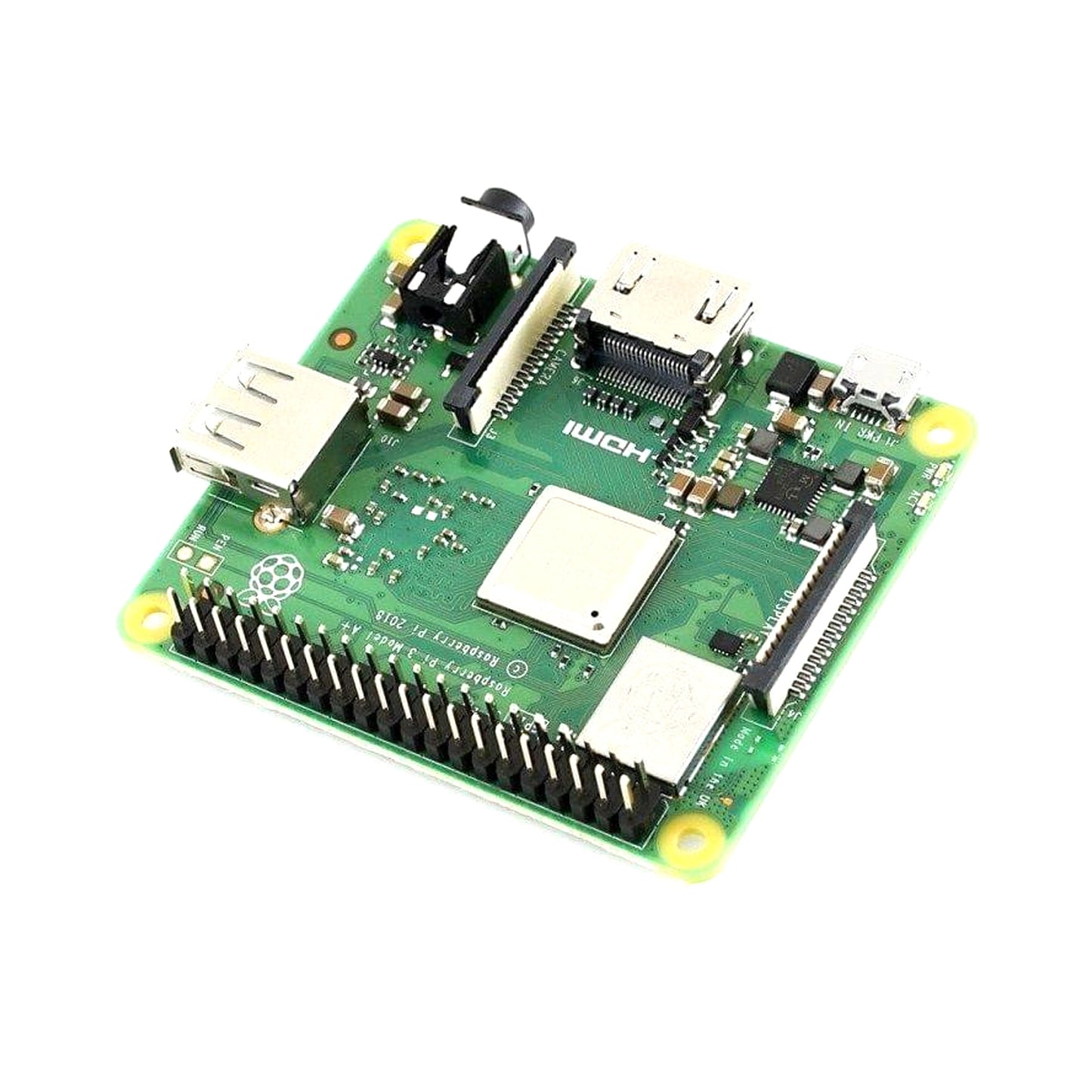

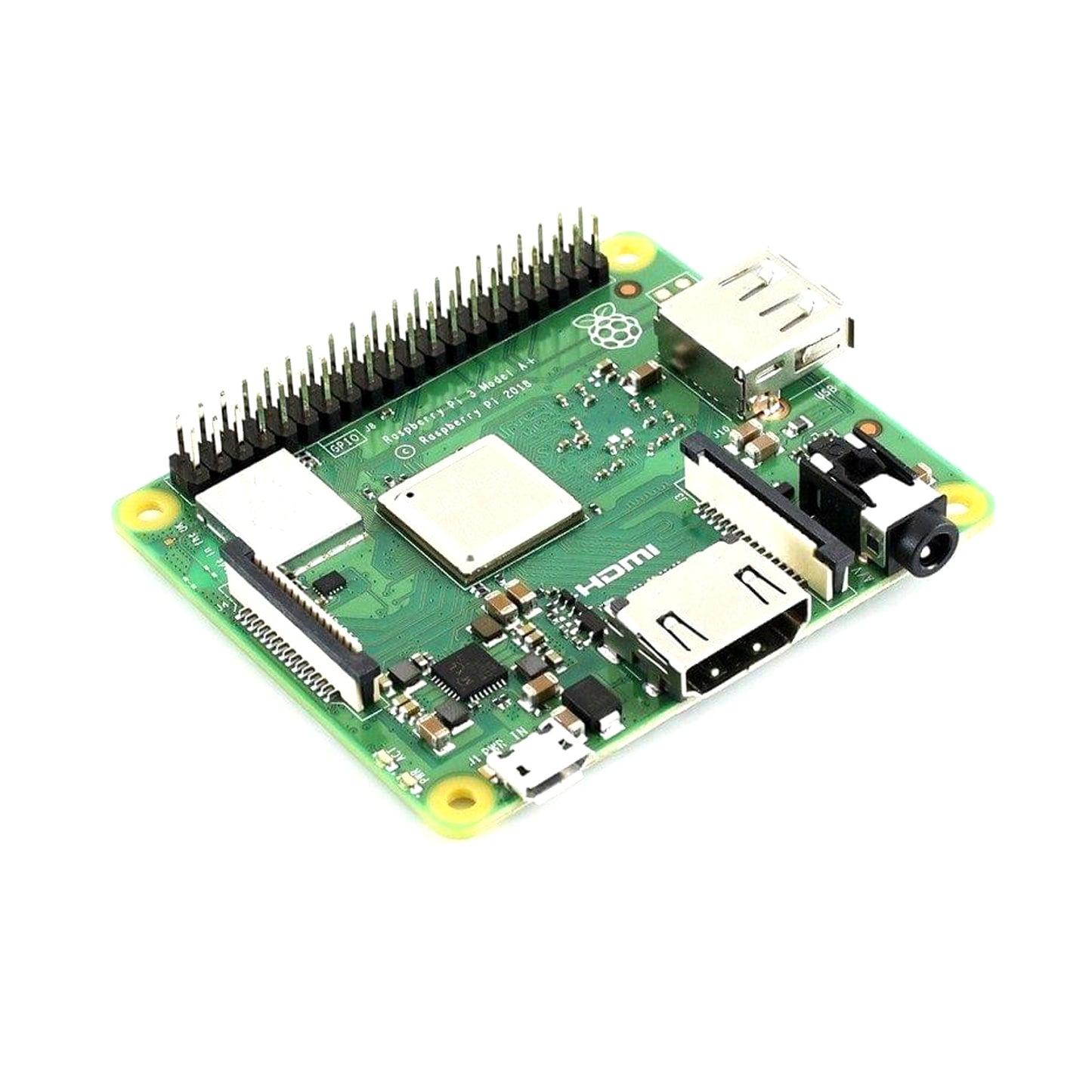

1 x Raspberry Pi 3 A+ Development Board
