Description:
RC6GS V3 Transmitter is an ideal partner for all types of RC cars and boats in the market including single-engine and twin-engine models such as Crawlers, Tanks, Caterpillars, Basher, RC Short-Course Truck, RC Crawler, Drifting, Gasoline RC Cars, Mini RC Car, RC Monster Truck, Off-Road RC Car and other types of RC cars or boats.
RC6GS V3 Transmitter is setting simplicity, Fast Response for 7 Channels, 30 Models Memory Storage, telemetry of Maximum 8S Vehicle Battery Voltage, Dual Mix Programmable Control, Cruise Control, USB upgrade firmware, Throttle Lock, Voltage Protection, ABS and fail-safe protection, 10 Subsidiary ID, outstanding long range up to 600 meters and more features. (Actual control distance is according to the local environment).
Specifications:

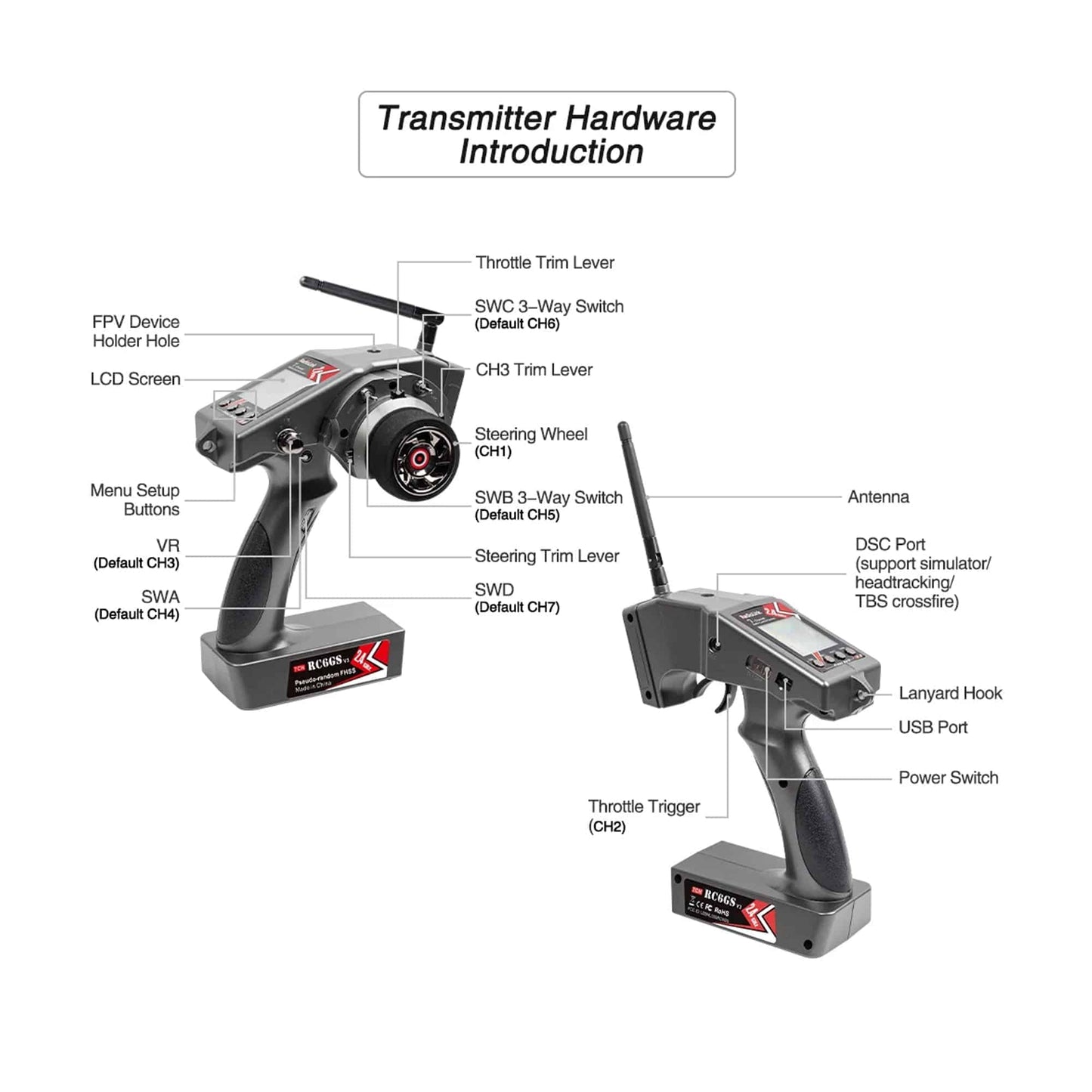

RC6GS V3 Transmitter:
- Channels: 7
- Control Distance: Up to 600 meters
- Model: RC Cars and Boats
- Low Voltage Alert: Yes(Below 4.6V)
- Operating Voltage: 4.8-16.8V DC
- Operating Current: 80mAh-120mAh
- Screen: 128*64 resolution, LCD backlight
- Spread Spectrum: FHSS
- Antenna Length: 106mm
- Frequency: 2.4GHz ISM band (2400MHz-2483.5MHz)
- Battery compartments: 25*97*60mm (JST 2Pin connector)
- Size: 22.4*17.5*11.6cm
- Compatible Receivers: Radiolink R7FG/R8FG/R6FG/R6F/R4FGM/R4F/R8EF/R8FG/R8FGH

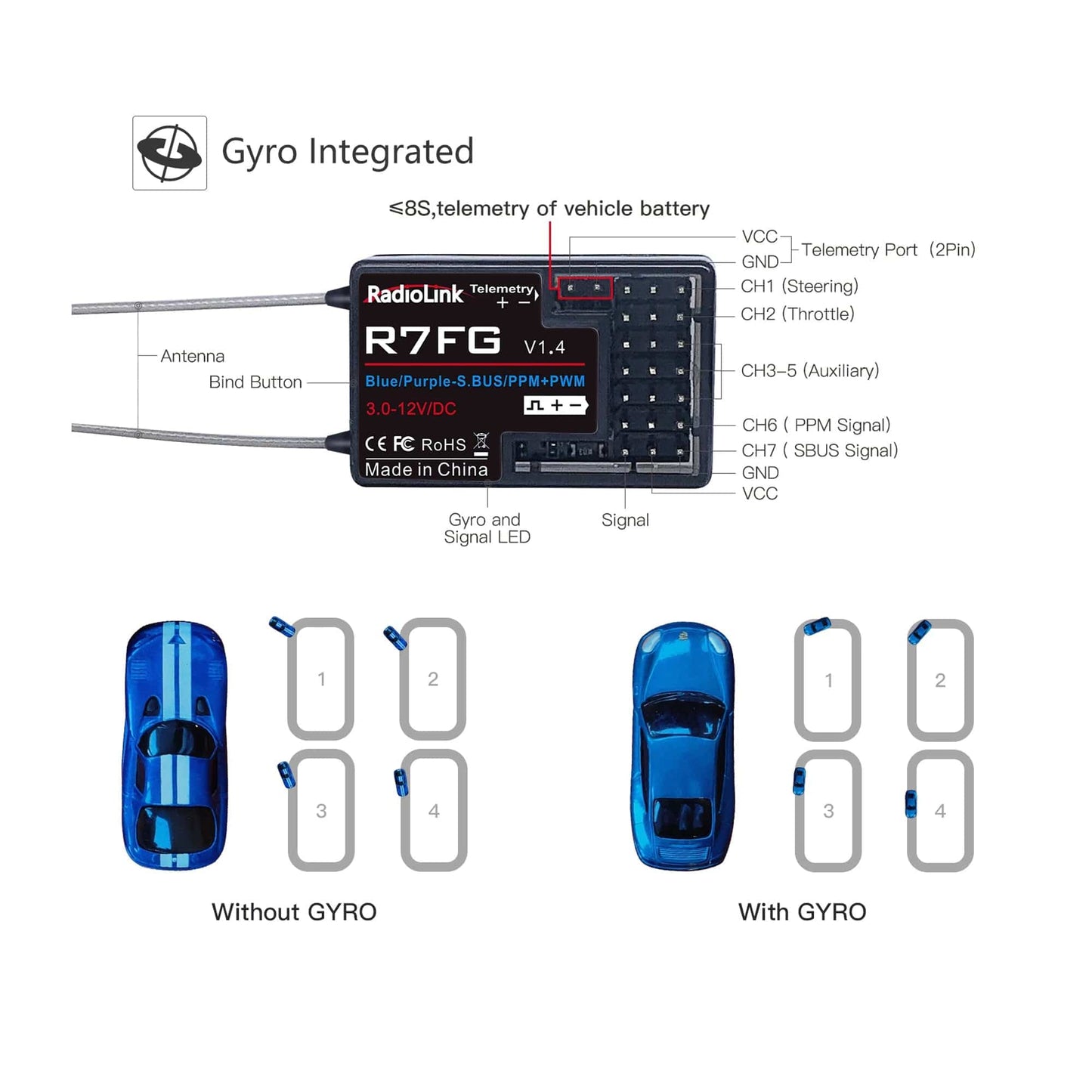

R7FG Receiver:
- Channels: 7
- Gyro inside: Yes
- Control Distance: Over 600 meters
- Waterproof level: IPX4, water splash proof
- Signal output: PPM/PWM/S-BUS, 2.4GHz
- Receiver operating voltage: 3-12V
- Modulation Mode: GFSK
- Antenna Length: 200mm
- RF Power: 10dbm
- Channel resolution: 4096
- Working Current: 30mA
- Applicable model: RC car, boat
- Size: 3.5*1.8*1.5cm
Features:
- Excellent Anti-interference: Real pseudo-random algorithm FHSS communication technology makes RC6GS V3 Transmitter control distance up to 1900 feet (600 meters), and over 20 units of RC6GS V3 Transmitter can work simultaneously in one place without any interference.
- Up to 600M Ground Distance: The control distance is up to 600 meters under the superior anti-interference ability.
- 30 Models Memory Storage: Up to 30 models' memory can be saved and each model can be set up and named separately.
- Dual Programmable Mix Control: Mix control can be programmed with any two channels and each mix control can be turned on by one switch. That's friendly for twin-engine vehicles, such as tanks, boats, and 4-wheel steering cars.
- Throttle & Steering Dual Rate: Support one switch to activate the servo deviations.
- Two-way Transmission Return: Real-time signal strength, RX battery voltage and vehicle battery voltage(telemetry of maximum 8S)can be displayed on the radio screen. (Only support works with radiolink R7FG or R8F receiver).
- Built-in Gyro: R7FG built-in gyro can keep the vehicle running in a straight line, and Gyro sensitivity can be adjusted by the transmitter, which fits for drifting and on-road cars.
- Timer Function: The timer allows you to grasp the lap and complete track results in time to help you train yourself before the race.
- Customized Channels: CH3-CH7 can be customized to VR, three-way switch and tact switch, the tact switch can be used for cruise control mode, a good idea for the crawler, and all channels' fail-safe values can be set to any value as you need.
- 3 Advanced Entertainment Modes: The DSC port support connect simulator, head tracking and TBS crossfire, will bring you a more diverse experience.
- Reverse Polarity Protection: Anti-polarity connect protection technology to keep your transmitter safe even if you accidentally connect the wrong positive and negative poles. JST connector supports multiple batteries: liPo or 6*AA. (NOT INCLUDED).
Package Included:
- 1 x RC6GS V3 Transmitter
- 1 x R7FG Receiver
- 1 x XT60 Telemetry Cable
- 1 x Neck Lanyard
- 1 x User Manual
