Description:

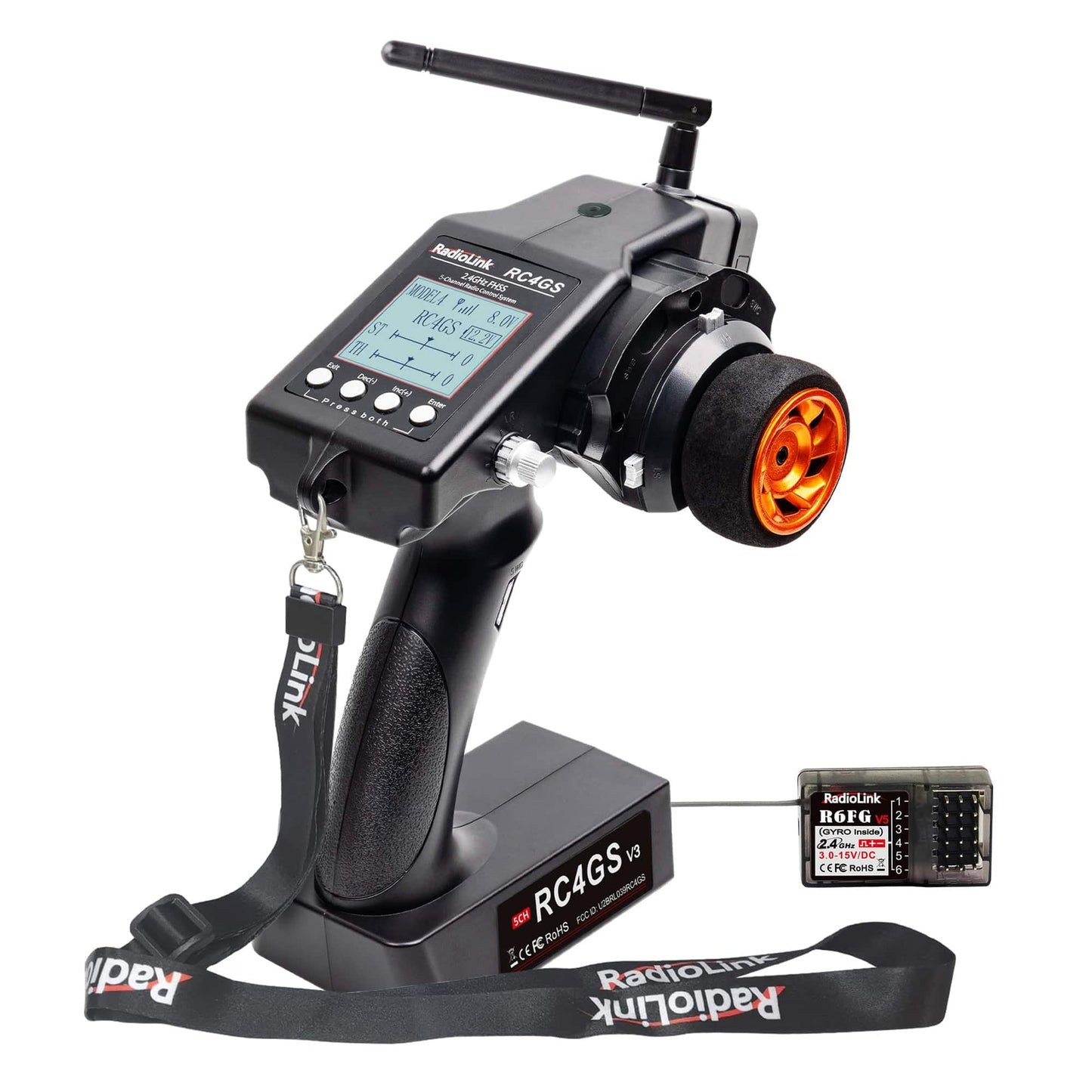

RC4GS V3 RC Transmitter is an ideal partner for all types RC cars and boats in the market including single-engine and twin-engine models such as Crawlers, Tanks, Caterpillars, Basher, RC Short-Course Truck, RC Crawler, Drifting, Gasoline RC Car, Mini RC Car, RC Monster Truck, Off-Road RC Car and other types of RC cars or boats.
RC4GS V3 RC Transmitter is setting simplicity, Fast Response for 5 Channels, 30 Models Memory Storage, Dual Mix Programmable Control, Cruise Control, USB upgrade firmware, Throttle Lock, Voltage Protection, ABS and fail-safe protection, 10 Subsidiary ID, outstanding long range up to 400 meters and more features. (Actual control distance is according the local environment).
Specifications:
Radiolink RC4GS V3 RC Transmitter:
- Channels: 5
- Model: RC cars and boats
- Control Distance: Up to 400 meters
- Spread Spectrum: FHSS
- Antenna Length: 106mm
- Model: RC Cars/Boats
- Operating Current: 80mAh-120mAh
- Frequency: 2.4GHz ISM band (2400MHz-2483.5MHz)
- Operating Voltage: 4.8-16.8V DC(2s-4s lipo battery or 6*1.5AA)
- Battery Compartments: 25*97*60mm (JST 2Pin connector)
- Screen: 128*64 resolution, LCD back light
- Low Voltage Alert: Yes(Below 4.6V)
- Size: 22.4*17.5*11.6cm
- Compatible Receivers: Radiolink R7FG/R6FG/R6F/R4FGM/R4F/R8EF/R8FG/R8FGH

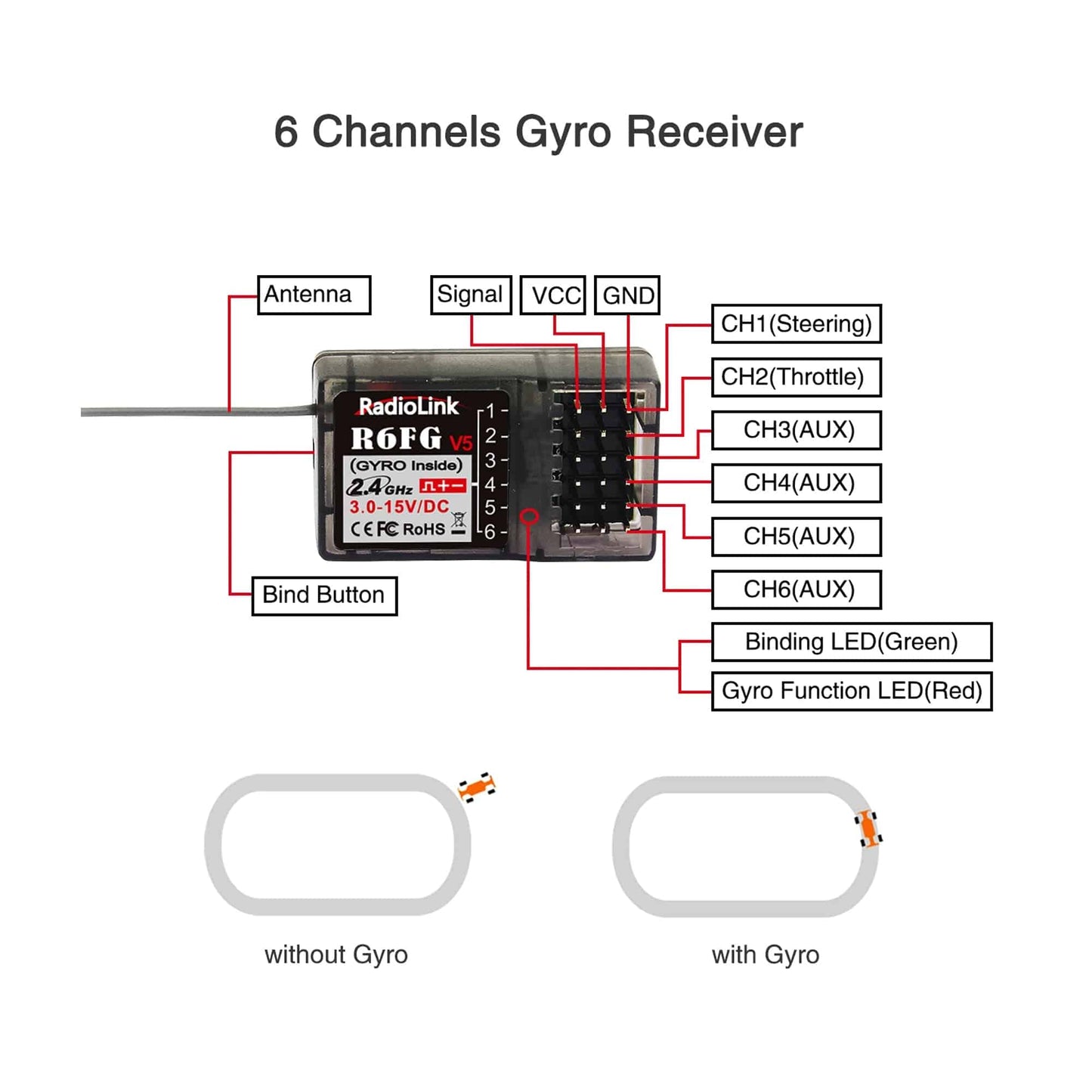

R6FG Receiver:
- Channel: 6
- Gyro Inside: Yes
- Model: RC cars and boats
- Control Distance: more than 400 meters
- Spread Spectrum: FHSS
- Antenna Length: 200mm
- Work Current: 30mA
- Power Supply: 3.0~15.0V DC
- RF Power: <10dbm
- Channel Resolution: 4096
- Size: 30*20*13mm
Features:
- Excellent Anti-interference: Pseudo random algorithm FHSS communication technology makes 5 channels RC4GS V3 RC Transmitter with excellent anti-interference ability, control distance up to 1300 feet(400 meters).
- 5 Channels: CH3-CH5 can be customized. The middle of the handle SWD switch, user can personalize by changing SWA to SWD.
- 30 Models Memory Storage: RC4GS V3 RC Transmitter has up to 30 models memory can be saved and each model can be set up the name and low voltage alarm separately.
- Dual Programmable Mix Control: Mix control can be programmed with any two channels and you could set one switch to active the different mix control. That's friendly for twin-engine vehicles, such as tanks, boats.
- ABS and Fail-Safe Protection: RC4GS V3 RC Transmitter has anti-lock brake support vehicles do not slip when vehicles brake at corners. All channels' fail-safe values can be set to any value as you need.
- Built in Gyro: Built-in gyro can keep the vehicle in a straight line, and Gyro sensitivity can be adjusted by transmitter, which fits for drifting and on-road cars.
- Real-time Information: Battery voltage, RSSI, receiver signal can be display on screen when it works with Radiolink R7FG receiver.

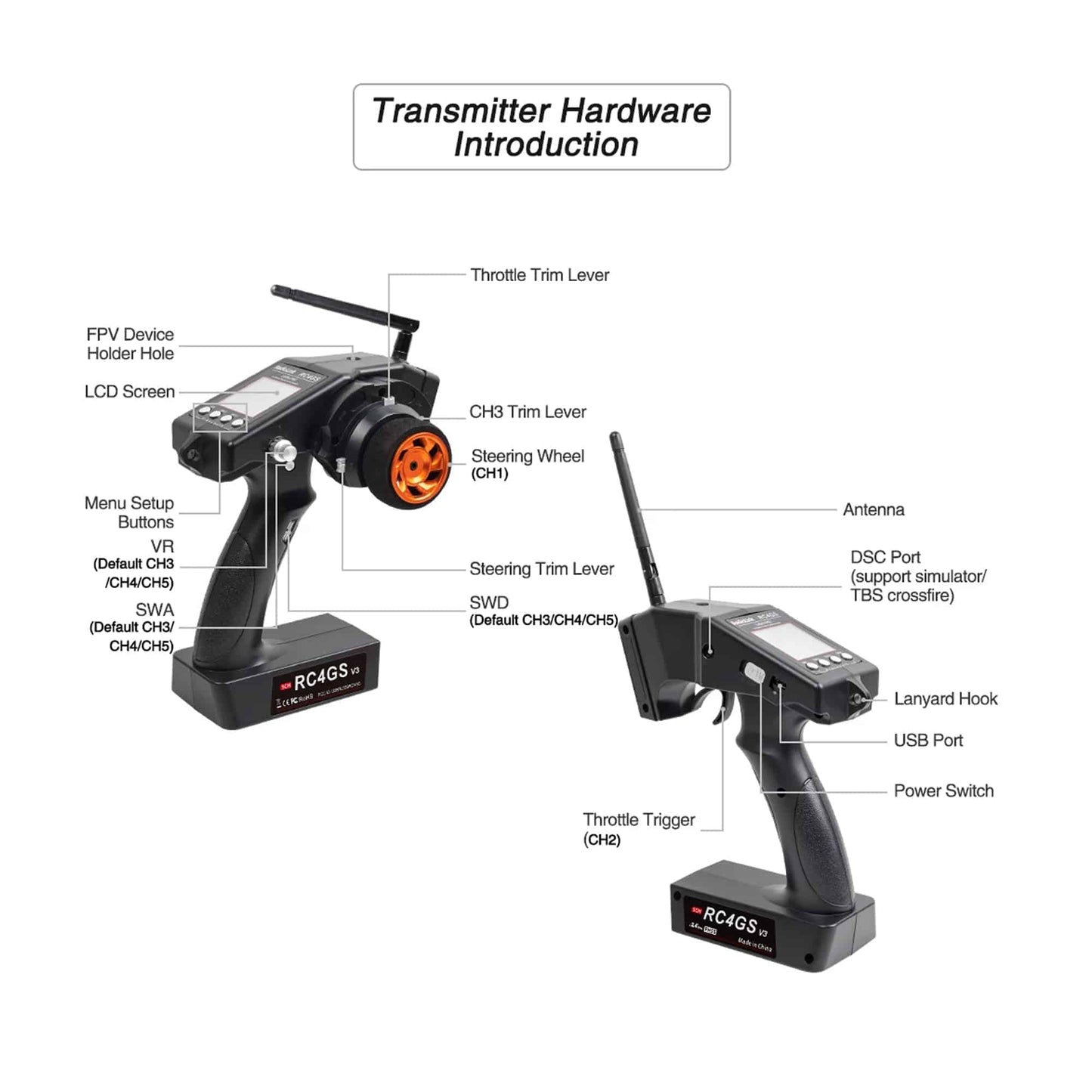

- Superb Ergonomics: RC4GS V3 RC Transmitter handle shape is more linear and handy with the ergonomic design. The strips on the trigger increase the touching friction. Added Hook, FPV monitor holder hole and tact switch.
Package Included:
- 1 x RC4GS V3 RC Transmitter
- 1 x R6FG Receiver
- 1 x User Manual
