Radiolink F450 Drone Quadcopter with Mini PIX Flight Controller - RS6042

Description:

This is a Radiolink F450 Drone Quadcopter with a Mini PIX Flight Controller. F450 Drone has 4 Flight Modes: Pos-Hold, Stabilize Mode, Waypoints Mode, and RTL. The control distance is up to 3400 meters (2.11 miles) with AT10II/AT9S Pro) and 2000 meters (1.24 miles) with T8S/T8FB, maximum range is tested in an unobstructed area free of interference.

Specifications:

• Battery Capacity: 3700mAh 11.1V 35C XT60
• Flight Time: 10 minutes
• Positioning System: GPS+GLONASS Dual Mode
• Flight Speed: 100km/h
• Motor KV: 1000KV
• Operating Current of ESC (Constant): 30A
• Operating Voltage of ESC: 2S-4S

Features:

• GEMFAN Self-tightening Propellers:
  • The 9443 self-tightening propellers from GEMFAN take full advantage of aerodynamics and are repeatedly tested and modified, based on their weight and the effects of thickness distribution on a rotary inertia
  • Every detail from appearance to function is carefully polished to achieve high efficiency.
  • With swift response and no vibration at high speed, the propellers offer pilots an impressive flight experience.
• FLYCOLOR 30A FAIRY ESC:
  • Electronic Speed Control (ESC) from FLYCOLOR is specially developed to optimize the firmware of the disc motor and ensure linear throttle with no delayed response.
  • Supports maximum 500Hz throttle signal of refresh rate.
  • Compatible with various flight controllers, stability and battery lifespan are considered.
  • Super mini size of 28*15*6mm (0.84” *0.45” *0.18”) and light weight of 11g lower the total weight of the complete vehicle and extend the flight time.
  • A constant current of 30A while the instant current of 40A, 2S to 4S battery voltage supported.
• SZ-SPEED 2312 1000KV Motor:
  • With the GEMFAN 9443 props, the maximum thrust reaches 840g.
  • Good mechanical design ensures the heat dissipation of the base.
  • The linear output power ensures higher efficiency, more steady flight, and longer flight time.
  • Weight: 48.5g; Voltage: DC14.8V； Gear Ratio: framework 12 N 14P ; Compatible props: 9”-10”
• Mini Pix & GPS TS100:
  • The same flight controller was used as the first manned flying motorcycle in China.
  • With the Kalman filter algorithm, Mini Pix* can calculate the changes in acceleration and gravity to ensure a stable flight and precise altitude holding.
  • Automatic route planning makes self-searching and rescue possible.
  • With a positioning accuracy of 50 centimetres, TS100 can recognize and obtain the target and complete various missions such as picture, video, mapping, and forest inspection.
• Overall Synchronous Avoidance:
  • Work with Ultrasonic Sensor SUI04, F450 can fly along barriers and detect obstacles immediately.
  • Pilots are worried free from misjudgment, blind spots, or wind/airflow and can get rid of any potential threats in a smoky or gloomy environment. More effective and safer rescue is well guaranteed.

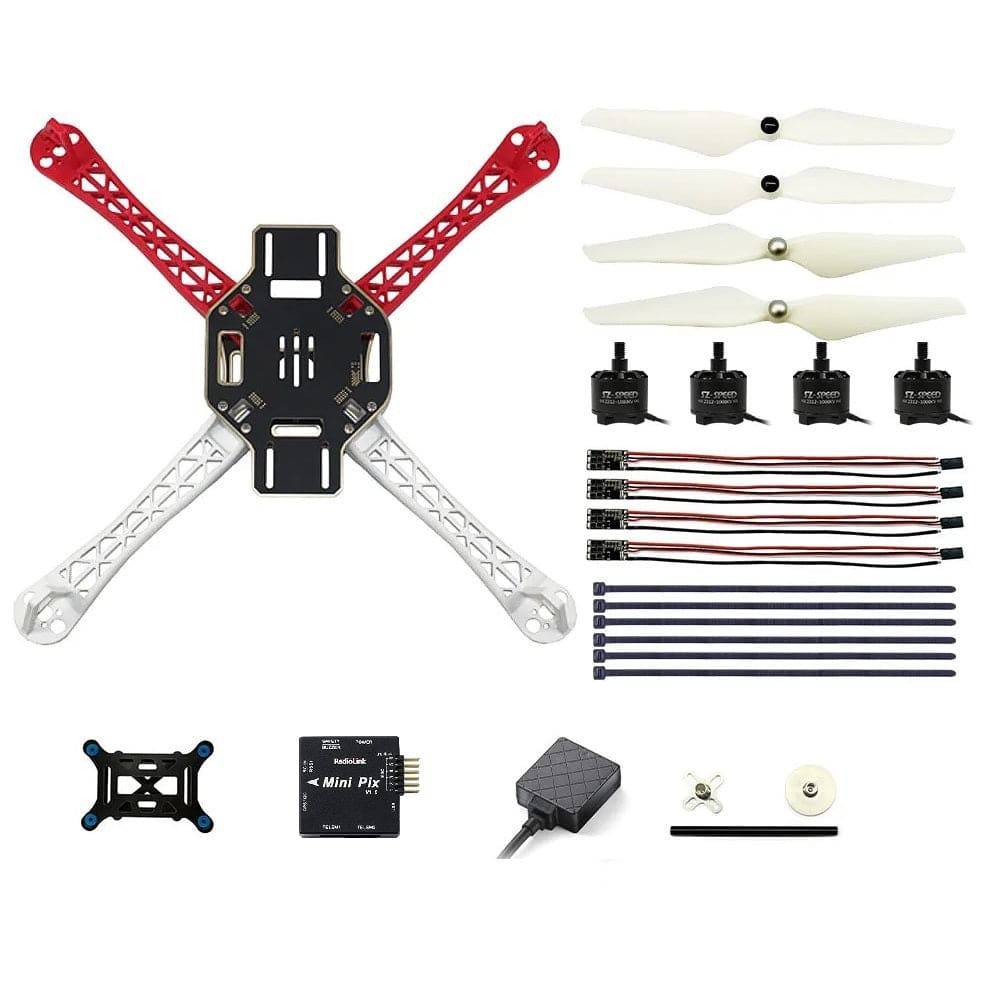

Package Included:

• 1 x F450 Drone
• 1 x Radiolink Mini PIX Flight Controller
• 1 x Radiolink TS100 mini GPS
• 1 x GPS Holder
• 1 x Shock Absorber
• 4 x 2312 1000KV Motor
• 4 x 30A FLYCOLOR ESC
• 4 x Propellers
