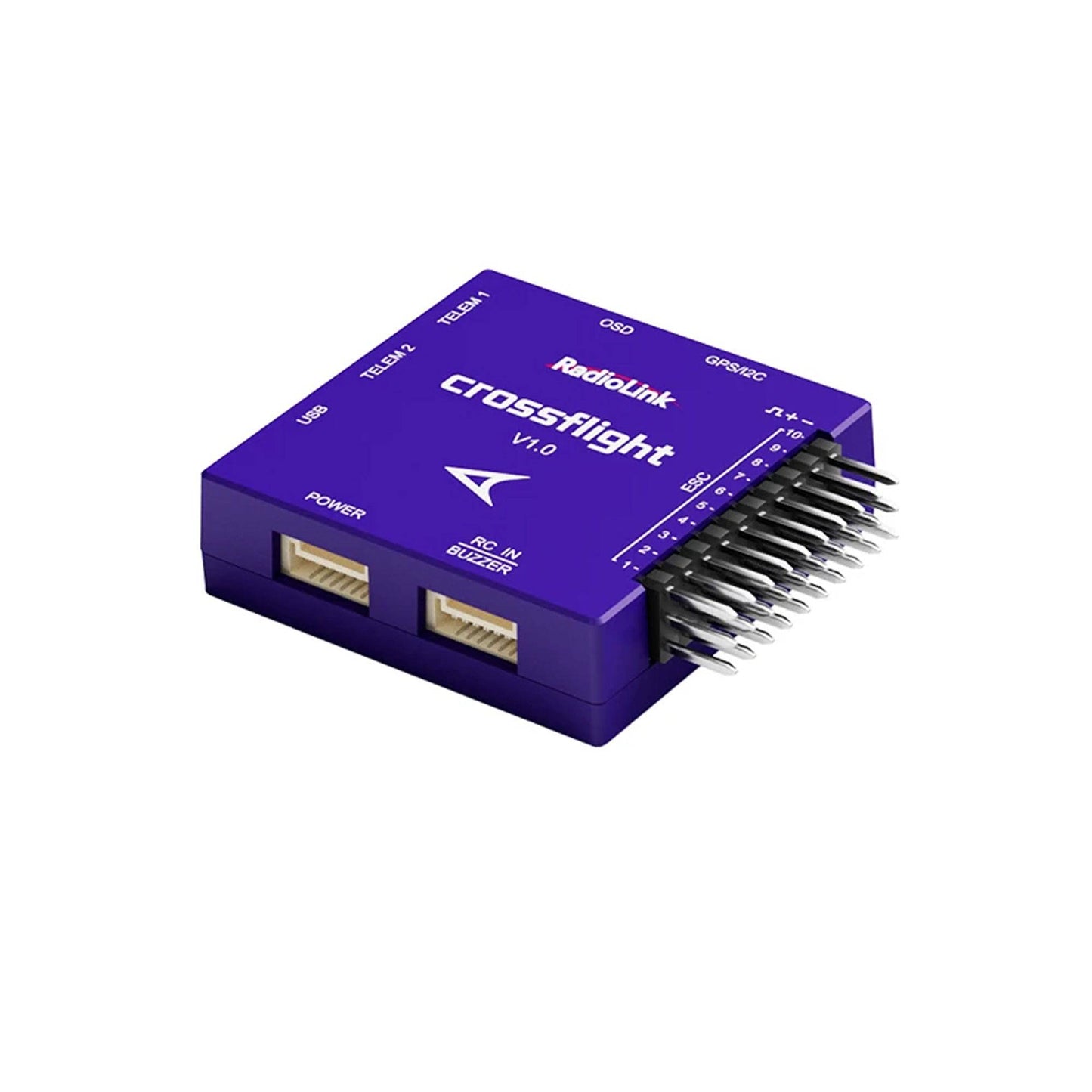

Radiolink CrossFlight Flight Controller with HC32F4A0PITB Processor 10 PWM Radiolink Flight Controller For Stable Drone & RC Vehicle Control - RS6047

Description:

The Radiolink CrossFlight Flight Controller is a high-performance solution, meticulously engineered for precision and reliability in any drone application. Whether you're focused on aerial photography, FPV racing, or general drone flying, this controller provides superior stability and responsive control.

Its core features include advanced gyroscopic sensors and refined flight algorithms that enable incredibly accurate and precise maneuvers. With a compact design, the CrossFlight is simple to install and compatible with a wide range of drone setups. Seamless connectivity with Radiolink transmitters and receivers, coupled with an intuitive user interface, makes configuration straightforward. Unlock new levels of performance and versatility for an unparalleled drone flying experience.

Specifications:

CrossFlight Flight Controller:

• Processor: HC32F4A0PITB
• Gyro: ICM42670
• Compass: VCM5883
• Barometer: LPS22HB
• FRAM: Without FRAM, use the internal flash to store parameters, 2617 waypoints for multi-copters, and 2623 waypoints for airplanes

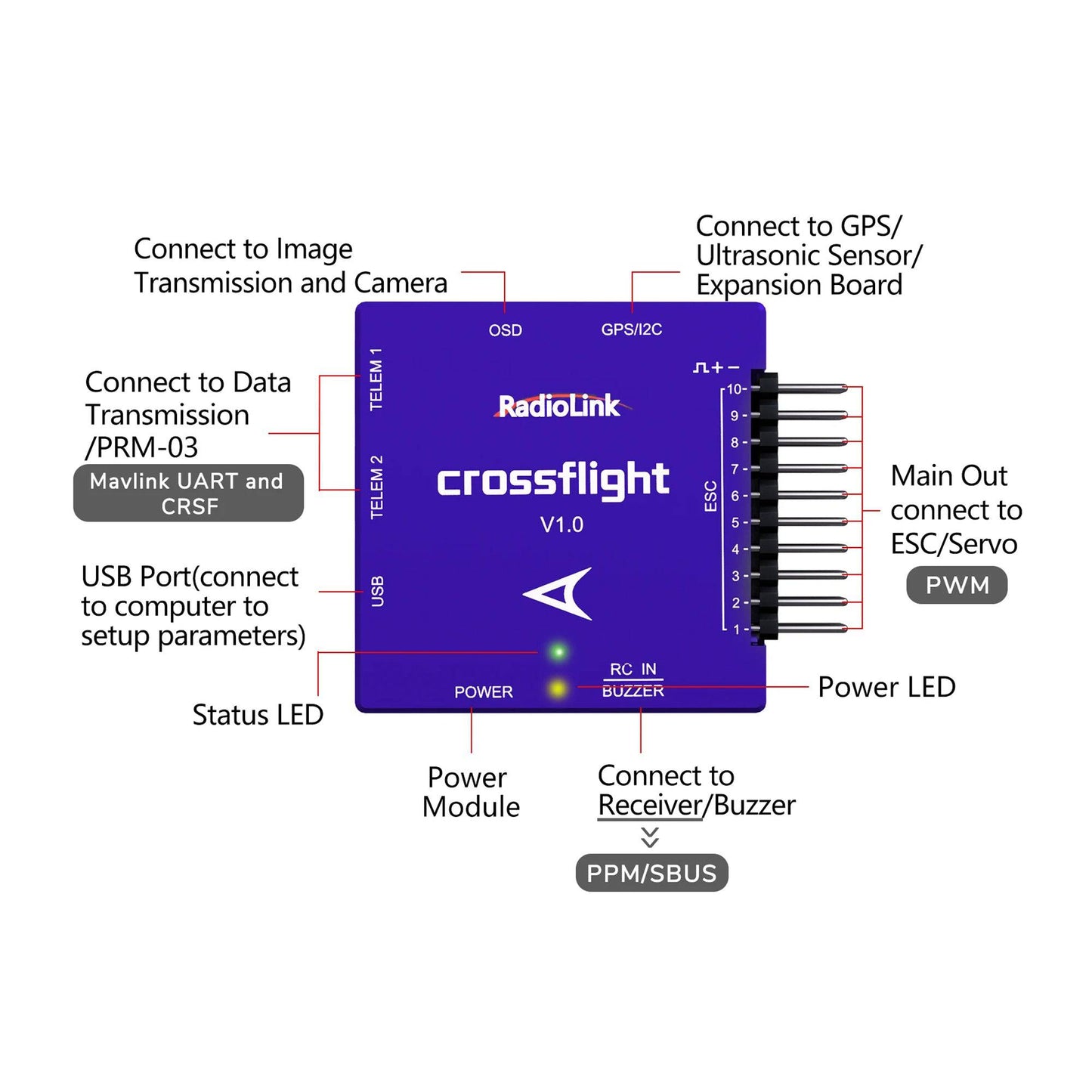

• Connector: JST GH1.25 Connector
• PWM Output: 10 PWM Output
• Mavlink UART: 2(without CTSRTS)
• USB Port: 1(Type-C)
• GPS UART/I2C Port: 1
• RC In Signal Input: PPM/SBUS
• RSSI Output: Do not support
• OSD Module: OSD Module Integrated
• ESC Protocol: PWM
• DSHOT Protocol: Do not support
• ONESHOT Protocol: Do not support
• Neopix LED: Support
• Gripper Function: Support
• RTK: Support
• USB Voltage: 5V±0.3V
• Servo Voltage: Not applicable
• Operating Temperature: -40~80℃
• Adaptable Models: 3-8 copter/Airplane/Helicopter/Car/Boat
• Dimention: 39.7*39.7*13mm (1.56"*1.56"*0.51")
• Weight: 16.5g(0.58oz), 54g(1.9oz when all the connect wires included)

Power Module:

• Input Voltage: 2-12S
• Input Current: 90A
• Output Voltage: 5.1V
• Output Current(BEC): 2.5A
• Input Current(connect to one ESC only): 20A

Features:

• Vibration Damping by Software: Ensure the accuracy of sensor data at all times, achieve better Altitude Hold effect, and make the flight more stable.
• OSD Module Integrated: Support real-time graphical display of OSD information such as the flight direction and position of the aircraft, without the need for an external OSD module.
• 10 Channels PWM Output: Adaptable to 3-8 Axis Multirotor, Aeroplanes, helicopters, cars, boats, and multiple industries.
• Mini Size as F4: Only 39.7*39.7*13mm and 16.5g, helps save space and reduce total weight to lengthen the flight time.
• Easier Installation and Setting: Offer comprehensive technical support, including the usage guidance needed for all functions from basic use, PID parameter adjustment, log viewing, etc, of each model.
• Automation Software Testing System: The same Automation Software Testing System as PIXHAWK and Mini Pix helps realise test automation from the sensor to the connection ports and interface.

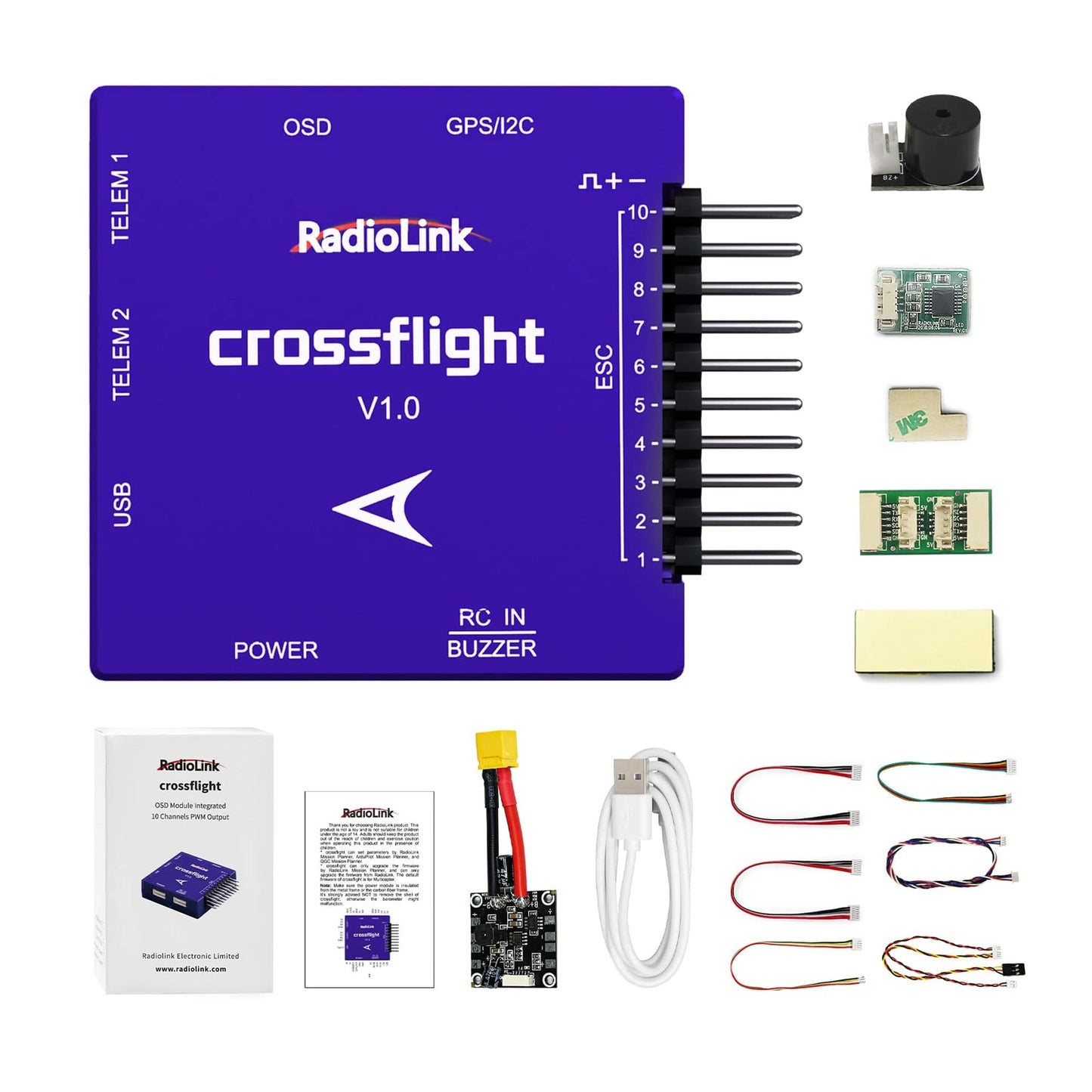

Package Included:

• 1 x CrossFlight Flight Controller
• 1 x Power Module(Support 2-12S)
• 1 x Buzzer
• 1 x I2C Transfer Board
• 1 x FC Status Indicate LED
• 1 x 4G TF (MicroSD) Card
• 1 x Buzzer & Receiver Connect Cable
• 1 x Power Module Connect Cable
• 1 x I2C Transfer Board Connect Cable
• 1 x OSD Port Connect Cable
• 2 x TELEM1&2 Ports Connect Cable
• 1 x FC Status Indicate LED Cable
• 1 x Double-sided Adhesive Tape
• 1 x Type-C Cable
• 1 x User Manual
