Description:
The AT9S Pro Remote is an advanced and feature-rich remote control system designed for professional radio-controlled model enthusiasts. It is a powerful and reliable tool that enhances your control over your RC models, providing precise and responsive operation.
SBUS, PPM, PWM and CRSF Signals Supported:
With the DSSS&FHSS protocol, SBUS, PPM, and PWM can operate simultaneously for seamless user control. With the CRSF protocol, TBS Crossfire needs to bind to the BLACKSHEEP receiver. Standard receiver R9DS packed is the receiver with SBUS and PWM signal output. AT9S Pro Remote is also compatible with R6DSM, R6DS, R12DSM, and R12DS receivers of RadioLink. Compatible receivers cover a wide range of aircraft to meet the most demanding applications of customers.
CRSF Protocol Supported:
Using proprietary communication technology of RadioLink, DSSS and FHSS hybrid spread spectrum, as a foundation, we have added the CRSF* protocol from the TBS. AT9S Pro Remote is compatible with TBS Crossfire.
DSSS and FHSS Hybrid Spread Spectrum:
DSSS and FHSS hybrid spread spectrum, 16 channels pseudo-random frequency hopping, and QPSK modulation ensure excellent anti-interference performance, highly constant, and stable transmission signal present on all 12 channels of AT9S Pro Remote. The actual control distance of the AT9S Pro Remote is 3400 meters air. These features allow the AT9S Pro Remote to produce a highly constant and stable transmission signal present on all 12 channels.
Whether you are an experienced RC hobbyist or a professional pilot, the Radiolink AT9S Pro Remote offers exceptional control, reliability, and versatility. Its advanced features and user-friendly interface make it an ideal choice for enthusiasts who demand the best performance from their RC models. Experience the next level of remote control with the AT9S Pro Remote.
Specifications:
| Operating Voltage |
7.4~18.0V |
|---|---|
| Operating Current |
DSSS & FHSS <90mA at 12V , CRSFdepend on the transmission power selection |
| Frequency Band |
2.4GHz ISM band (2400mHz ~ 2483.5MHz) |
| Spread Spectrum mode |
DSSS & FHSS/CRSF |
| Adjacent channel rejections |
>38dbm |
| Modulation mode |
QPSK |
| Bandwidth |
5.0MHz |
| Signal output |
PWM/SBUS/PPM/CRSF |
| RC Drone Remote |
647g |
| Receiver Operating voltage |
3.0~10V |
| Receiver operating current |
30~45mA@5V |

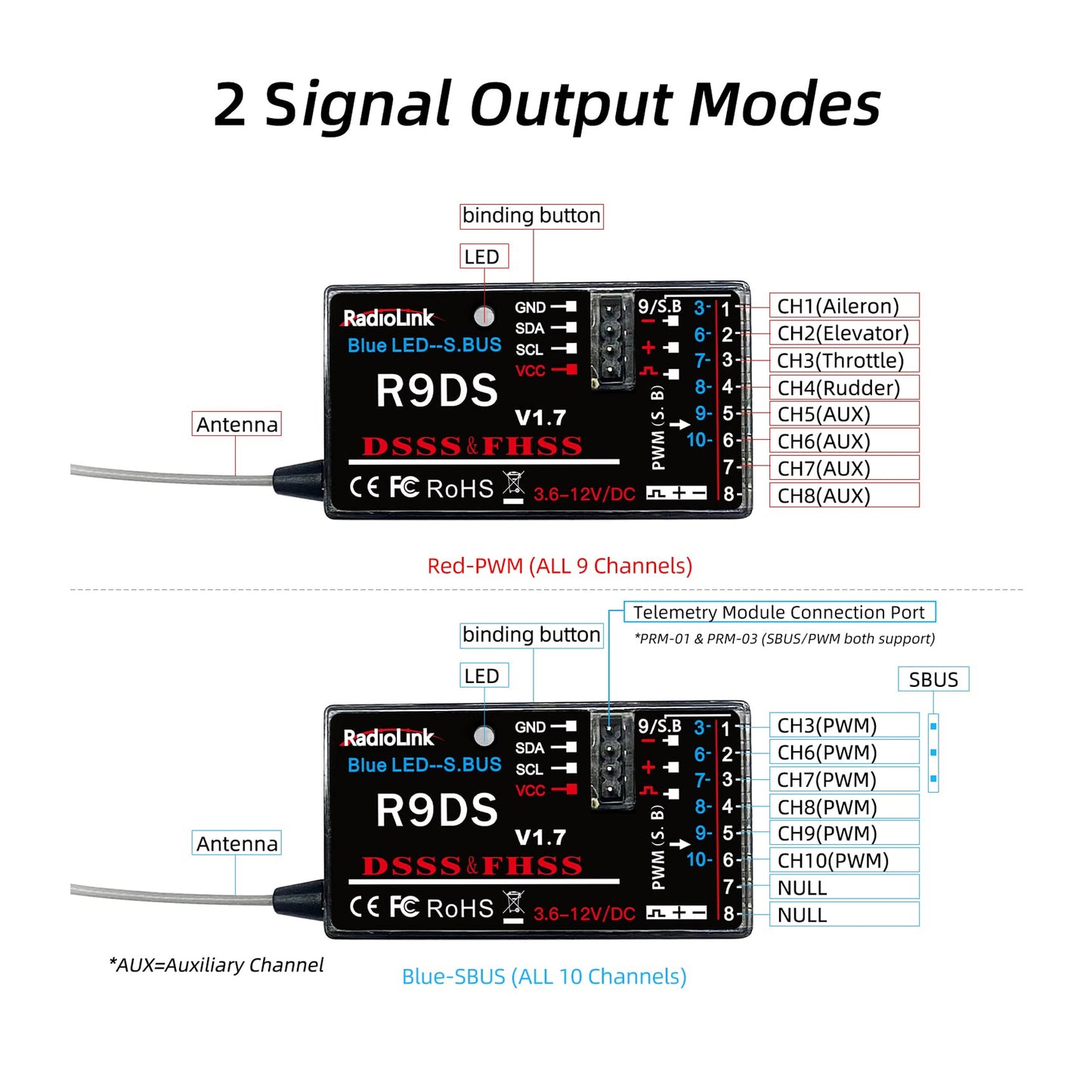

| output signal |
SBUS/SBUS&PWM |
| Channel quantity |
9 channel for PWM signal output; 10 channel for SBUS&PWM signal output |
Features:

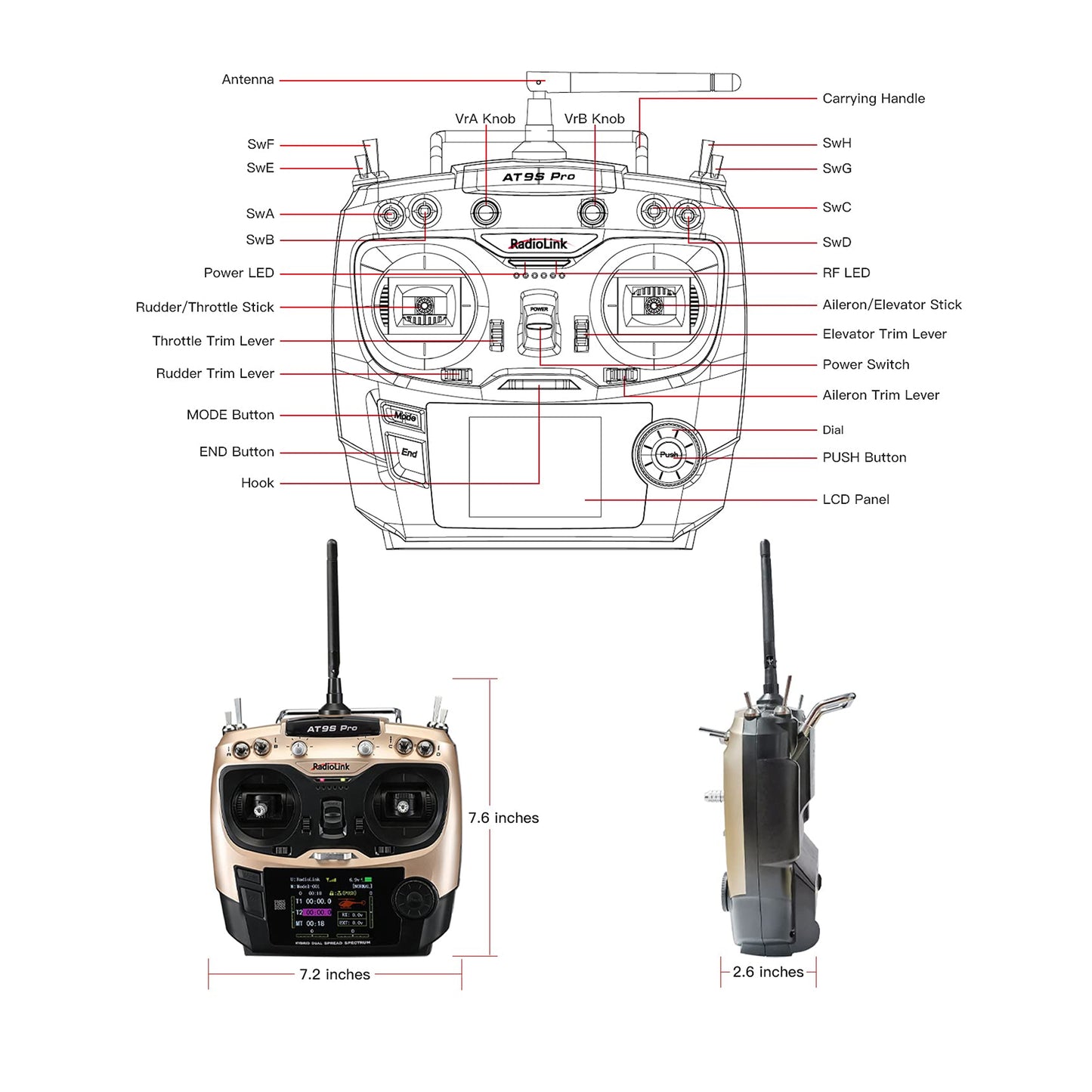

- Ergonomic Design: The AT9S Pro remote features an ergonomic design that fits comfortably in your hands, allowing for extended use without fatigue. The well-placed buttons and controls are easily accessible, ensuring effortless operation.
- High-Resolution Color Screen: The AT9S Pro Remote is equipped with a high-resolution colour screen that provides clear and detailed information. The intuitive user interface allows for easy navigation and customization of various settings.
- Long Range and Stable Signal: The AT9S Pro Remote utilizes a high-gain antenna system to ensure a stable and reliable signal transmission. AT9S Pro Remote offers an impressive control range, allowing you to operate your RC models with confidence.
- Multi-Protocol Support: With its multi-protocol capabilities, the AT9S Pro remote is compatible with a wide range of RC models, including drones, helicopters, aeroplanes, boats, and more. AT9S Pro Remote supports popular protocols such as DSSS&FHSS/CRSF.
- Advanced Functions: This AT9S Pro Remote offers a host of advanced functions to enhance your RC experience. AT9S Pro Remote includes features like fail-safe protection, programmable mixing functions, dual-rate adjustments, endpoint adjustments, and 10 flight modes, providing versatility and customization options.
- Telemetry and Real-time Data: The AT9S Pro Remote supports telemetry systems, providing real-time data feedback such as battery voltage, signal quality, and model status. This information helps you monitor the performance of your RC model, ensuring safe and efficient operation.
- Expandable and Upgradable: The AT9S Pro remote is designed to accommodate future upgrades and expansions. It features a USB port for firmware updates, allowing you to benefit from new features and improvements as they become available.
- Versatile Compatibility: The AT9S Pro Remote is compatible with various receivers, including the Radiolink R12DSM, R12DS, and R9DS. This versatility allows you to pair it with different models and customize your setup according to your preferences.
- Long Battery Life: The AT9S Pro Remote is powered by a high-capacity rechargeable lithium-ion battery, providing extended usage time. It also features a low-power alert function, indicating when it's time to recharge the battery, ensuring uninterrupted RC sessions.
- Professional Grade Quality: Radiolink is known for manufacturing high-quality RC equipment, and the AT9S Pro Remote is no exception. It is built with durable materials to withstand the rigours of RC use and provides reliable performance for prolonged periods.
- Multiple Language Menu: An optional language menu is available including Chinese, English, Spanish, Italian, German, French, Turkish, Russian and Korean.
- High-Quality Components and Efficient Circuit Design Ensures Maximum Precision: All-new 4096 IC circuit minimizes servo jitter. Optimal PCB layout design and the same potentiometer of FUTABA produce a very stable signal output, that maximum PWM jitter is 1.84us with a standard of just 0.5us, which is critical to precision flying.
- Anti-polarity Connect Protection: The voltage protection software technology of RadioLink ensures both the transmitter and receiver are protected from a reverse polarity connection. Industry-standard JST connector makes AT9S Pro Remote adaptable for various battery layouts, 8pcs AA battery, a 2S-4S LiPo or an 18650 Lithium battery. When a TBS Crossfire is connected, the maximum 3S LiPo battery is supported. The new power supply circuit provides longer battery life, and 12 hours of fun with an 1800mAh 3S LiPo or 18650 Lithium battery.

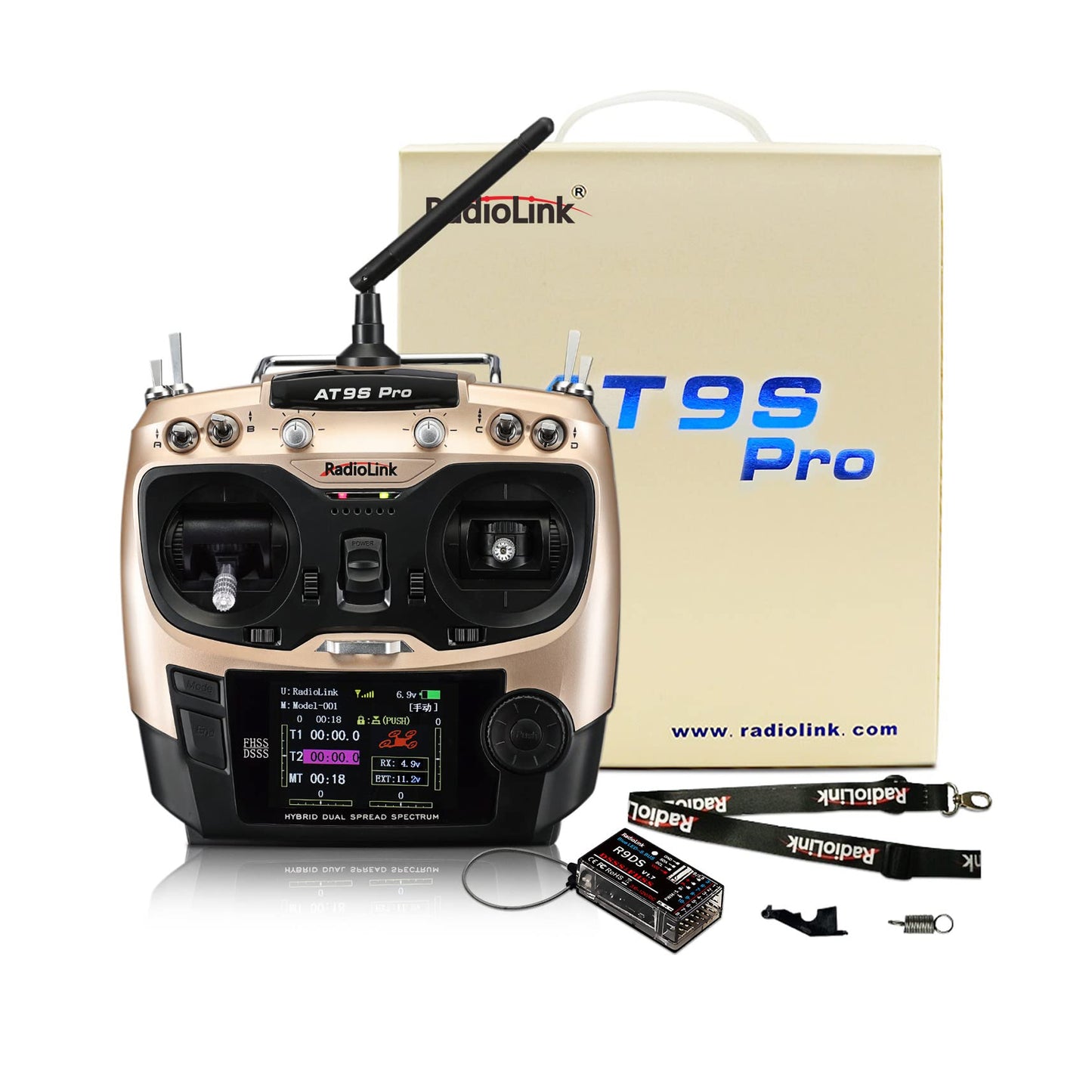

Package Included:

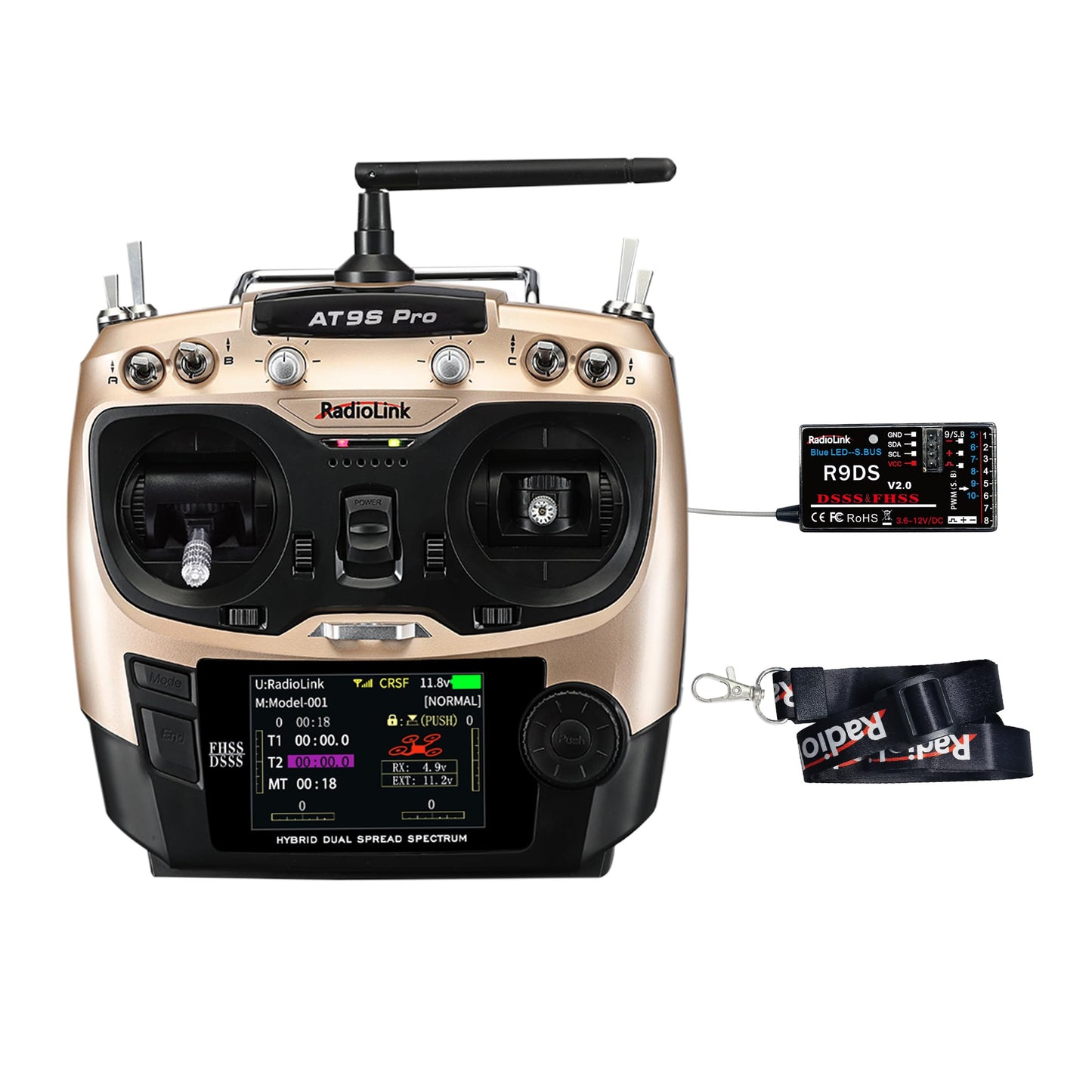

- 1 x Radiolink AT9S Pro Remote
- 1 x R9DS Receiver
- 1 x Belt
- 1 x Instruction manual
- 1 x Accessories
