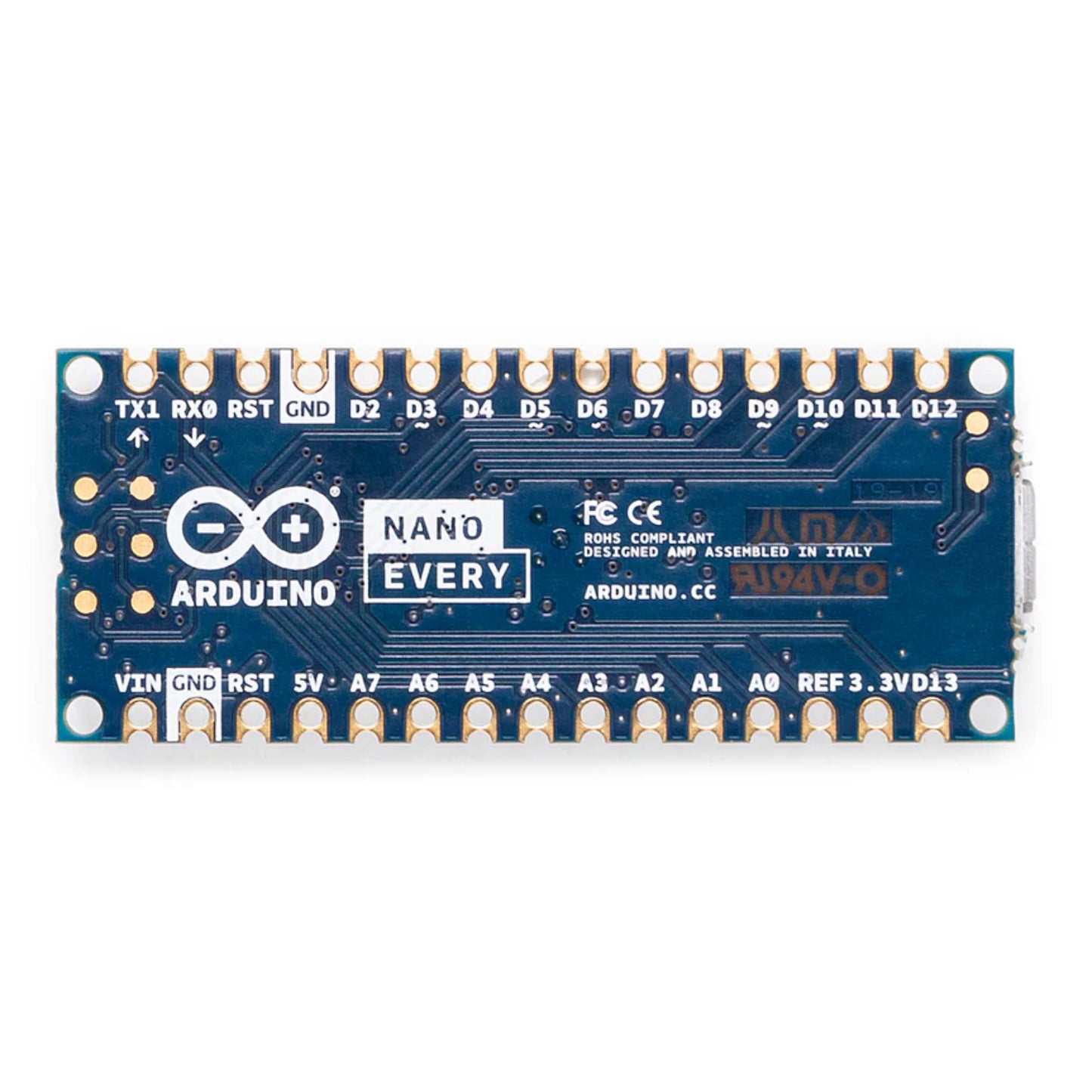

• Original Arduino Nano Every Development Board

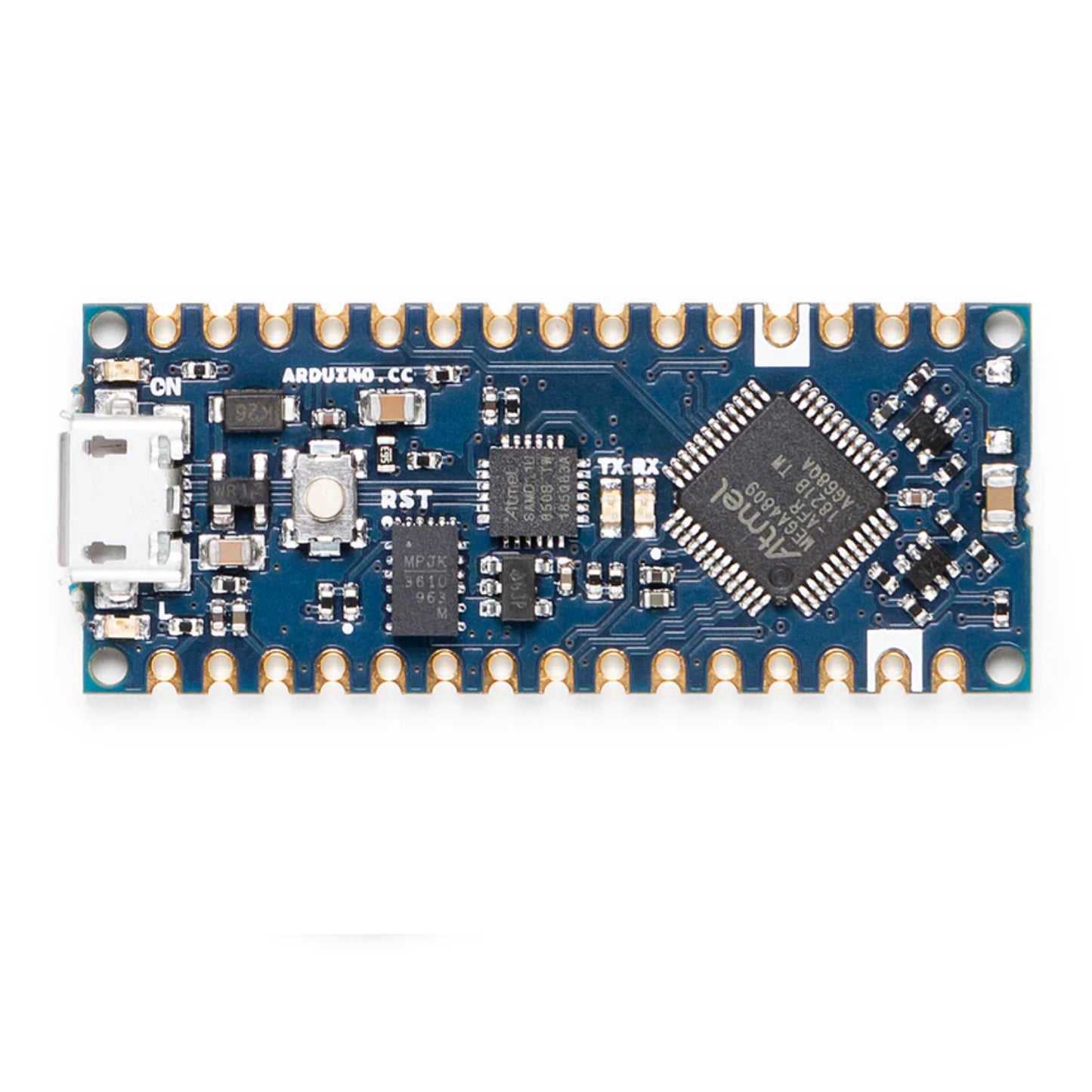

  • Arduino Nano Every Development Board
  • ATMega4809 Processor Microcontroller Board
1 4

Arduino

Original Arduino Nano Every Development Board With Micro-USB Interface ATMega4809 Processor Microcontroller Board For IoT, Robotics & Prototyping - RS3004

Original Arduino Nano Every Development Board With Micro-USB Interface ATMega4809 Processor Microcontroller Board For IoT, Robotics & Prototyping - RS3004

RS3004

In stock

Rs. 949.00
Rs. 949.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

Introducing the Arduino Nano Every: ultimate flexibility and power in a tiny footprint. This upgraded Arduino Nano board boasts a more robust CPU and additional features, empowering your creative projects in a sleek, familiar design.

Related Board:

Arduino Nano Every Development Board With Headers

Specifications:

  • Microcontroller: ATMega4809 (datasheet)
  • Operating Voltage: 5V
  • VIN min-MAX: 7-21V
  • DC Current per I/O Pin: 20mA
  • DC Current for 3.3V Pin: 50mA
  • Clock Speed: 20MHz
  • CPU Flash Memory: 48KB (ATMega4809)
  • SRAM: 6KB
  • EEPROM: 256byte
  • PWM Pins: 5 (D3, D5, D6, D9, D10)
  • UART: 1
  • SPI: 1
  • I2C: 1
  • Analog Input Pins: 8 (ADC 10 bit)
  • LED_BUILTIN: 13
  • USB: Uses the ATSAMD11D14A (datasheet)

Features:

  • Features an ATMega4809 microcontroller for enhanced performance.
  • It operates on a 5V power supply and can handle input voltages up to 21V.
  • The board includes 8 analog I/O pins and 5 PWM output pins (D3, D5, D6, D9, D10) for precise control.
  • It supports 1 UART, 1 SPI, and 1 I2C port for versatile connectivity options.
  • An integrated LED is located on pin 13 for easy debugging and feedback.
  • The board is built on AVR architecture.
  • It runs at a clock speed of 20MHz for smooth processing.
  • It provides 20mA of DC current per I/O pin for efficient power usage.
  • Flash memory is set at 48KB for code and program storage.
  • EEPROM offers 256 bytes for data retention.
  • SRAM provides 6KB for dynamic data management.

Pin Description:

Useful Link:

Datasheet

Package Included:

1 x Original Arduino Nano Every
