Description:

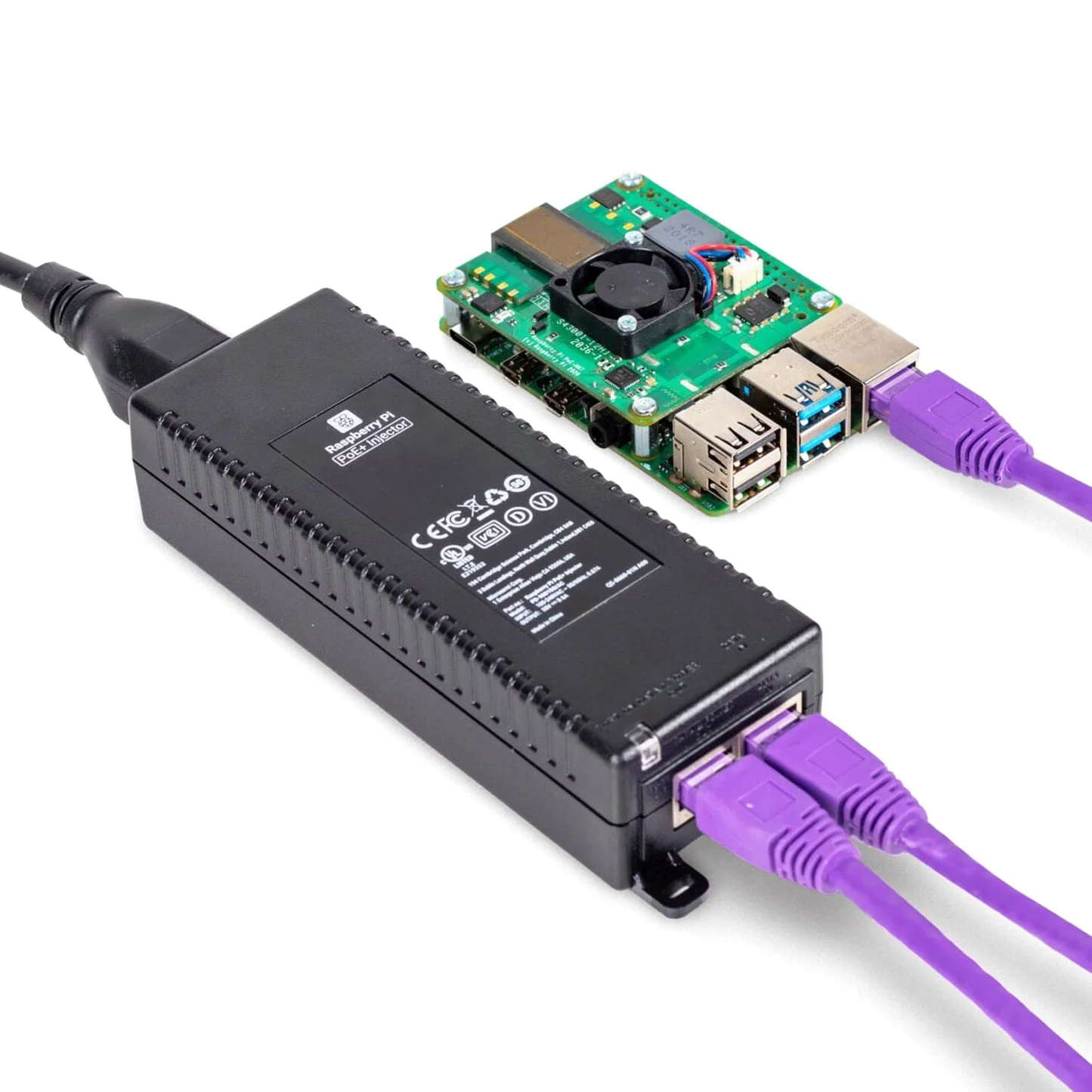

The Raspberry Pi PoE+ Injector adds Power-over-Ethernet (PoE) functionality to a single port of a non-PoE Ethernet switch, delivering both power and data through a single Ethernet cable. It offers a plug-and-play, cost-effective way to introduce PoE power delivery capability into pre-existing Ethernet networks incrementally.
The PoE+ Injector is a single-port 30W injector suitable for powering devices conforming to the IEEE 802.3af and 802.3at specifications, including all Raspberry Pi PoE HAT generations. It supports network pass-through at 10/100/1000 Mbps speeds. A separate IEC mains lead is required for operation (not included).
Specifications:
- Data Rate: 10/100/1000 Mbps
- Input Voltage: 100–240 V AC
- Output Power: 30W
- Power Output on Pins: 4/5 (+), 7/8 (–)
- Nominal Output Voltage: 55 V DC
- Dimensions: 159 mm (L) × 51.8 mm (W) × 33.5 mm (H)
- Data Connectors: Shielded RJ-45, EIA 568A and 568B
- Power Connector: IEC c13 mains power input (not included)
- Operating Ambient Temperature: –10°C to +50°C
- Operating Humidity: Maximum 90%, non-condensing
- Storage Temperature: –20°C to +70°C
- Storage Humidity: Maximum 95%, non-condensing
- Operating Altitude: –300m to 3000m
Features:
- Powers Raspberry Pi PoE and PoE+ devices (HAT required)
- IEEE 802.3at compliant with 2-event classification
- Compatible with IEEE 802.3af devices
- Output power of 30W guaranteed
- Supports 10/100/1000 Base-T applications
- Ensures low-power devices receive only the power they need
- Provides automatic detection and protection of non-standard Ethernet terminals
- Requires an IEC C13 power cable (sold separately)
Package Included:
1 x Official Raspberry Pi PoE+ Injector
