Raspberry Pi

Official Raspberry Pi Micro USB Power Supply for Raspberry Pi A, 3B, 3B+, Zero, Zero W, Zero 2W and Pico - RS5028

Official Raspberry Pi Micro USB Power Supply for Raspberry Pi A, 3B, 3B+, Zero, Zero W, Zero 2W and Pico - RS5028

SKU:RS5028

Regular price Rs. 399.00
Regular price Sale price Rs. 399.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

Description:

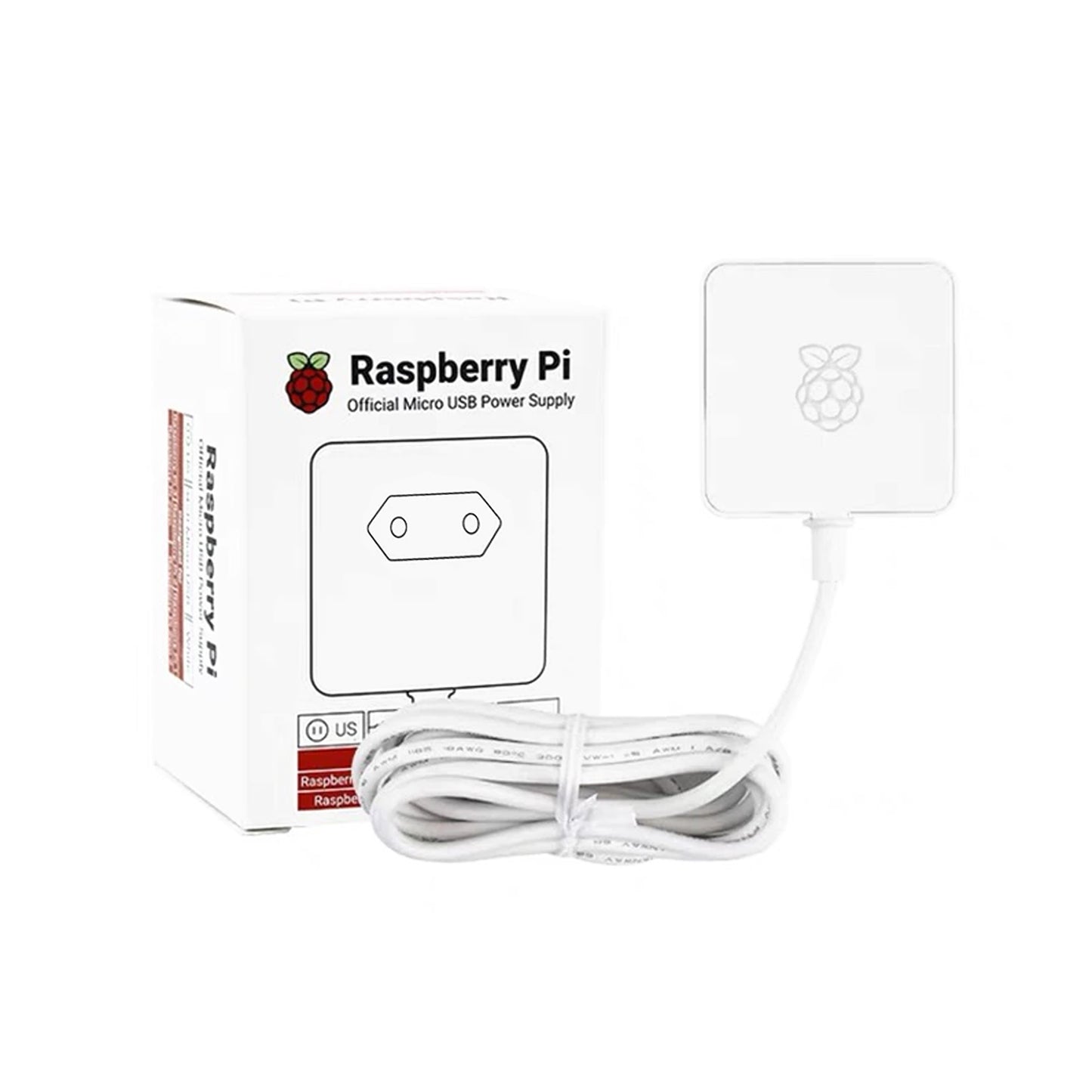

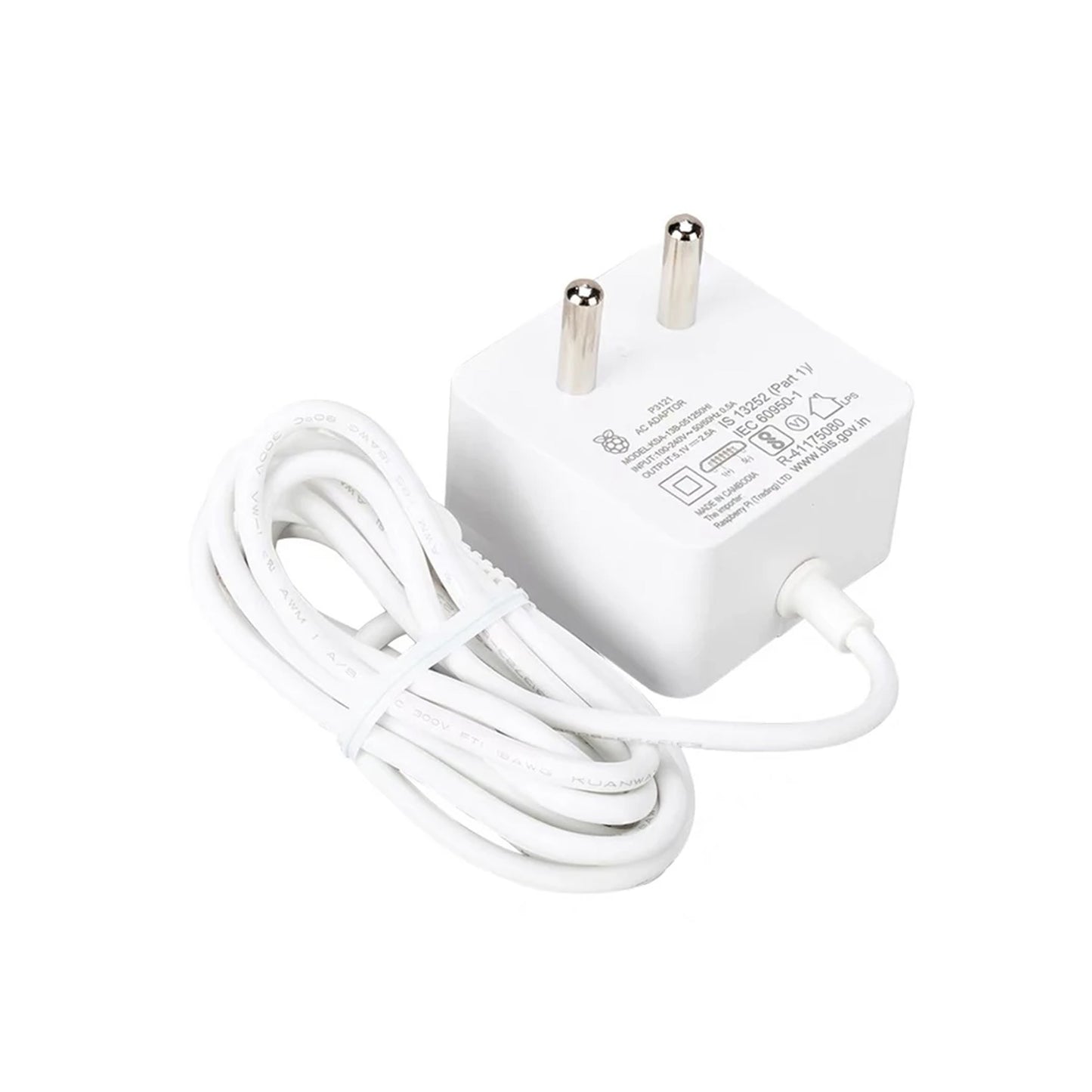

The official Raspberry Pi Micro USB Power Supply is designed to power any Raspberry Pi computer that features a micro USB connector. The power supply is available in five variants to suit different international power sockets, featuring a captive micro USB cable.

Specifications:

Output-

  • Output voltage: +5.1V DC
  • Minimum load current: 0.0A
  • Nominal load current: 2.5A
  • Maximum power: 12.5W
  • Load regulation: ±5%
  • Line regulation: ±2%
  • Ripple & noise: 120mVp-p
  • Rise time:  100ms maximum to regulation limits for DC outputs
  • Turn-on delay:  3000ms maximum at nominal input AC voltage and full load
  • Protection: Short circuit protection Overcurrent protection
  • Efficiency:  80.73% minimum (output current from 100%, 75%, 50%, 25%)
  • Output cable: 1.5m 18AWG
  • Output connector:  micro USB

Input-

  • Voltage range: 100–240Vac (rated) 96–264Vac (operating)
  • Frequency: 50/60Hz ±3Hz
  • Current: 0.5A maximum
  • Power consumption (no load): 0.075W maximum
  • Inrush current:  No damage shall occur and the input fuse shall not blow

Features:

  • 5.1V / 2.5A DC output
  • 96-264Vac operating input range
  • Short circuit and overcurrent protection
  • 1.5m 18AWG captive cable with micro USB output connector
  • Available in different variants to suit different international power sockets

Package Included:

1 x Official Raspberry Pi Micro USB Power Supply for Raspberry Pi A, 3B, 3B+, Zero, Zero W, Zero 2W and Pico
