Official Arduino Uno R3 SMD Microcontroller Board Versatile ATmega328P Development Board  For Compact & Robust Projects - RS8615

Official Arduino Uno R3 SMD Microcontroller Board Versatile ATmega328P Development Board  For Compact & Robust Projects - RS8615

RS8615

In stock

Rs. 1,676.00
Rs. 1,676.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

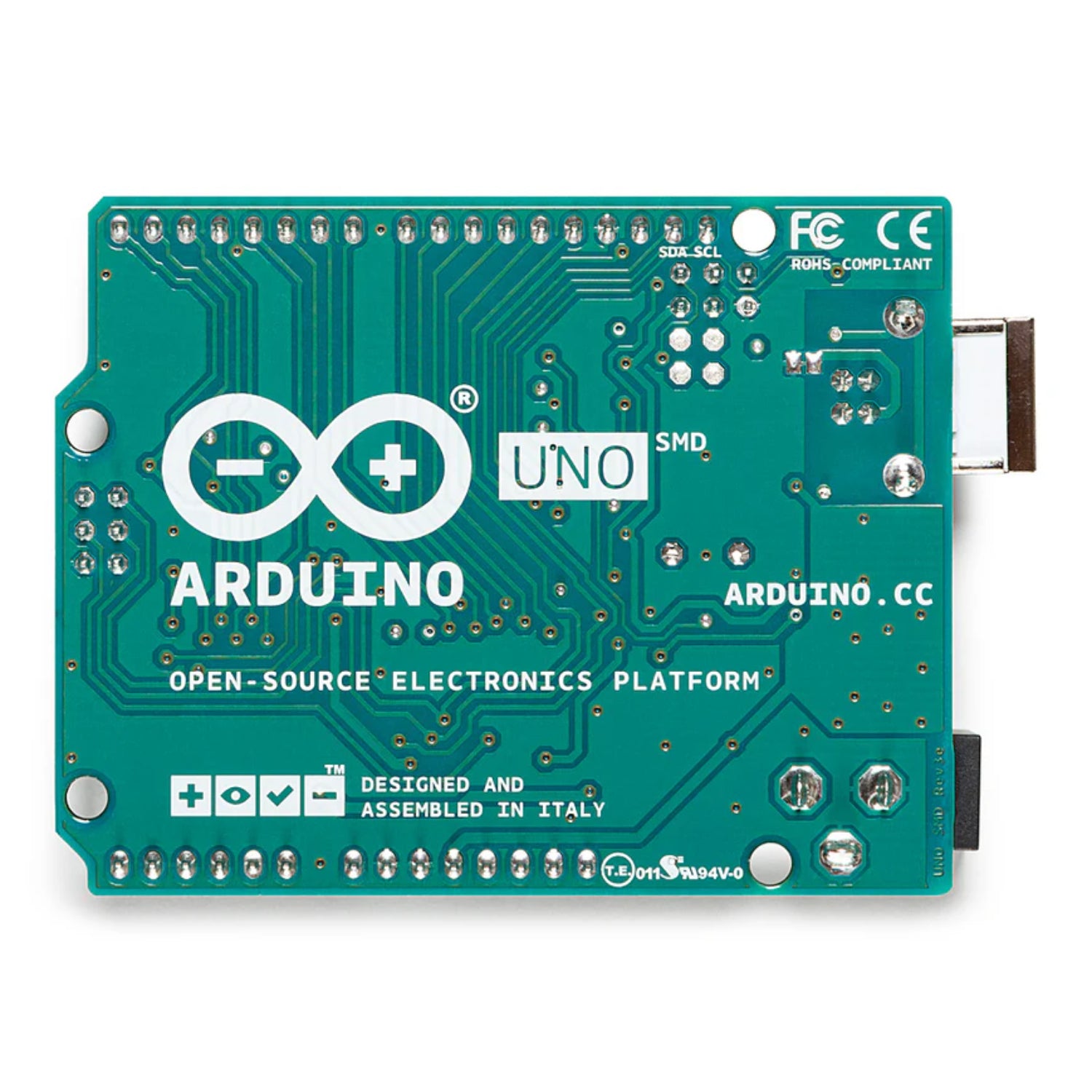

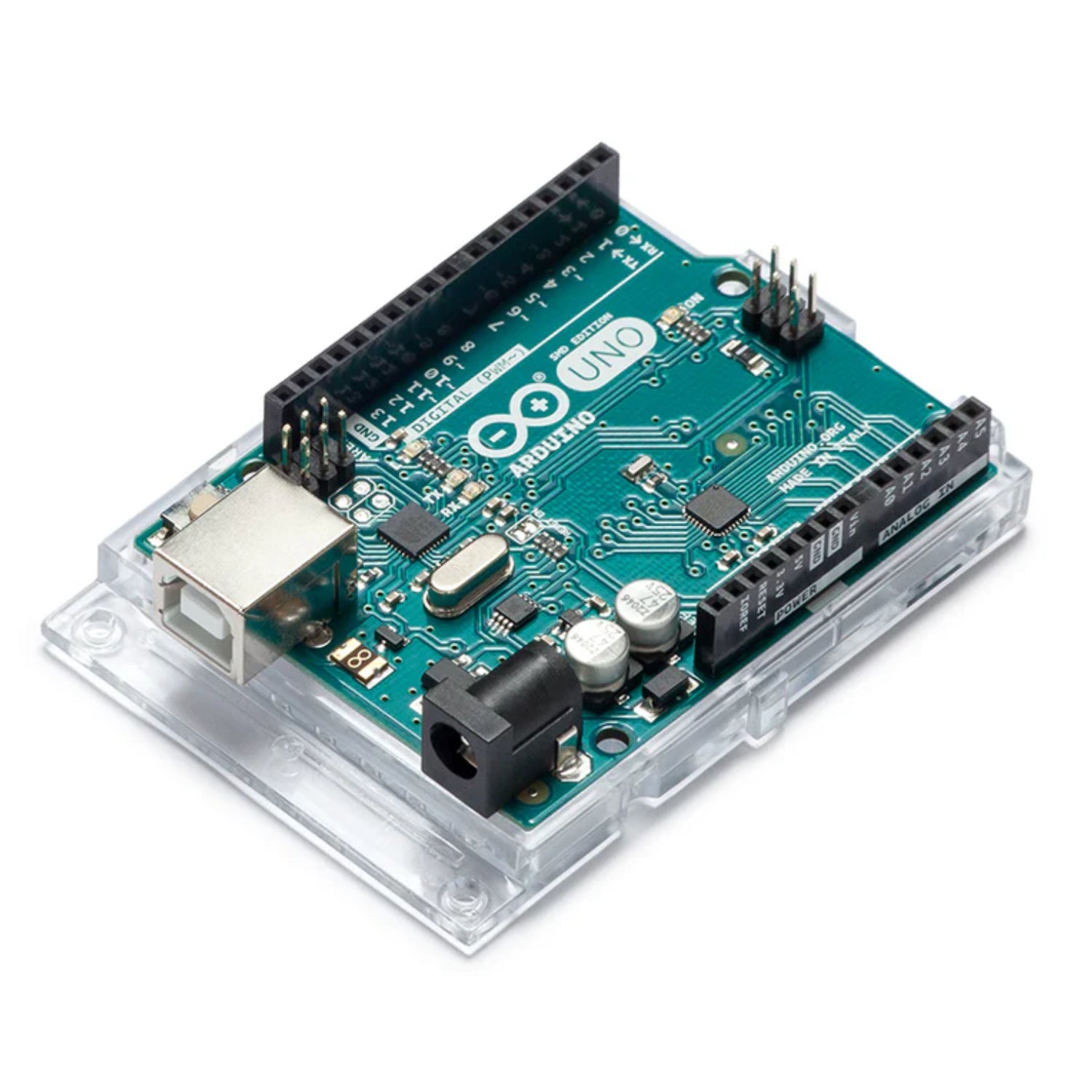

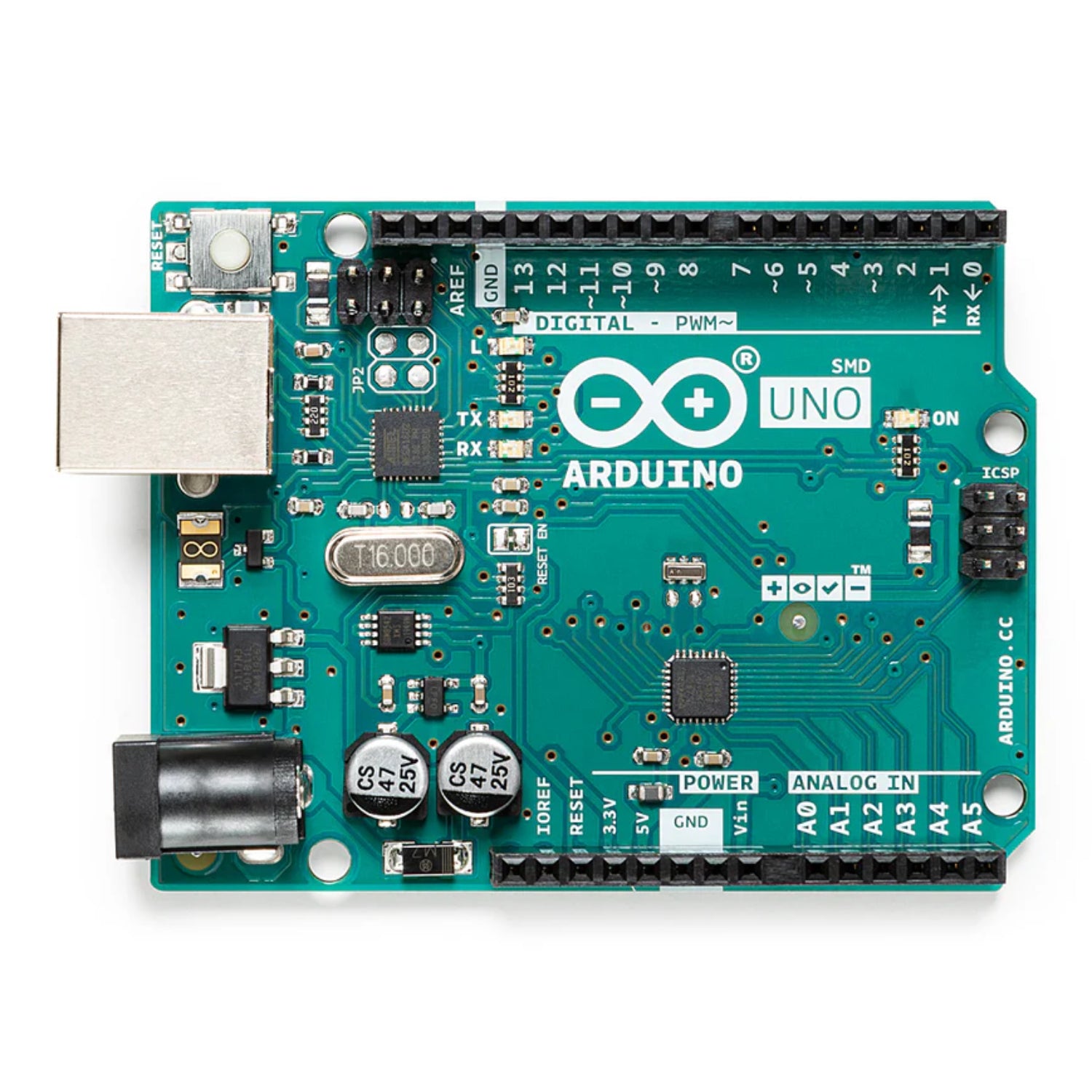

The Arduino Uno Rev3 SMD is a microcontroller board based on the ATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator (CSTCE16M0V53-R0), a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

Related Board:

Arduino Uno R3 Microcontroller Board

Specifications:

  • Microcontroller: ATmega328P
  • Operating Voltage: 5V
  • Input Voltage: 7-12V
  • Input Voltage: 6-20V
  • Digital I/O Pins: 14 (of which 6 provide PWM output)
  • PWM Digital I/O Pins: 6
  • Analog Input Pins: 6
  • DC Current per I/O Pin: 20 mA
  • DC Current for 3.3V Pin: 50 mA
  • Flash Memory: 32 KB (ATmega328P) of which 0.5 KB used by bootloader
  • SRAM: 2KB
  • EEPROM: 1KB
  • Clock Speed: 16MHz
  • LED_BUILTIN 13

Features:

  • SMD ATmega328P: Powered by the robust ATmega328P microcontroller in a surface-mount package.
  • Versatile I/O: 14 digital I/O pins (6 PWM capable) and 6 analog input pins.
  • Essential Interfaces: Features a 16 MHz ceramic resonator, USB, power jack, and ICSP header.
  • Improved USB: Upgraded ATmega16U2 for reliable USB-to-Serial conversion.
  • Enhanced Pinout: Rev3 1.0 pinout with SDA, SCL, and IOREF for better shield compatibility.

 Useful Links:

Package Included:

1 x Official Arduino Uno R3 SMD Microcontroller Board
