Official Arduino Due Board 32-bit ARM Cortex-M3 Microcontroller Board For Advanced Projects

Description:

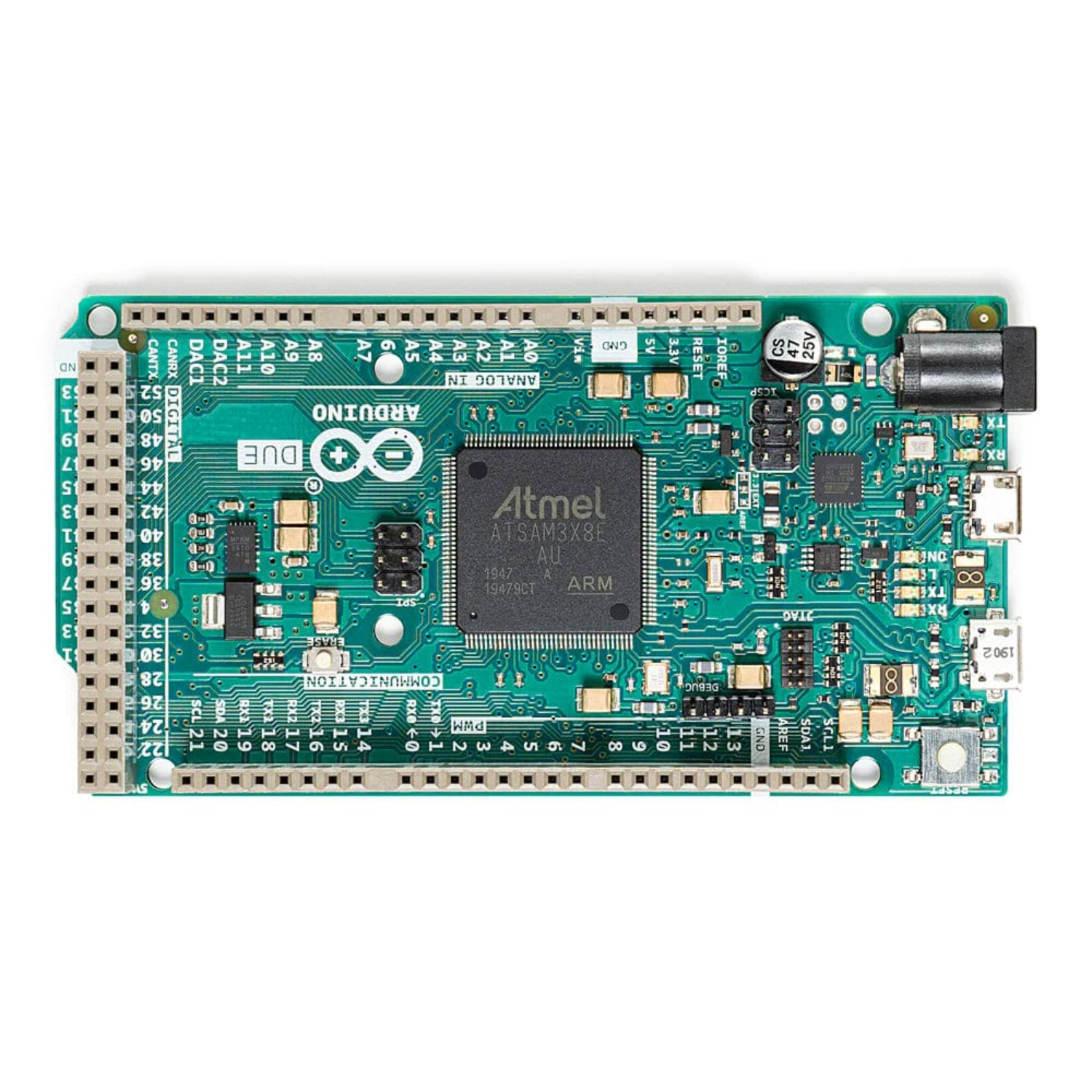

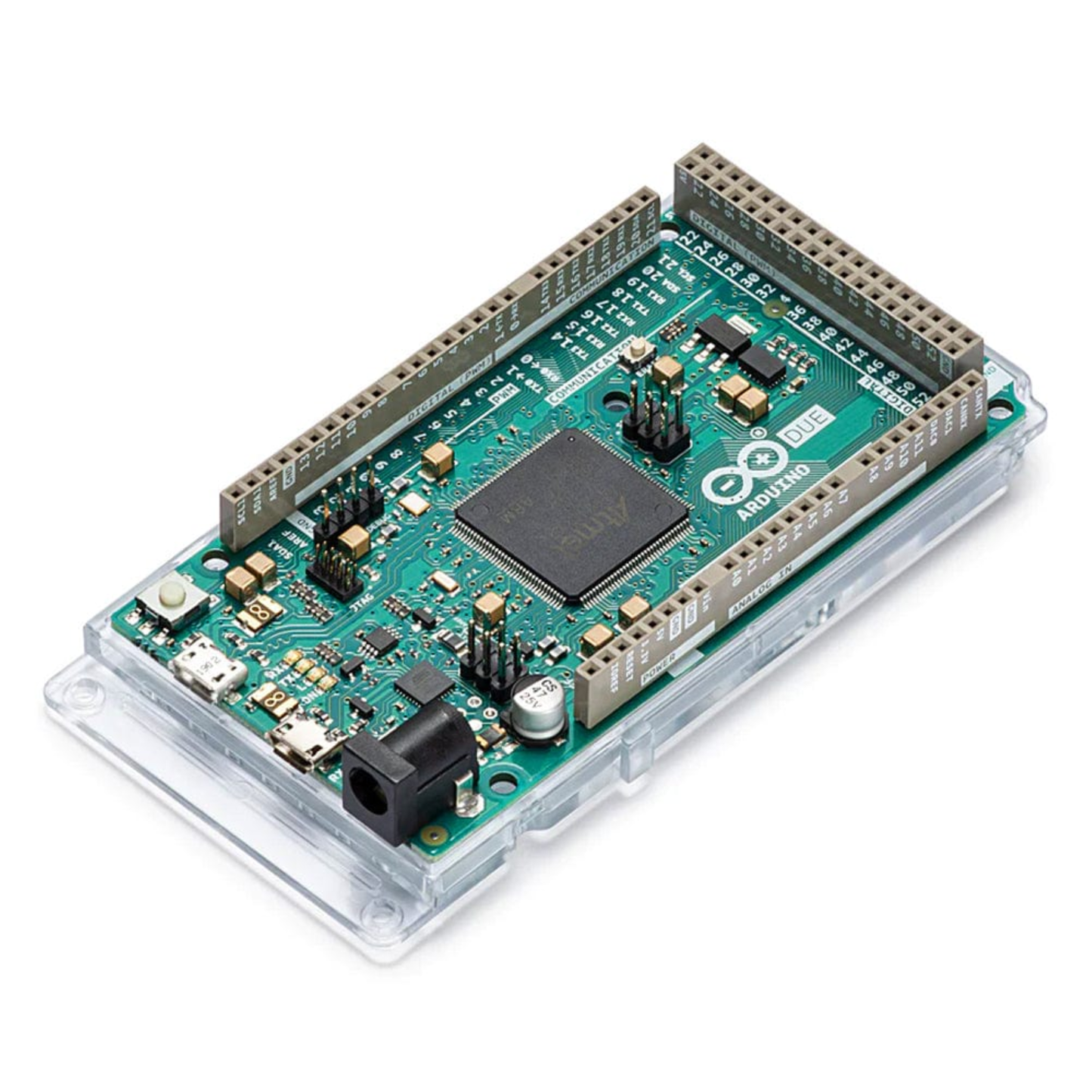

Introducing the Arduino Due Original, the first Arduino board powered by a 32-bit ARM core: the Atmel SAM3X8E ARM Cortex-M3 CPU. This groundbreaking board delivers a new level of performance for your projects.

The Arduino Due offers exceptional flexibility with 54 digital I/O pins (including 12 PWM) and 12 analog inputs. Its powerful 32-bit core processes 4 bytes of data per CPU clock, enabling rapid execution of complex tasks.

Equipped with 96KB of SRAM and 512KB of flash memory, the Arduino Due Original easily stores and runs your code. A built-in DMA controller further optimizes performance by offloading memory-intensive tasks from the CPU.

Specifications:

• Model No.: A000062
• Microcontroller: ATSAM
• Microcontroller Chip: AT91SAM3X8E
• Digital I/O Pins: 54(of which 12 provide PWM output)
• Analog I/O Pins: 12
• Input Voltage: 7- 12V
• Clock Speed: 84 MHz
• Analog Output Pins: 2(DAC)
• SRAM: 96
• Flash Memory: 512 KB
• DC Current per I/O Pin: 130mA
• DC Current for 3.3V Pin: 800mA
• Operating Temperature: -20 to 80°C
• On Board LED: Yes

Features:

• This is Arduino Due Original manufactured by Arduino Officials.
• Unleash your creativity with the Arduino Due Original, a 32-bit ARM core powerhouse for limitless project possibilities.
• Experience lightning-fast performance and optimized processing speeds with the Atmel SAM3X8E microcontroller.
• From robotics to home automation, the Arduino Due Original is your go-to board for versatile applications.
• Connect and communicate effortlessly with a wide range of devices through its abundant I/O pins, USB port, Ethernet connectivity, and SD card slot.
• Trust in the reliability and stability of the original Arduino, backed by a thriving community of creators and innovators.
• Get exceptional value with the Arduino Due Original's competitive pricing, providing unbeatable features and performance at an affordable cost.

Board Interface:

Useful Links:

• Development Environments
  • Arduino IDE
  • Arduino CLI
  • Arduino Web Editor
  • Arduino IoT Cloud
• Getting Started
• Arduino IDE Software
• Schematics
• Arduino Due Pinout

Package Included:

1 x Official Arduino Due Board
