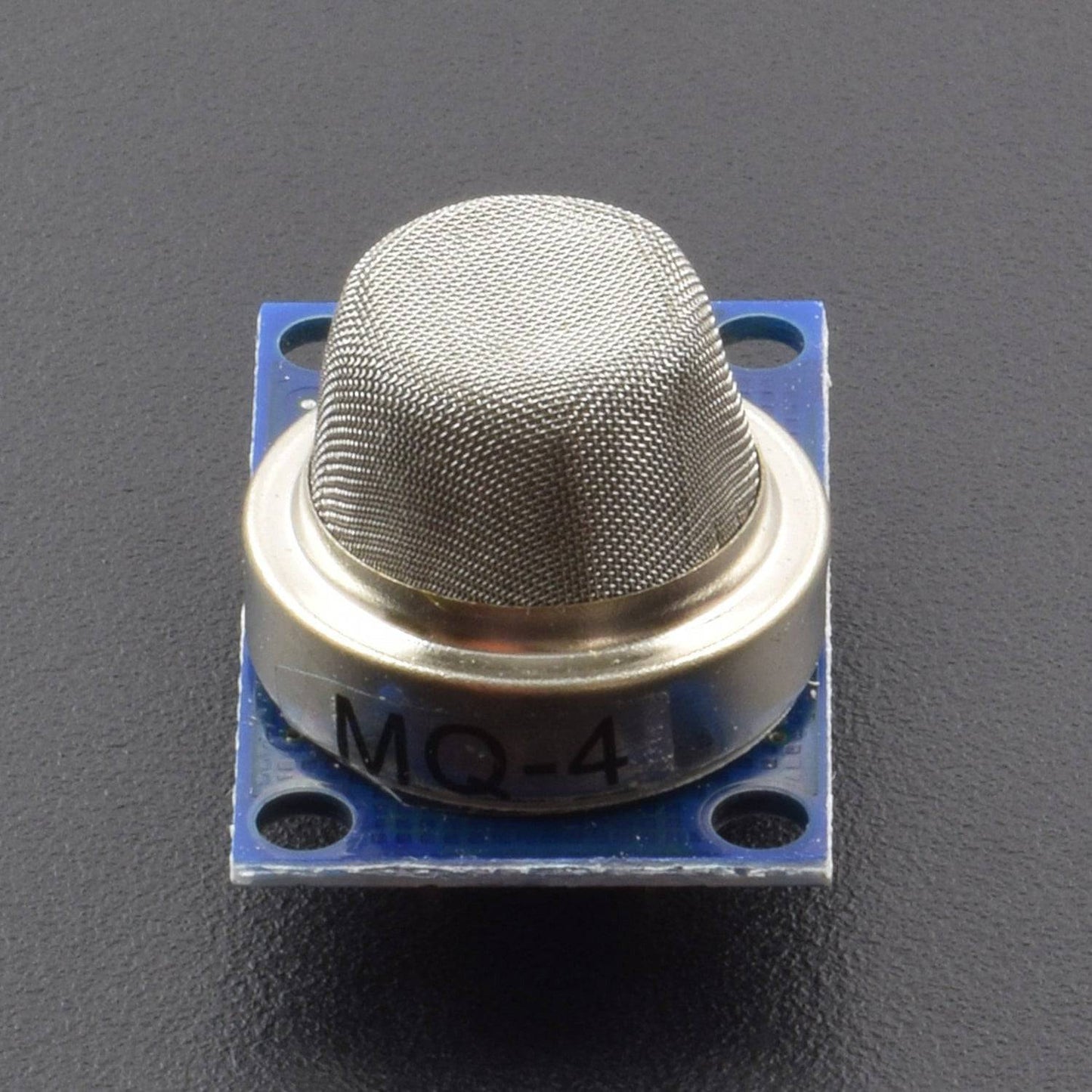

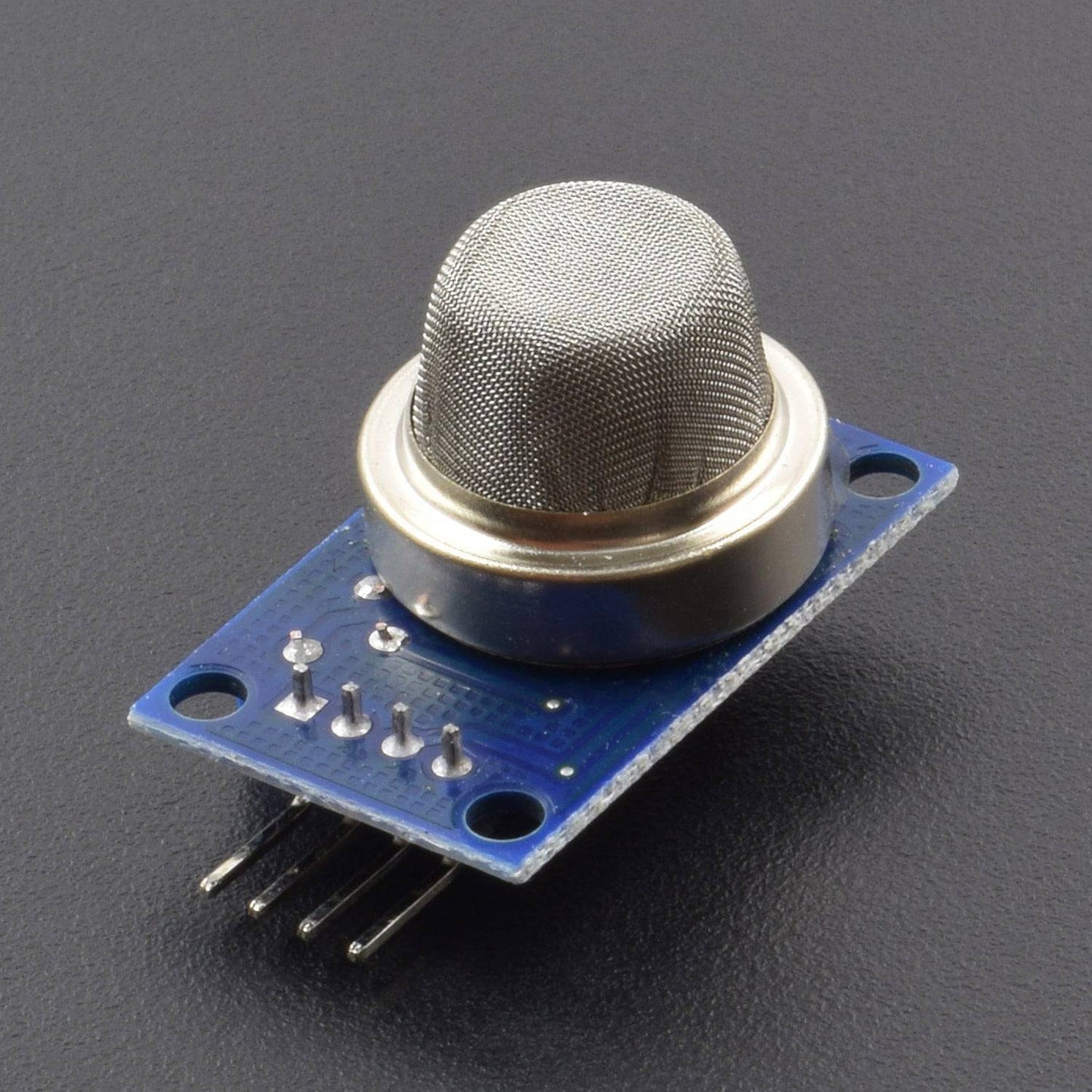

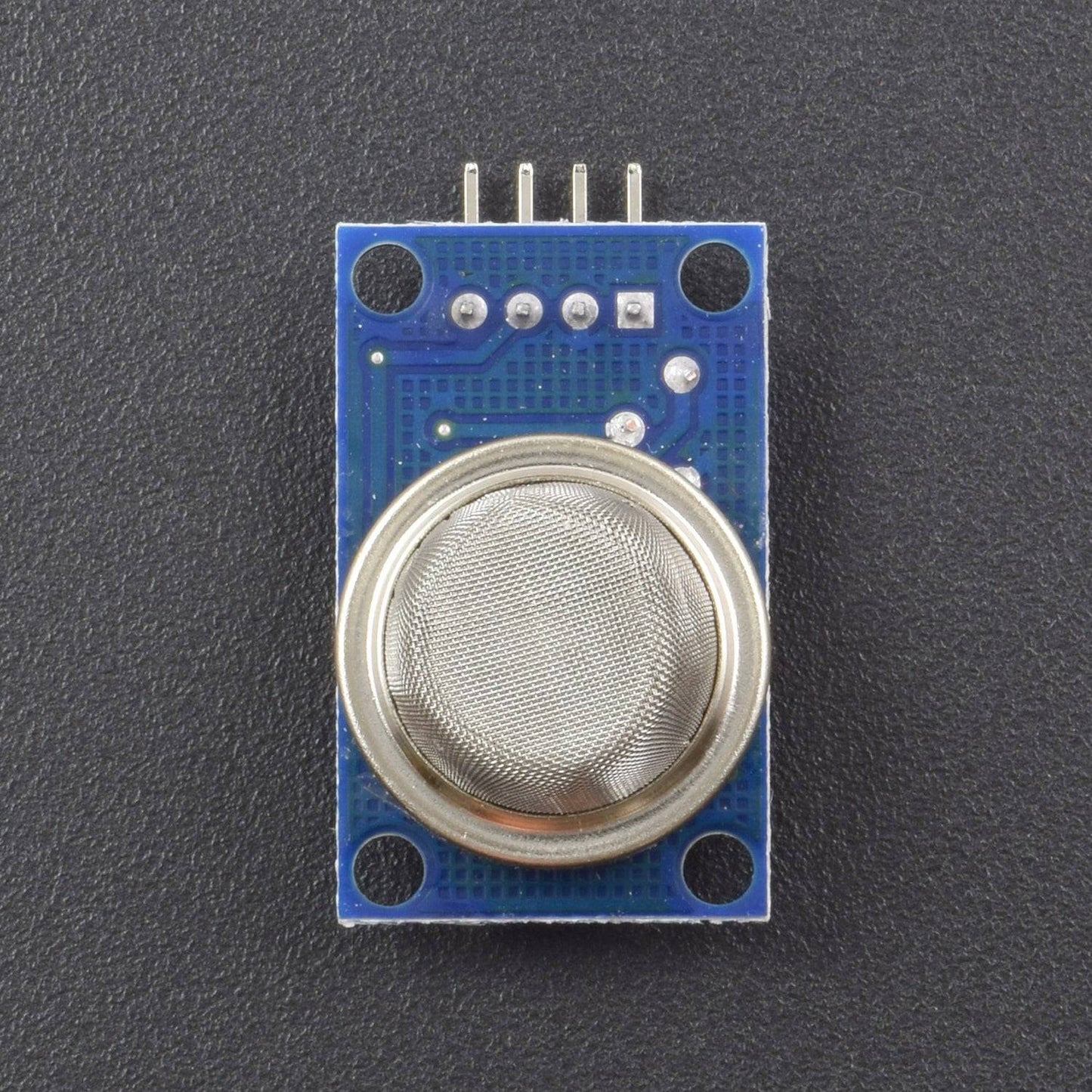

MQ4 Methane Gas Sensor Natural Coal Co methane detector For Arduino - AB048

MQ4 Methane Gas Sensor Natural Coal Co methane detector For Arduino - AB048

SKU:AB048

558 in stock

Regular price Rs. 90.00
Regular price Sale price Rs. 90.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details
  • Detection of gas: Natural gas/Methane
  • Detection of Concentration:300-10000ppm
  • Input voltage: DC5V
  • Power consumption (current): 150mA

Description:

This is a very easy to use low-cost semiconductor Gas sensor Module with analogue and digital output. This module uses an MQ4 Methane gas sensor as a gas sensing element. It requires no external components just plug in Vcc & ground pins and you are ready to go. For Digital output, the threshold value can be easily set by an onboard potentiometer. Using this module you can easily interface MQ4 Methane (CNG) gas Sensor to any Microcontroller, Arduino or even Raspberry Pi. Since this Gas Sensor module is sensitive to Methane it is also small sensitive to alcohol & smoke.

Specification:

  • Detection of gas: Natural gas/Methane
  • Detection of Concentration:300-10000ppm
  • Input voltage: DC5V
  • Power consumption (current): 150mA
  • DO output: TTL digital quantities 0 and 1 (0.1 and 5V)
  • AO output: 0.1-0.3V (relatively non-polluting), the highest concentration voltage is about 4V
  • Using the chip: AT89S52
  • Crystal: 11.0592MHZ
  • Baud rate: 9600
  • Compilation environment: Keil

Features:

  • It adopts a high-quality double panel design with power indication and TTL signal output indication;
  • It has a DO switch signal (TTL) output and AO analogue signal output;
  • The TTL output valid signal is low. (When the output is low, the signal light is on, it can be directly connected to the MCU or relay module)
  • The voltage of the analogue output, the higher the concentration, the higher the voltage.
  • It has good sensitivity to gas and natural gas detection.
  • There are four screw holes for easy positioning
  • Has a long service life and reliable stability
  • Fast response recovery characteristics

Pin Description:

  • VCC: positive power supply (5V)
  • GND: power supply is negative
  • DO: TTL switching signal output
  • AO: analogue signal output

Package Included:

1 x MQ4 Methane Gas Sensor Natural Coal Co methane detector For Arduino
