MP1584EN Buck Converter Mini LM2596 Ultra Small DC-DC 3A Power Step Down Adjustable Buck Converter 24V Turn 12V 9V 3V - NA066
MP1584EN Buck Converter Mini LM2596 Ultra Small DC-DC 3A Power Step Down Adjustable Buck Converter 24V Turn 12V 9V 3V - NA066
SKU:NA066
Low stock: 9 left
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:

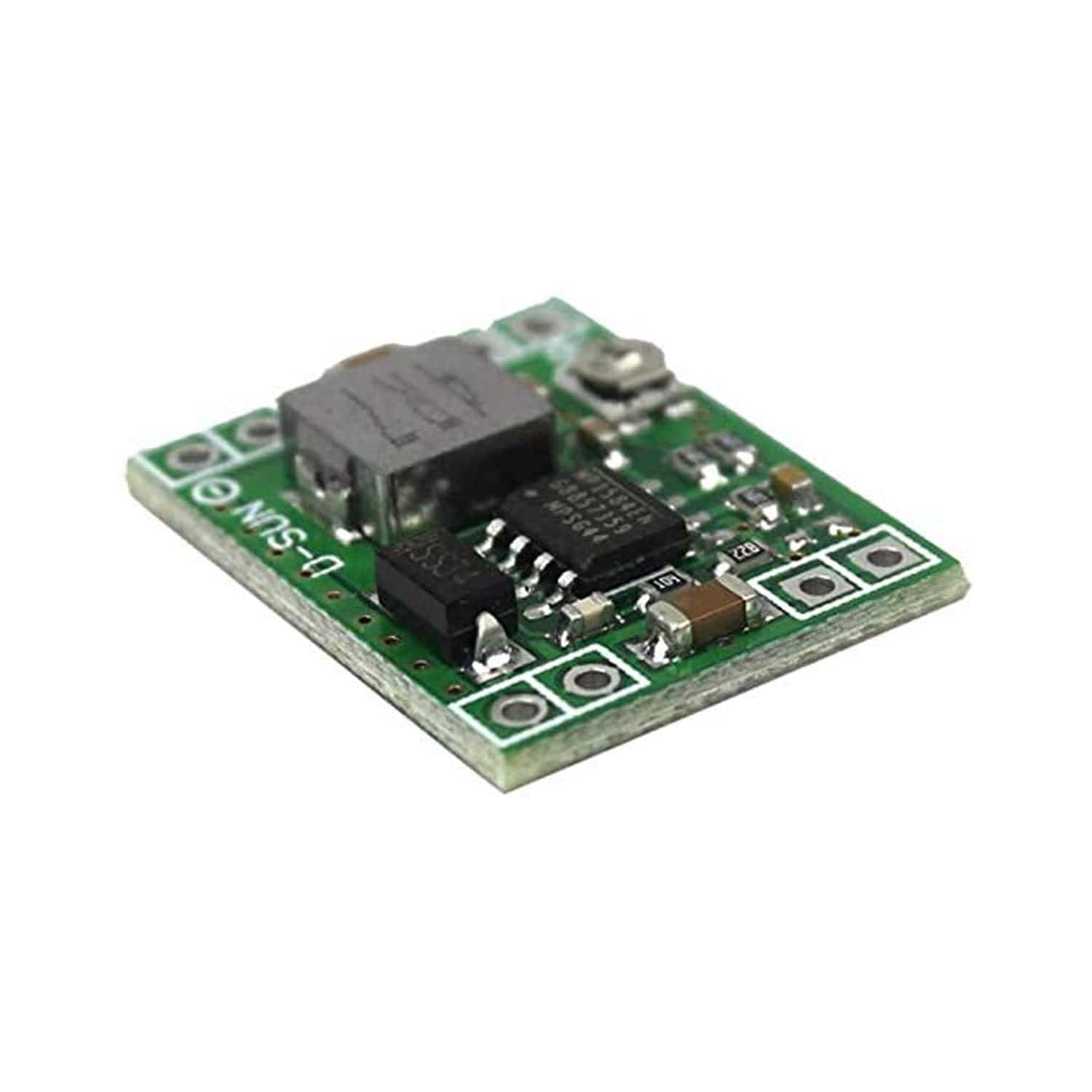

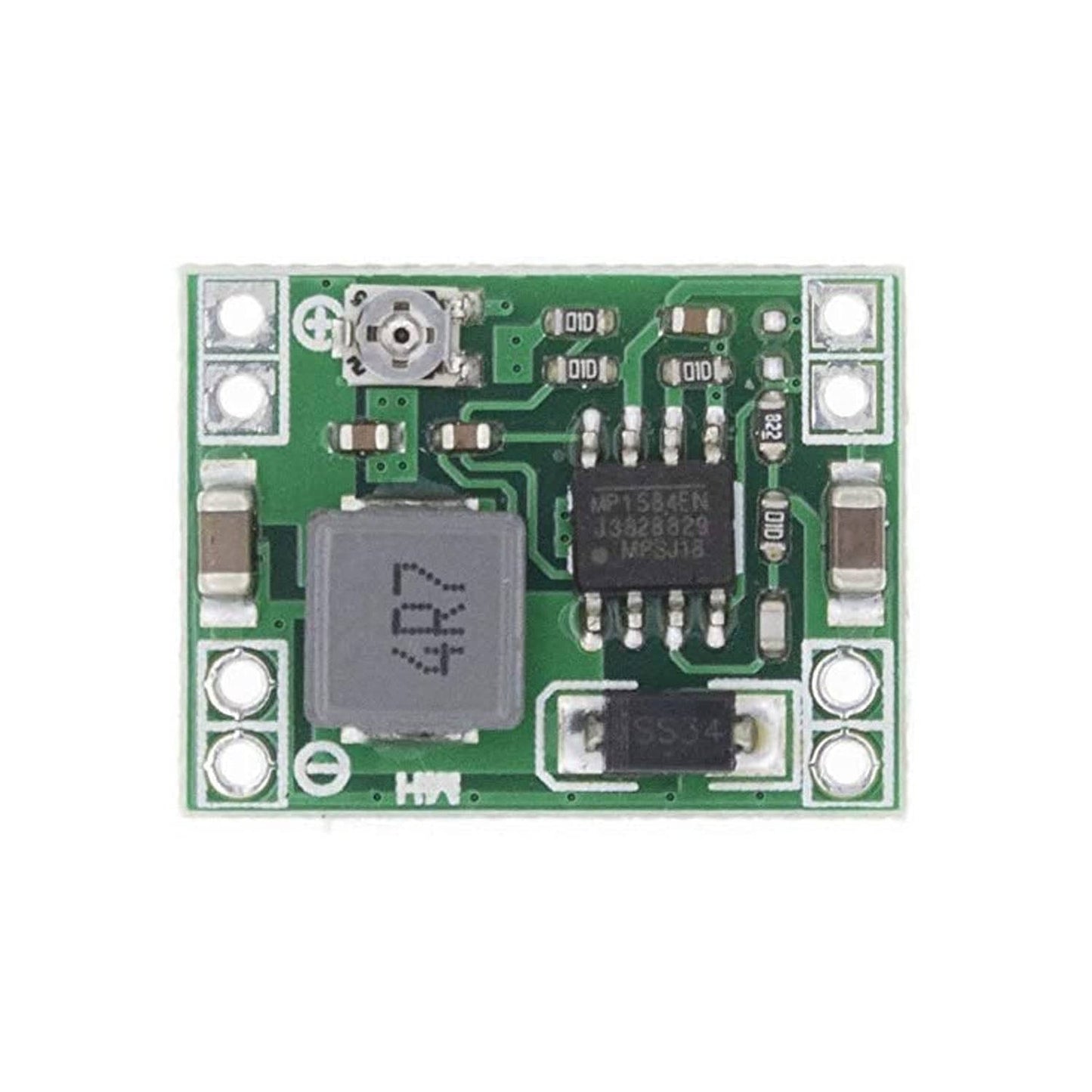

Mini MP1584EN Buck Converter is a mini DC-DC Step Down Module having input 4.5-28V to output 0.8-20V @ 3A capacity. MP1584EN Mini DC-DC 3A power step-down adjustable module. Buck Converter is usually used to convert 24V to 12V 9V 5V 3V as per application requirements.
MP1584EN Buck Converter features a soft start, thermal shutdown, and under-voltage lockout (UVLO) to protect the module from operating at insufficient supply voltage. Set voltage using a voltmeter and adjust to proper output voltage before installing in your device.
Specifications:
- IC Chip: MP1584EN
- Input Voltage: 4.5 to 28(V)
- Output Voltage: 0.8 to 20(V)
- Output Current: 3(A)
- Typical Output Voltage: 1.8(A)
- Typical Switching Frequency: 1(MHz)
- Conversion Efficiency: 96(%)
- Output Ripple: 30(mV)
- Accuracy: ±0.5%
- Operating Temperature: -40 to +85(°C)
Features:
- High-Efficiency Pulse Skipping Mode for Light Load
- Ceramic Capacitor Stable
- MP1584EN Buck Converter has an internal Soft-Start
- Internally Set Current Limit without a Current Sensing Resistor
Applications:
- Breadboard power supply
- Manual speed adjustment of small DC motors
- Power Supply for RC project planes, cars, helicopters
- Universal Battery Elimination Circuit (UBEC) for 2S-6S lipo battery pack
Package Included:
1 x MP1584EN Buck Converter Mini LM2596 Ultra Small DC-DC 3A Power Step Down Adjustable Buck Converter 24V Turn 12V 9V 3V
