Description:

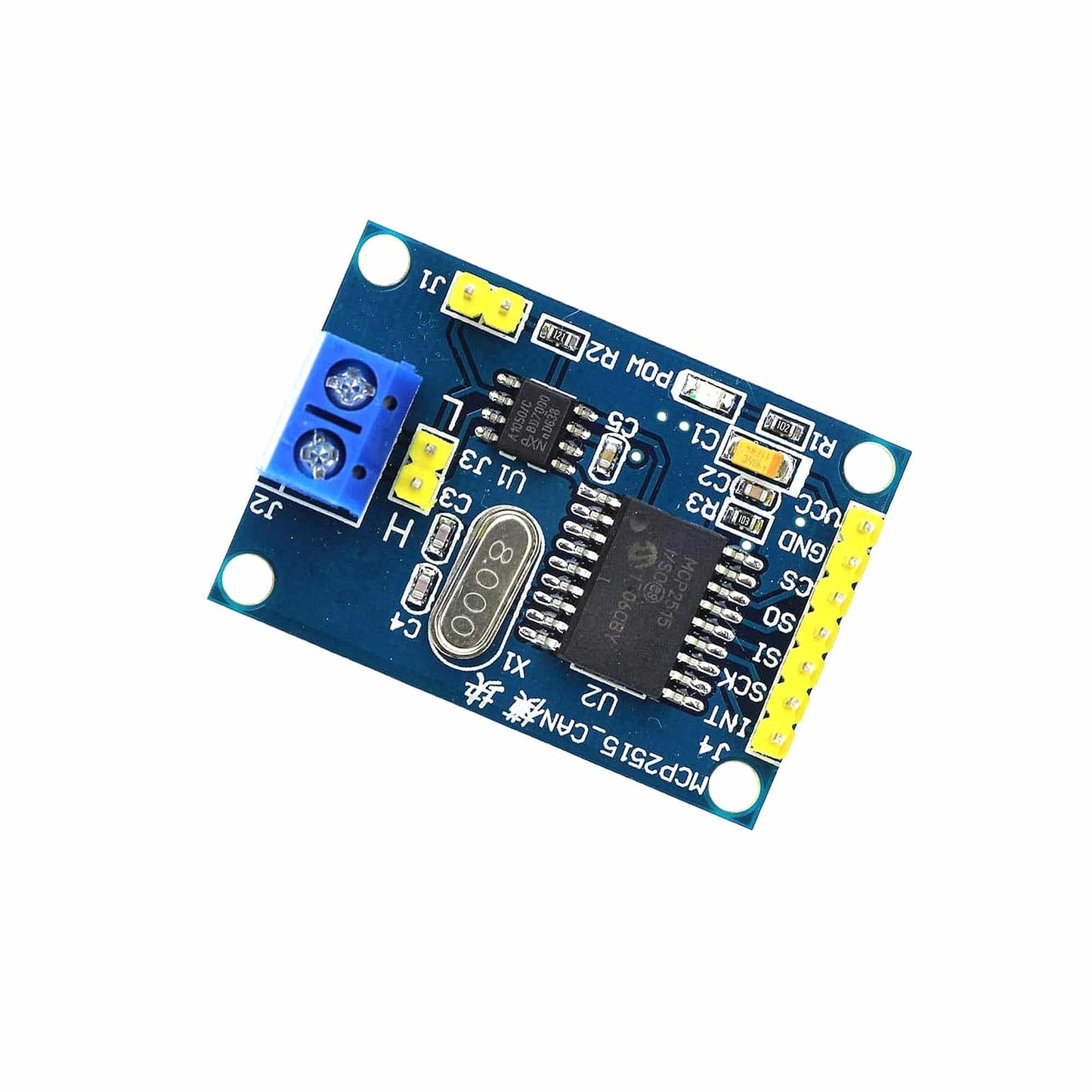

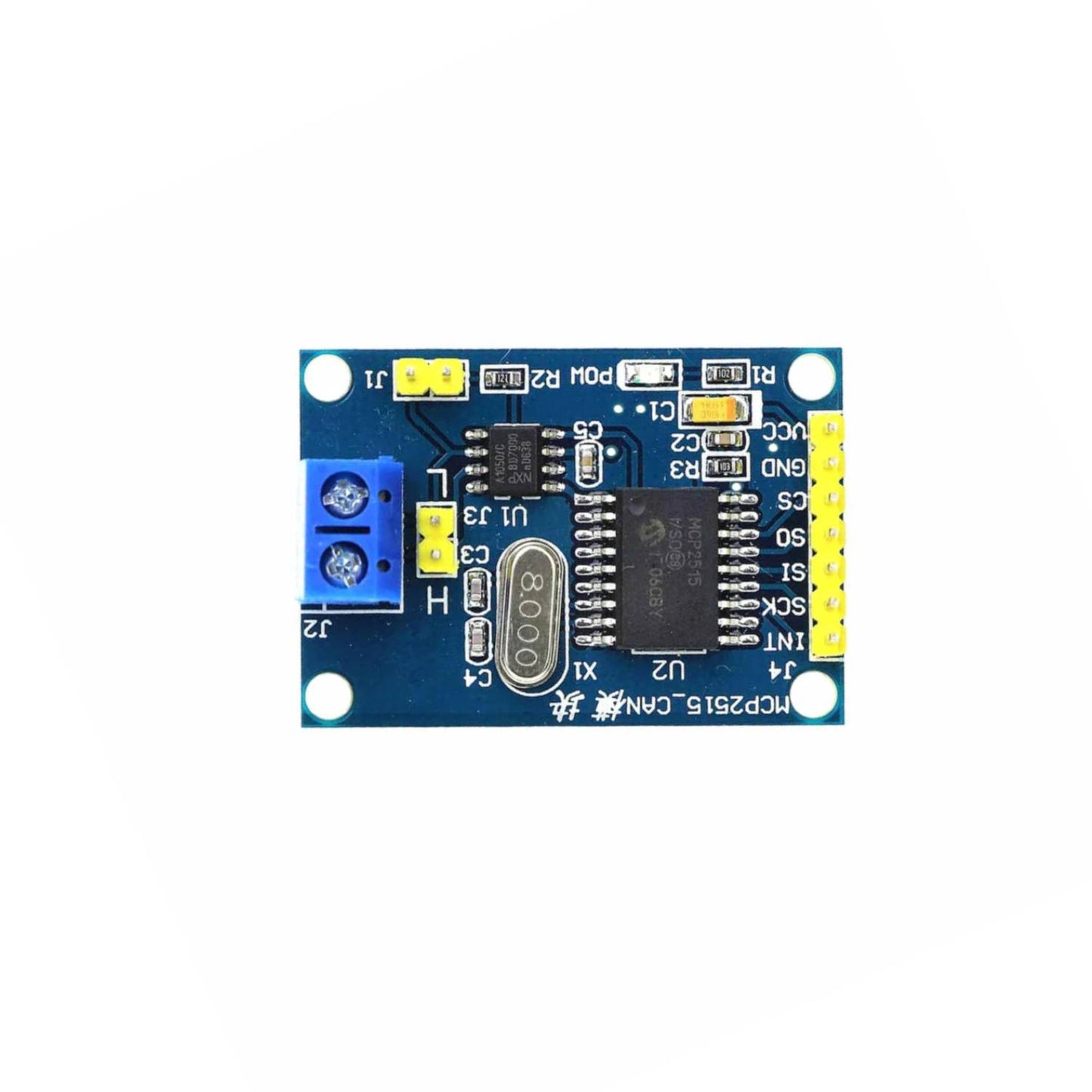

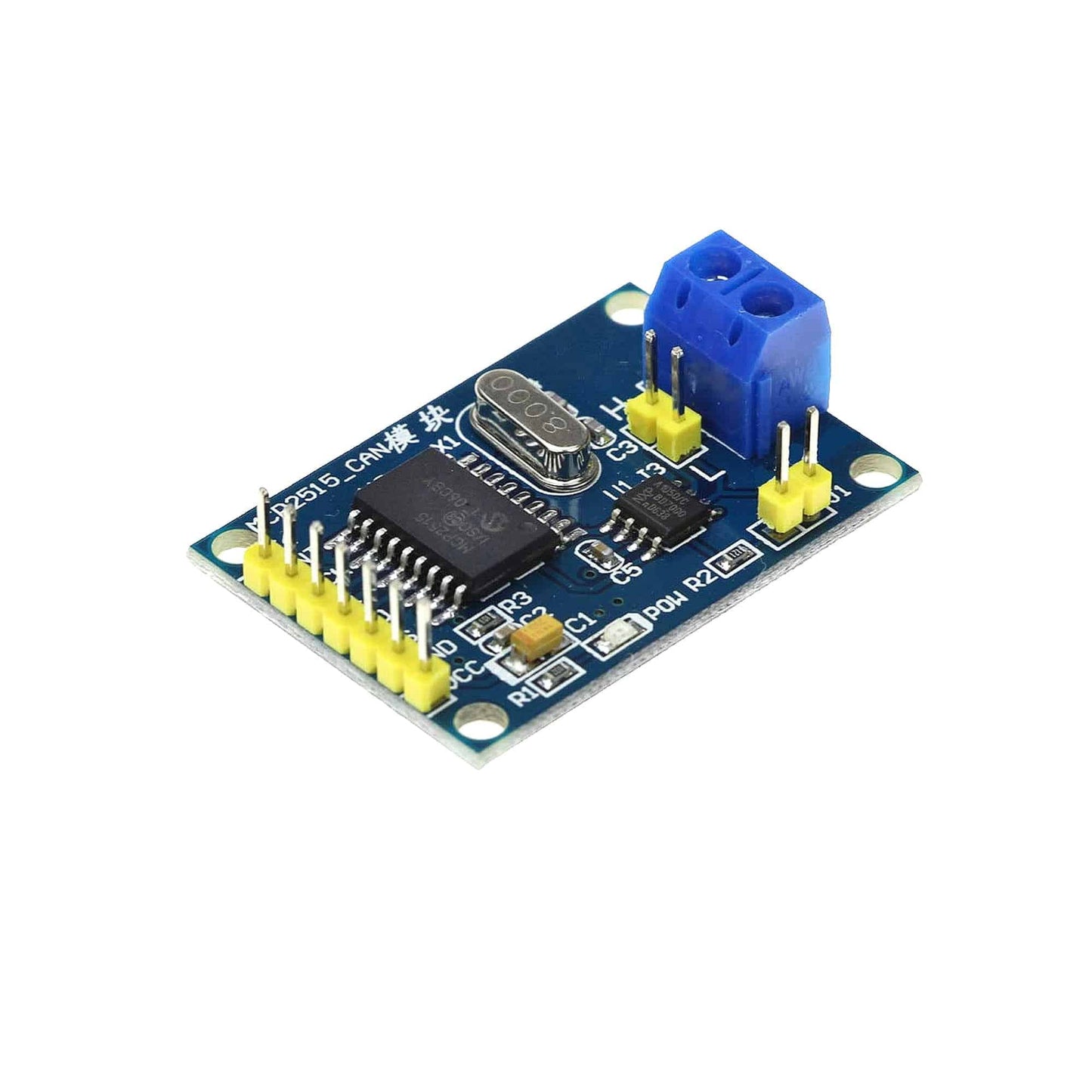

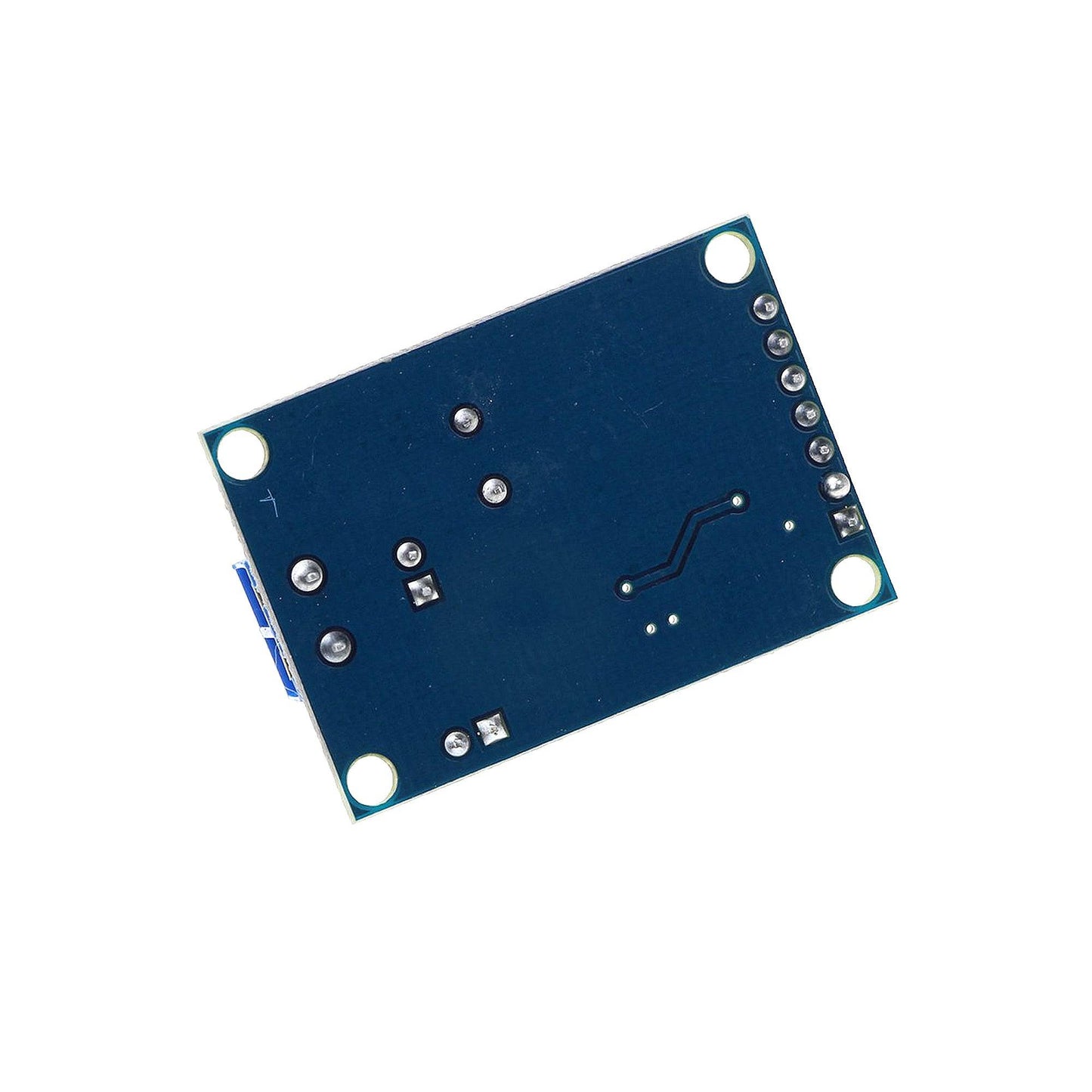

The MCP2515 CAN Module, equipped with a TJA1050 Receiver and SPI interface, empowers your Arduino-based projects with robust CAN Bus communication capabilities. This single-chip solution simplifies the integration of CAN Bus devices into your microcontroller systems.
Specifications:
- Model: MCP2515
- Transceiver Used: CAN TJA1050
- Oscillator Used: 8MHZ crystal oscillator
- Input Supply Voltage: 5V
- Working Current: 5mA
- Communication Rate: 1 MBps
- Data bits: 8
- Crystal Oscillator: 8MHz
- Terminal Resistance: 120Ohm
- Supports: CAN V2.0B
Features:
- MCP2515 CAN Bus Module supports CAN V2.0B technical standard, communication rate 1Mb / S.
- 0 to 8 bytes long data field.
- SPI control for expanding Multi CAN bus interface
- MCP2515 CAN Bus Module uses a serial port could view the communication data
- With an independent key, LED indicator, Power indicator
- Standard frames, extended frames, and remote frames.
- MCP2515 CAN Bus Module uses high-speed CAN transceiver TJA1050
Package Included:
1 x MCP2515 CAN Bus Module MCP2515 CAN Module TJA1050 Receiver SPI 51 Single Chip Program Routine Arduino
