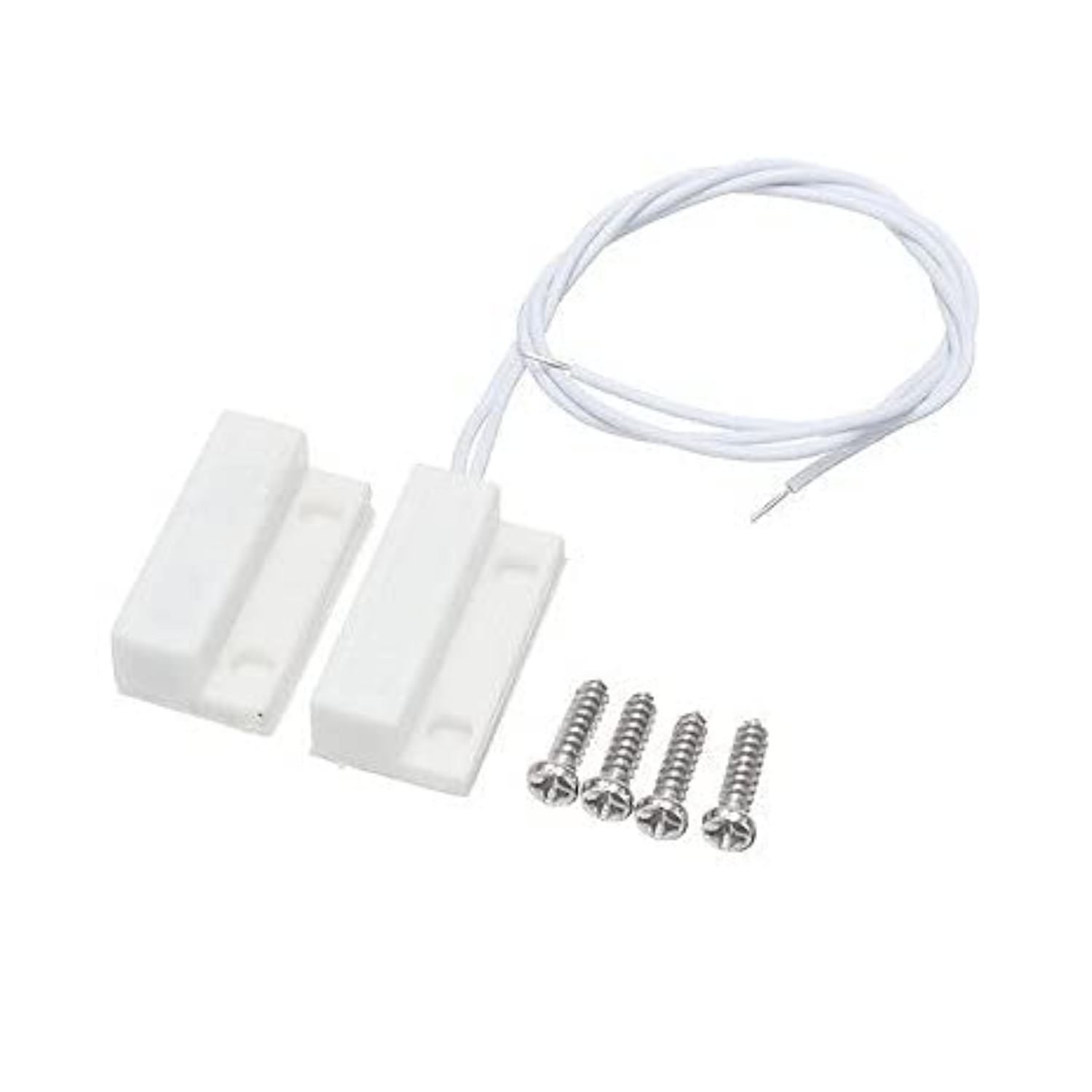

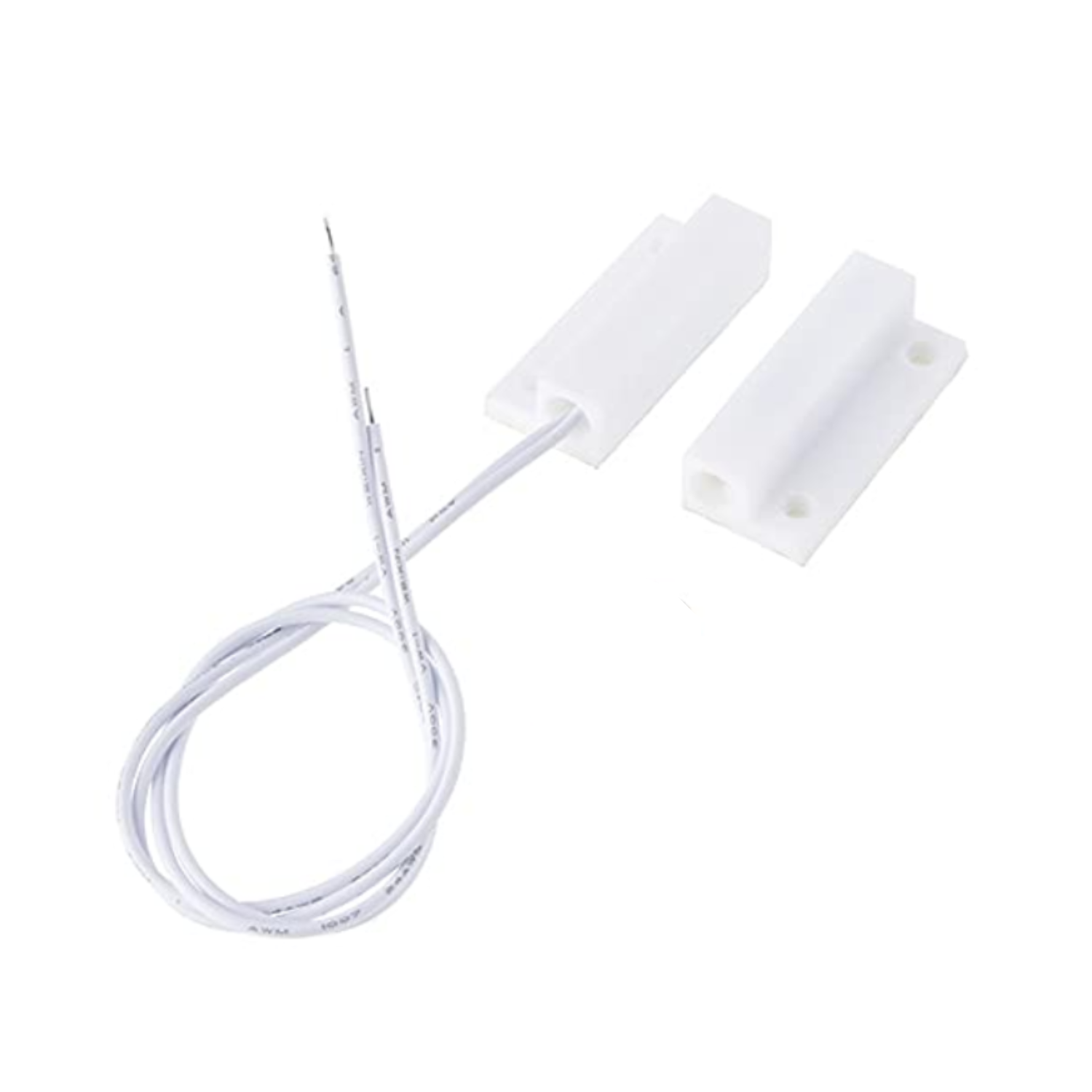

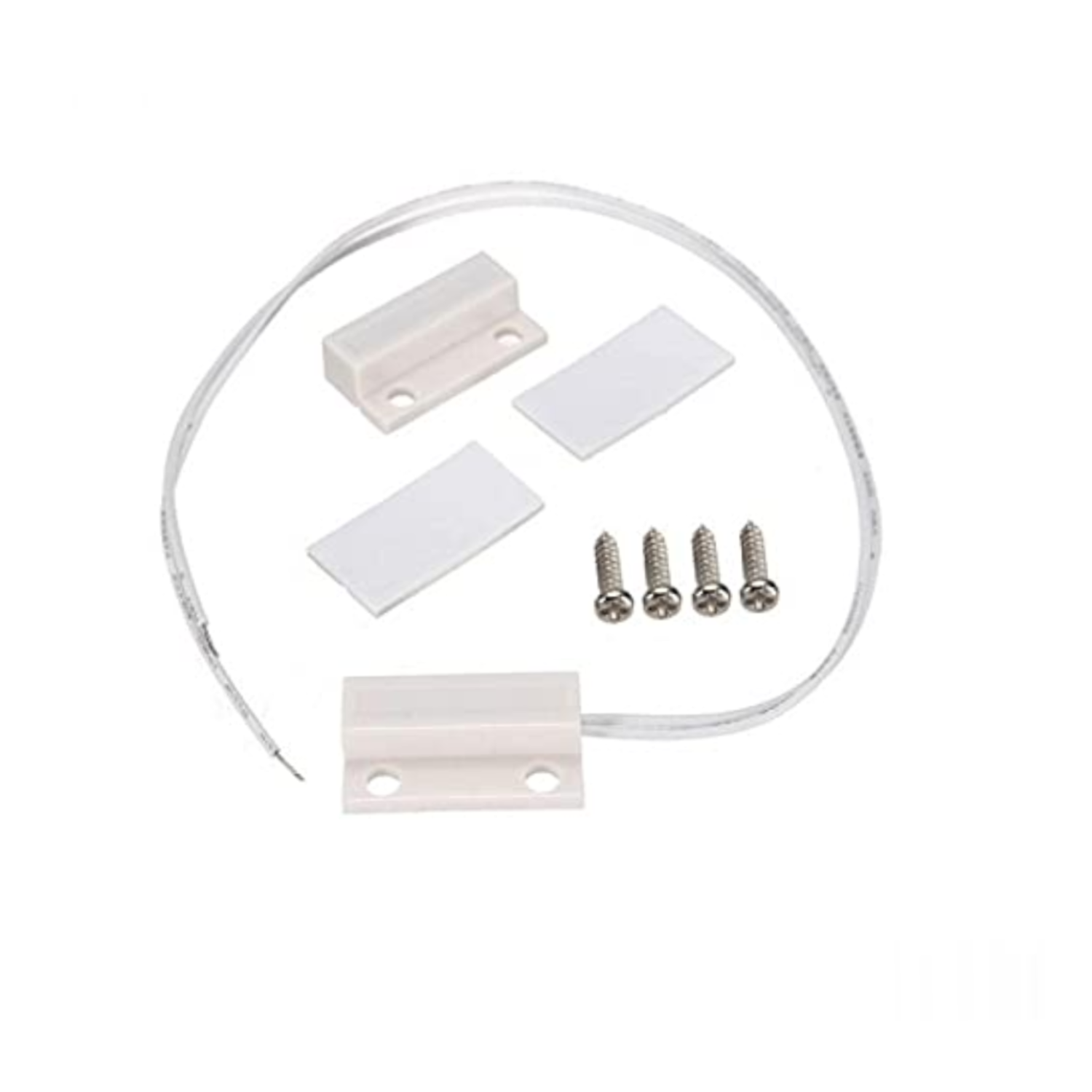

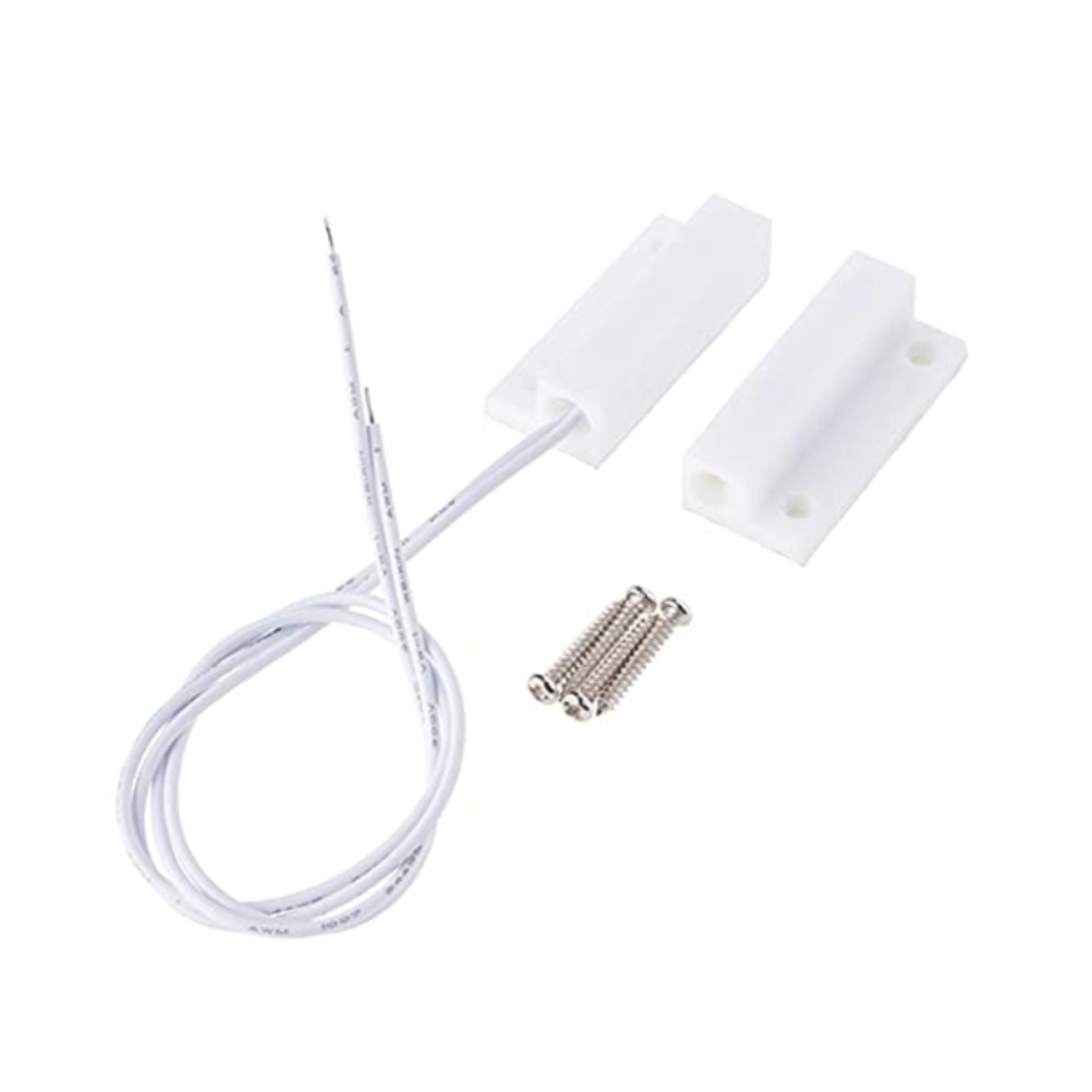

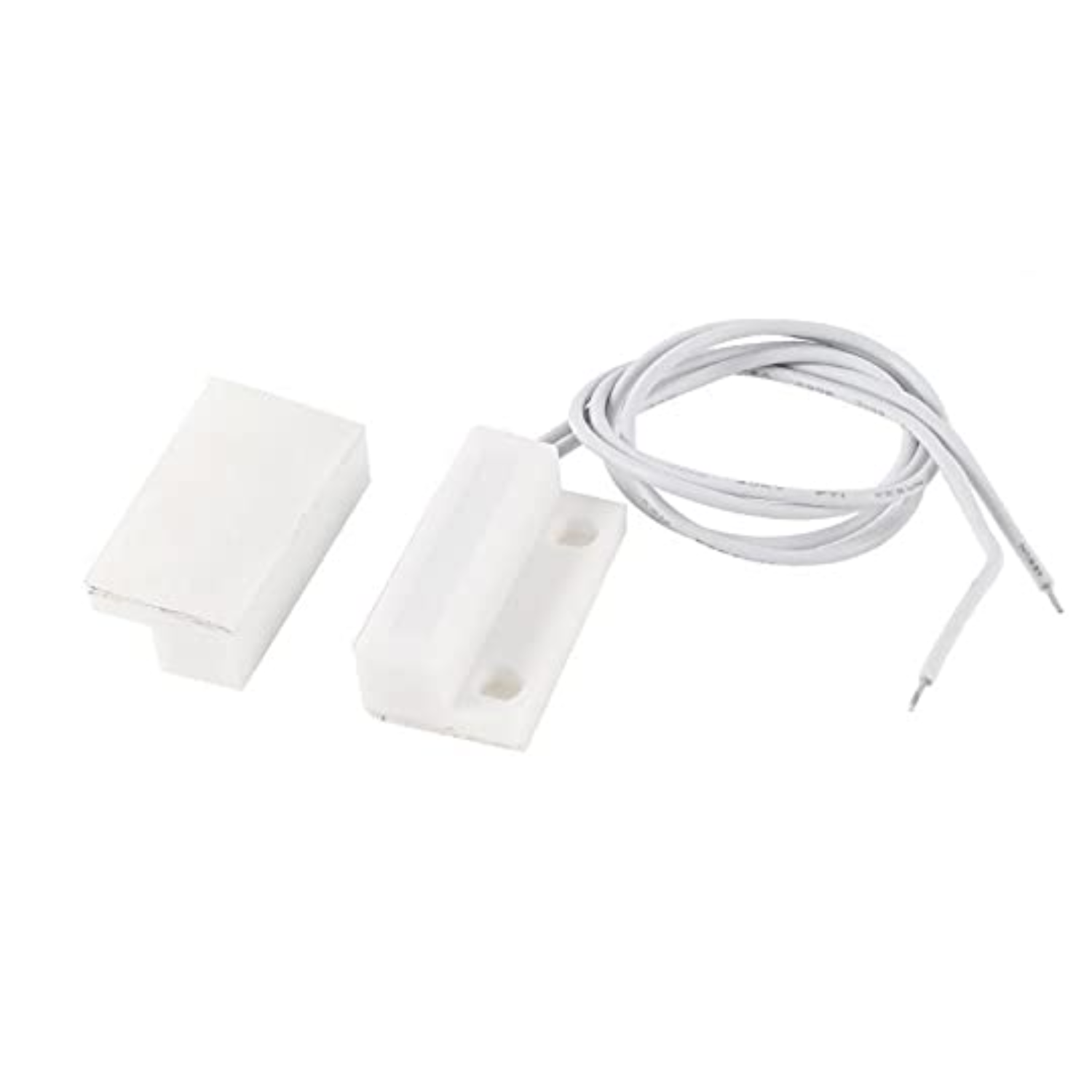

MC-38 Wired Door Window Sensor Magnetic Switch Home Alarm System can be used as a door or window security system. It produces the signal when moved away from each other which can be fed to the microcontroller to perform the desired action as per requirement. This sensor is suitable to use for trigger alarm or ON/OFF light inside a cupboard sliding door.
This wired sensor is triggered by the magnet. When the magnet is closed, the circuit is closed or open if the magnet is far from the sensor. Normally closed:-When the magnet together, the circuit is conductive( light on ); when the magnet separates, the circuit is not conductive ( light off ). For example: Install on the door, close door light on. open the door light off.
Specifications:
Model: MC-38
Connection type: Normally Close
Material: Plastic
Color: White
Contact Capacity: 0.5A (Max. Switch Current)
Voltage (V): 100V
Power Rating (W): 10
Additional Specs.: Actuation Distance (mm): 15 to 25
Cable Length (cm): 30
Features:
Easy to install and remove.
The magnetic sensor alarm controls the switch of the circuit via the built-in magnet.
Ideal for residential or commercial use.
Designed to be embedded in the door or window frame.
Package Included:
1 x MC-38 Wired Door Window Sensor
4 x M5 screws for fitting
