Description:

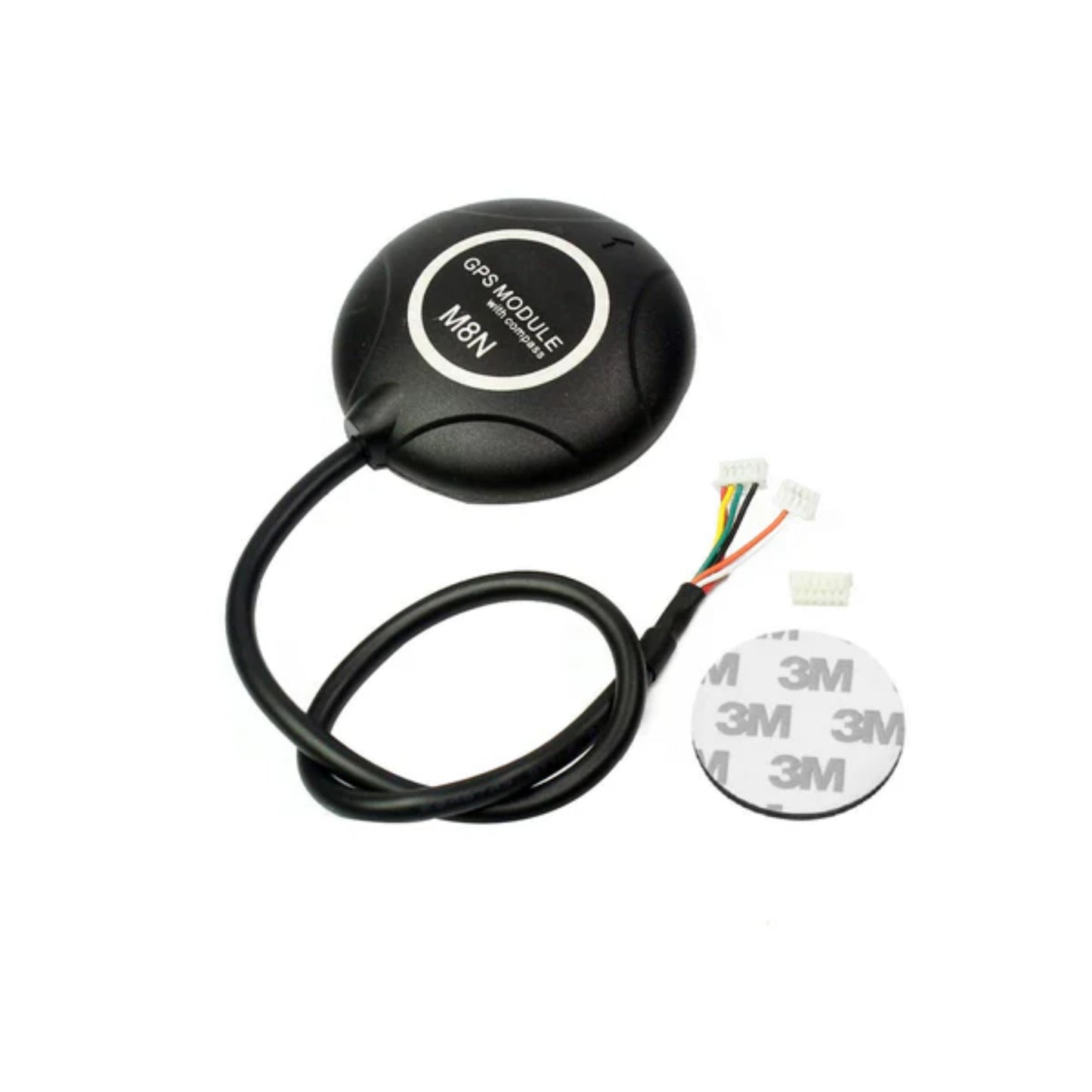

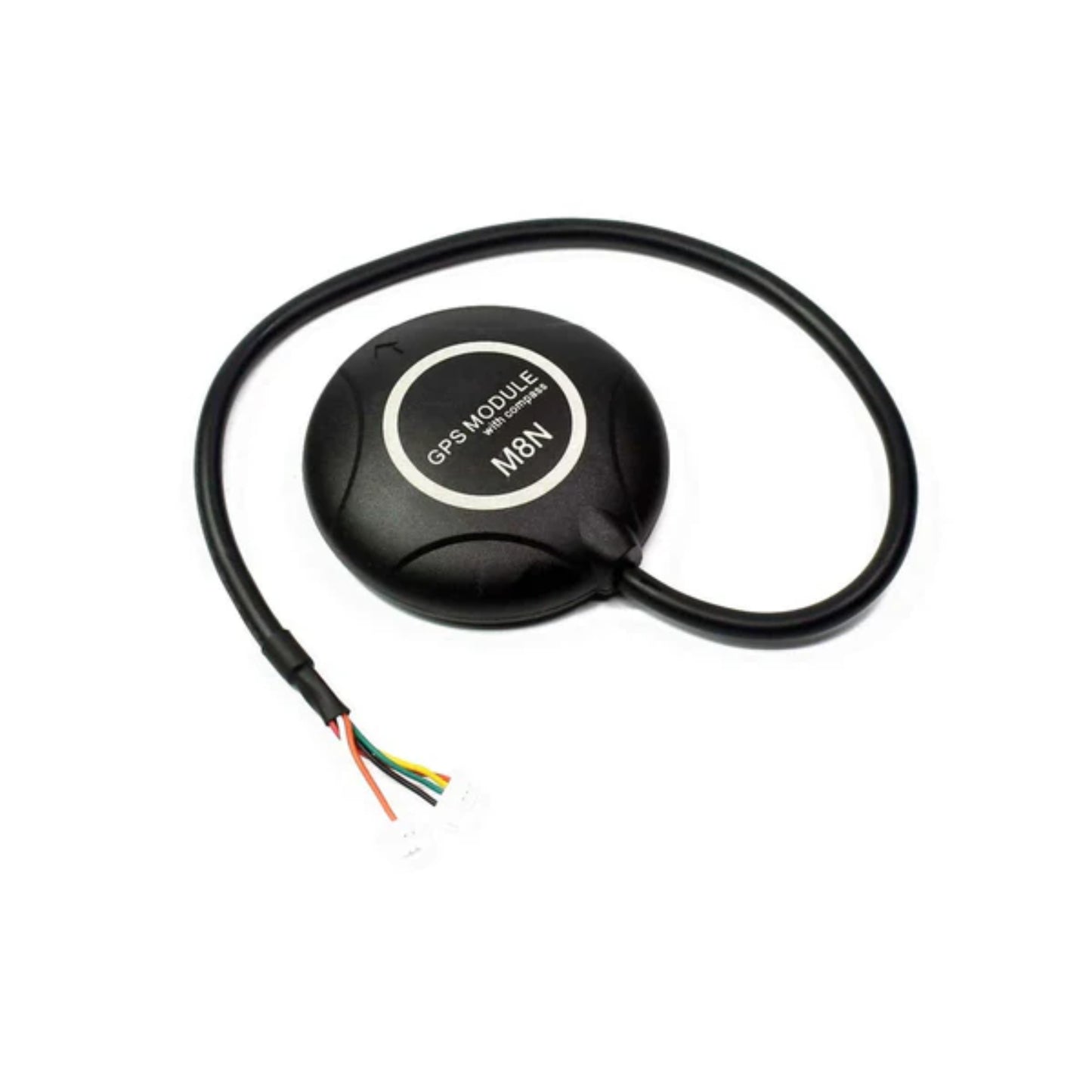

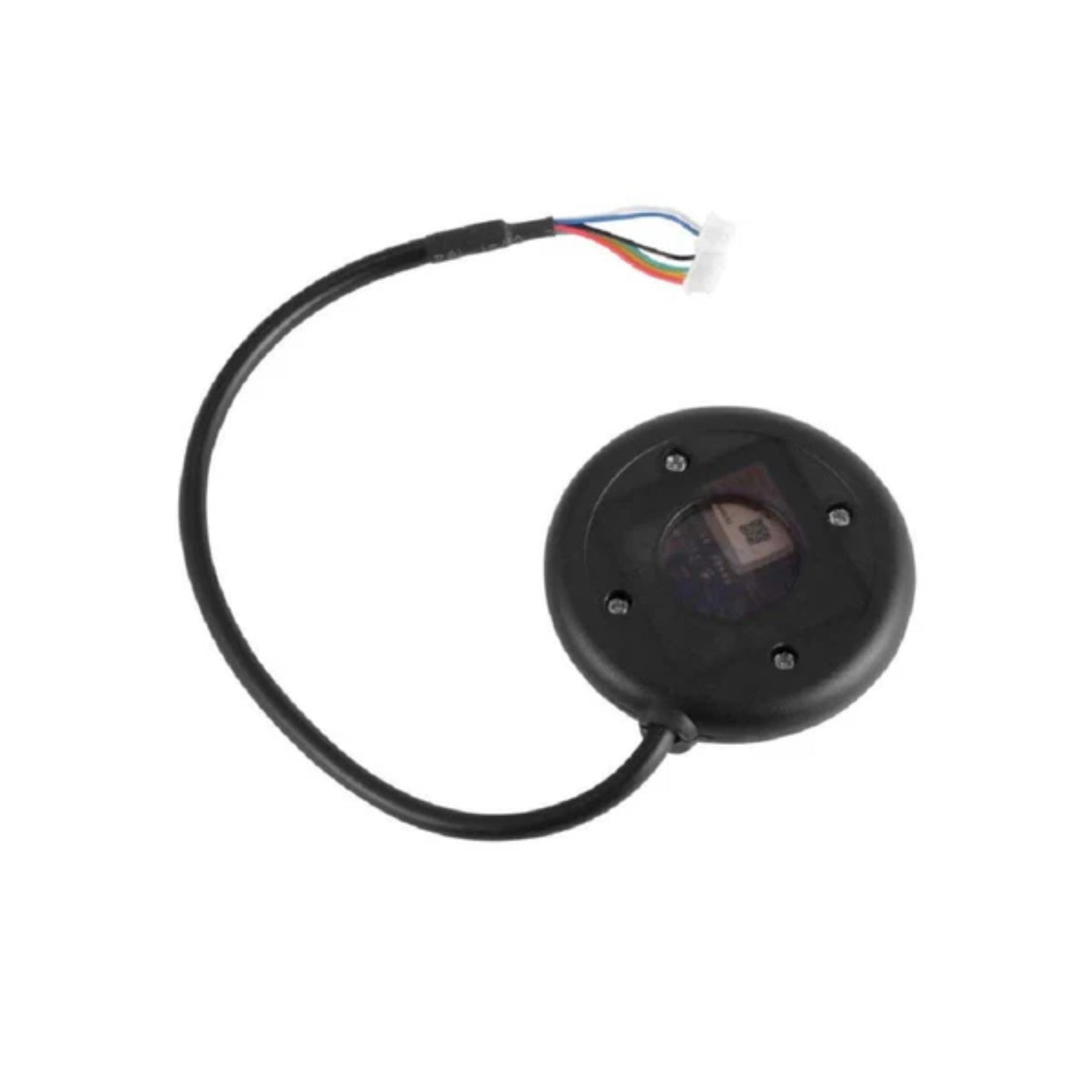

This M8N GPS Compass Module has a high level of sensitivity and features active circuitry for the ceramic patch antenna. It also comes enclosed in a plastic case to protect the module from the elements.
This GPS Module supports GPS, GLONASS, and BeiDou systems for reliable navigation. Its built-in compass provides an added layer of precision, ensuring optimal performance in diverse environments. Whether you're a professional drone operator or a hobbyist.
Specifications:
- Model Number: Neo-M8N GPS Module
- Material: Metal
- Technical parameters: Value 2
- Upgrade Parts/Accessories: Shock Absorber
- Remote Control Peripherals/Devices: ESC
- For Vehicle Type: Airplanes
- Tool Supplies: Battery
- RC Parts & Accs: Radio Systems
- Digital compass: HMC5883L
- Baud rate: 38400
- Concurrent reception: GPS/QZSS, GLONASS, and BeiDou
- Navigation sensitivity: 167 dBm
- Navigation: up to 10 Hz
- Cold starts: 26s
Features:
- Onboard Compass
- RTC crystal Built-In
- Crystal (NEO-M8M)
- Oscillator TCXO (NEO-M8N/Q),
- Odometer Travelled distance
- OMA SUPL & 3GPP compliant
- lowest noise figure (NEO-M8N/Q)
- Supported antennas Active and passive
- onboard SAW bandpass filter (NEO-M8N/Q)
- GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
- SBAS L1 C/A: WAAS, EGNOS, MSAS
- Galileo-ready E1B/C (NEO-M8N)
- Assistance AssistNow GNSS Online
- AssistNow GNSS Offline (up to 35 days)
- AssistNow Autonomous (up to 6 days)
- Noise figure On-chip LNA (NEO-M8M). Extra LNA for
- Anti-jamming Active CW detection and removal. Extra
- Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N)
- Data-logger For position, velocity, and time (NEO-M8N)
Package Included:
1 x M8N GPS Compass Module GPS Module With Built-in Electronic Compass High Precision M8N GPS and Electronic Compass Module For Accurate Positioning and Navigation
