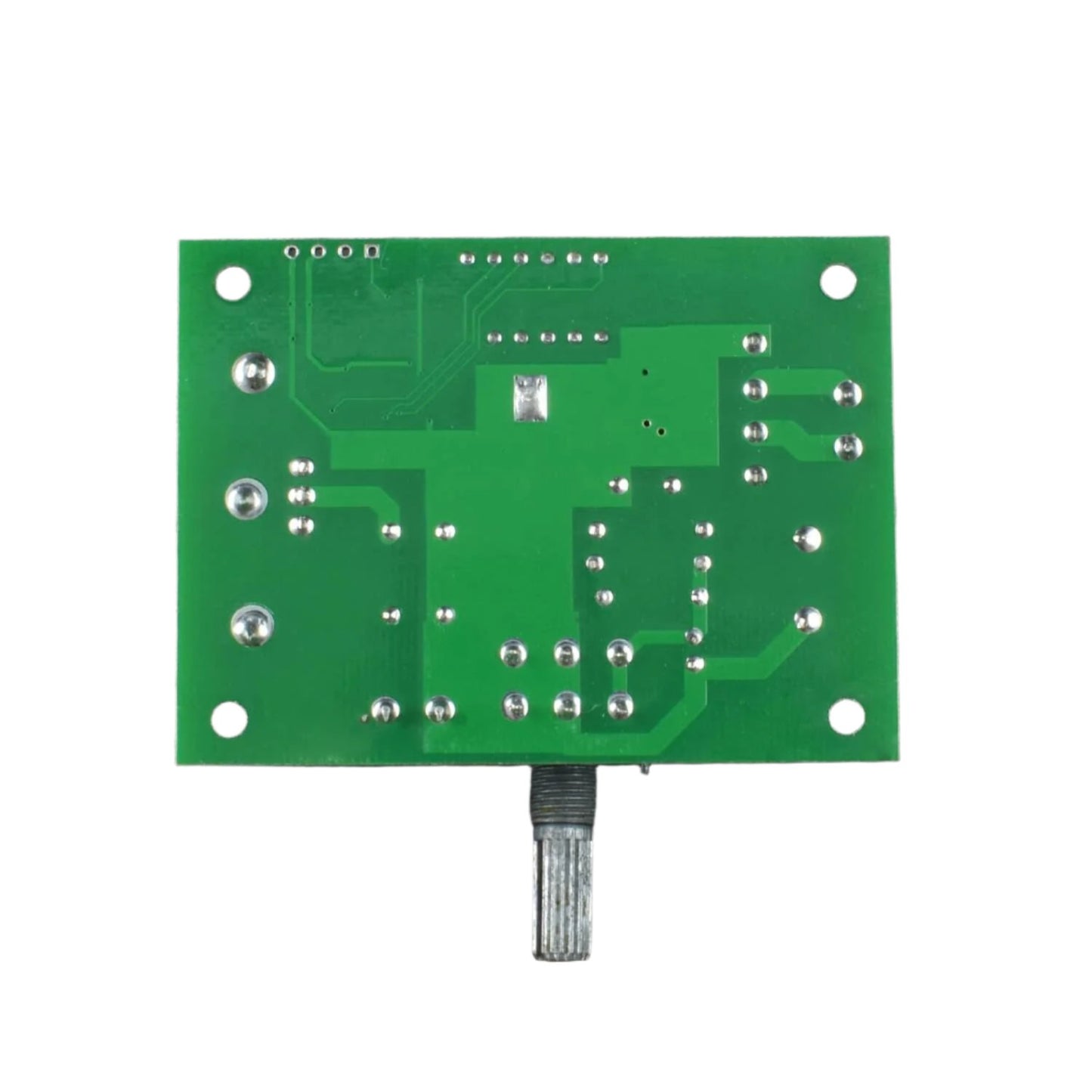

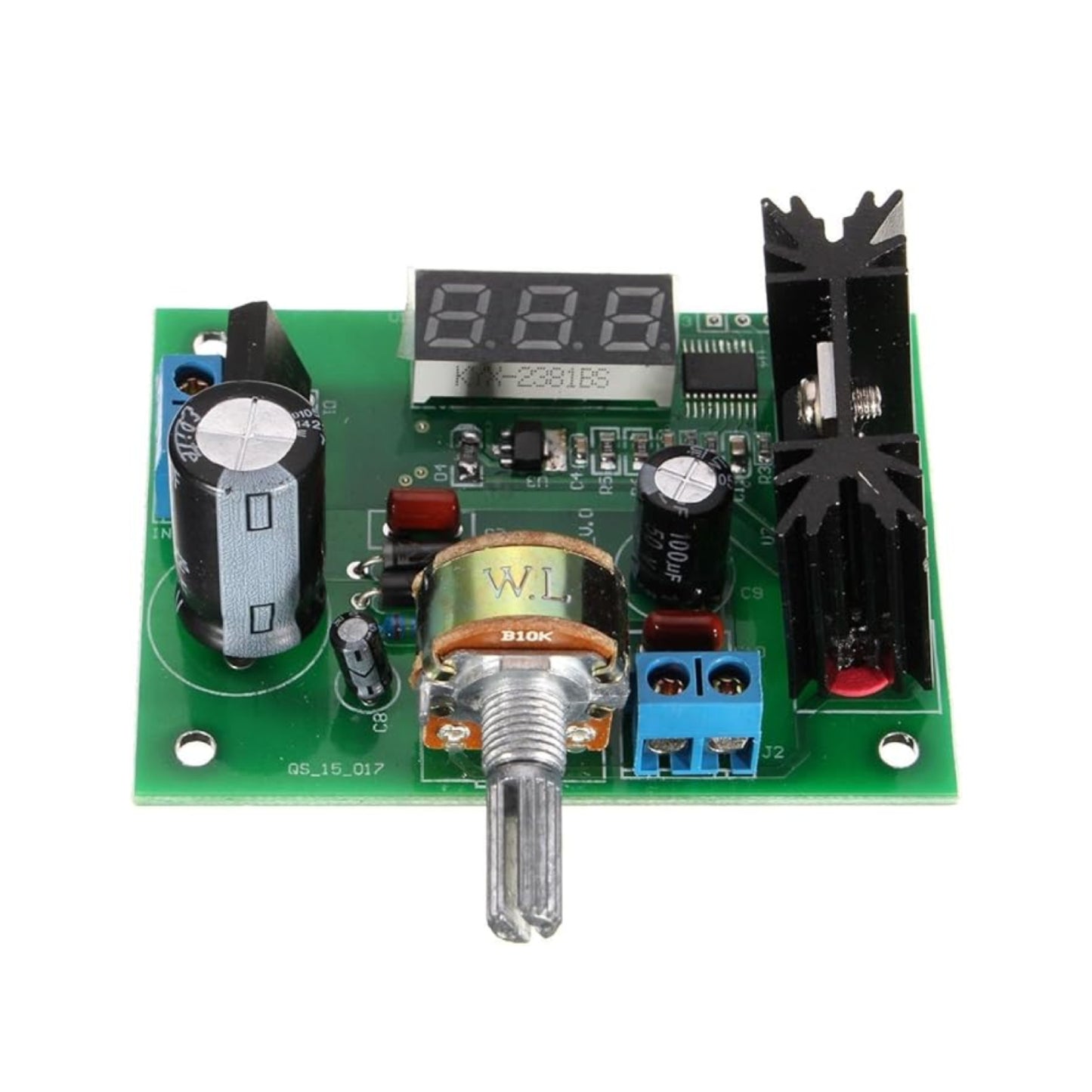

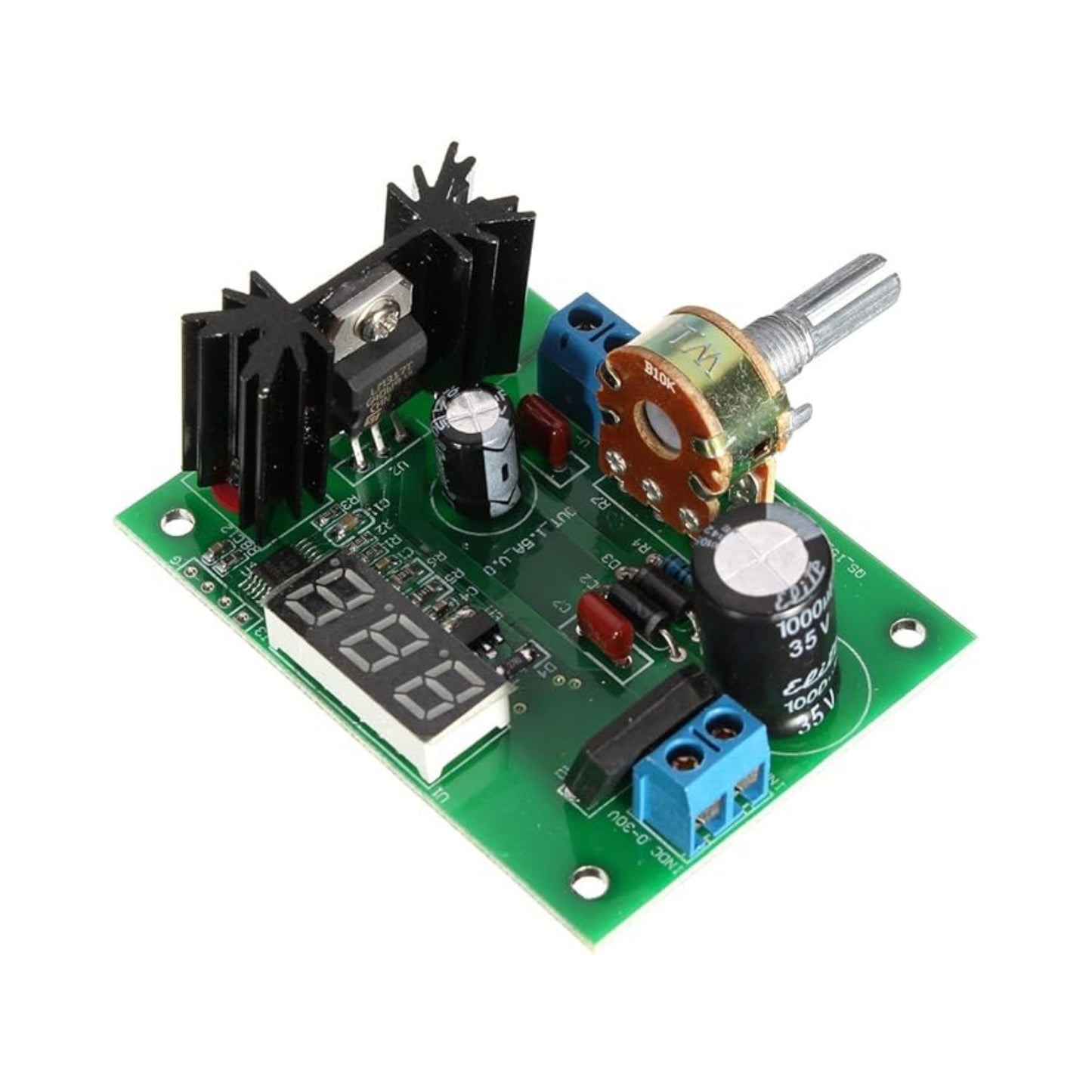

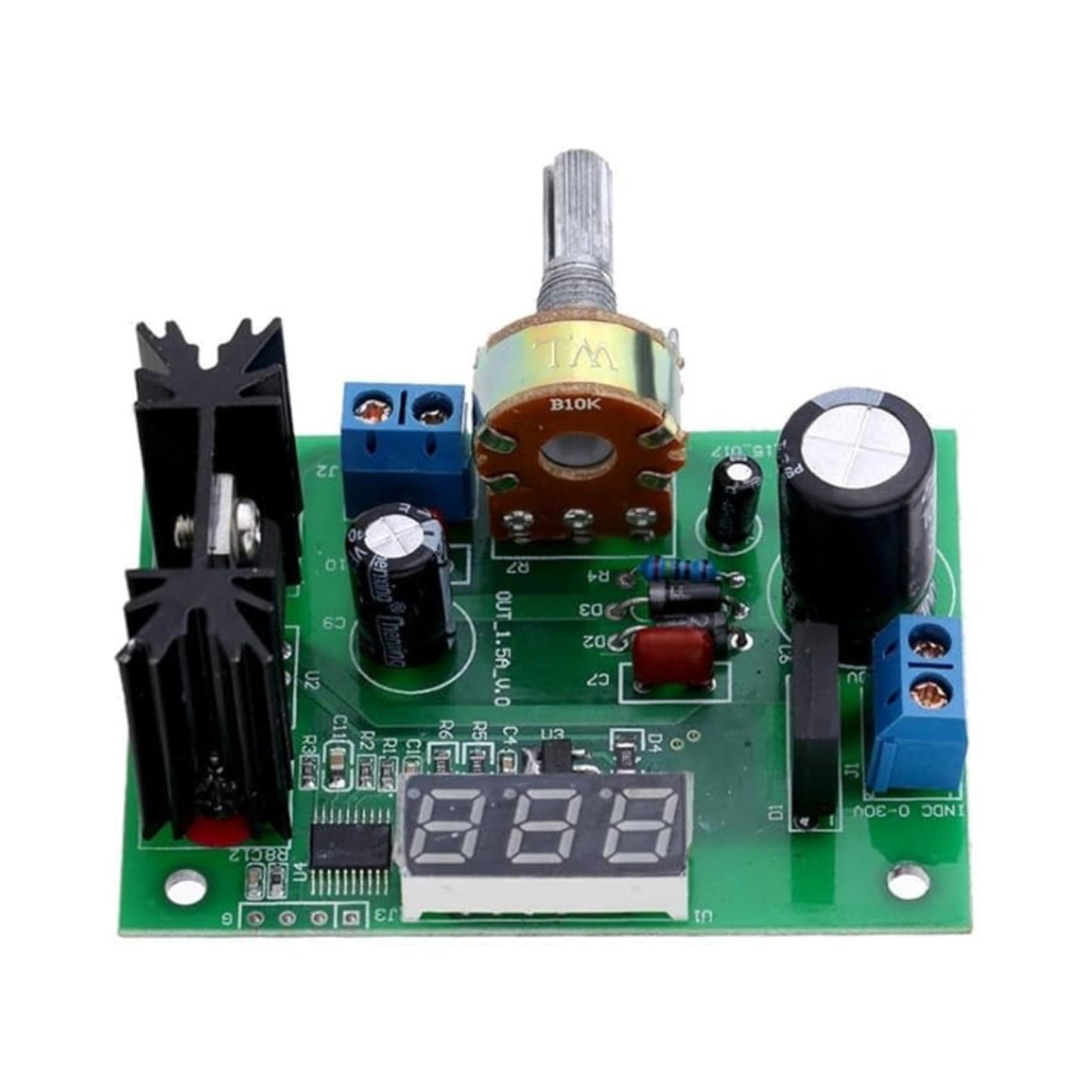

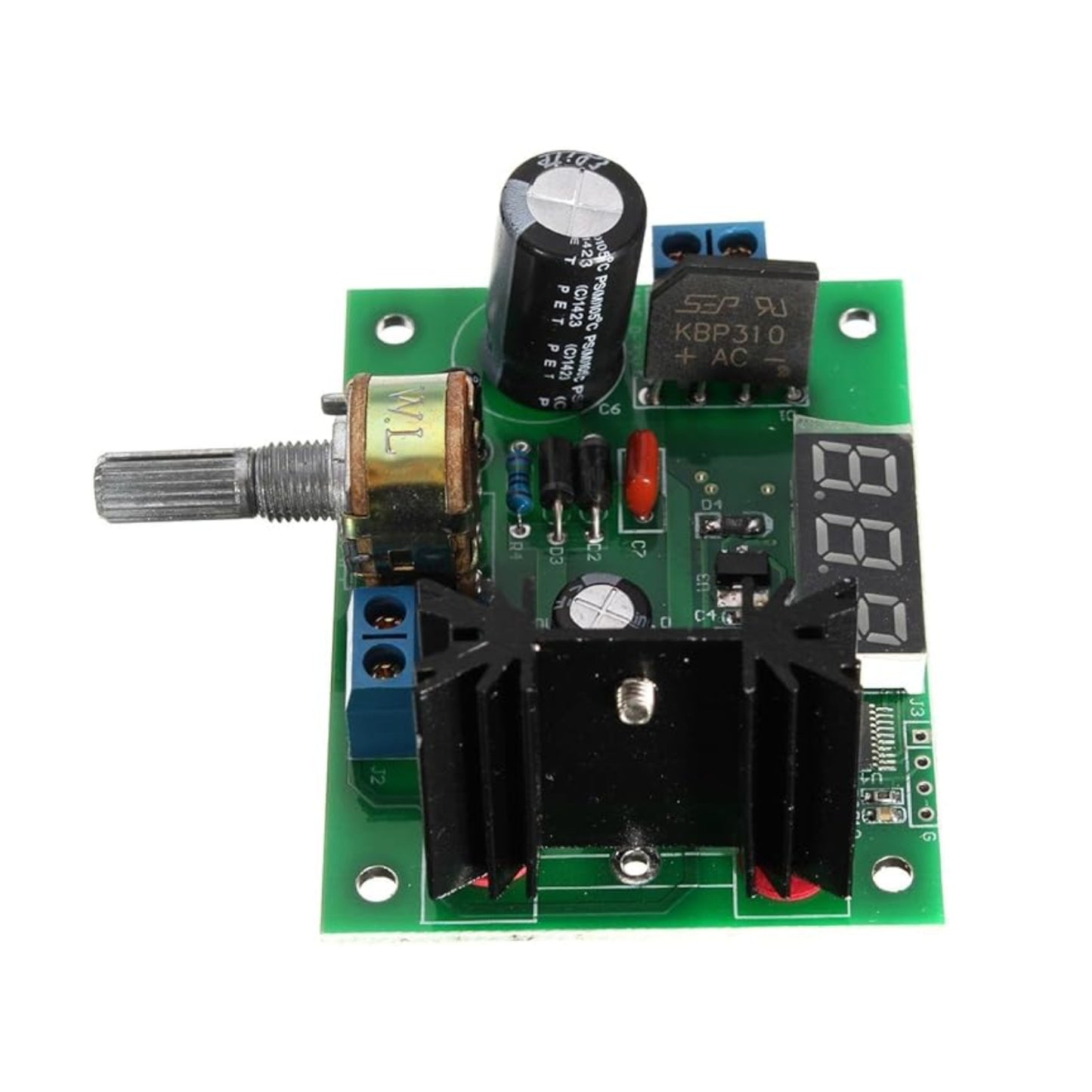

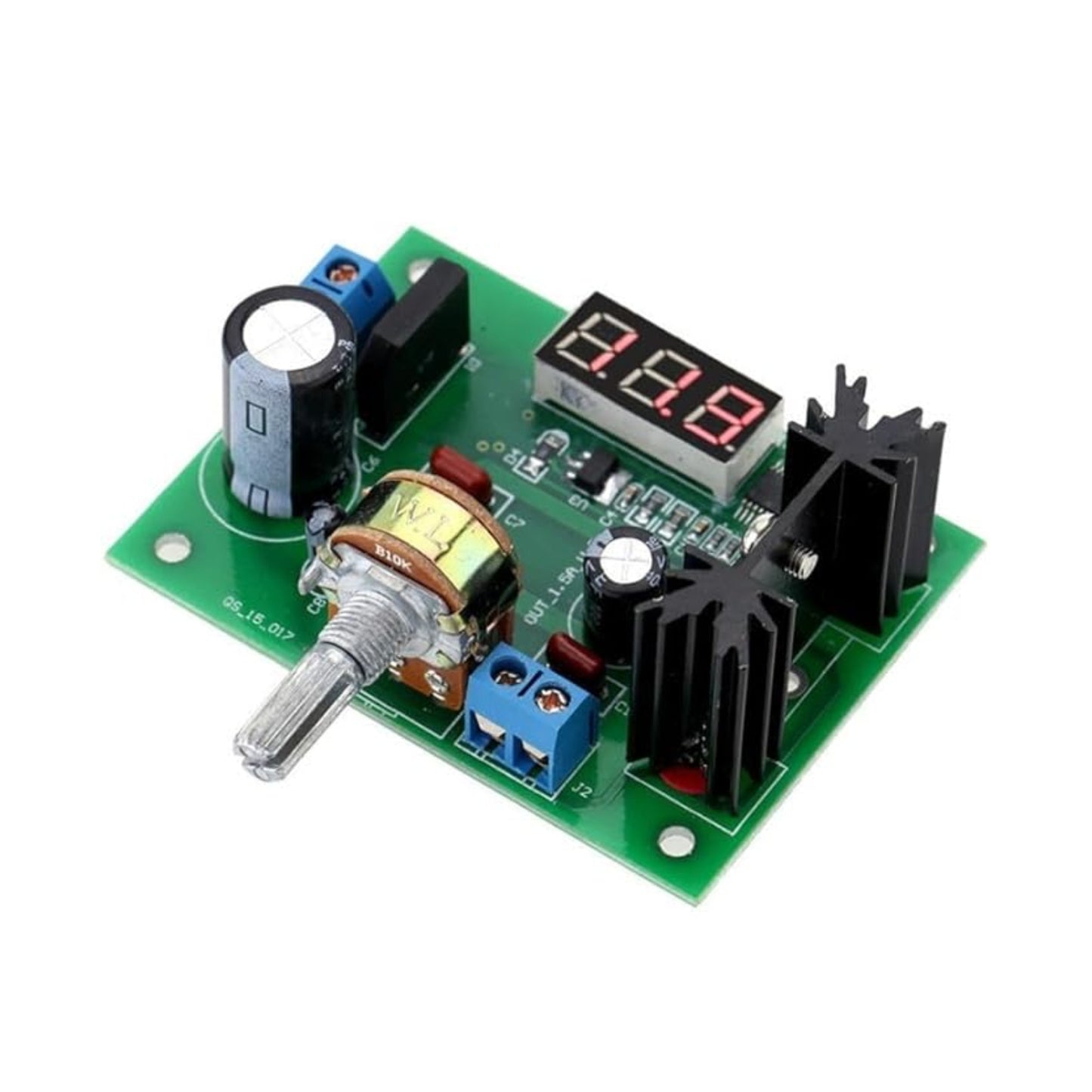

LM317 Adjustable Voltage Regulator Step Down Power Supply Module LED Meter-NA289

LM317 Adjustable Voltage Regulator Step Down Power Supply Module LED Meter-NA289

SKU:NA289

In stock

Regular price Rs. 500.00
Regular price Sale price Rs. 500.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Input: DC:0-30v / AC:0-22V
  • Output: DC 1.25-28V
  • Output current: 2A (Max)
  • The minimum difference between input and output: 3 volts; input must be higher than the output voltage above 3V to be regulated. Buck, not boost, when input 5V output 1.25-2V, not 6V.
  • Circuit board size: approx. 69 x 50 x 27mm (L x W x H)

Features:

Board core components: adjustable regulator ASIC LM317, 2A or less can be loaded, AC or DC voltage input, the output voltage is 1.25V-28V DC continuously adjustable, versatile DC board.
Using double adjustment potentiometer: when using LM317T for adjustable power supply, often lead to output voltage increases and burned the load due to potentiometer poor contact. We designed this regulator board using double potentiometer to ensure good contact, effectively protect the load.

Specifications:

  • Input: DC:0-30v / AC:0-22V
  • Output: DC 1.25-28V
  • Output current: 2A (Max)
  • The minimum difference between input and output: 3 volts; input must be higher than the output voltage above 3V to be regulated. Buck, not boost, when input 5V output 1.25-2V, not 6V.
  • Circuit board size: approx. 69 x 50 x 27mm (L x W x H)
Note:
Due to the digital voltage display module operating voltage is 3V, only when the voltage is higher than 3V to display properly

Package Included:

1 x LM317 Adjustable Voltage Regulator Step-down Power Supply Module with LED Meter
