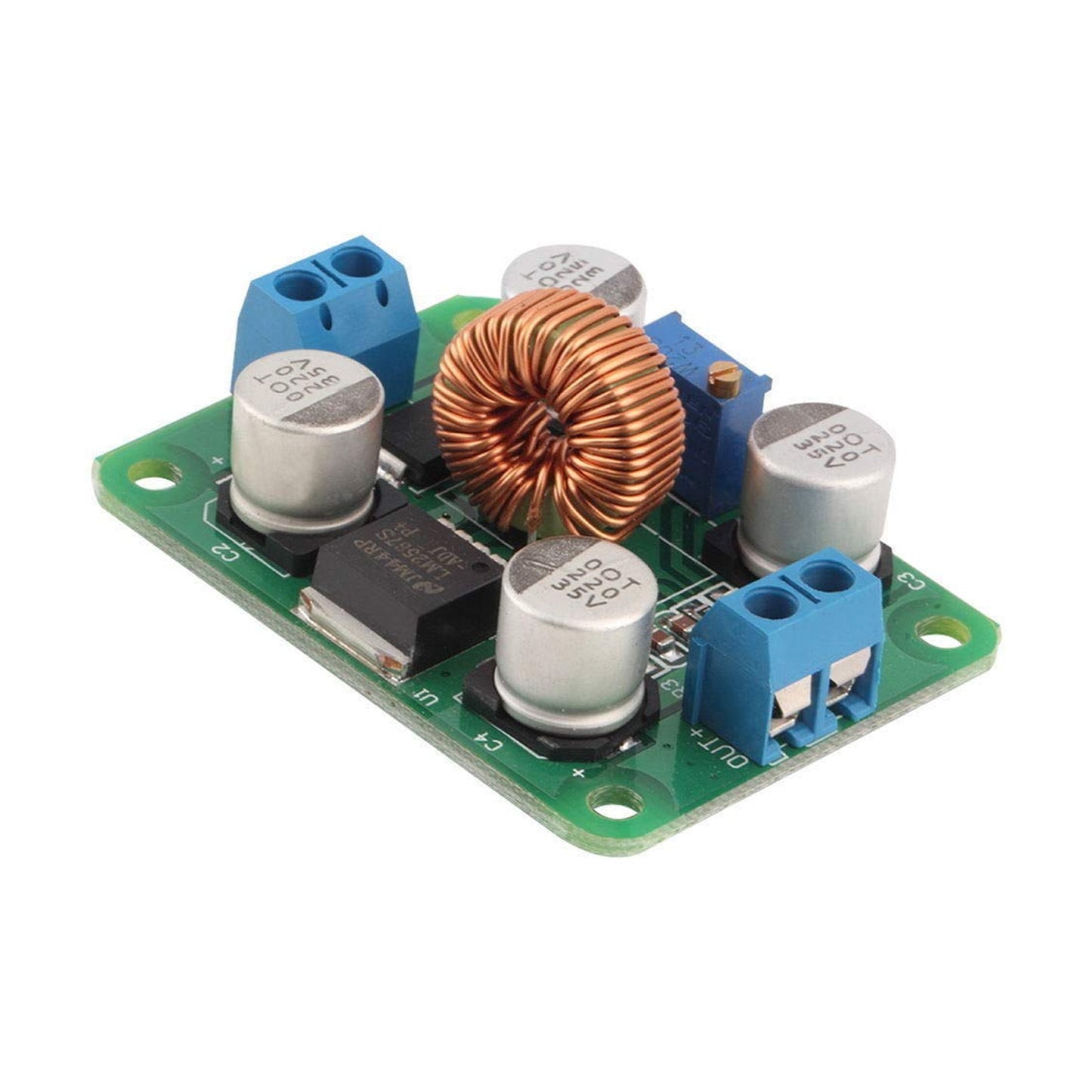

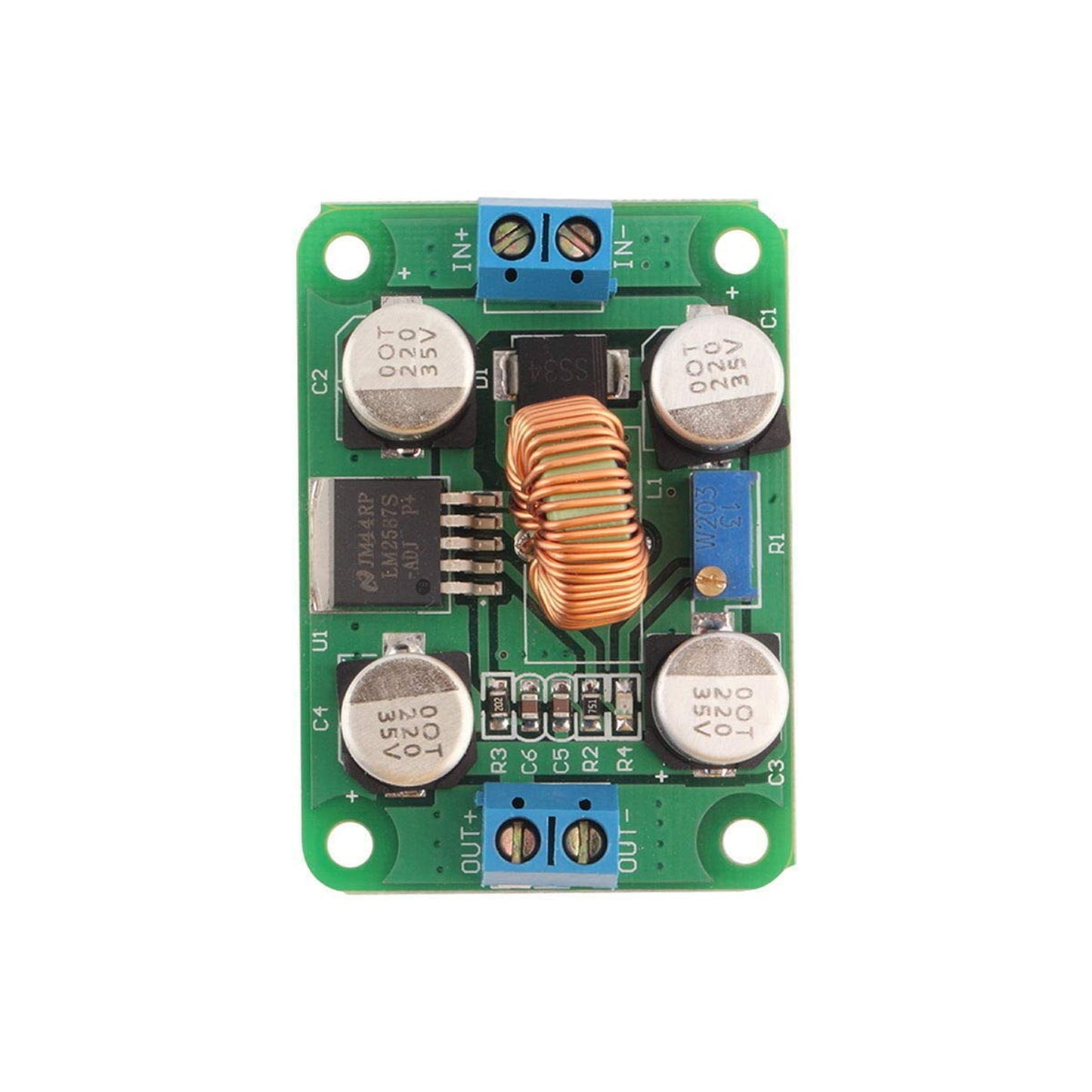

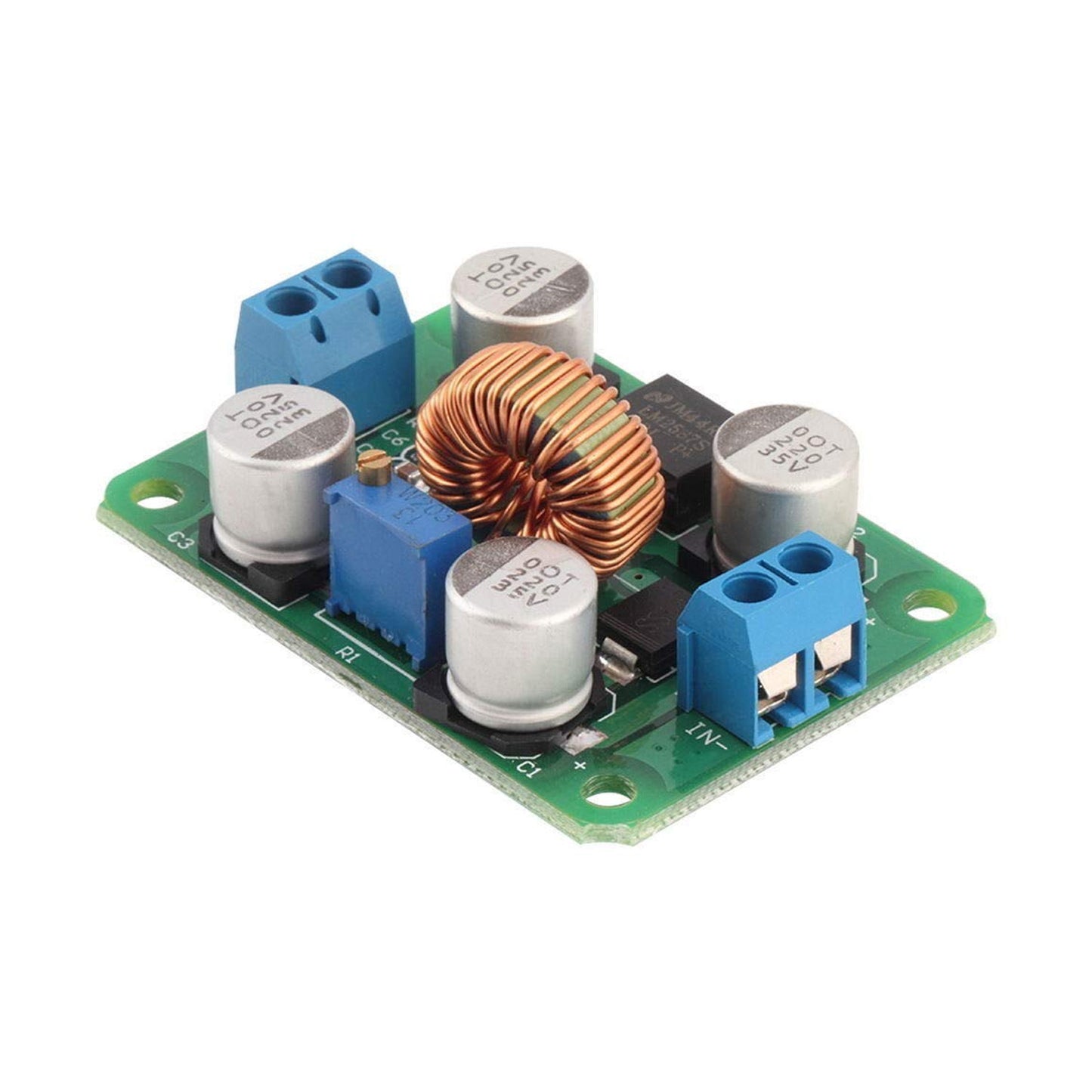

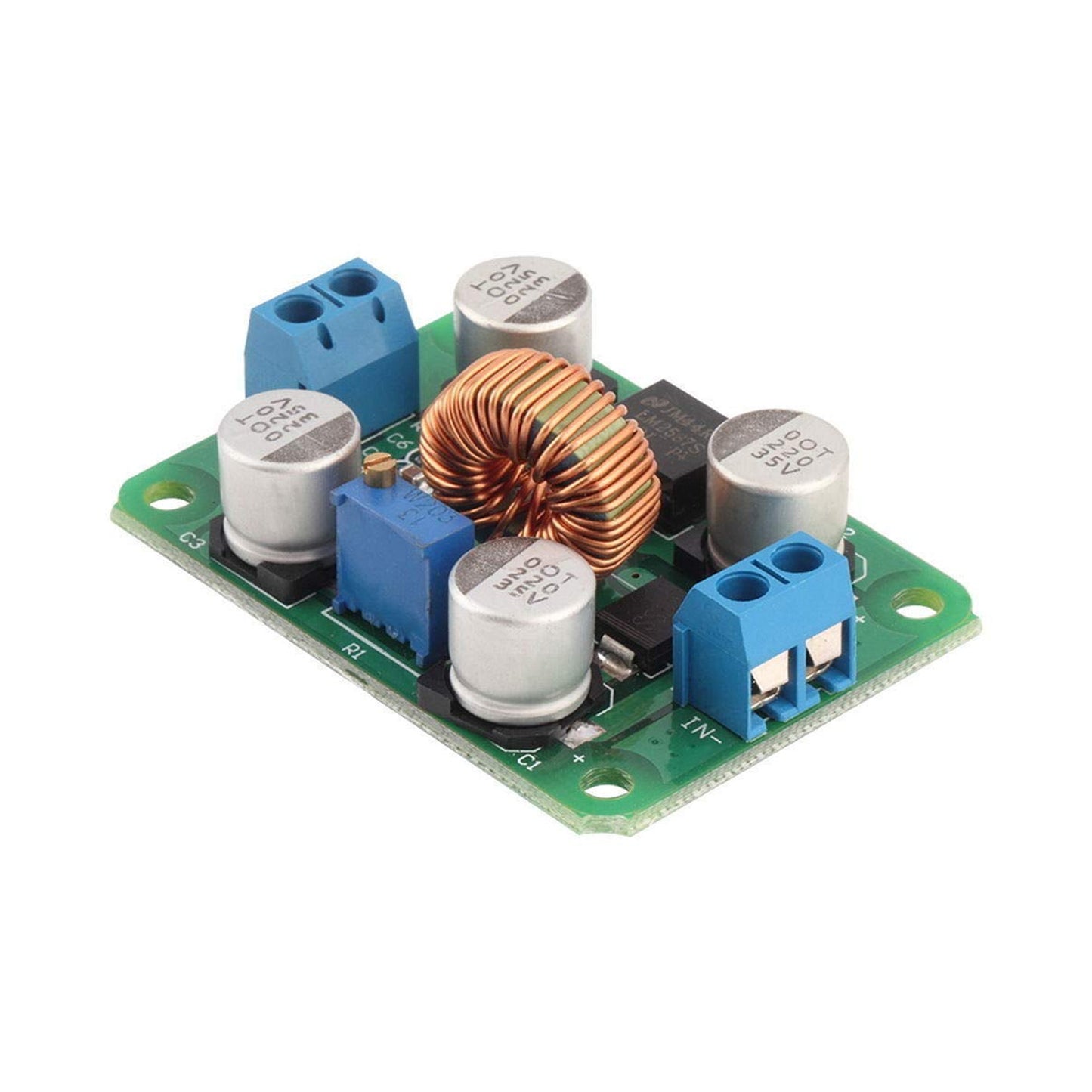

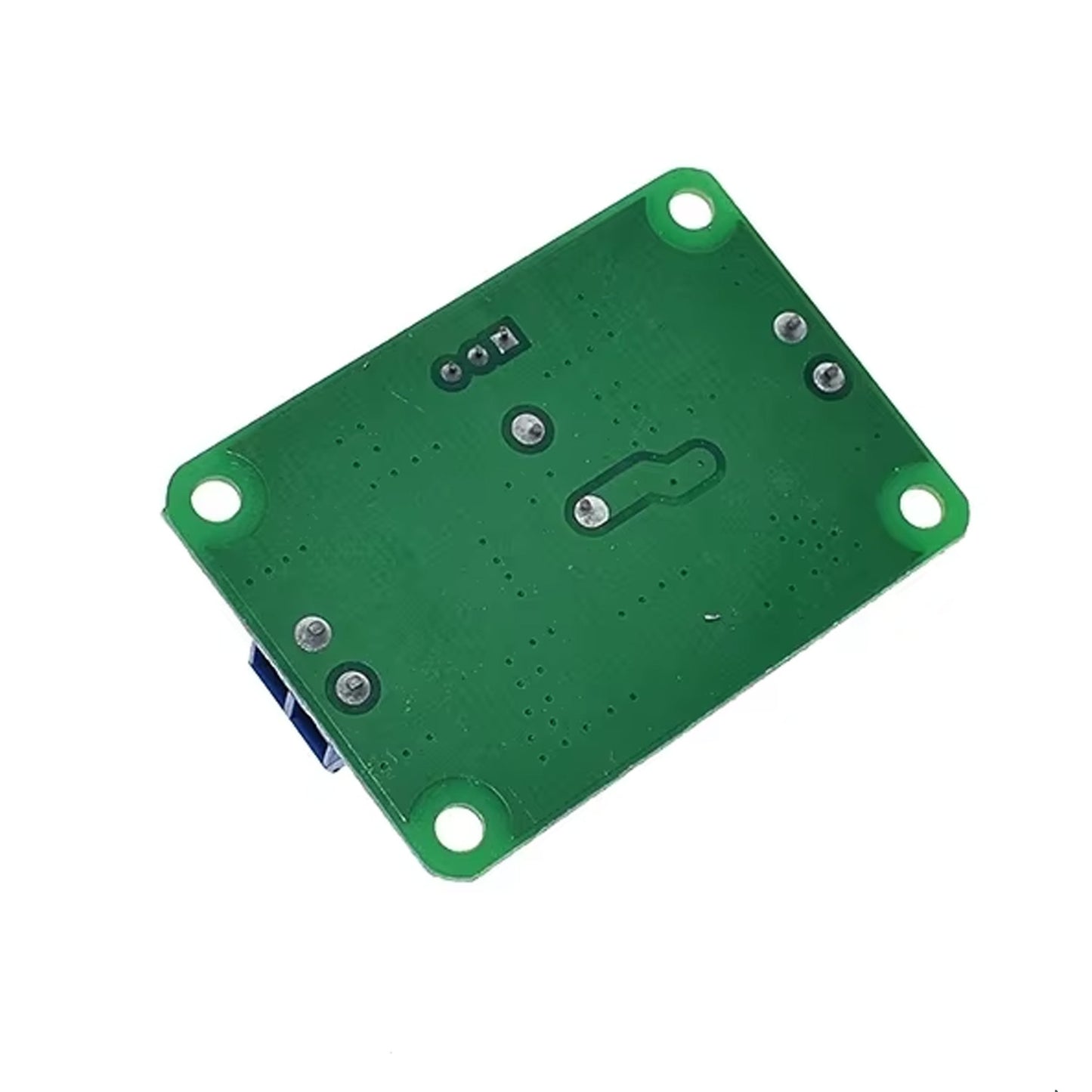

LM2587 DC-DC power modules boost module over lm2577 (Peak 5A) DC Step-Up Converter Module - NA075

LM2587 DC-DC power modules boost module over lm2577 (Peak 5A) DC Step-Up Converter Module - NA075

SKU:NA075

15 in stock

Regular price Rs. 250.00
Regular price Sale price Rs. 250.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Volume: Length (52) * W (38) * (20) (mm)
  • Input voltage range: 3.5V-30V (output set voltage higher than the input voltage must be guaranteed)
  • Output voltage range: 4.0V-30V
  • Input maximum current: 5A (based on power conservation under nominal conditions the output current

Description:

  • Input voltage range: 3.5V-30V (output set voltage higher than the input voltage must be guaranteed)
  • Output voltage range: 4.0V-30V
  • Input maximum current: 5A (based on power conservation under nominal conditions the output current
  • Uin * Iin * efficiency = Uout * Iout)
  • Continuous operating current: 3A (good ventilation conditions, the output voltage and input voltage ratio cannot be greater than 3)
  • Around 90% of the full load efficiency
  • Application examples:
  • The 7.4V boost 12V applications in Aeromodelling camera.
  • Efficient booster circuit adjustable DC-DC boost the input voltage (4 to 30) V adjustable output (5 to 30) the V input Maximum input current 5A efficiency up to 92%,
  • using the dedicated package boost chip beyond the LM2577, not bean large boost IC performance and output drive power up to 30W.
  • Volume: Length (52) * W (38) * (20) (mm)
  • Weight 32G

Note:

  • If the output voltage is not higher than the input voltage, please adjust potentiometer clockwise, the output voltage will rise,
  • please do not counterclockwise adjustment when you test the module in the case of high input voltage will be damaged or even damaged!

Package Included:


1 x LM2587 3.5-30V to 4.0-30V DC-DC Booster Converter Voltage Regulator
