- Working Frequence: 1520μs / 330hz
- Motor:high quality core motor
- Operating Speed (4.8V): 0.12sec / 60°
- Operating Speed (6.0V): 0.10sec / 60°
- Dimensions: 25.5 * 23 * 12mm / 1 * 0.9 * 0.47in
DESCRIPTION

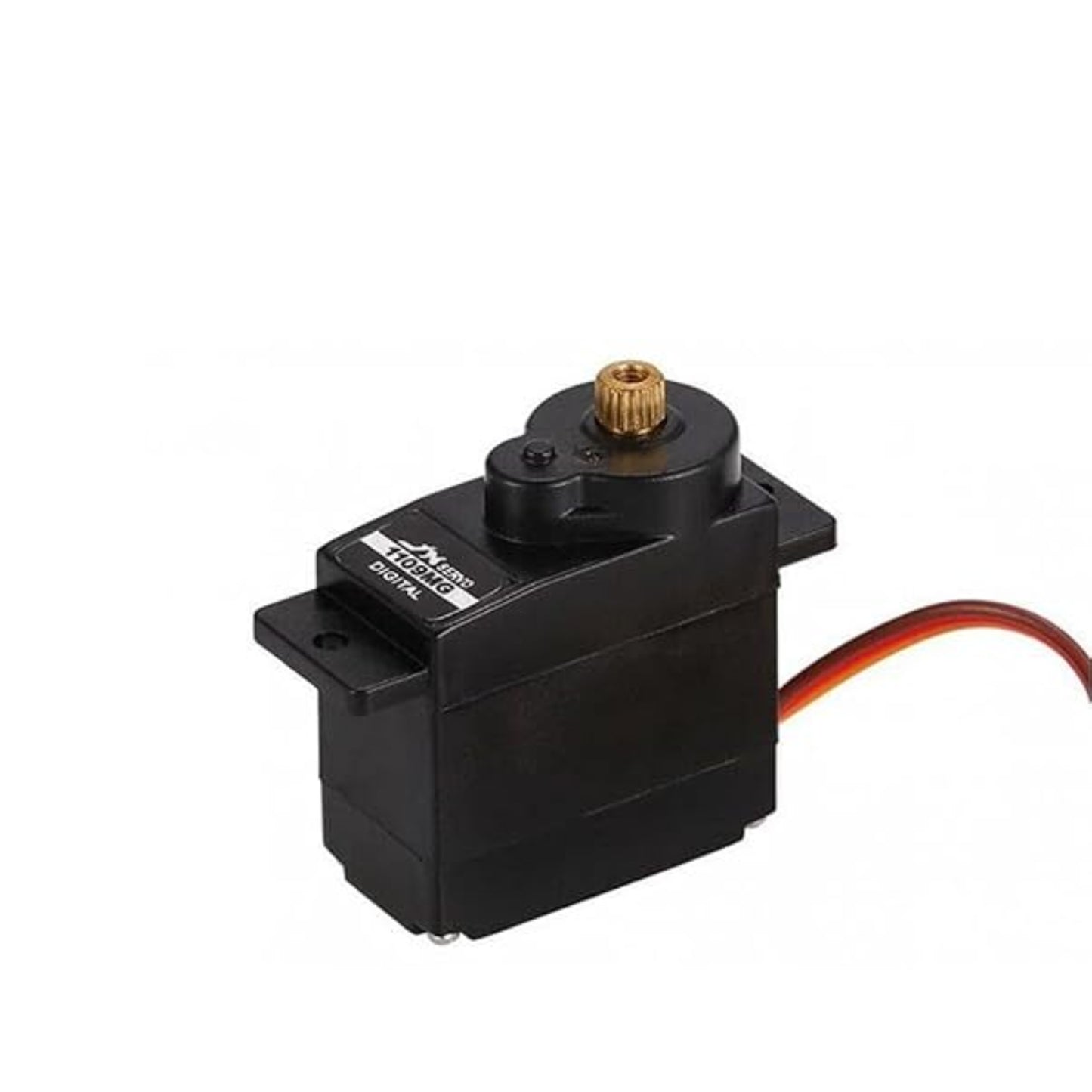

JX PDI-1109MG 4.8V-6V High-Voltage 0.10sec/60°Digital Metal Gear Mini Servo Aluminums Case for 1:18 RC Car.
Features:
- Full metal gear. it's better for accuracy, service life has been greatly increased
- 2.5kg large torque.2.5kg·cm @6V
- High Speed 0.10sec/60°@6V
- 4.8V-6V High-Voltage
- Modified design and high quality
- Ideal choice for 200-500mm Fixed-wing Aircraft
- Aluminiums case. Enhance the heat dissipation, ensure that servo motor can work well
Specifications:
- Brand: JX
- Dead band: 1μs
- Working Frequency: 1520μs / 330hz
- Motor: high-quality core motor
- Operating Speed (4.8V): 0.12sec / 60°
- Operating Speed (6.0V): 0.10sec / 60°
- Stall Torque (4.8V): 2.2kg.cm
- Stall Torque (6.0V): 2.5kg.cm
- Dimensions: 25.5 * 23 * 12mm / 1 * 0.9 * 0.47in
- Weight: 10g / 0.35oz
- Connector Wire Length: 180mm / 7.08in

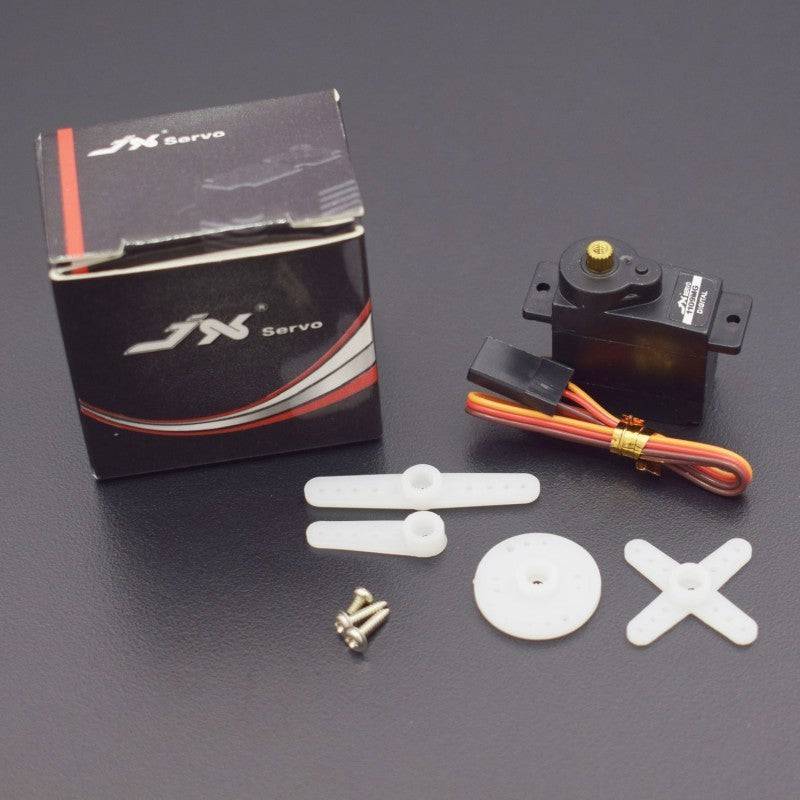

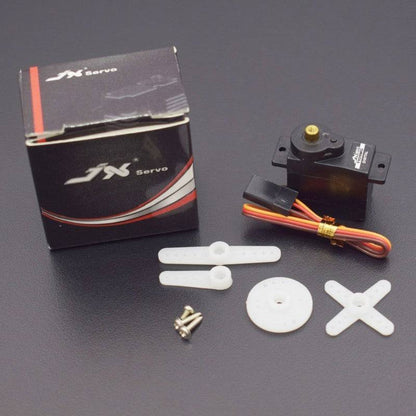

Package List:
1 * Digital Metal Gear Servo

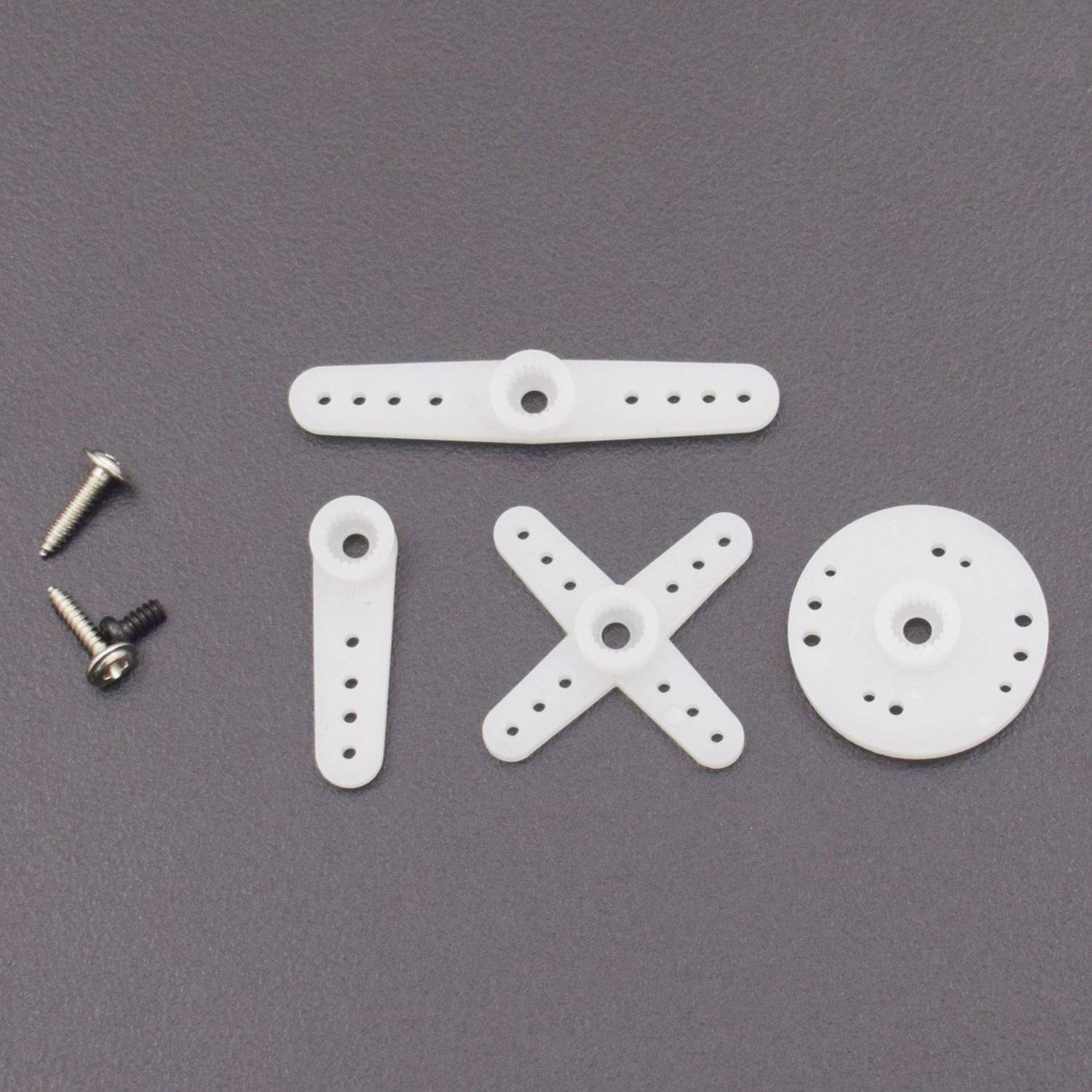

1 * Fittings Set
