Description:
The INA3221 is a specialized integrated circuit (IC) designed to monitor and measure current and voltage across three channels. It’s particularly useful in applications where precise monitoring of power consumption is required. The INA3221 can simultaneously measure current and voltage across three independent channels.
Gain precise insights into power usage with the INA3221 3-Channel Current and Voltage Sensor. Monitor multiple channels in real-time and receive alerts for efficient power management. Enhance your projects with this invaluable tool!
The INA3221 is a three-channel, high-side current and bus voltage monitor with an I2C- and SMBUS-compatible interface. The INA3221 monitors both shunt voltage drops and bus supply voltages, in addition to having programmable conversion times and averaging modes for these signals. The 3 Channel Current and Voltage Sensor offers both critical and warning alerts to detect multiple programmable out-of-range conditions for each channel.
It uses a shunt resistor to measure the voltage drop across it, which is proportional to the current passing through it. It measures the voltage at the positive terminal of each channel with respect to the common ground. The 3 3-channel current and Voltage Sensor is designed for high-precision measurements, making it suitable for applications where accuracy is crucial.
Specifications:
- Power-Supply Operation: 2.7 V to 5.5 V
- Offset Voltage: ±80 µV (max)
- Gain Error: 0.25% (max)
Features:
- Senses Bus Voltages From 0 V to 26 V
- Reports Shunt and Bus Voltage
- Configurable Averaging Options
- Four Programmable Addresses
- Programmable Alert and Warning Outputs
Package Included:

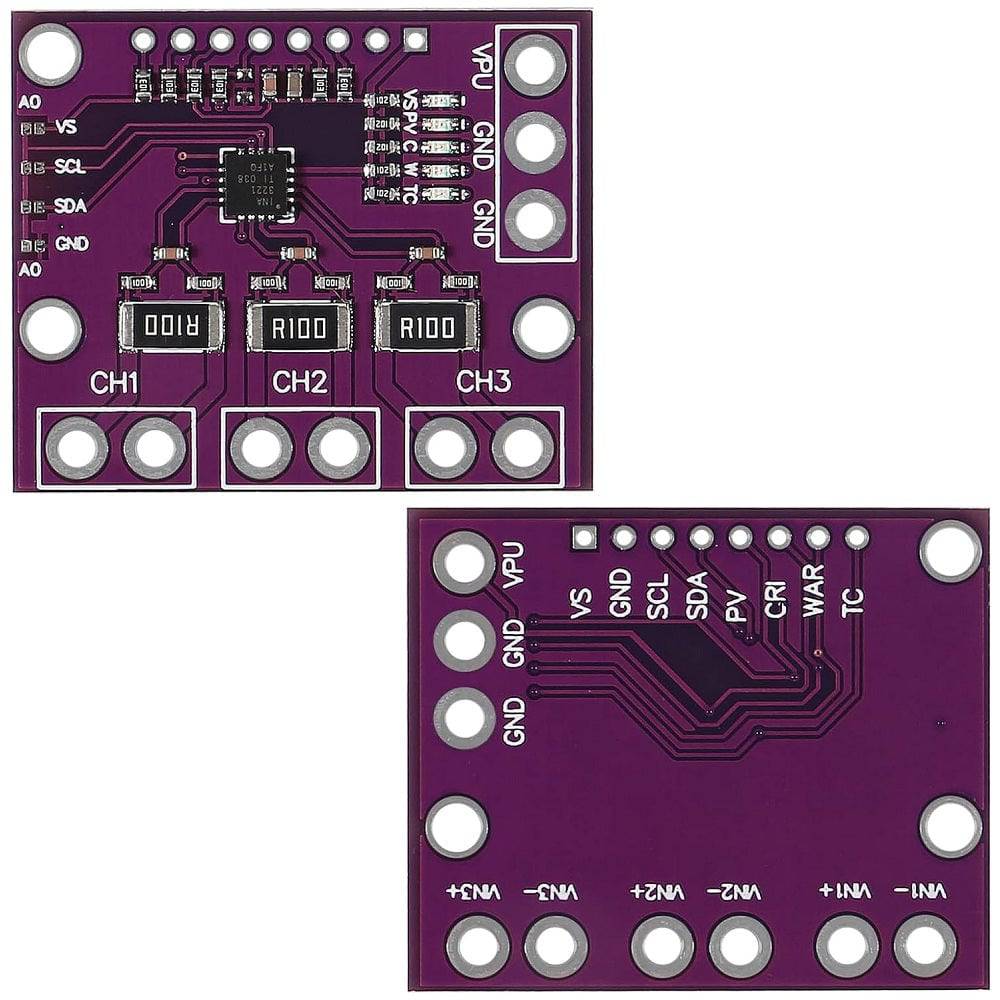

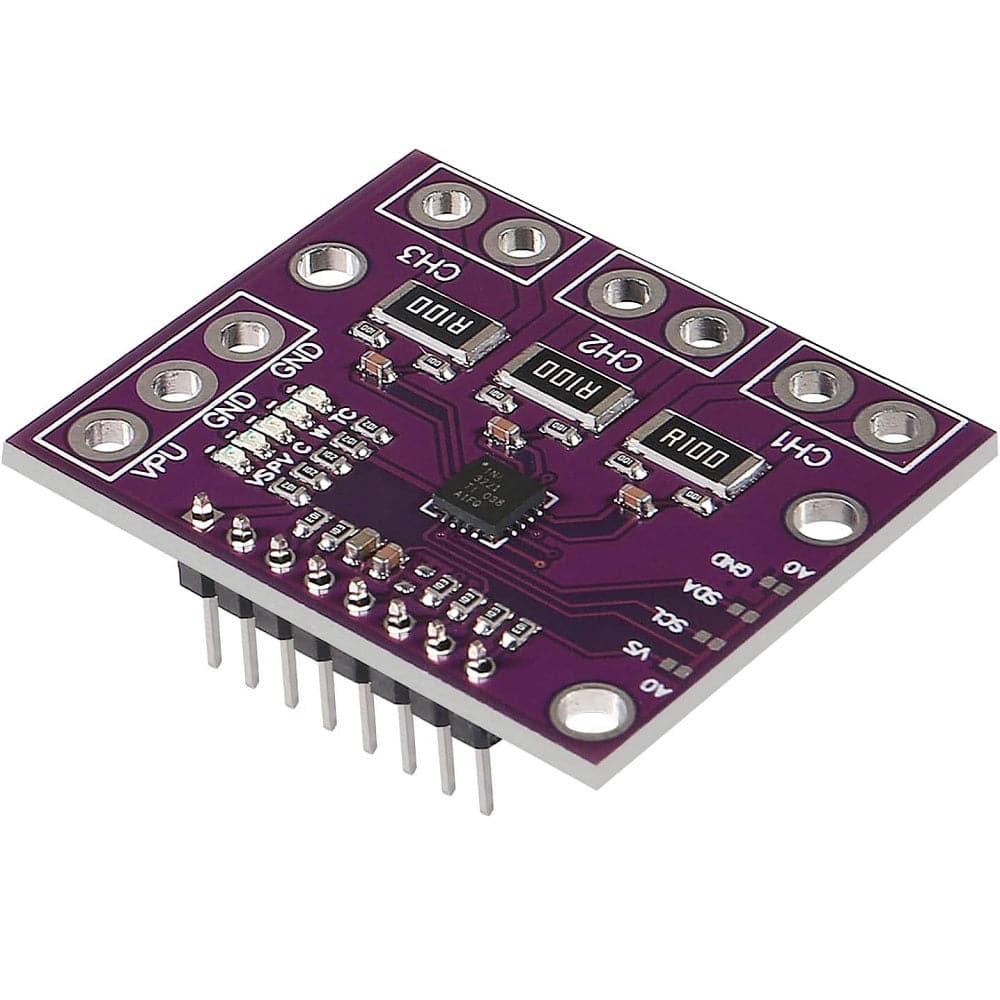

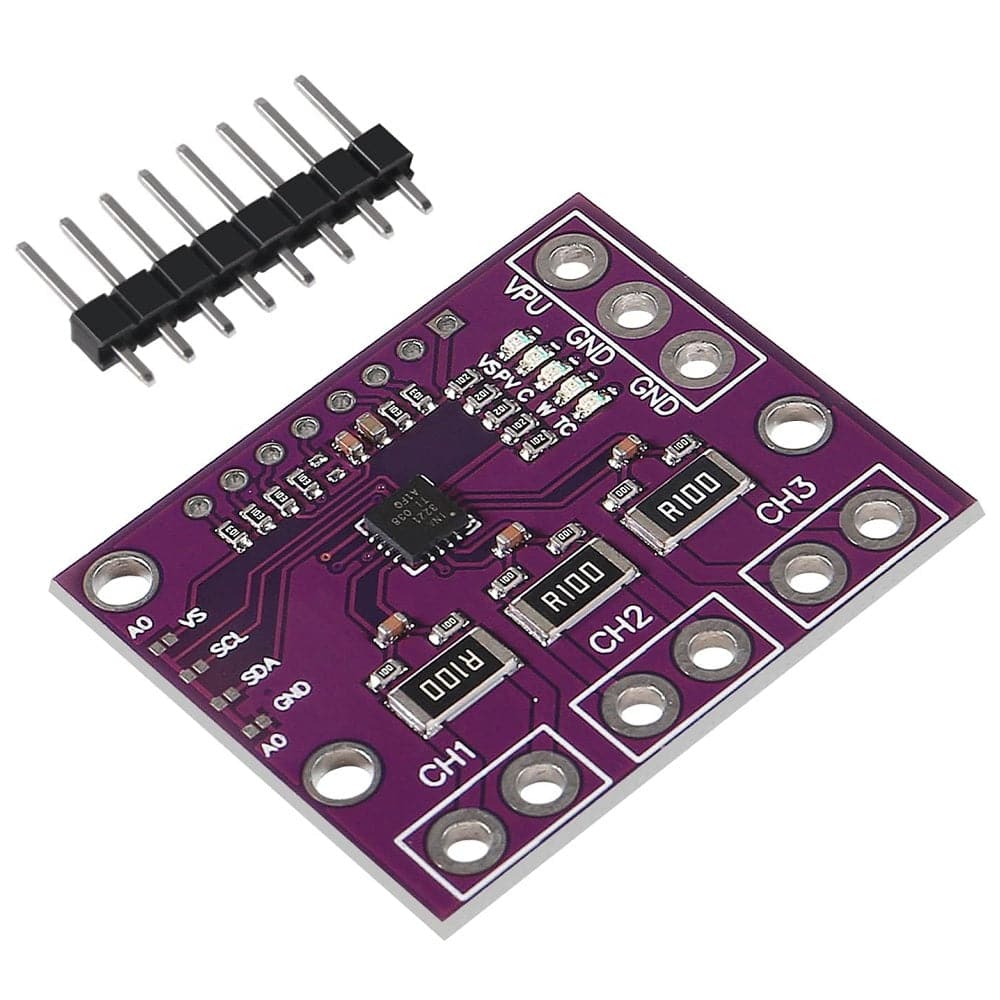

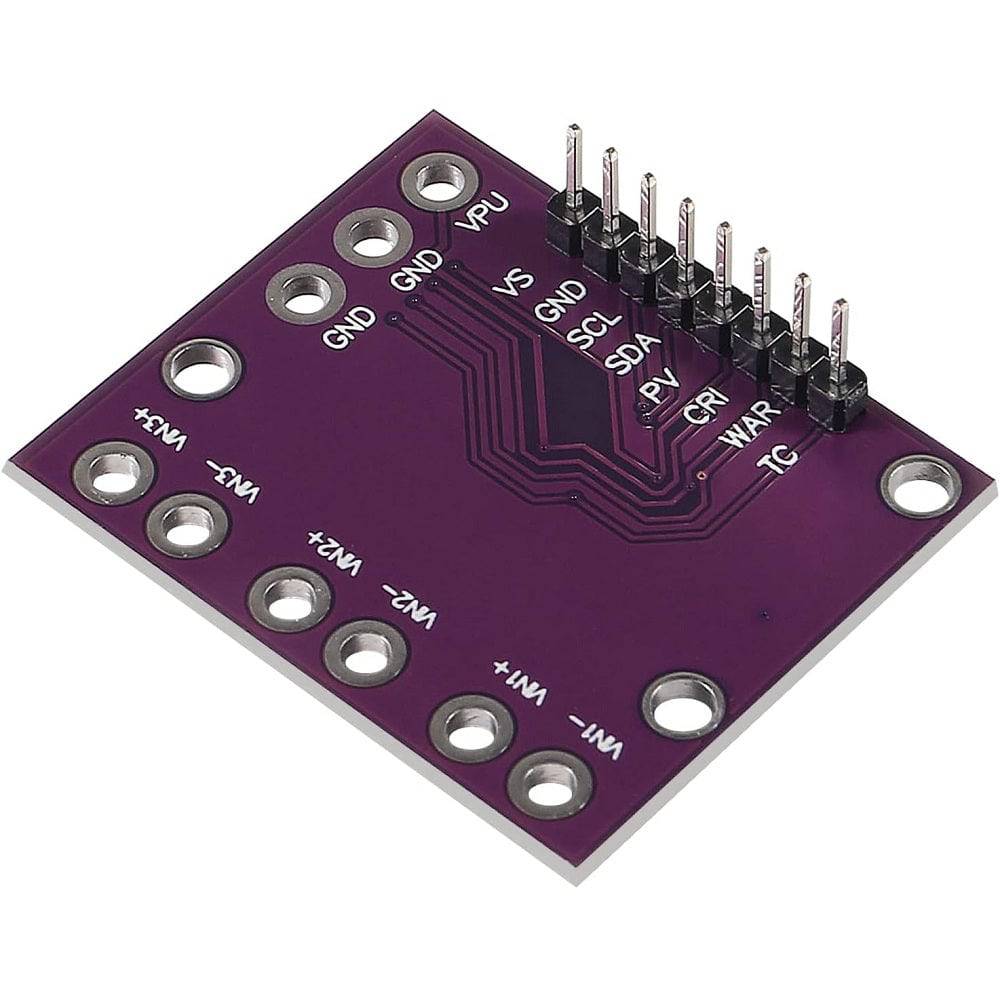

1 x INA3221 3 Channel Current And Voltage Sensor
