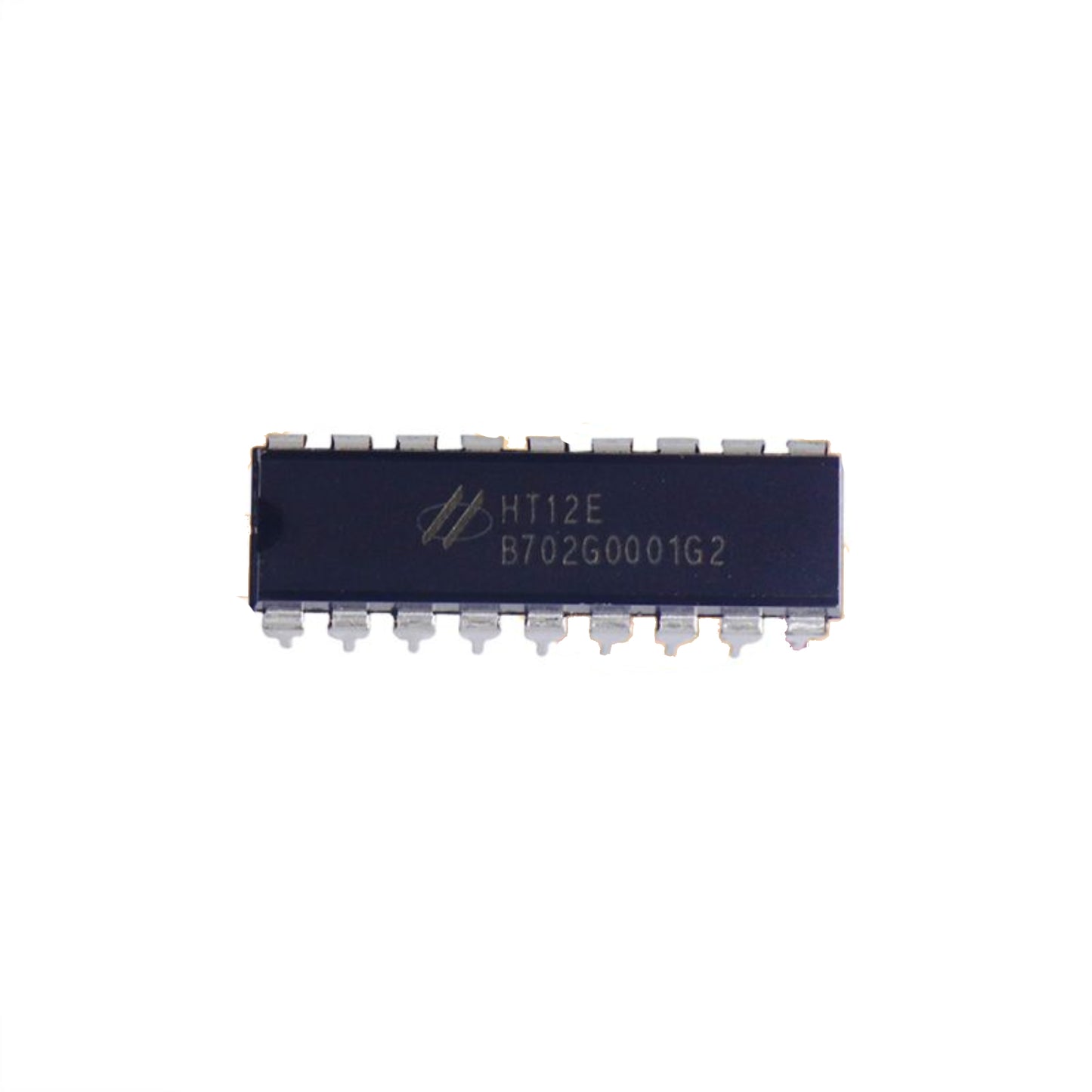

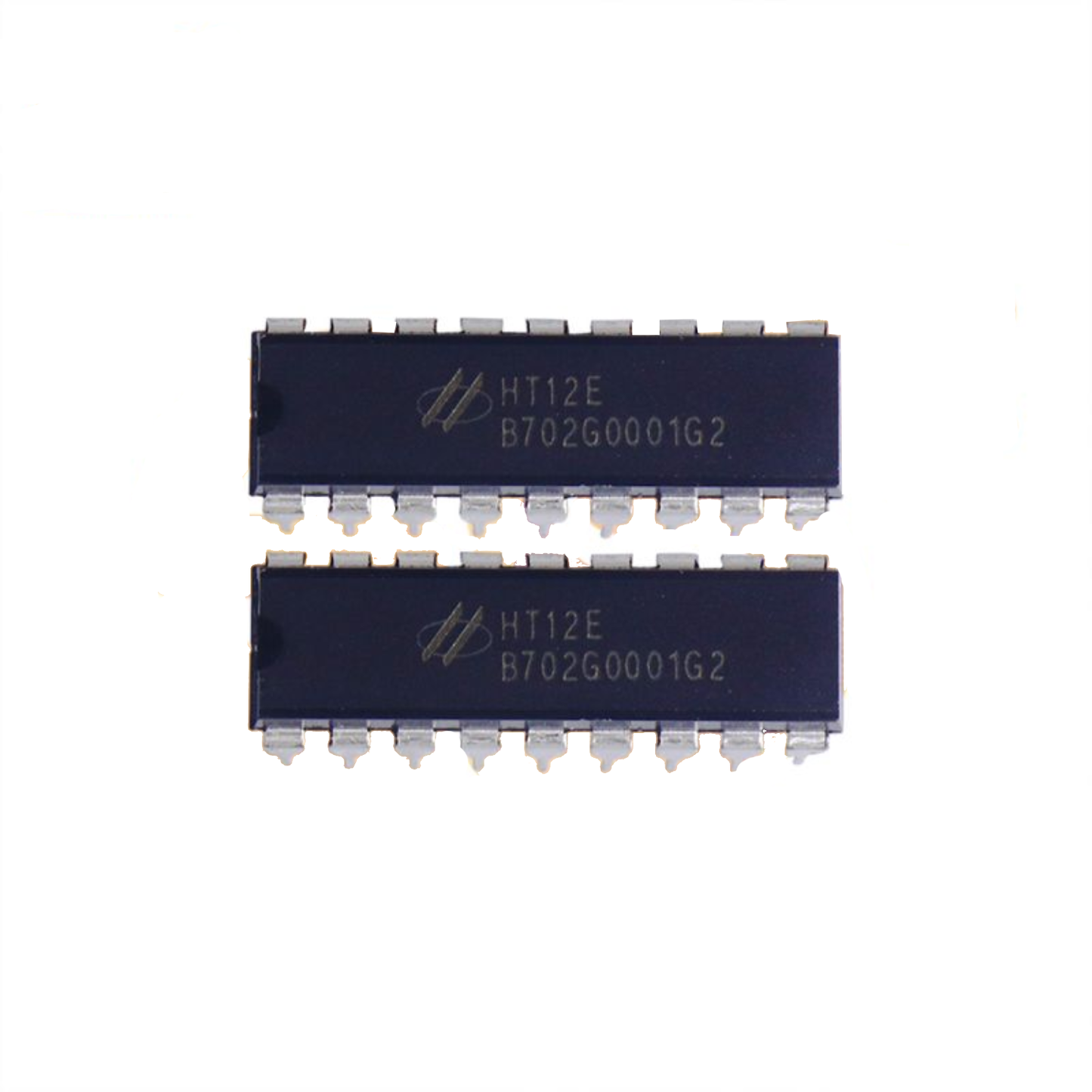

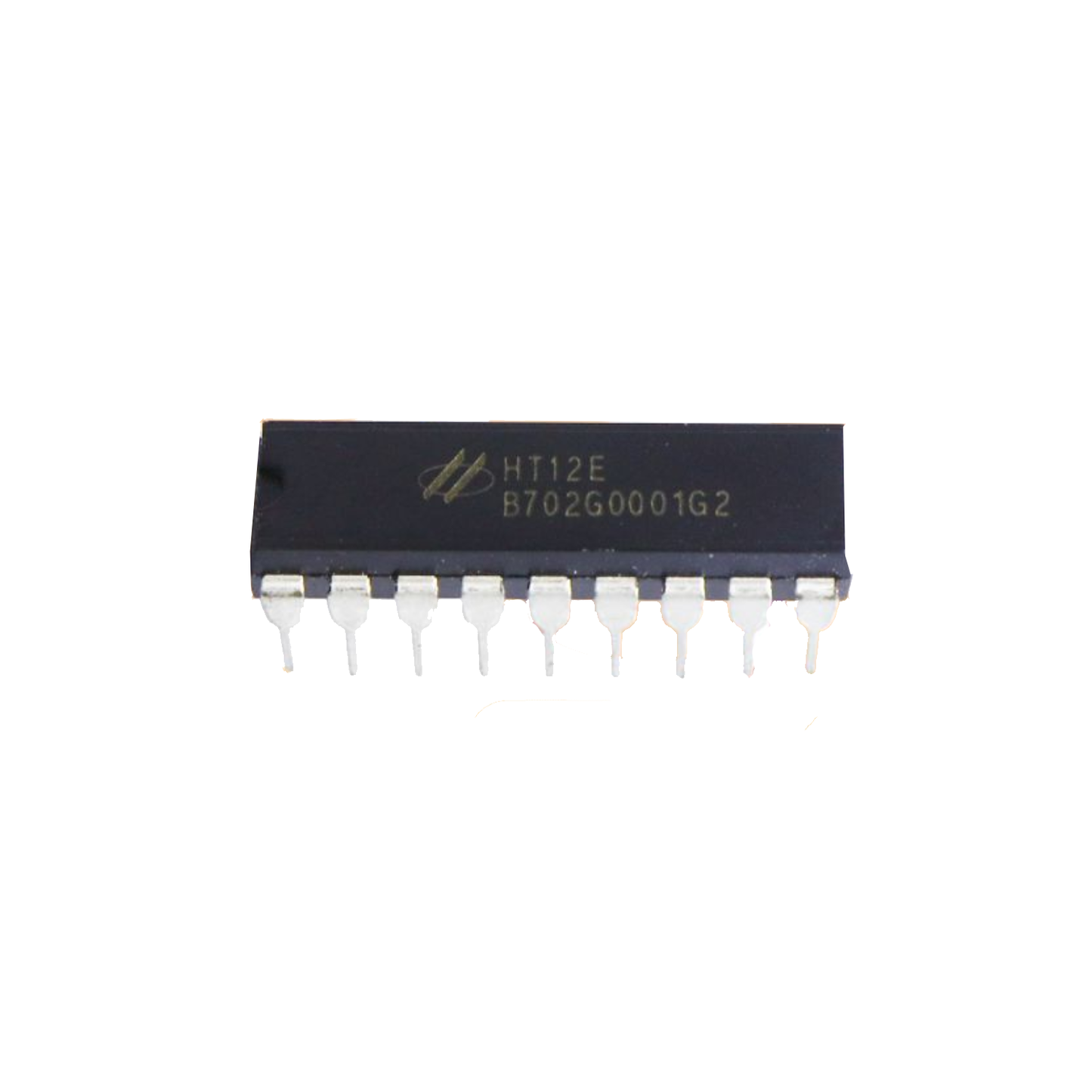

HT12E Encoder IC: 12-Bit Data Encoder 18-Pin DIP For Remote Control Systems, Wireless Applications, and DIY Projects - RS138

HT12E Encoder IC: 12-Bit Data Encoder 18-Pin DIP For Remote Control Systems, Wireless Applications, and DIY Projects - RS138

SKU:RS138

In stock

Regular price Rs. 55.00
Regular price Sale price Rs. 55.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

HT12E is able to operate in a wide voltage range from 2.4V to 12V and has a built-in oscillator which requires only a small external resistor. Its power consumption is very low, standby current is 0.1μA at 5V VDD, and has high immunity against noise. It is available in 18-pin DIP (Dual Inline Package).

Specification:

  • Type of integrated circuit: remote control encoder
  • Case: DIP18
  • Supply voltage: 2.4...12V DC
  • Mounting: THT
  • Frequency: 38kHz
  • DC supplying current: 400µA
  • Integrated circuit features: low power
  • Integrated circuit features: low standby current

Features:

  • Encoder combined with the decoder IC
  • 4 data pins & 8 address pins
  • Commonly used for RF and IR wireless transmission
  • Supply Voltage-2.4 V to 12 V
  • Current- 0.1uA at Vcc=5 V
  • Noise Resistance

Application:

  • Used for converting Parallel to serial data.
  • Wireless communication application involving RF.
  • Used in Home automation for remote switching.
  • Burglars alarm system, Fire alarm, etc.
  • Garage doors, Car alarm system, Car door controls, etc.

Pin Description:

  • VDD and VSS are power supply pins which are used to connect positive and negative of the power suppy respectively.
  • OSC1 and OSC2 are used to connect external resistance for the internal oscillator. OSC1 is the oscillator input pin and OSC2 is the oscillator output pin.
  • TE is used for enabling the transmission and is an active low input.
  • A0 – A7 are the input address pins. By using these pins we can provide a security code for the data. These pins can be connected to VSS or left open.

Package Included:

1 x HT12E IC
