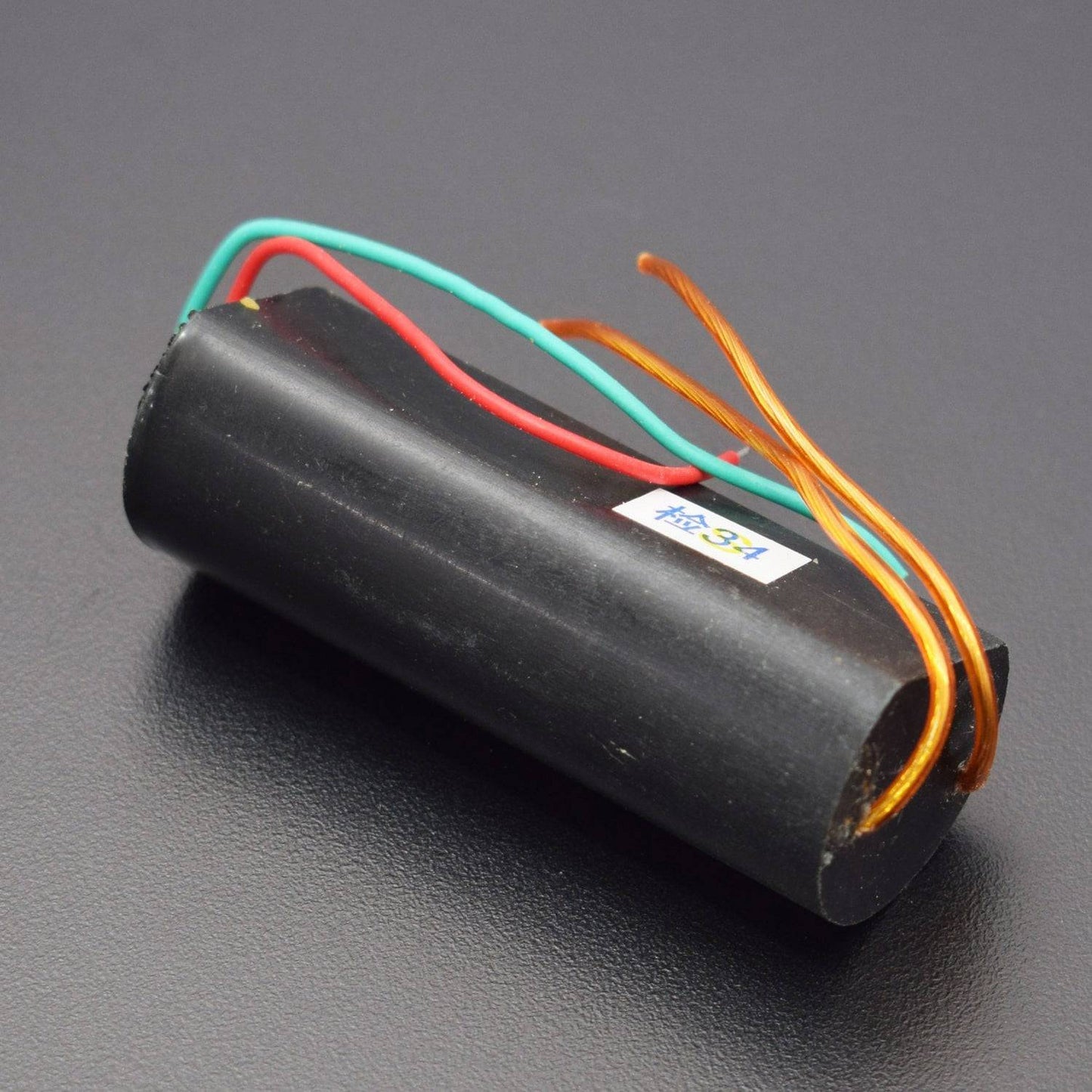

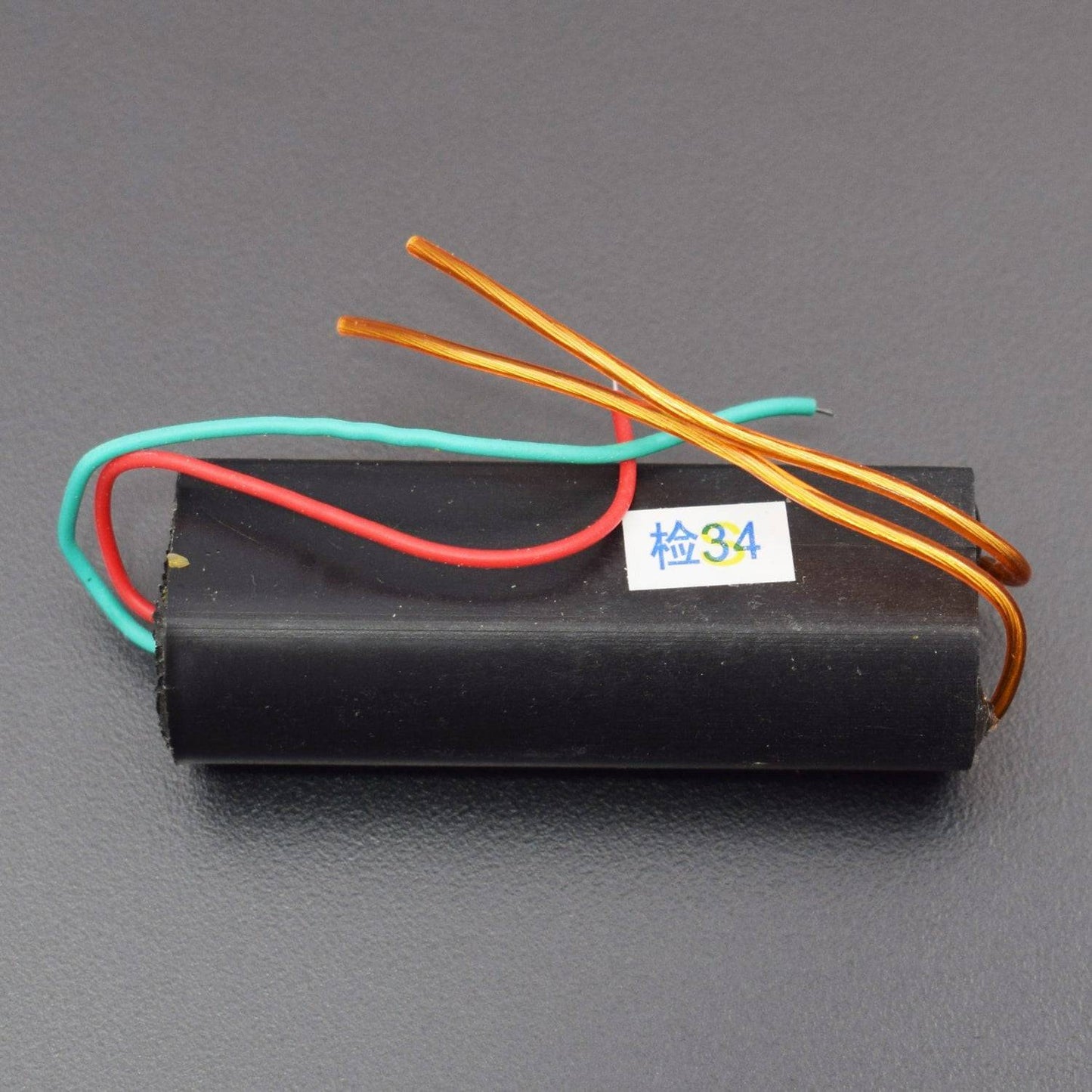

High Voltage Transformer Generator for DC 3V-6V to 400kV 400000V Boost Step-up Power Module- RS1060

Description:

Prepare to be amazed! This miniature module is a high-voltage powerhouse, leveraging the Tesla coil principle to boost a 3-6 V Li-ion battery input all the way up to an incredible 400KV. It's an essential tool for creating truly unforgettable electronics experiments and demonstrations

Specifications:

• Input Voltage: DC 3 V to 6 V
• Input Current: 2 A - 5 A
• High-Pressure Type: the type of pulse current
• Output Voltage: 400000 V (Please pay attention to safety)
• High-Pressure Discharge Distance Between 10 mm - 20 mm
• Output high voltage wire length: 100 mm
• Input power cord length: 100 mm (the red line is positive)

Wiring:

• Red connection:"+"
• Green connection: "-"
• output: the other side, same color cable

Work:

Intermittent, continuous work does not allow more than 1 minute and the output side does not allow shorting. Improper voltage and long working hours easily damaged the module

Note:

The high-voltage module should avoid the use of electricity in high-voltage no-load. (Power must be adjusted to a suitable distance to the high-voltage output line, battery capacity is proportional to the distance, and the use of the high-pressure arc (not a voltage as high as possible, you must provide enough current). Experimental tests of the arc distance from short to long do not exceed the maximum arc distance. Electricity, energy can not be released due to high pressure, and can easily damage the module.)

Package Included:

1 x High Voltage Transformer Generator for DC 3V-6V to 400kV, 400000V Boost Step-up Power Module
