Description:
The GS100 4.3" Screen 35M-4400MHz Spectrum Analyzer, which can show the data more clearly for you, give you a better using experience. Spectrum display ranges is 35M-4400MHz, and this product has a wild application like walkie-talkie, plaything remote control, 2.4Gwifi and so on.

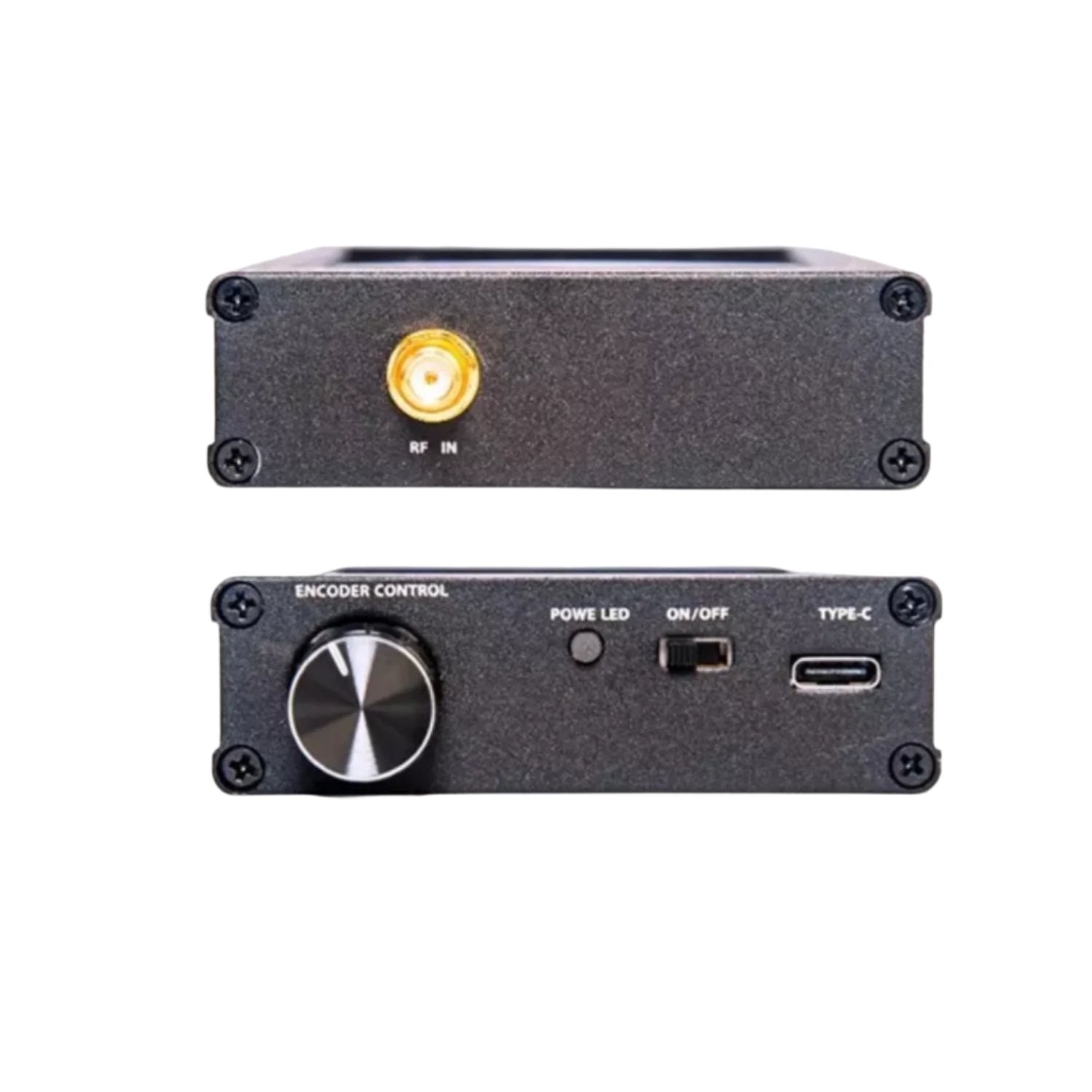

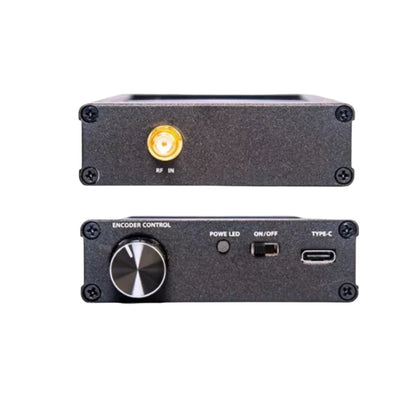

The scientific operation settings, input RF design on the left to facilitate the use of connecting feeders. A professional N-type to SMA adapter and N/SMA-KJ connector are delivered to be compatible with all professional equipment.
This product with to improved USB power supply interface, using a new type-c interface with higher performance and strong matching. The outer casing uses a one-time professional casing, which has a long service life, so you do not need to change it often.
Specifications:
- Screen size: 4.3 inch
- Battery: 1 x lithium battery, 4000mAh (included)
- Spectrum display ranges: 35M-4400MHz
- Input impedance: 50 ohms
- RBW: 10KHz, 50KHz, 100KHz, 200KHz, 500KHz, a total of 5 gear positions can be adjusted
- Scanning span: 7M (10KHz), 35M (50KHz), 70M (100KHz), 140M (200KHz), 350M (500KHz)
- dBm ranges: -80dB-10dB (support manual adjustment of calibration amplitude), the unit does not have an amplifier circuit inside, if you need to measure small signals, you need an external amplifier.

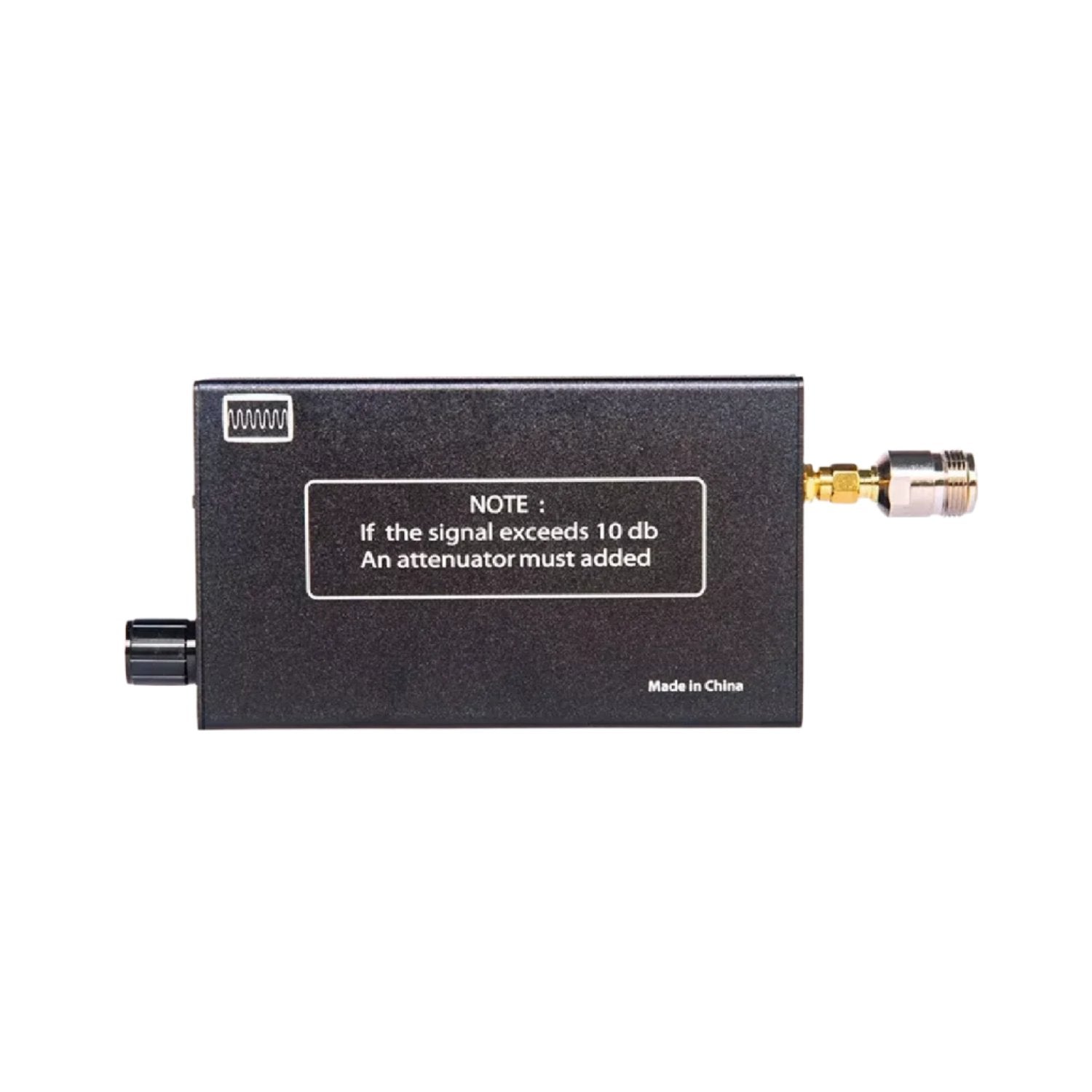

- Maximum access signal: 10dB
-
Working mode: superheterodyne scanning spectrum analyzer, single-scan time is 800ms
- Colour: Black
- Material: Aluminum alloy
Features:
- Super-heterodyne scanning spectrum analyzer
- single scan time 800ms.
- An external amplifier is required.
- there is no amplifier circuit inside the machine when you need to measure small letters.

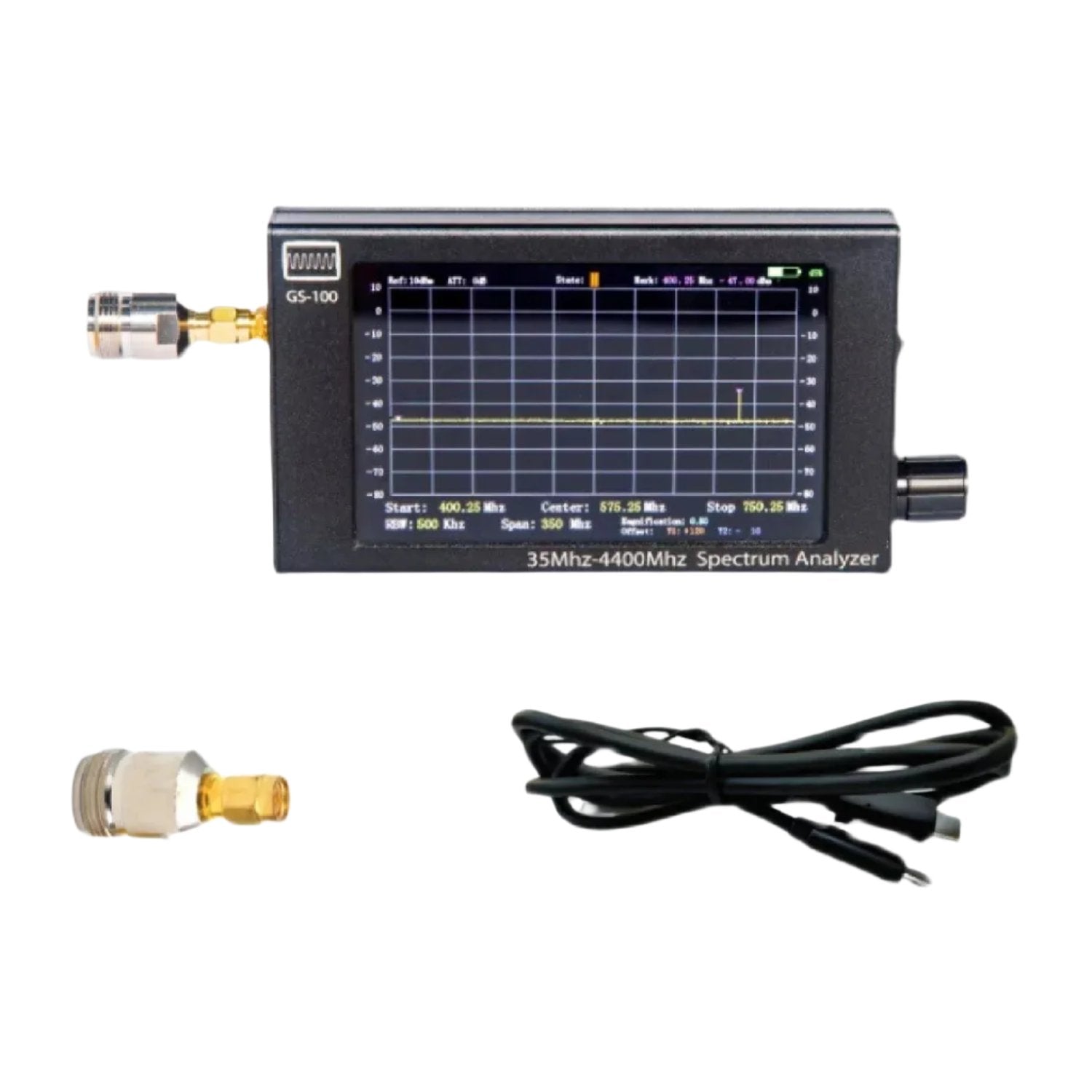

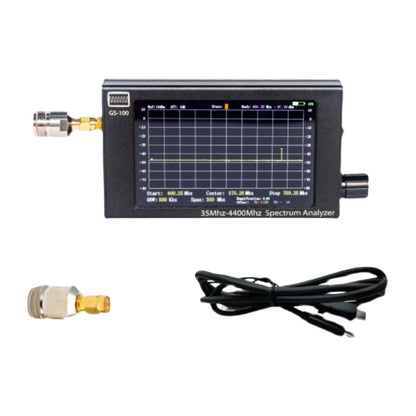

Package Included:
1 x GS100 35M-4400MHz Spectrometer 4.3" Screen Handheld Spectrum Analyzer
