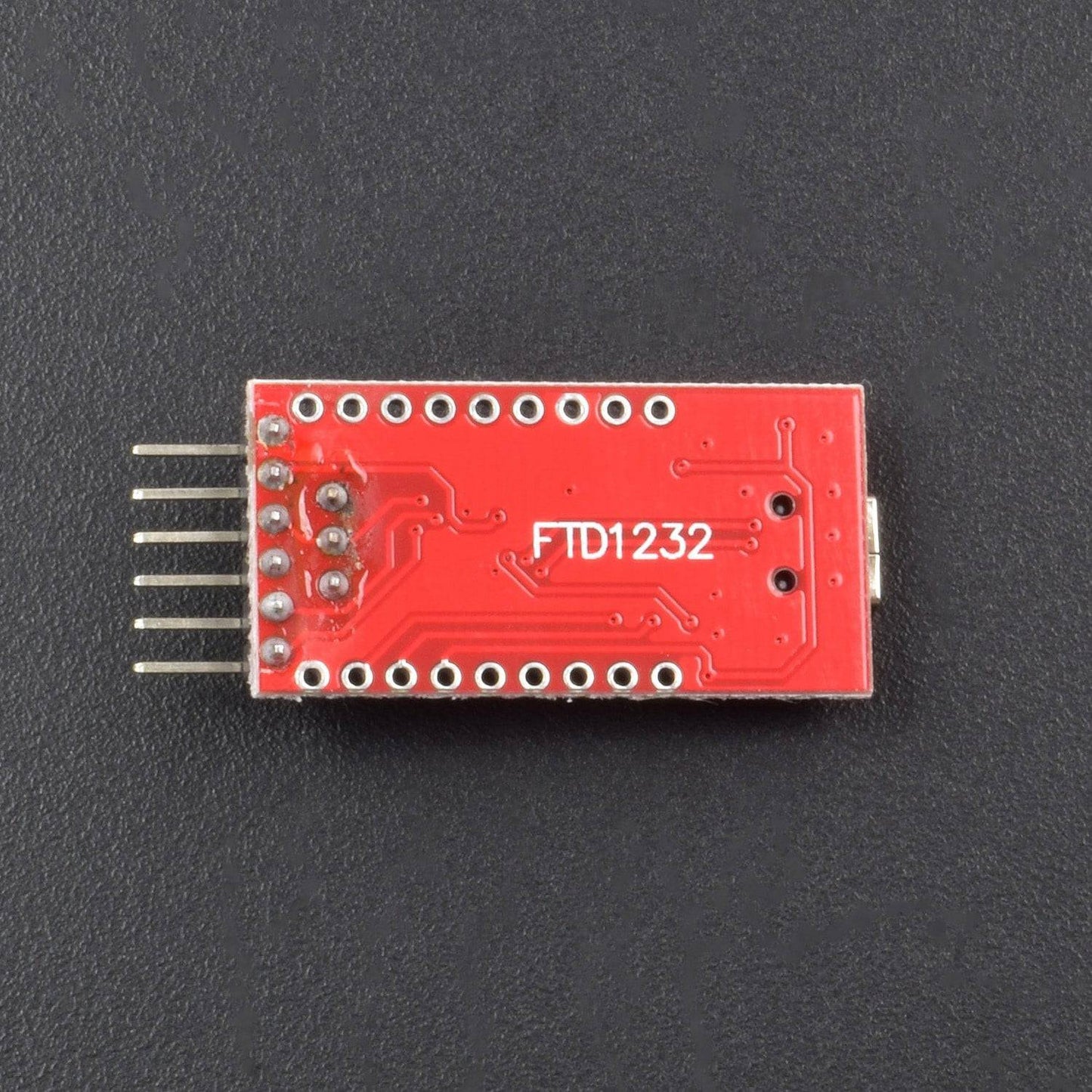

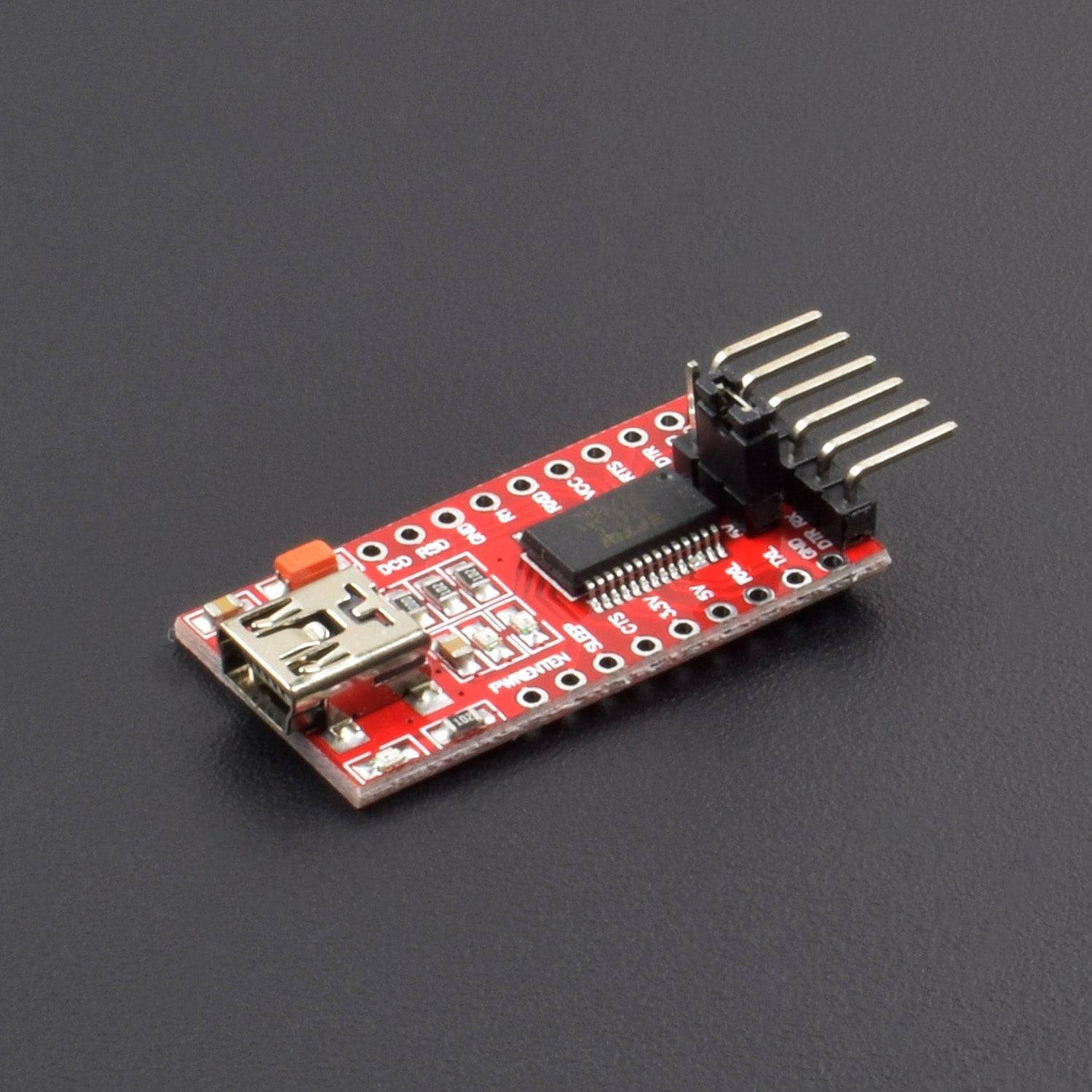

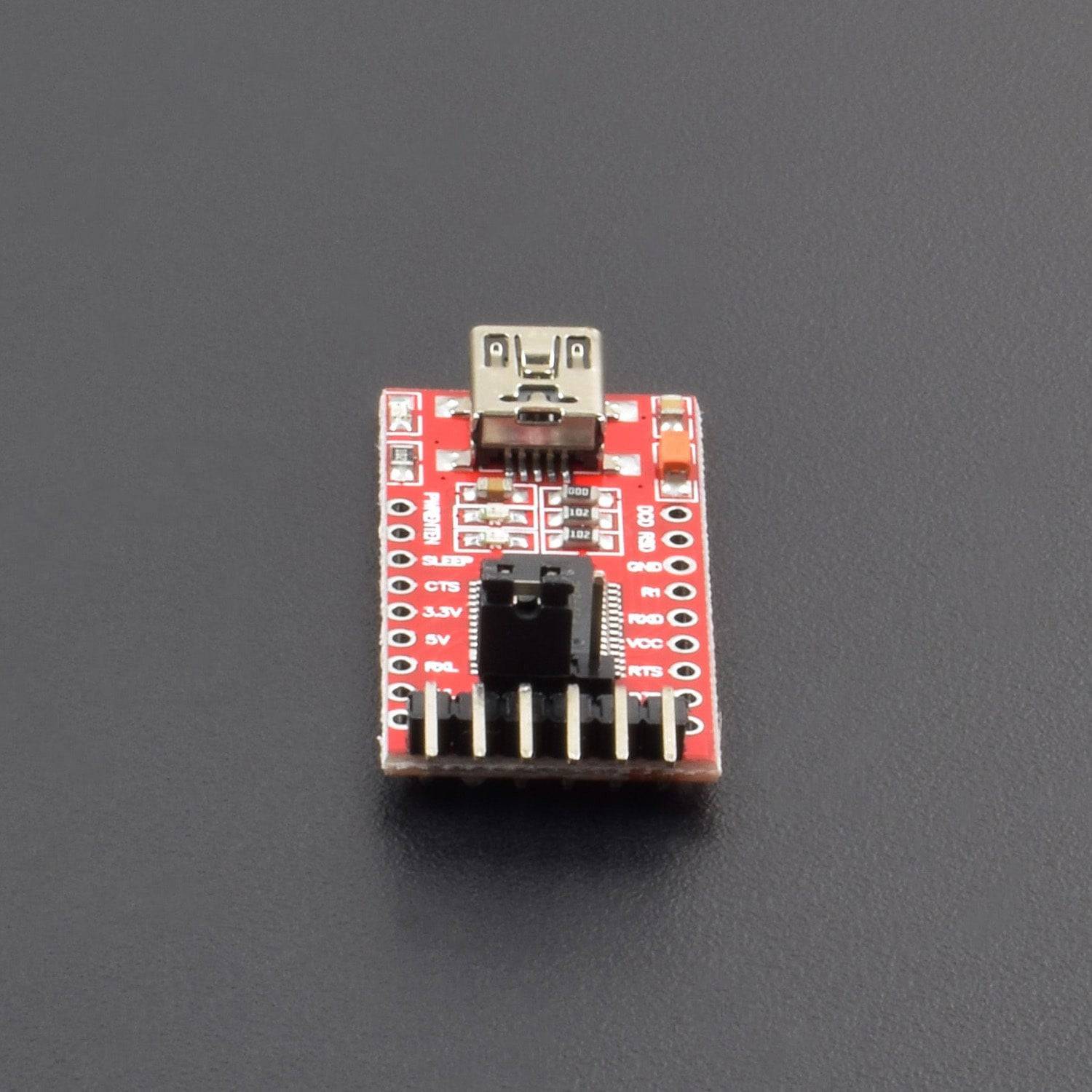

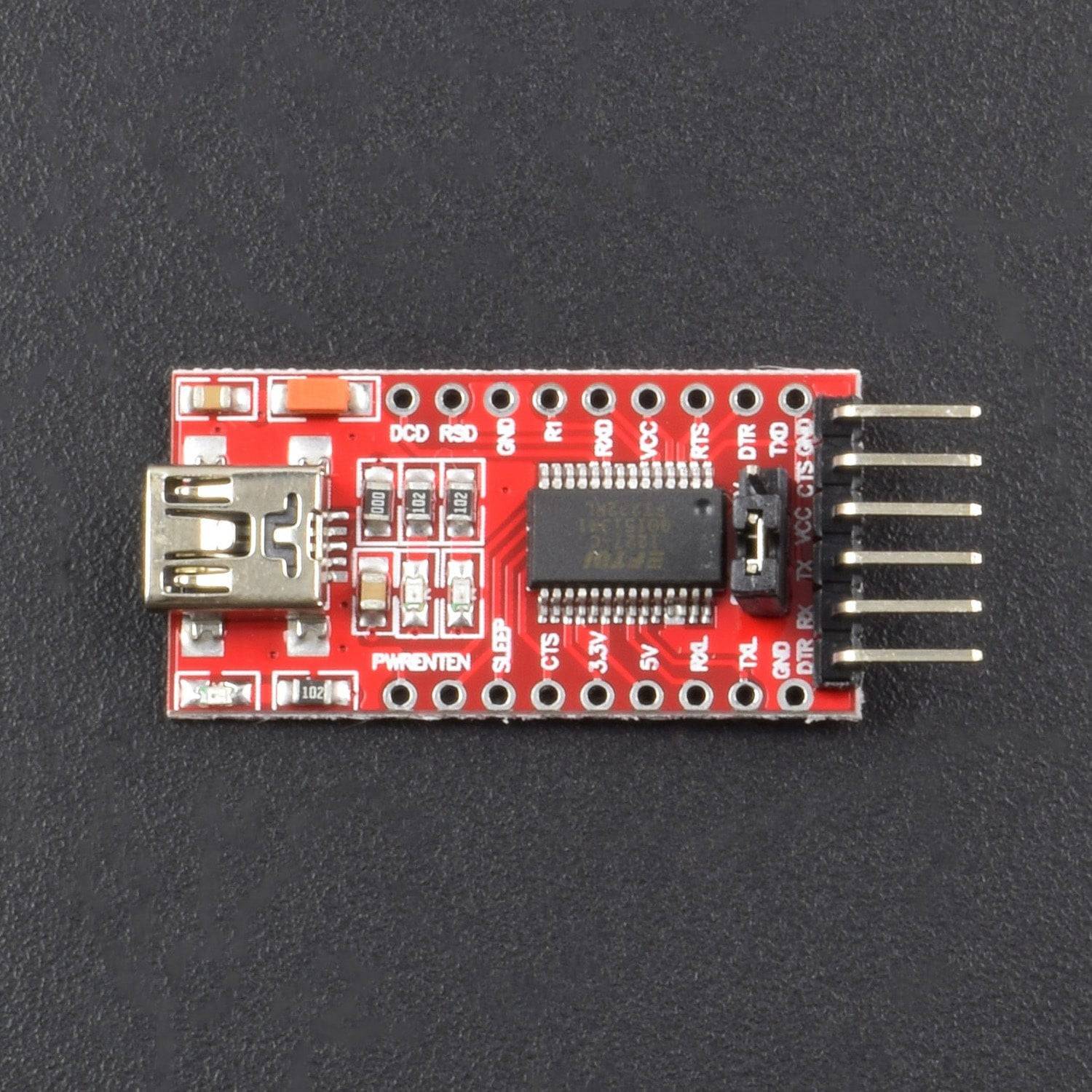

FT232 FT232RL 3.3V 5.5V Module USB to TTL Serial Adapter Module for Arduino- AA106

FT232 FT232RL 3.3V 5.5V Module USB to TTL Serial Adapter Module for Arduino- AA106

SKU:AA106

In stock

Regular price Rs. 109.00
Regular price Sale price Rs. 109.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • IC Chip: FT232RL
  • Pitch: 2.54 mm
  • Interface: Mini USB
  • Temperature Range: -40 to +85 degree Celsius

Description:

The main chip for the FT232, generates a virtual serial port after installing the driver 2, USB to take power, leads to the interface includes a 3.3V (<40mA), 5V, GND, TX, RX, the signal pin level is 3.3V, positive logic 3, onboard status indicator, receive indicator, the correct installation drive status indicator remains, send and receive indicator flashes when the communication baud rate, the higher the lower the brightness. Support the baud rate between 300bps ~ 1Mbps 5, the communication format support, data bits 5, 6, 7, 8. Support 1.5, 2 stop bits. Odd, even, mark, space, none parity 6, the supported operating systems, windows vista / XP / server 2003/200, Mac OS-X / OS-9, Linux 7, USB head is male, can be connected directly to a computer USB port 8, SMD components for the SMT production process, quality, and stability.

Specification:

  • IC Chip: FT232RL
  • Pitch: 2.54 mm
  • Interface: Mini USB
  • Temperature Range: -40 to +85 degree Celsius

Features:

  • Standard interface layout, compatible with a variety of Arduinos such as the Pro Mini
  • Original FTDI FT232 chip, stable performance
  • USB power has current protection, using 500MA self-restore fuse
  • RXD/TXD transceiver communication indicator
  • With power, sending, receiving indicators, and a working status LED indicators
  • With 3.3V and 5V TTL Level supply options
  • USB to serial TTL module, download STC SCM
  • Mini USB Port Connection
  • Support 3.3V, 5V

Package Included:

1 x FT232 FT232RL 3.3V 5.5V Module USB to TTL Serial Adapter Module for Arduino
