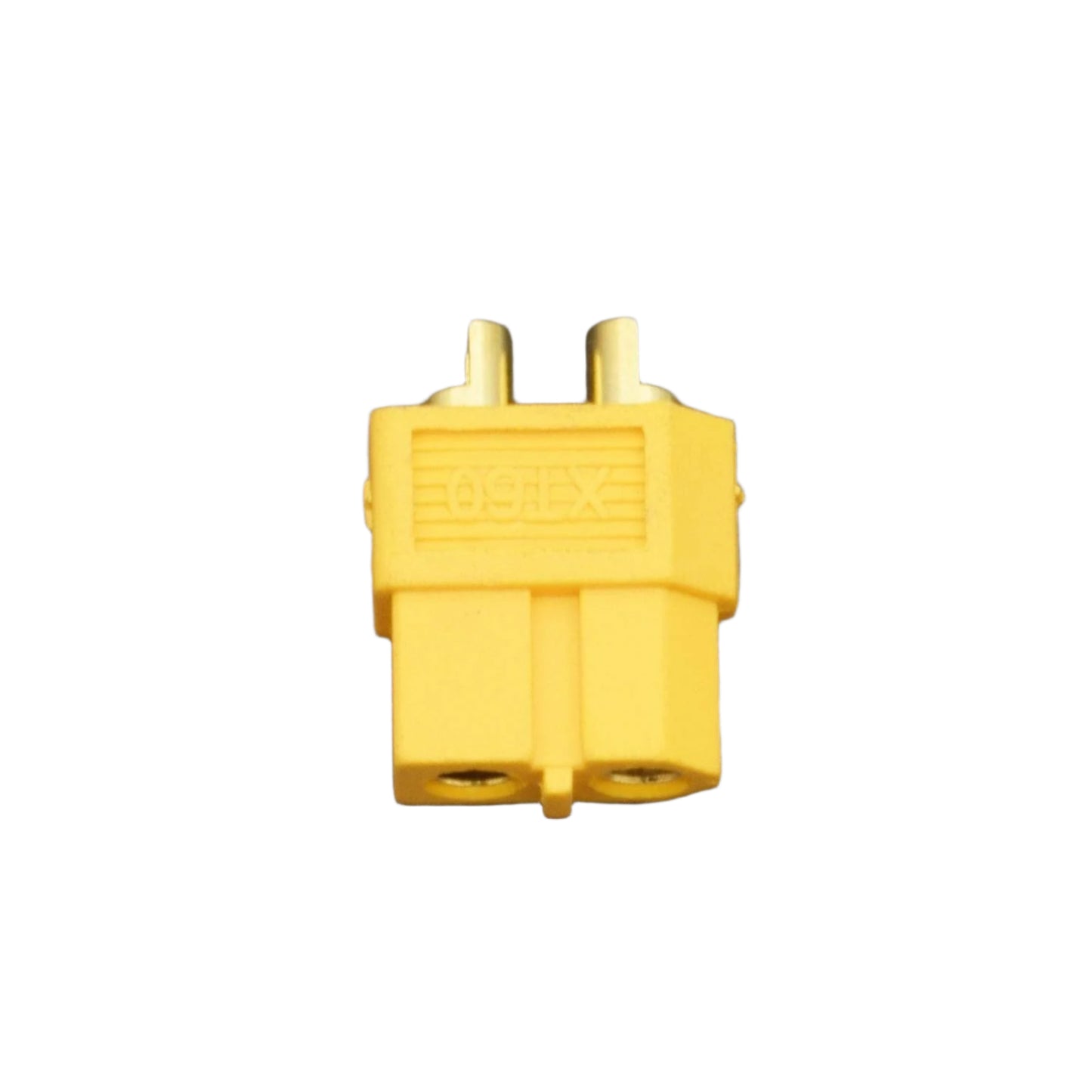

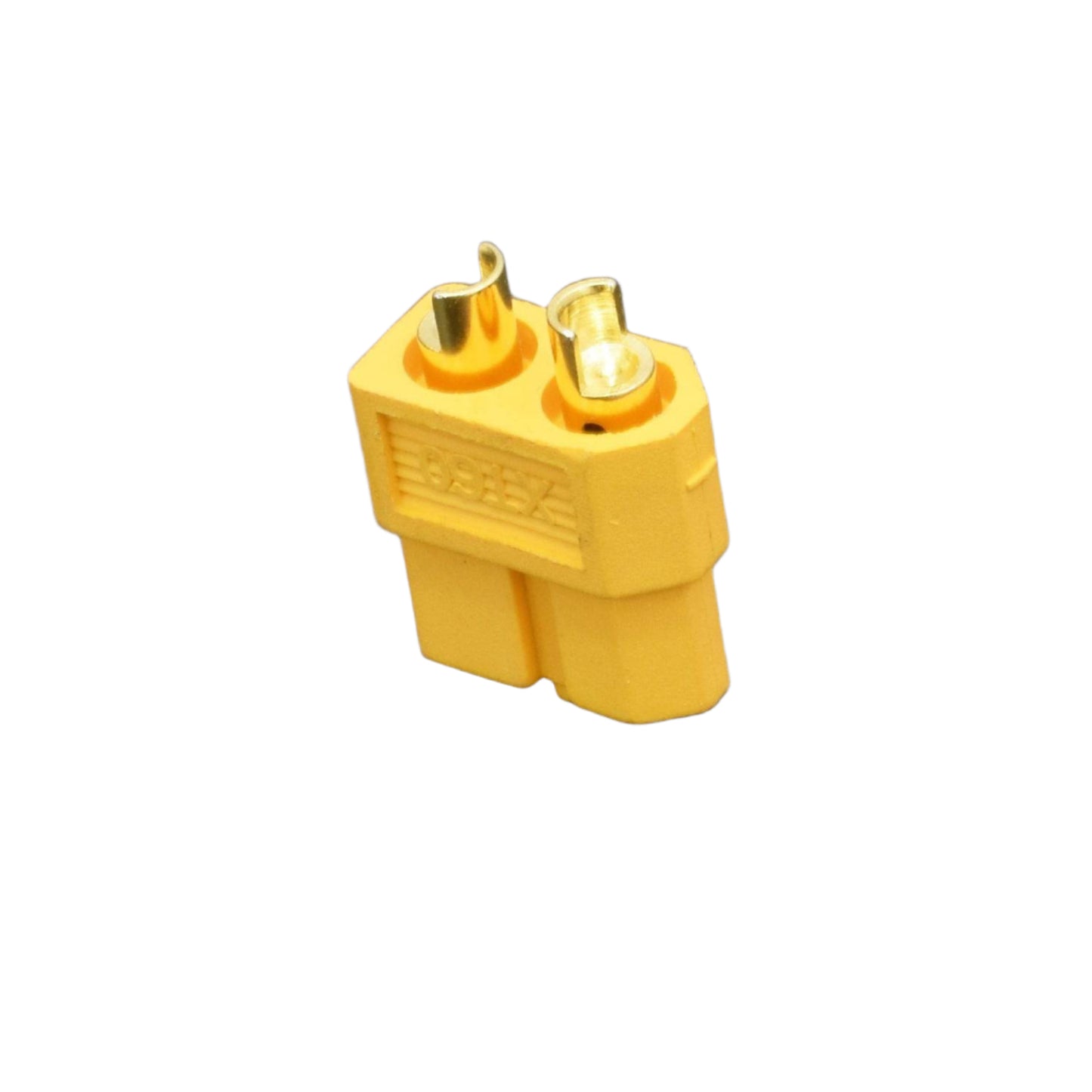

Female XT60 Connector For Lipo Battery - RS320

Female XT60 Connector For Lipo Battery - RS320

SKU:RS320

1939 in stock

Regular price Rs. 25.00
Regular price Sale price Rs. 25.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

Description:

Made from high-temp Nylon and gold plated spring connectors, both included in the injection mould at the time when forming the connector. The XT60 ensures a solid high-amp connection, perfect for applications up to and beyond 65A constant. There is no patent on the XT60 connector, we hope this product is sold everywhere in the world and dominates the market, reducing customers dependency on the over-priced Deans T-connector. These original Nylon XT60 plugs can handle over 60A current for extended periods without exceeding 80 °C thanks to their better contact surface area. The plug is also less likely to deform or melt in comparison to copied non-Nylon XT60 plugs.

Specifications:

  • Gender: Female
  • Rated Operating Voltage: 500V
  • Current Handling Capacity: 60A
  • No. of Contact Points: 2
  • Connector Type: XT60
  • Contact Material: Brass
  • Operating Temperature Range: -20 ~ 120°C

Features:

  • Mechanical mounting for cable
  • Electrical mounting soldered
  • Contact plating Gold flash
  • Spatial Orientation Straight
  • Compatible for Wire size up to 12AWG

Package Included:

1 x Female XT60 Connector
