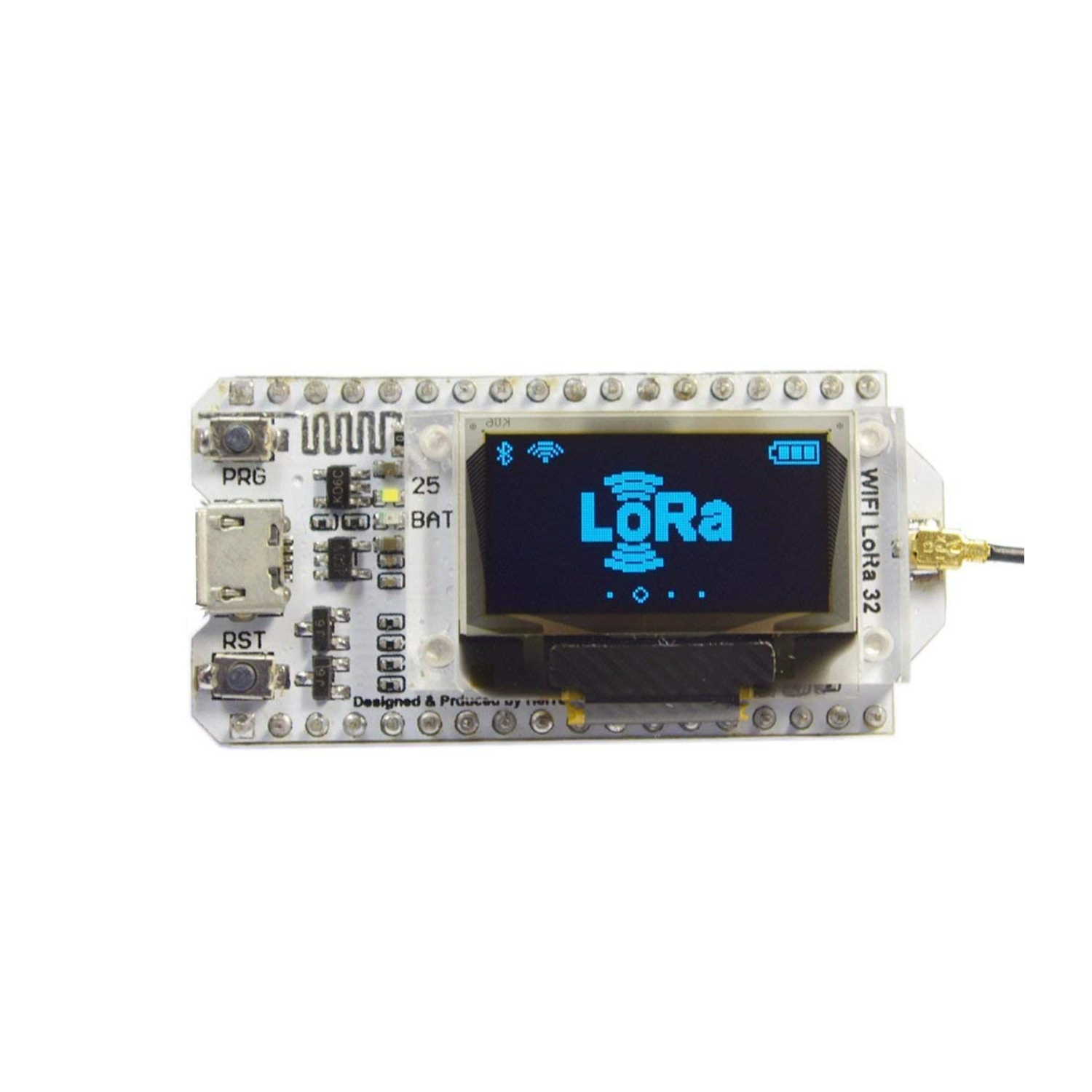

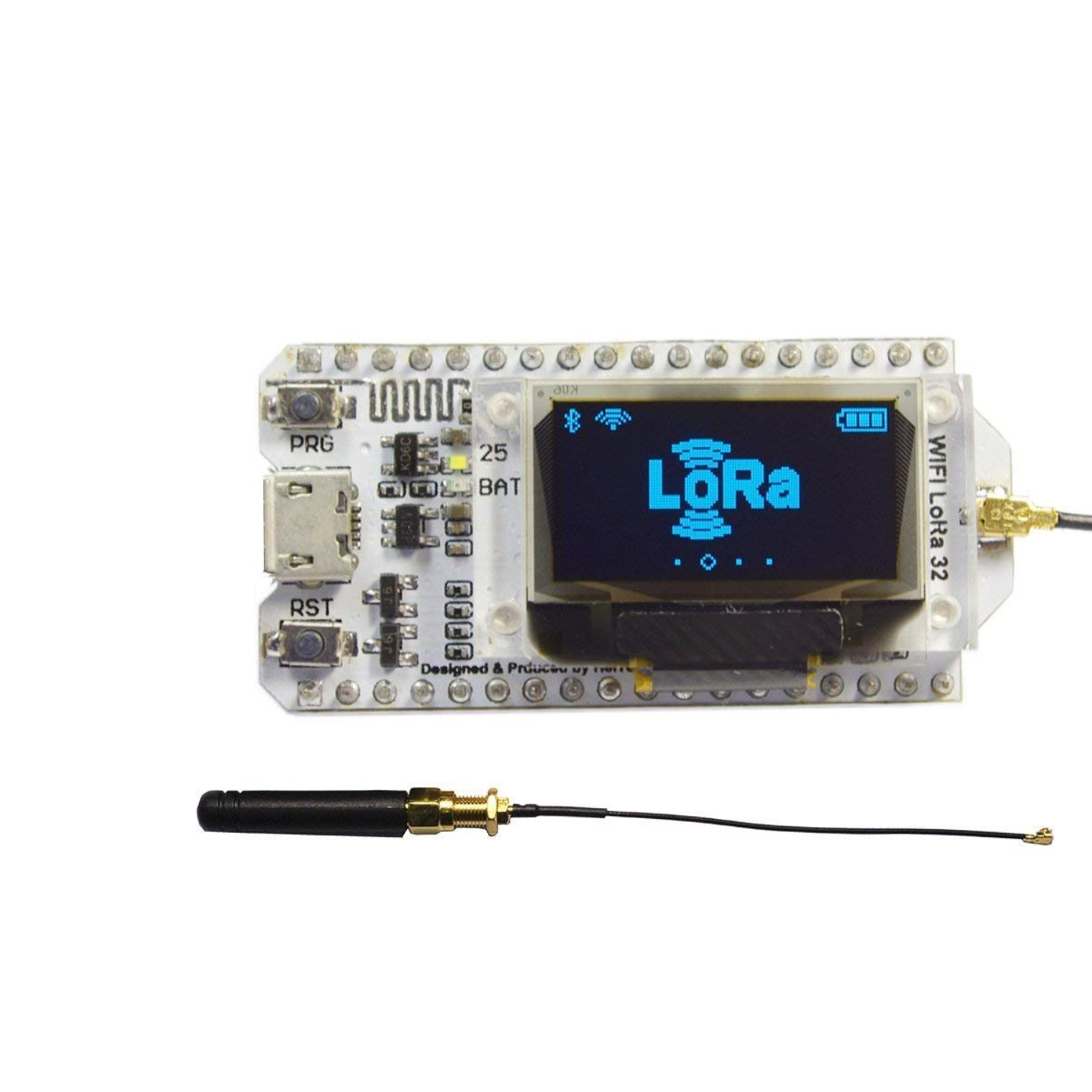

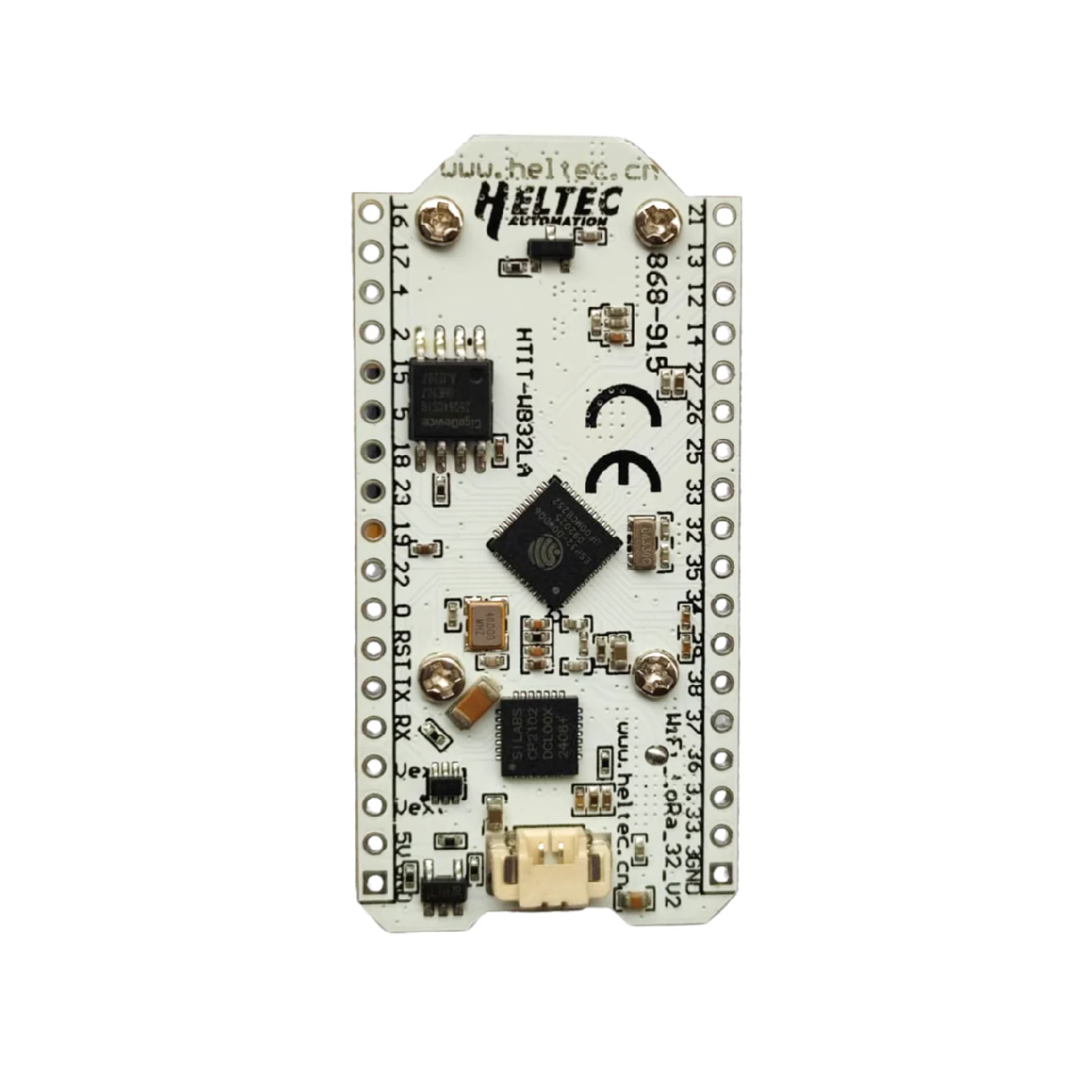

ESP32 LoRa SX1276 Development Board 868MHz/915MHz with 0.96" OLED Display, WiFi, Bluetooth & Antenna For Arduino - RS1844

ESP32 LoRa SX1276 Development Board 868MHz/915MHz with 0.96" OLED Display, WiFi, Bluetooth & Antenna For Arduino - RS1844

RS1844

29 in stock

Rs. 2,539.00
Rs. 2,539.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The ESP32 LoRa stance commSX1276 Development Board is a powerful wireless development platform designed for IoT, smart home automation, industrial monitoring, remote sensing, robotics, and Arduino-based projects. Combining the high-performance ESP32 dual-core microcontroller, SX1276 LoRa transceiver, integrated WiFi, Bluetooth, and a 0.96-inch OLED display, this compact board enables both long-range communication and wireless internet connectivity in a single device.

Supporting 868MHz and 915MHz LoRa frequency bands, the SX1276 transceiver delivers reliable long-duration communication while consuming minimal power, making it ideal for battery-operated IoT devices and remote monitoring systems. The built-in 0.96-inch OLED display provides real-time visualization of sensor data, network status, and debugging information without requiring an external display.

Specifications:

  • Main chip: espressif esp32 and SX1276
  • Operating voltage: 3.3V to 7V
  • Flash: 32 megabits
  • Main Frequency: 240 MHz
  • Support frequency: 868-915 MHz
  • Lora chip: SX1276
  • Distance: about 2.8 km in open place
  • Computing power: 600DMIPS
  • Dual-mode Bluetooth: traditional Bluetooth and BLE low-power Bluetooth
  • Development environment: support Arduino
  • USB adapter chip: CP2102
  • Operating temperature range: -40 ° C to +90°C
  • Support modes: Sniffer, Station, softAP, and Wi-Fi Direct
  • Data rate: 150 Mbps @ 11n HT40, 722 Mbps @ 11n HT20, 54 Mbps @ 11g, 11 Mbps @ 11b
  • Transmit power: 19.5 dBm @ 11b, 16.5 dBm @ 11g, 15.5 dBm @ 11n

Features:

  • ESP32 Dual-Core Wi-Fi + Bluetooth MCU
  • Built-in SX1276 LoRa Transceiver
  • Supports 868MHz 915MHz LoRa
  • 0.96" 128×64 OLED Display
  • Long-Range Low-Power Communication
  • External High-Gain LoRa Antenna
  • Arduino IDE Compatible
  • Supports ESP-IDF Development
  • USB Programmable Development Board
  • Multiple Interfaces: GPIO, SPI, I2C, UART
  • Low Power Consumption for IoT
  • Fast Reliable Wireless Data Transfer
  • Ideal for Smart Home Automation
  • Perfect for IoT, Sensor Gateway Projects
  • Compact All-in-One Development Board
  • Suitable for LoRaWAN Applications

Package Included:

1 x ESP32 LoRa SX1276 Development Board
