Description:

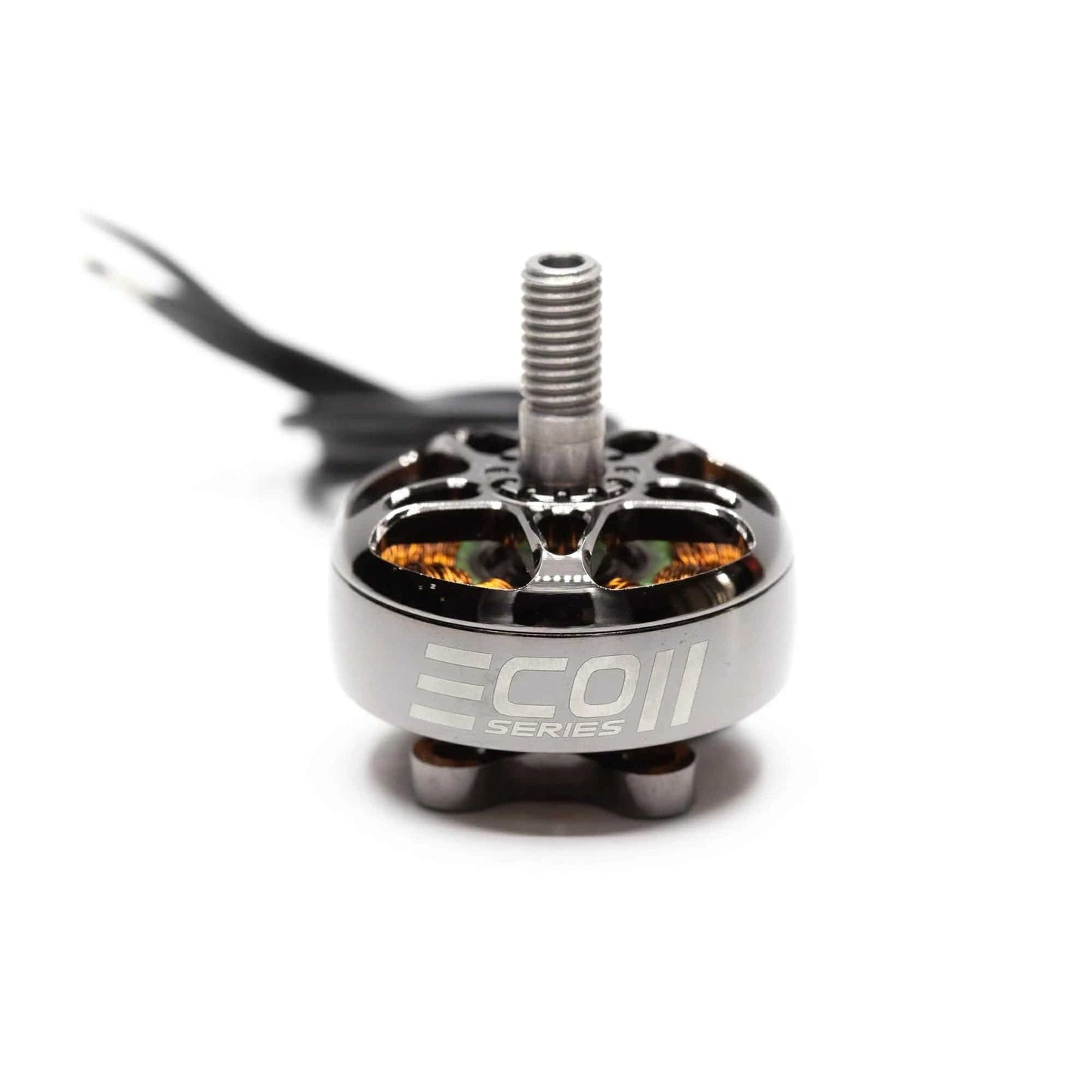

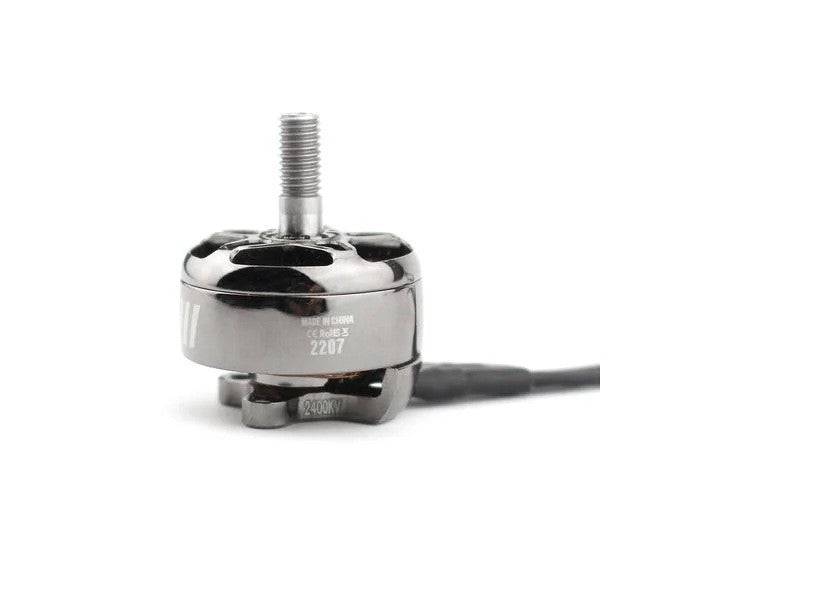

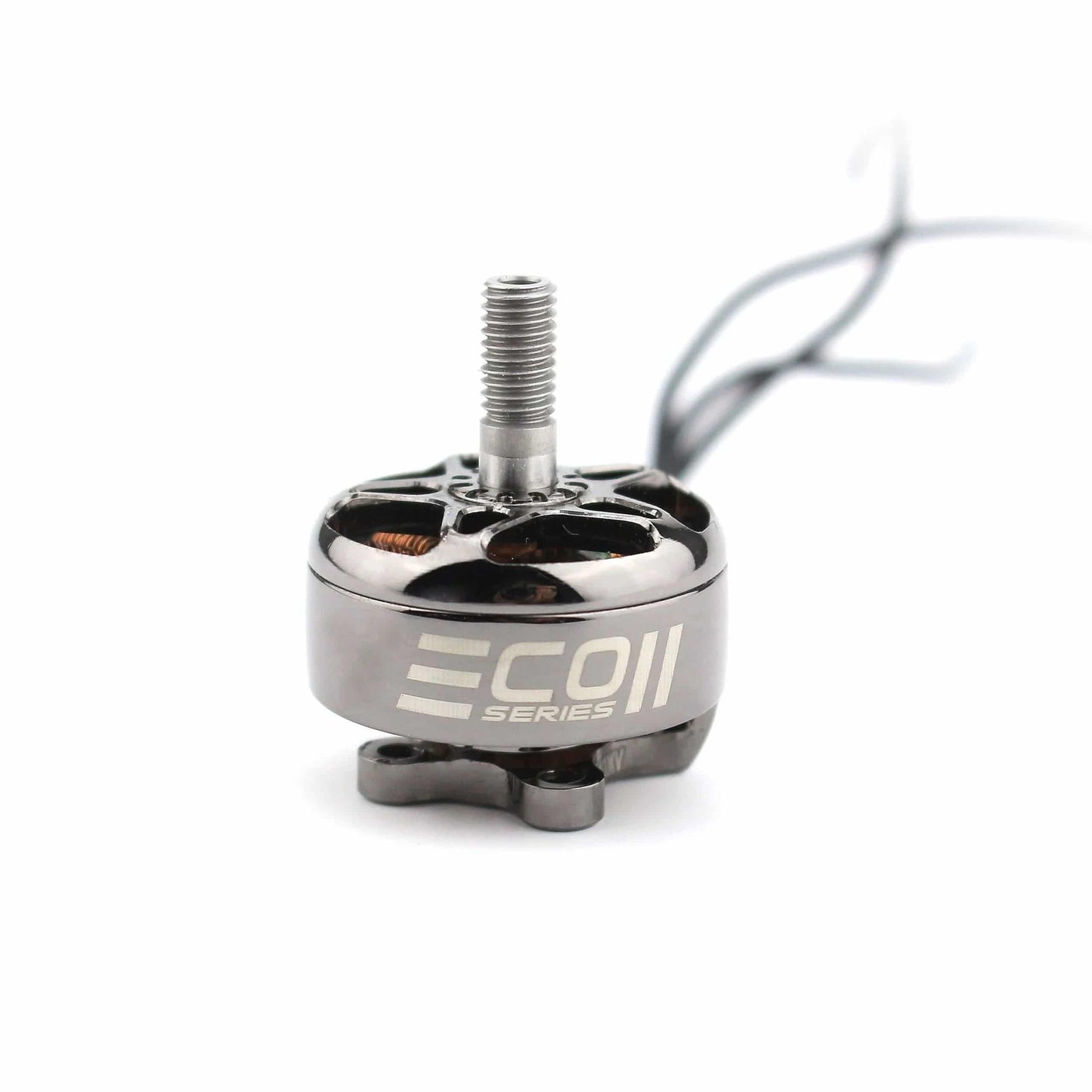

The engineers at EMAX are always seeking ways to design the ultimate motor with brushless technology. In their efforts, they produced the ECO II Series, a new line of brushless motors that further improving on performance and durability while retaining the same affordability.
Redesigned from the ground up, the ECO II boasts an all-new architecture. With a more rounded design paired together with thicker reinforcements, maximum durability is achieved. Finished with a reflective surface, the ECO II offers a sleek modern design destined to satisfy the need for both aesthetics and durability.
To improve the performance of its predecessor, the ECO II utilizes N52SH arc magnets over prior N48 magnets, allowing more powerful throttle response and higher RPMs to be achieved.
Specifications:
- Brand: Emax
- Model Name: EMAX ECO II 2207
- KV: 1700KV
- MAX Thrust: 1980g
- Framework: 12N14P
- No.of cells: 3-6S 1700KV
- Compatible Propeller: 5″-5.5″
- Weight: 33.4g(W/O Silicone Wire) 1700KV
- Prop adapter shaft thread: M5
- Bearing Shaft: 4mm
- Shaft Thread: CW
Features:
- ECO II Series 2207 1700KV Brushless Motor has 120mm 20 AWG silicone wire

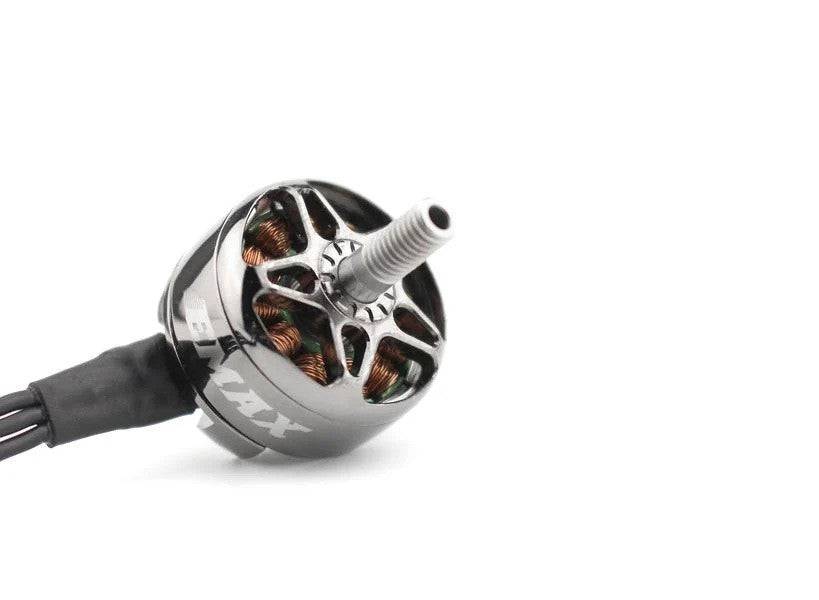

- ECO II Series 2207 1700KV Brushless Motor has a brand new design with a rounded bell and stronger attachment points for increased durability.
- ECO II Series 2207 1700KV Brushless Motor is a fully mirror-polished finish that shines and glistens with even the smallest hint of light.
- ECO II Series 2207 1700KV Brushless Motor has upgraded N52SH curved arc magnets for tighter airgap and better performance.
- ECO II Series 2207 1700KV Brushless Motor has EZO 9mm bearing for unparalleled smooth operation.
- ECO II Series 2207 1700KV Brushless Motor has 16x16mm Motor Mounting

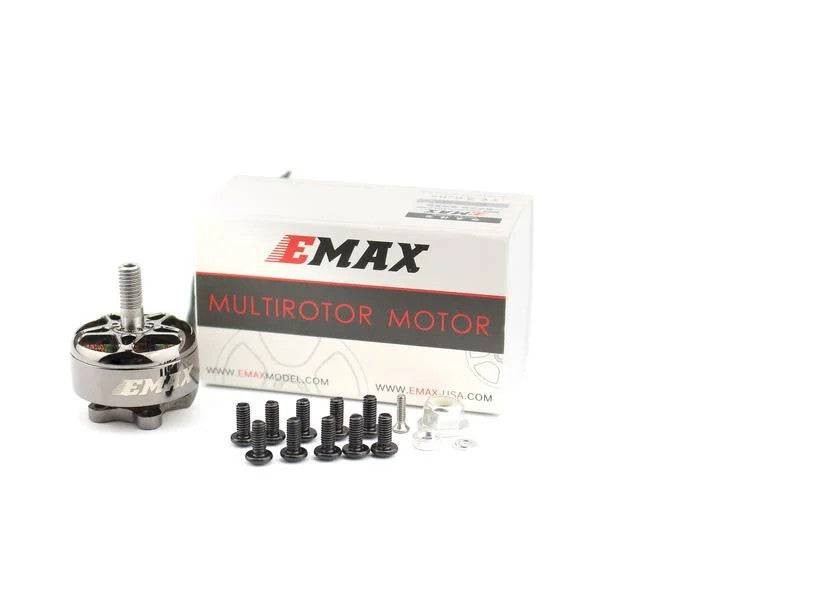

Package Included:
- 5 x МЗ*8 Ѕсrеw
- 5 x M3*7 Screw
- 5 x МЗ*6 Ѕсrеw
- 1 x Aluminum M5 nylock nut
- 1 x Washer and Screw for shaft
