Description:

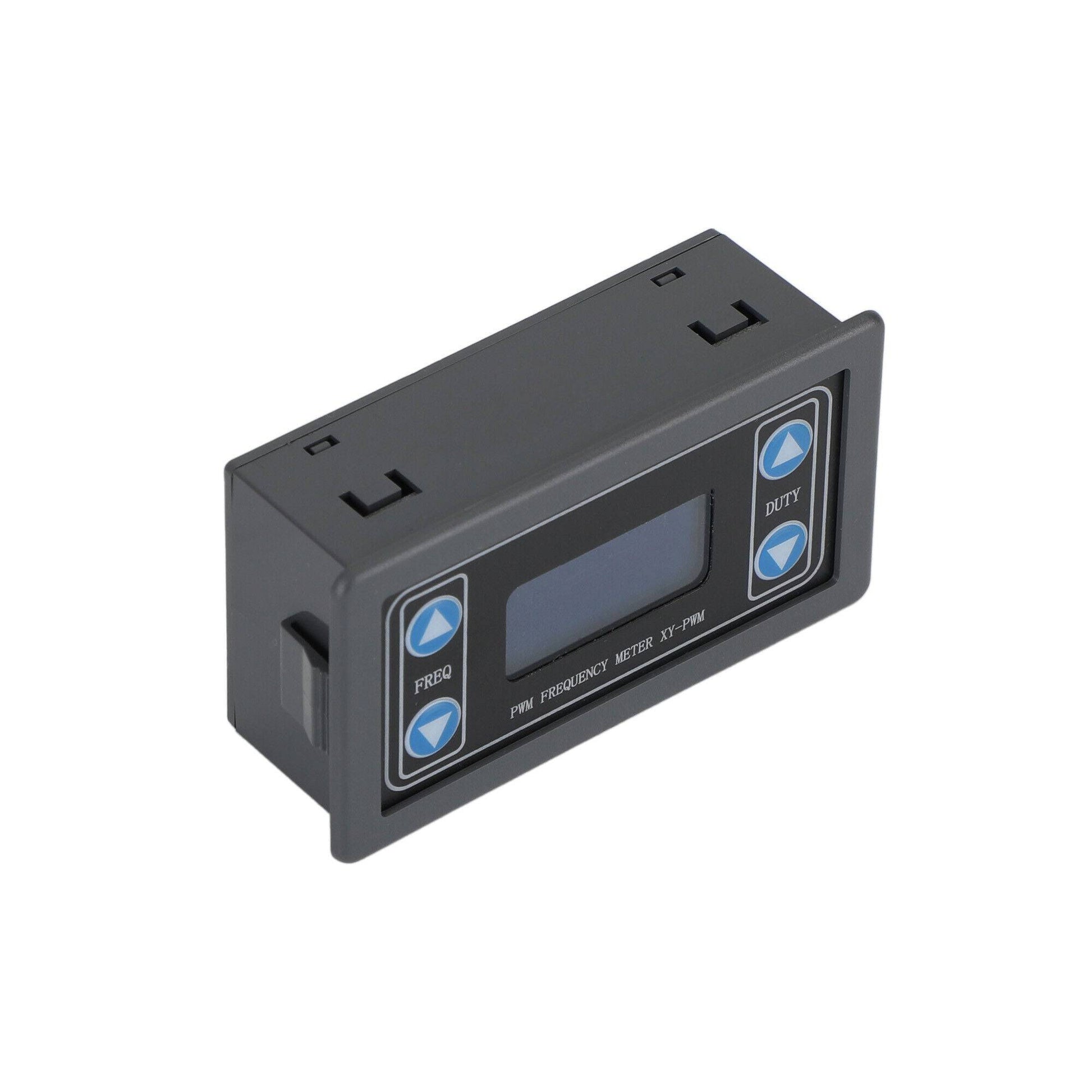

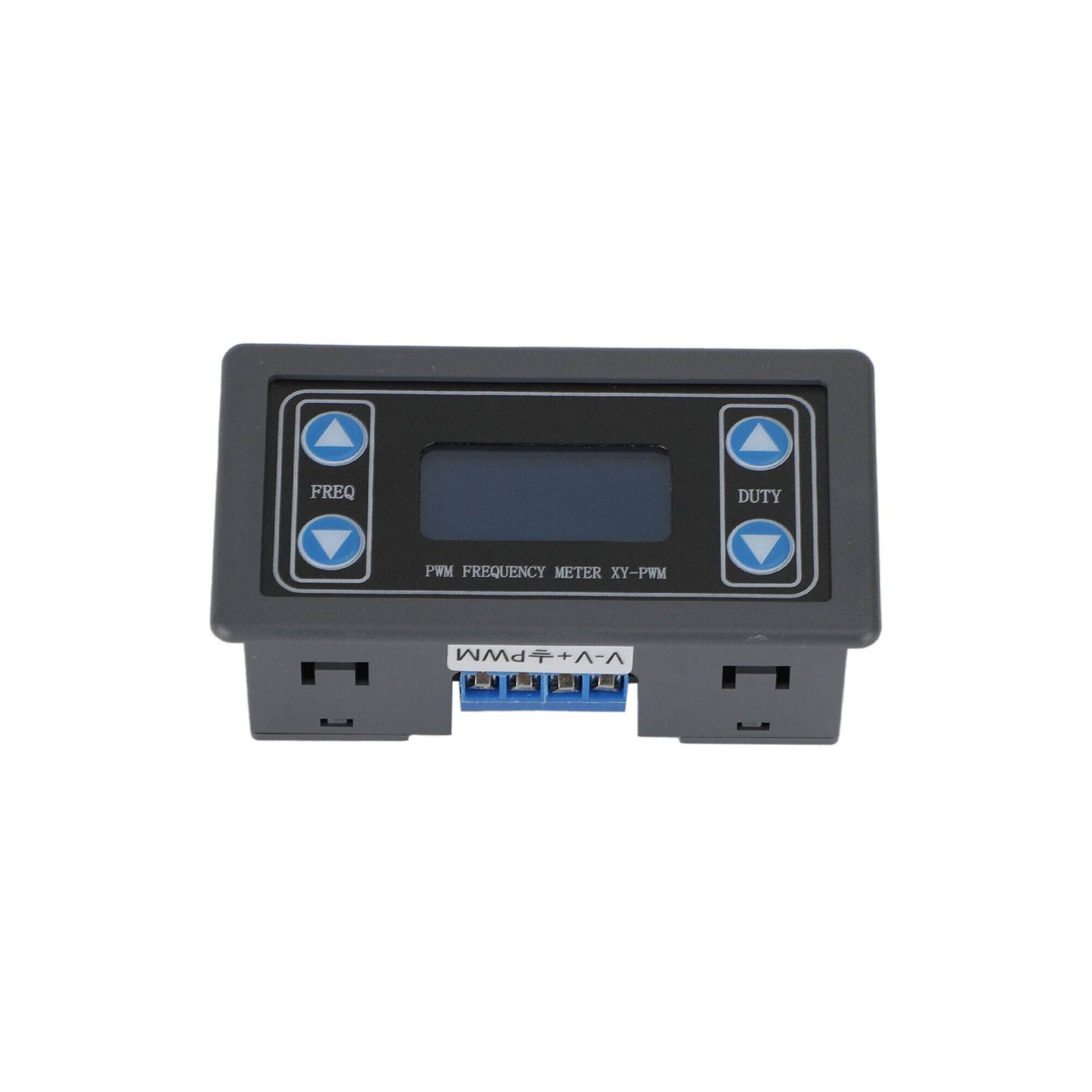

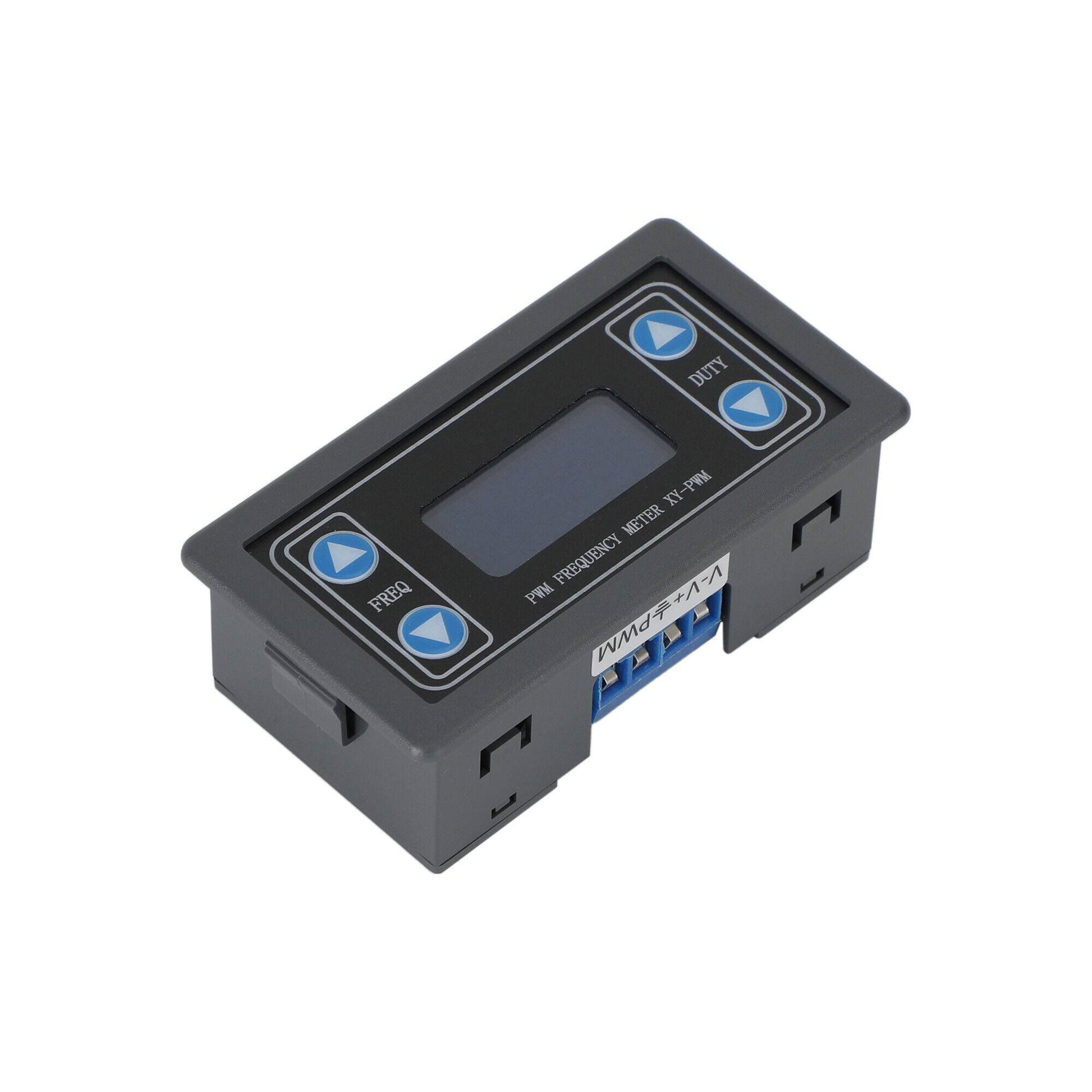

This is a Digital PWM Generator, which is housed in a protective shell. It can generate a PWM frequency from 1Hz to 150KHz. This Digital PWM Generator can be used where an accurate and reliable source of PWM is required.
Specifications:
| Model |
XY-PWM |
| Microcontroller IC |
N76E003AT20 |
| Operating Voltage |
3.3 ~ 30V DC |
| Frequency Range |
1Hz~150KHz |
| Frequency Accuracy |
2% |
| Signal Load Capacity |
Output current can be around 5~30ma |
| Output Amplitude |
PWM amplitude is equal to the supply voltage |
| Operating Temperature |
-20 to 70°C |
Features:
- Bright LCD Display
- Supports UART
- Adjustable Frequency Output
- High Accuracy Detection
- Supporting Power-OFF Memory Function
- Supports Duty Cycle Adjustment
Package Included:
1 x Digital PWM Generator with Display XY-PWM DC 3.3-30V 1Hz-150kHz Digital Display Pulse PWM Signal Generator
