Description:
This advanced, self-contained capacitive fingerprint sensor offers a comprehensive solution for secure and efficient biometric authentication. It integrates a high-performance processor and a cutting-edge semiconductor fingerprint sensor, enabling rapid and reliable fingerprint capture. At its core lies the sophisticated IDfinger6.0 fingerprint algorithm, allowing for autonomous fingerprint recognition, and eliminating the need for constant external processing.
For seamless integration with Arduino platforms, the sensor is supported by a dedicated DFRobot Arduino library, facilitating easy implementation of key functionalities such as fingerprint enrollment, deletion, and 1:N matching via UART communication. A user-friendly upper computer software interface is also provided, simplifying setup and operation for users of all experience levels.
Designed for optimal performance and convenience, this sensor boasts low power consumption, a compact form factor, and an aesthetically pleasing design. Its exceptional recognition speed and robust security features make it ideal for sensitive applications. Furthermore, the sensor's innovative 360-degree view object recognition capability ensures accurate fingerprint capture regardless of finger orientation. The inclusion of a deep self-learning algorithm continuously enhances recognition accuracy over time, adapting to user variations and environmental changes. This combination of features delivers a powerful and versatile biometric solution for a wide range of applications, from access control to personal security.
Specifications:
- Operating Voltage: 3.3V
- Operating Current: ＜40mA
- Communication Method: UART
- Storage Capacity: 80 fingerprints
- 1: N Verification Time: ＜0.5S
- Pixel Resolution: 508dpi
- Number of Pixels: 160x160
- Operating Environment: -10 to 60℃ / 20% to 80%RH
- Dimension: diameter of 19mm/0.75
Features:
- Enables accurate matching from any angle.
- Continuously improves recognition accuracy over time.
- Simplifies integration into space-constrained designs.
Applications:
- Fingerprint door lock
- Drawer Lock
- ID Recognition
- Authorization
Documents:
Package Included:

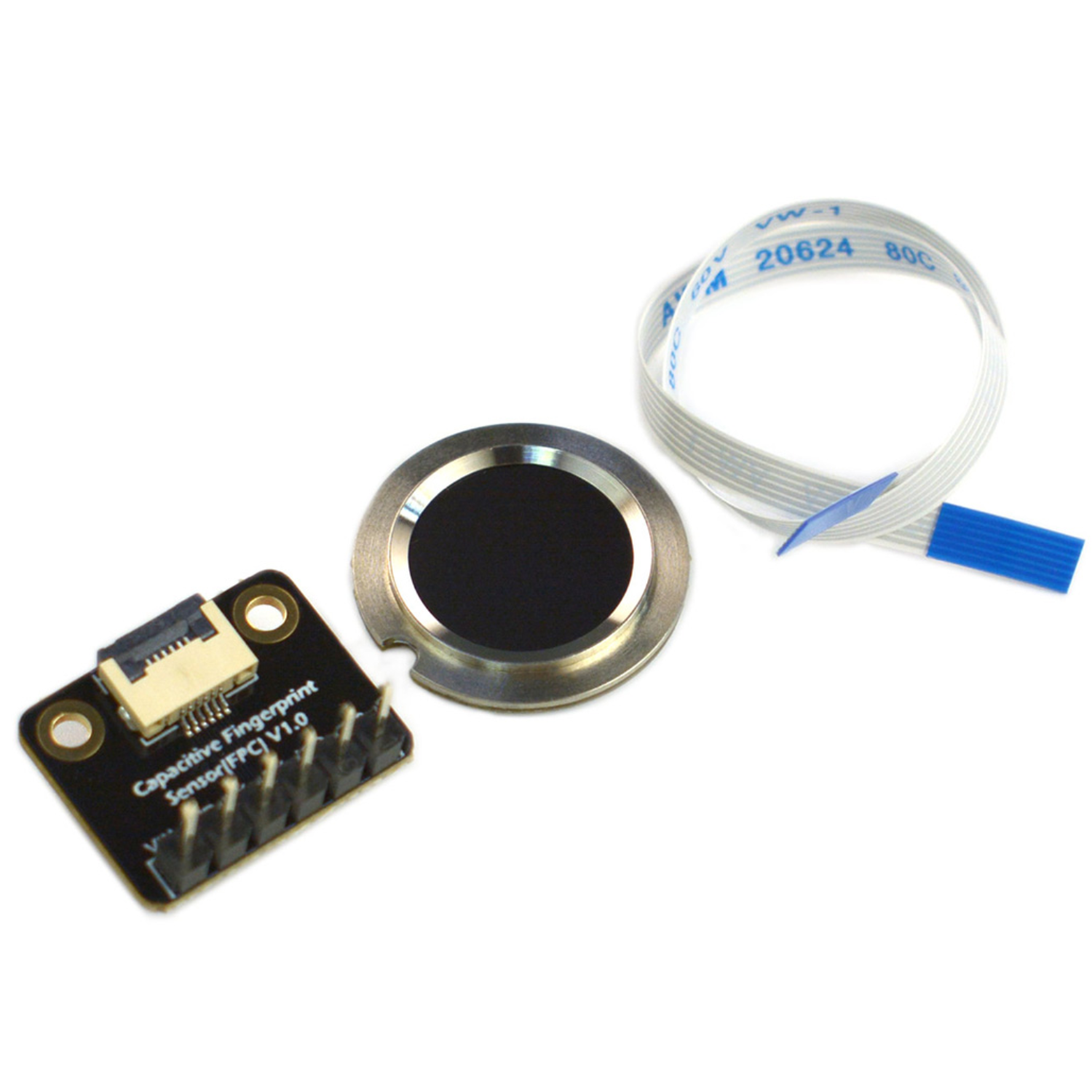

1 x DFRobot UART Capacitive Fingerprint Sensor
