Description:

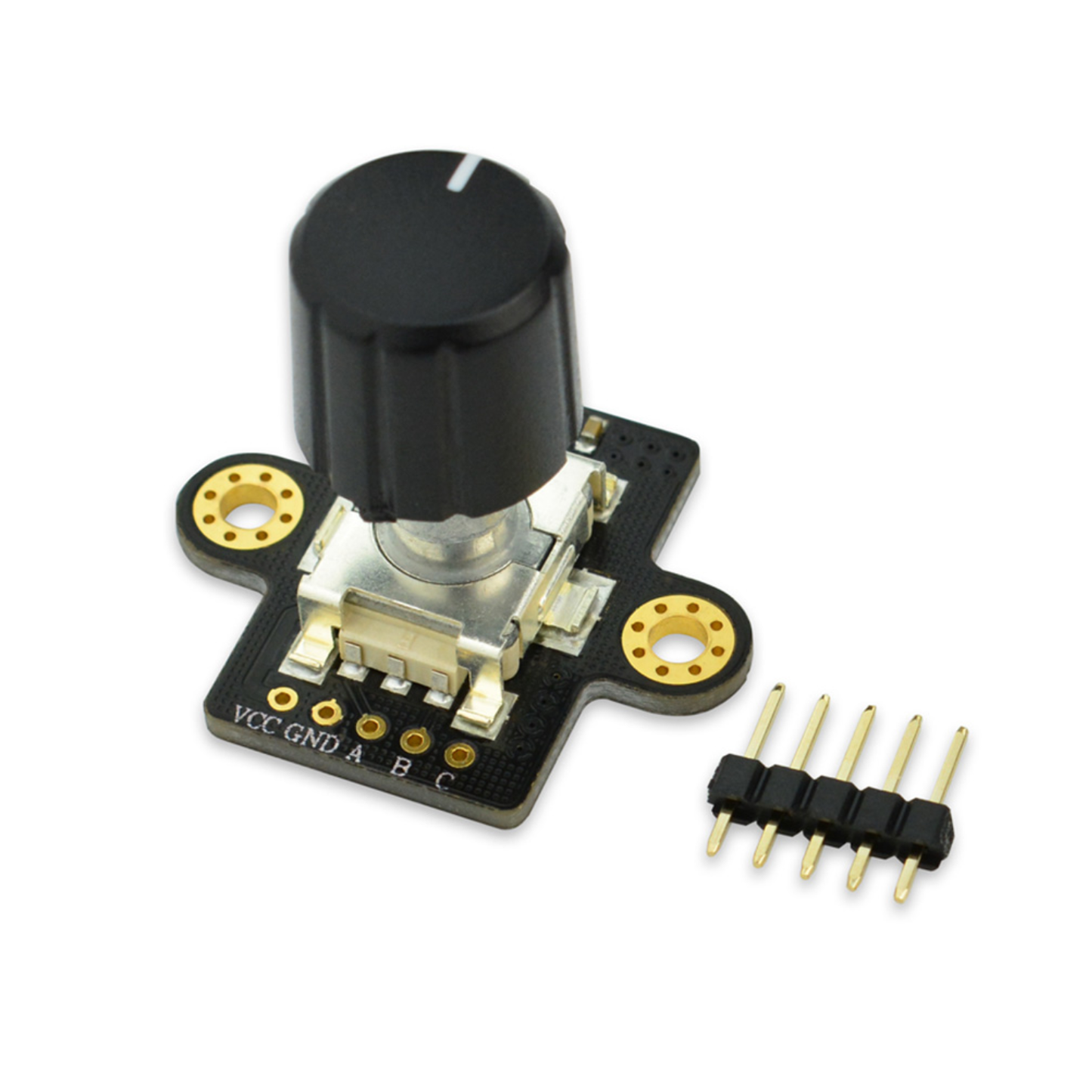

The DFRobot 360-degree rotary encoder module leverages the popular EC11 rotary encoder to provide precise and reliable rotational feedback. This module outputs quadrature signals via terminals A and B, allowing for accurate determination of both the direction and degree of rotation. Additionally, it features an integrated push-button accessible through terminal C, providing an extra layer of user interaction.

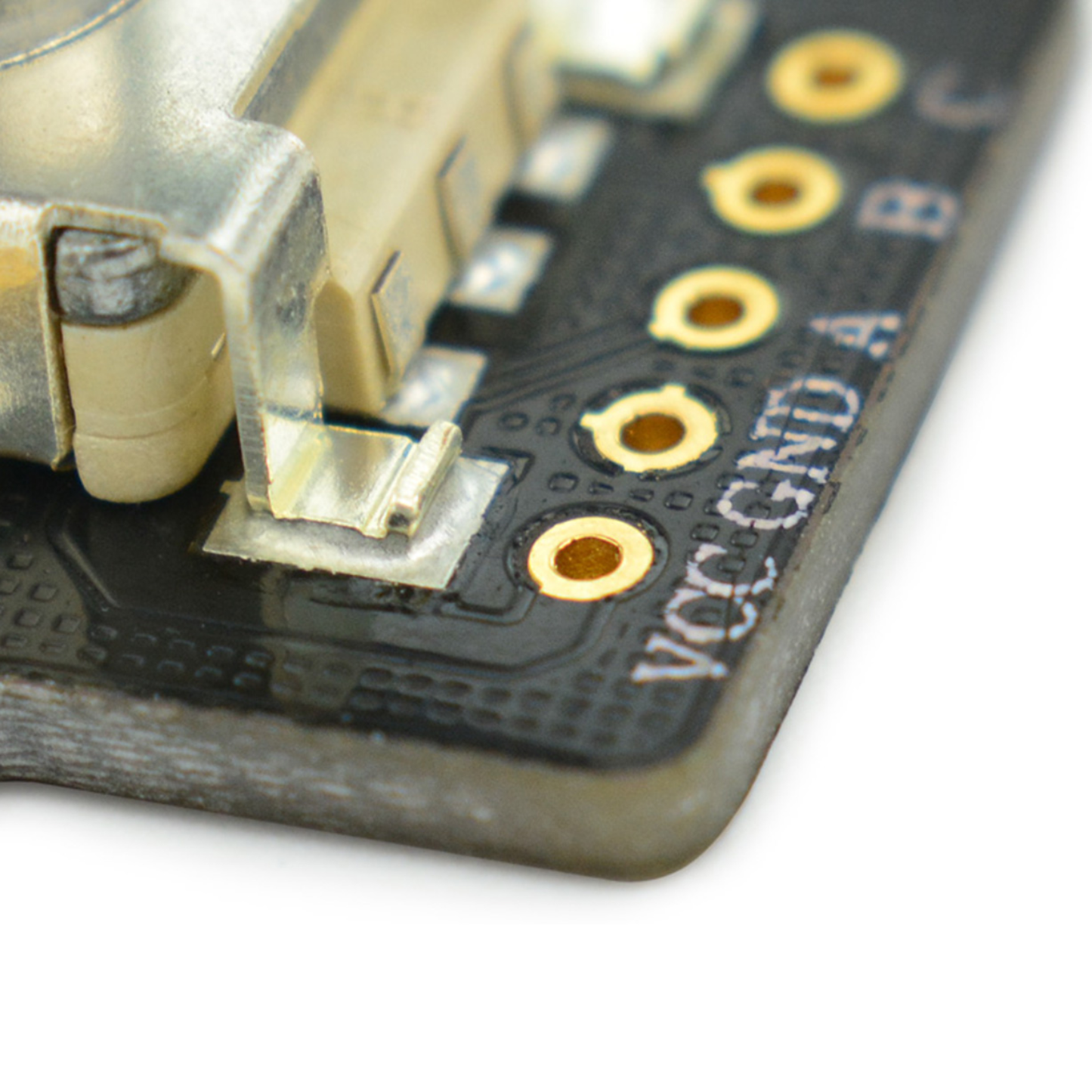

The module's design prioritizes ease of integration in prototyping scenarios, featuring a standard XH2.54 bonding pad for convenient connections. Its robust functionality makes it well-suited for applications requiring precise rotational input, such as volume and lighting voltage adjustments in automotive systems, multimedia equipment, laboratory instrumentation, intelligent home automation, and various other embedded projects.
Specifications:
- Operating Voltage: 3.3V ~ 5V
- Full Rotation Angle: 360 degrees (no stopping point)
- Number of Pulses: 20
- Rotation Life: 30000 ± 200 Cycles
- Contact Resistance: ≤ 100mΩ
- Insulation Resistance: 100MΩ or more
- Oscillation: <10ms Press
- Working Temperature: -30 ℃ ~ +80 ℃
- Module Size: 33.8 * 22.4 (mm) /1.3 * 1.1 (inches)
Features:
- Unrestricted movement for comprehensive coverage.
- Flexible connectivity for diverse applications.
- Simple and reliable integration
- Built for long-lasting, reliable rotation.
- Suitable for a wide range of uses.
Documents:
Package Included:
1 x DFRobot Fermion: EC11 Rotary Encoder Module (Breakout)
