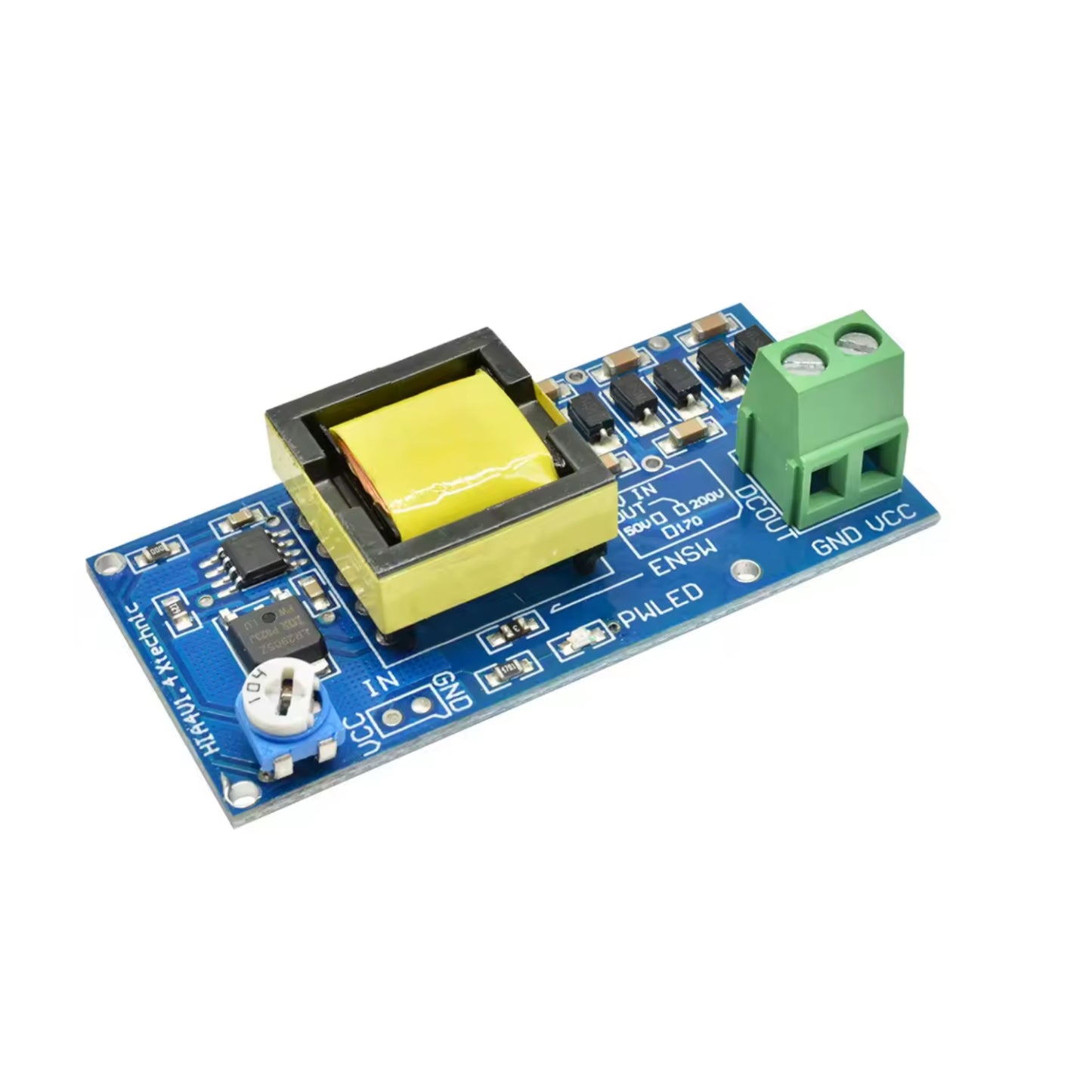

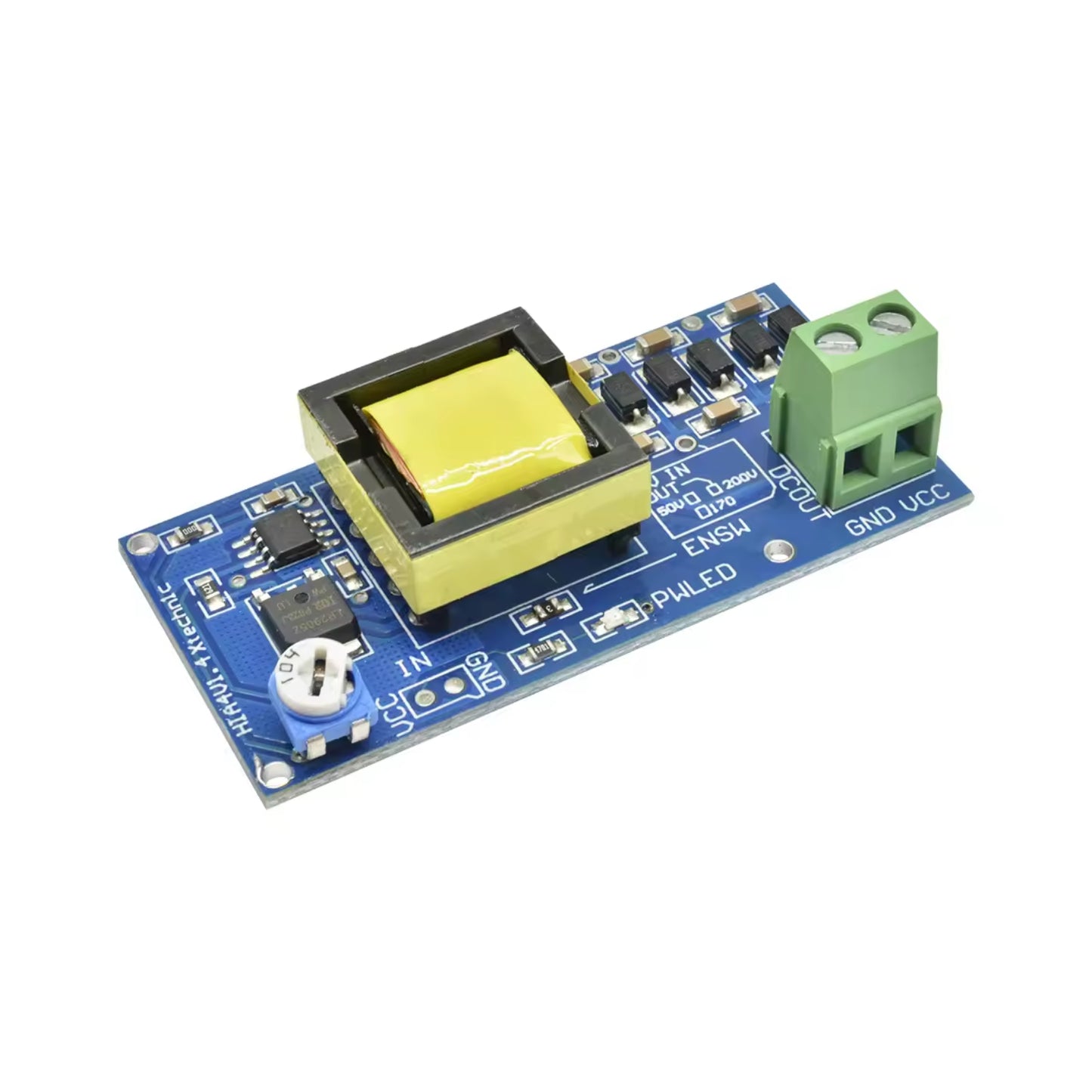

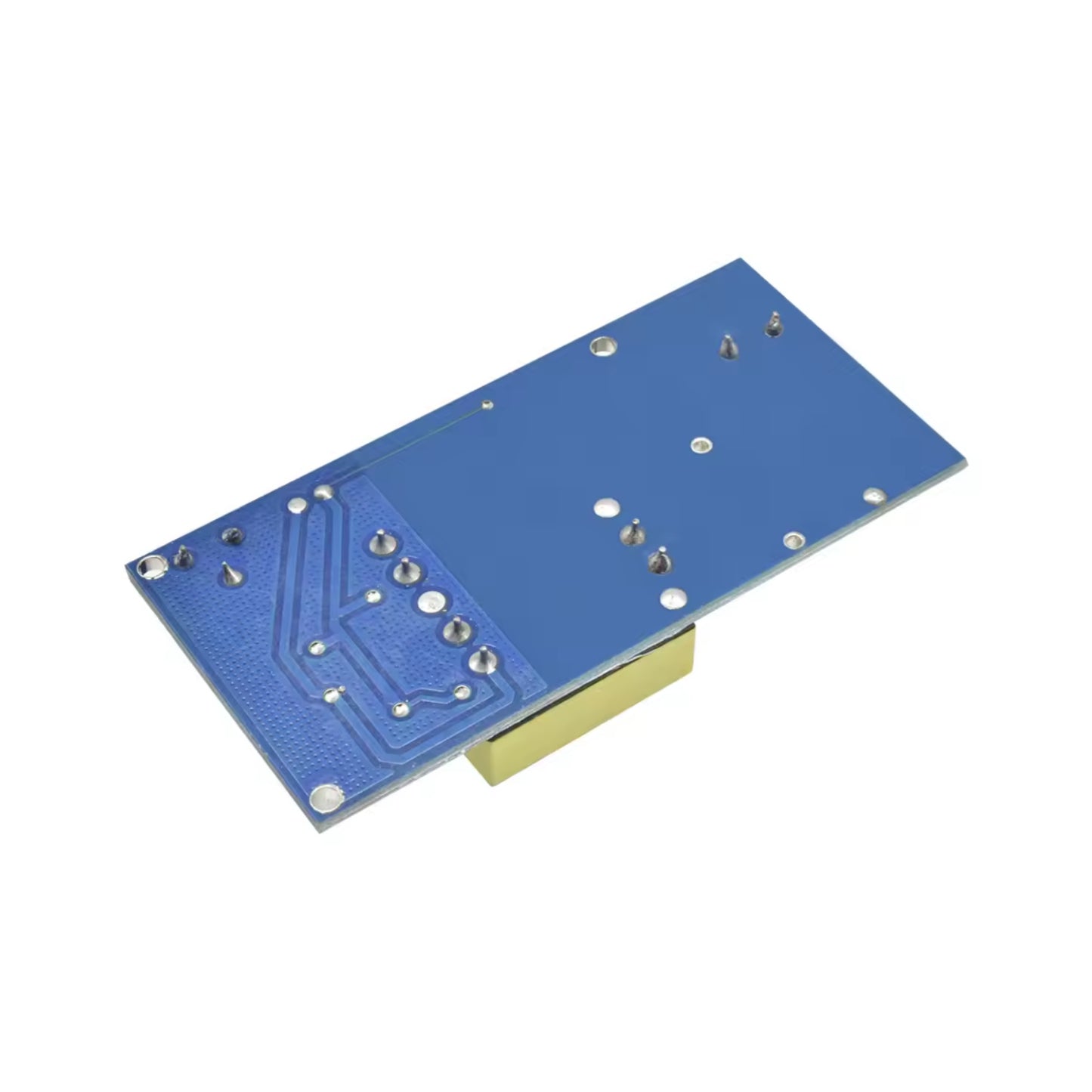

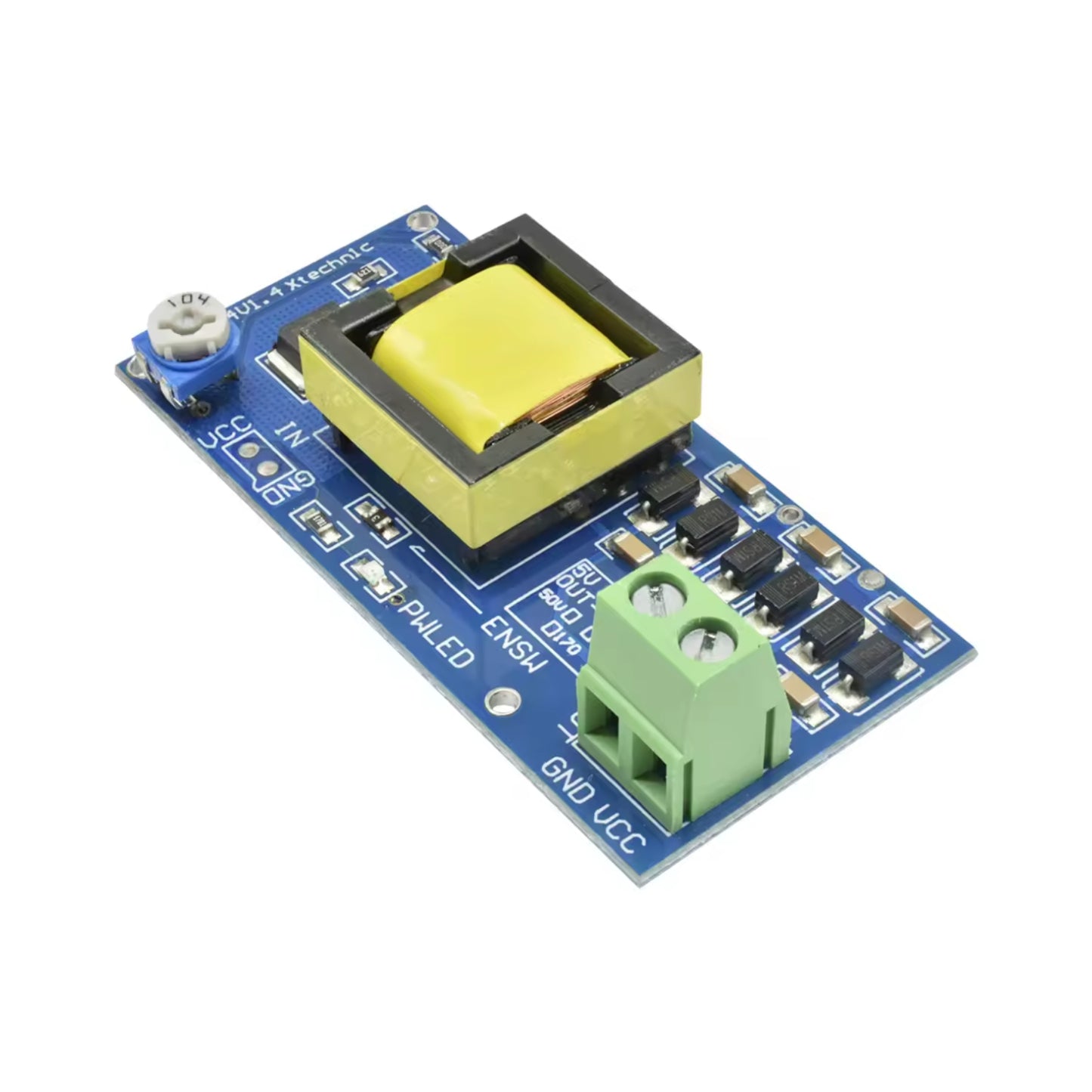

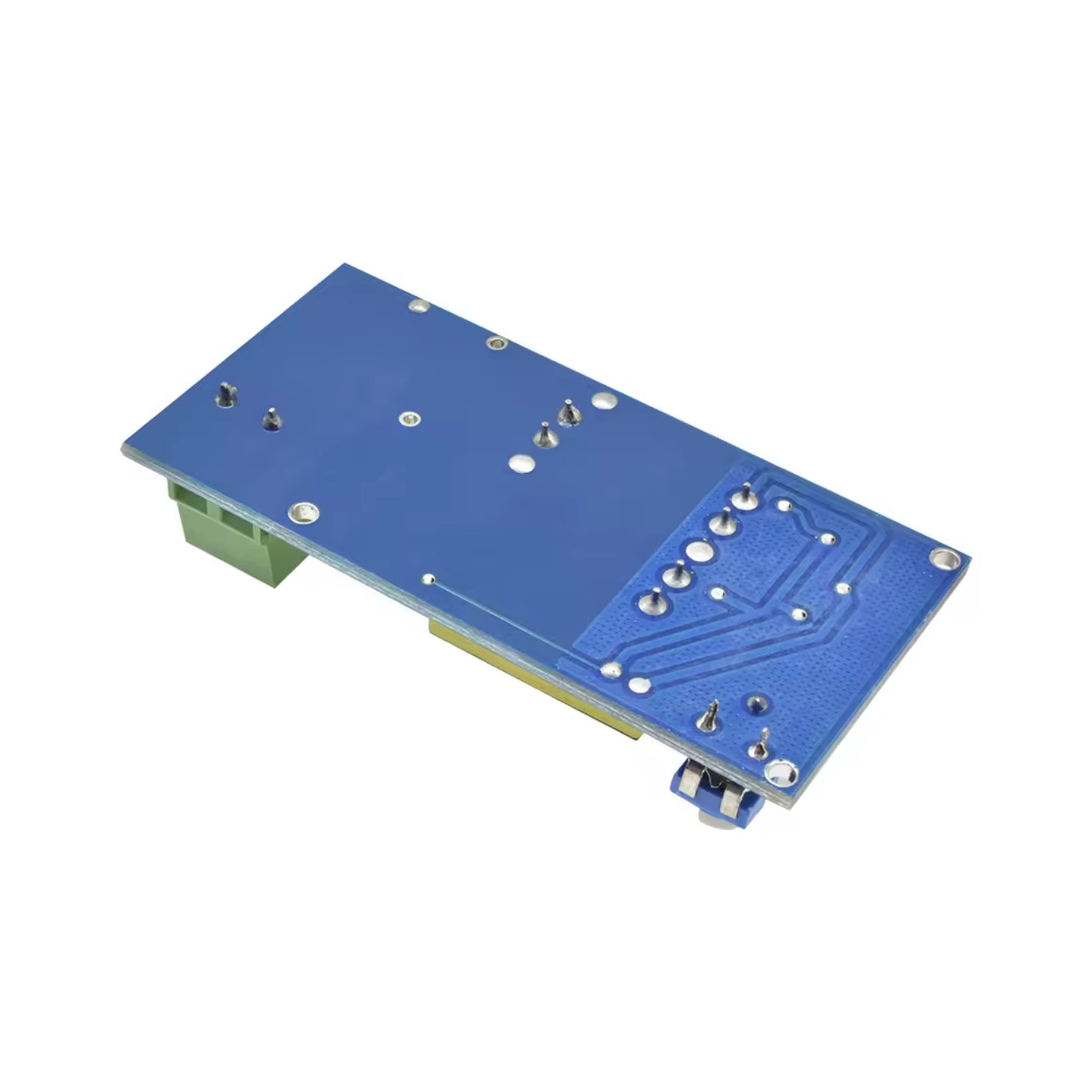

Description:
This DC-DC High Voltage Boost Converter module is used on security products, stability is fairly good This module with AC output, the output about AC 75V, but can't be adjusted. The latest version added features: support multiple voltage DC output when 5V input. The capacitor can be charged, but charging speed is somewhat slow, please note. As the module power output module, it is not possible for the sensor.
Specifications:
- Output Current: 1~20mA( If you want to add current, pls put insurance below the transformer replaced the 0-ohm resistor, maximum 50mA, but does not recommend increased.)
- Output Power: 5 W
- Input Voltage: DC 5V-12V
- Output Voltage: 280V-1200V
- When the input voltage is 5V, the output voltage can be adjusted in 300~1200V
- When the input voltage is 6~12V, the output voltage can be adjusted in 400~1200V
Features:
- The capacitor It can be charged, but the charging speed is somewhat slow, please note.
- Like the power output module, it is not possible for the sensor.
Package Included:
1 x DC-DC High Voltage Boost Converter 3V - 5V To 300V-1200V Boost Converter Module Are Powerful High Voltage Boost Converter With 300V-1200V, 400V, 900V, 1000V Adjustable Output
