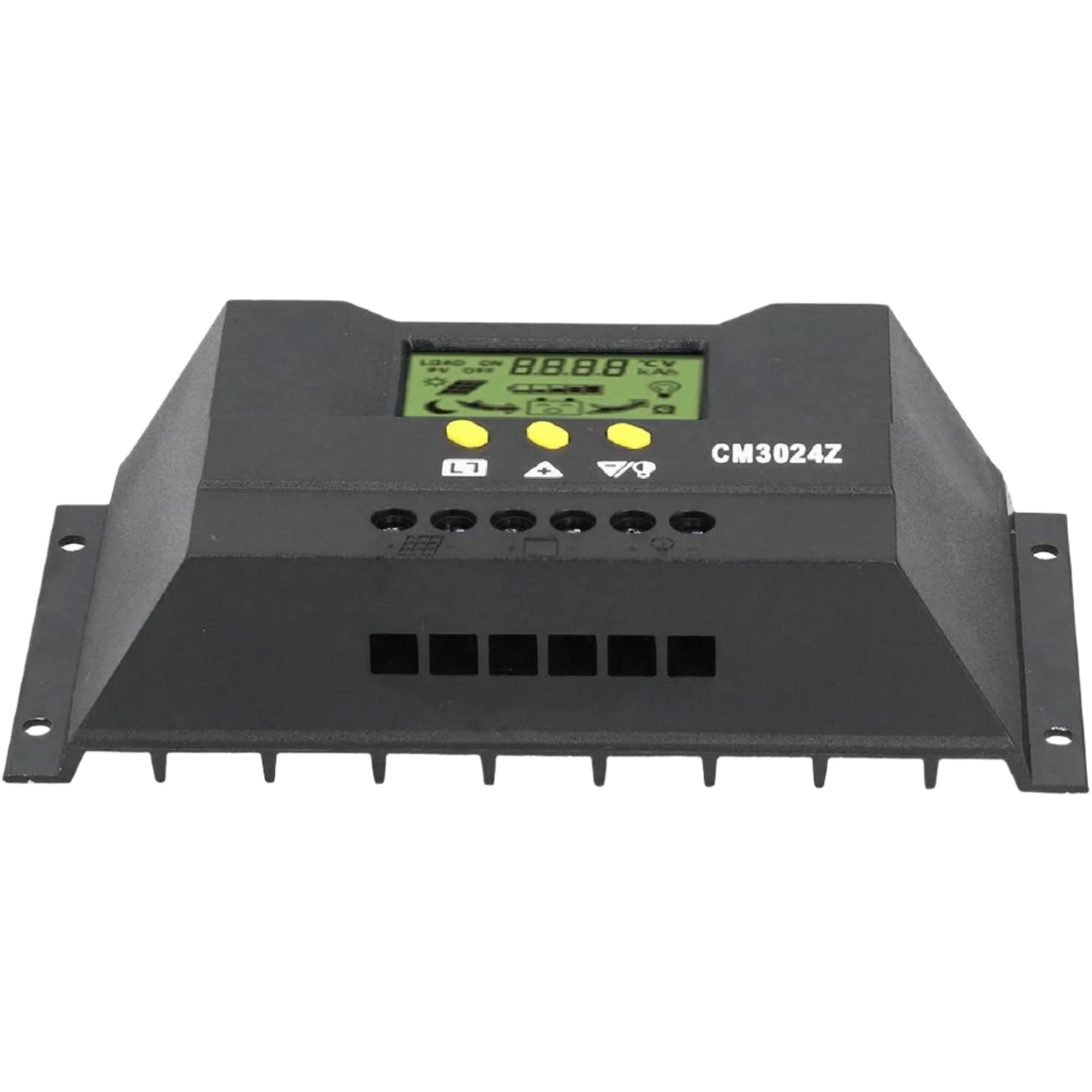

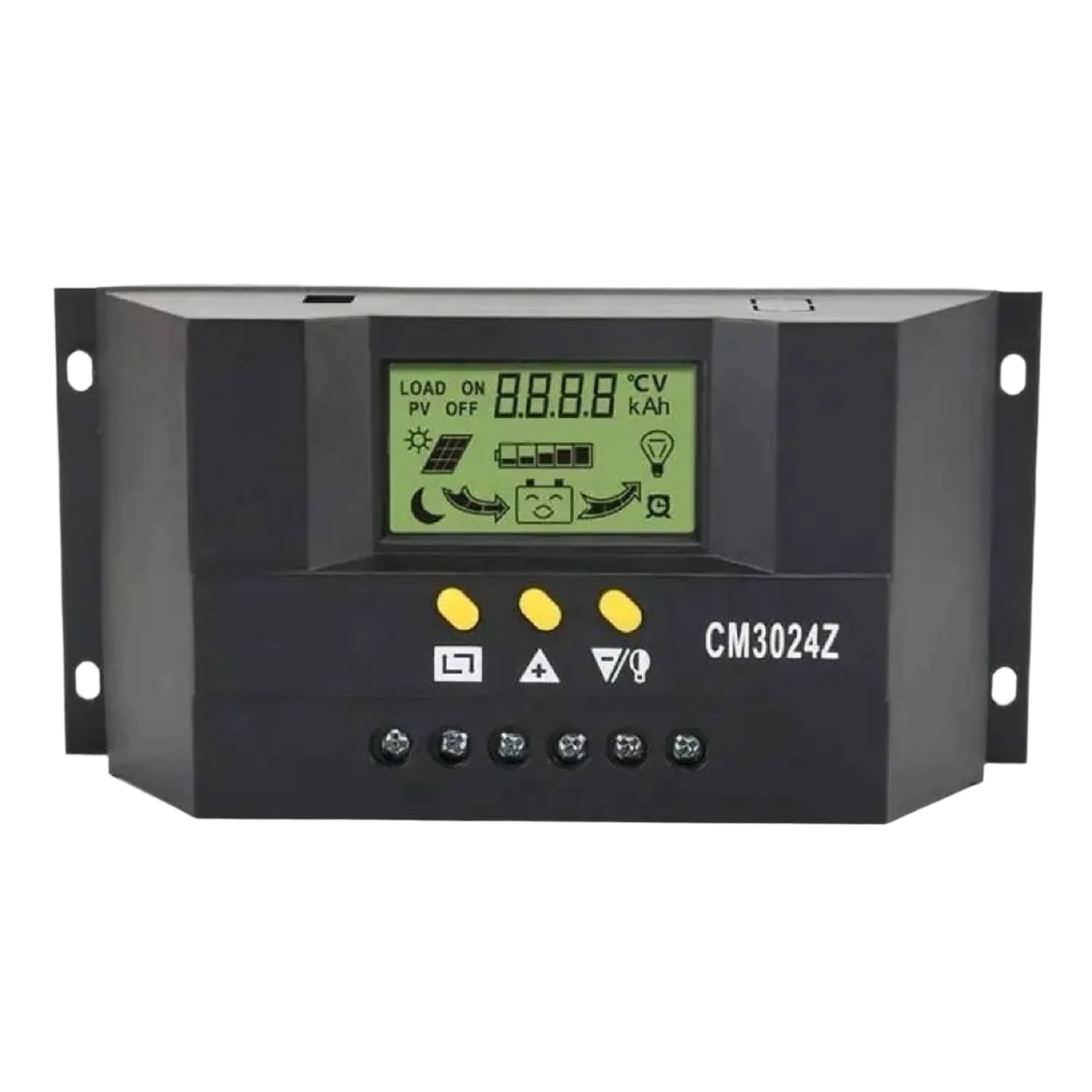

CM3024-30A Smart Solar Charge Controller 12V/24V Auto PV Controller - RS5219
CM3024-30A Smart Solar Charge Controller 12V/24V Auto PV Controller - RS5219
SKU:RS5219
Low stock: 6 left
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:
CM3024 Intelligent Solar Charge Controller: The CM series solar controller is an intelligent, multi-purpose solar charge and discharge controller with a Rated Current of 30A and a Rated Voltage of 12V/24V. This series of products uses a customized LCD with a very friendly and humanized operation interface; each control parameter can be flexibly set to fully meet your different application requirements.
CM series solar controller has characteristics such as Vivid LCD graphic symbols, simple button operation, intelligent PWM charging method, automatic identification of system voltage level, and adjustable charge and discharge control parameters. Automatic temperature compensation; accumulative function of charge and discharge ampere hours.
Specifications:
- Rated Current: 30A
- Rated Voltage: 12V/24V
- Maximum Voltage of solar panel: <48V
- Float Voltage: 13.8V/27.6V
- No load loss: <30mA
- loop voltage drop: <200mV
- Charging Mode: PMW Mode
- Temperature Compensation: -4mV/Cell °C
- Low Voltage Disconnection: 10.7V/21.4V
- Low Voltage Reconnection: 12.5V/25V
Features:
- Visual LCD graphic symbol
- Brief key operation
- Grade auto switch of the system voltage
- Intelligent PWM Charging Mode
- Auto temperature compensation
- Adjustable charging & discharging parameters
- Settable working modes of loads
- Accumulative function of charging & discharging AH
- Overloading & short-circuit protection
- Battery-reversed protection
- Delayed auto-restart after overloading protection
- Protection for low battery voltage
- Protection for battery back discharging
Package Included:
1 x CM3024-30A Solar Controller 12V/24V
