Description:

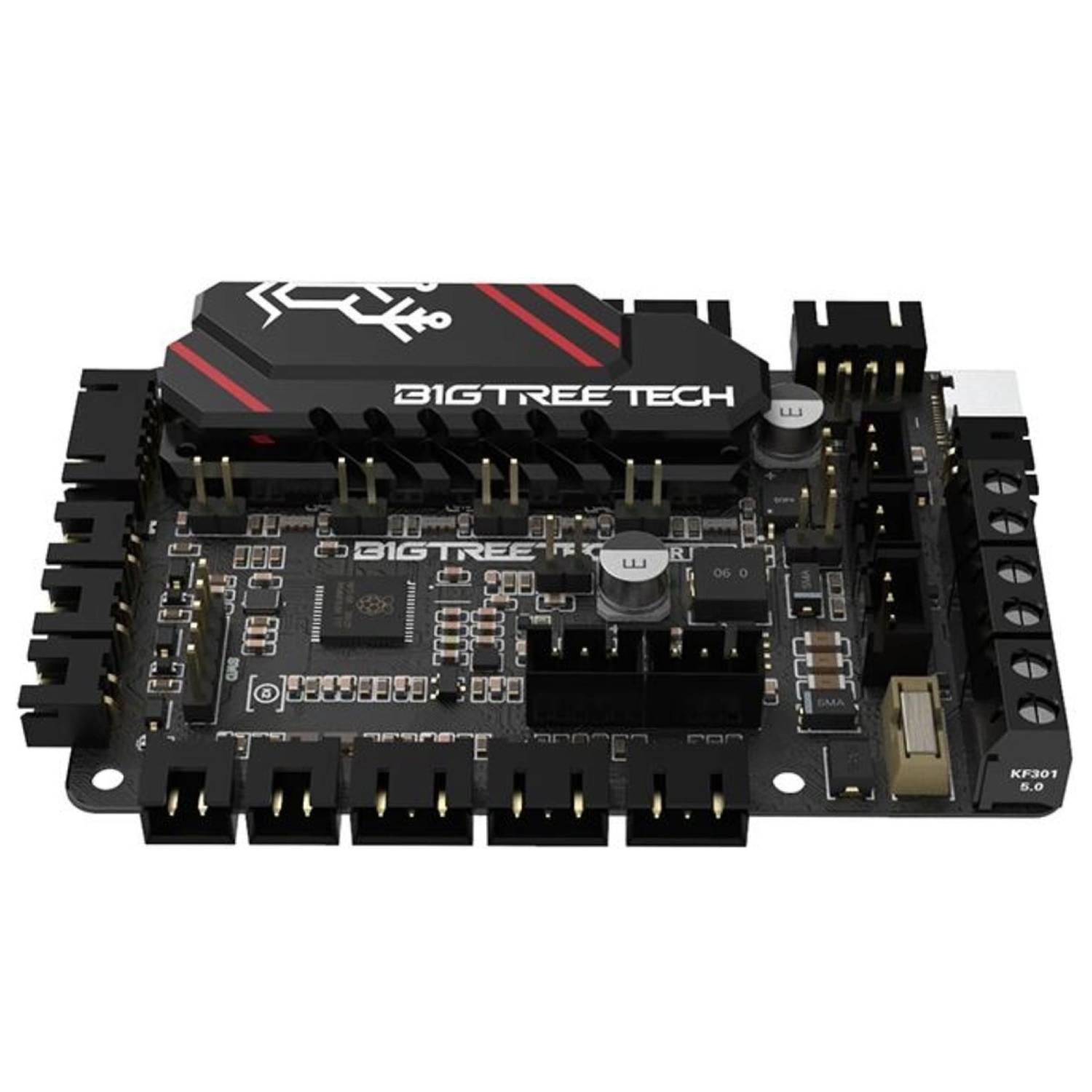

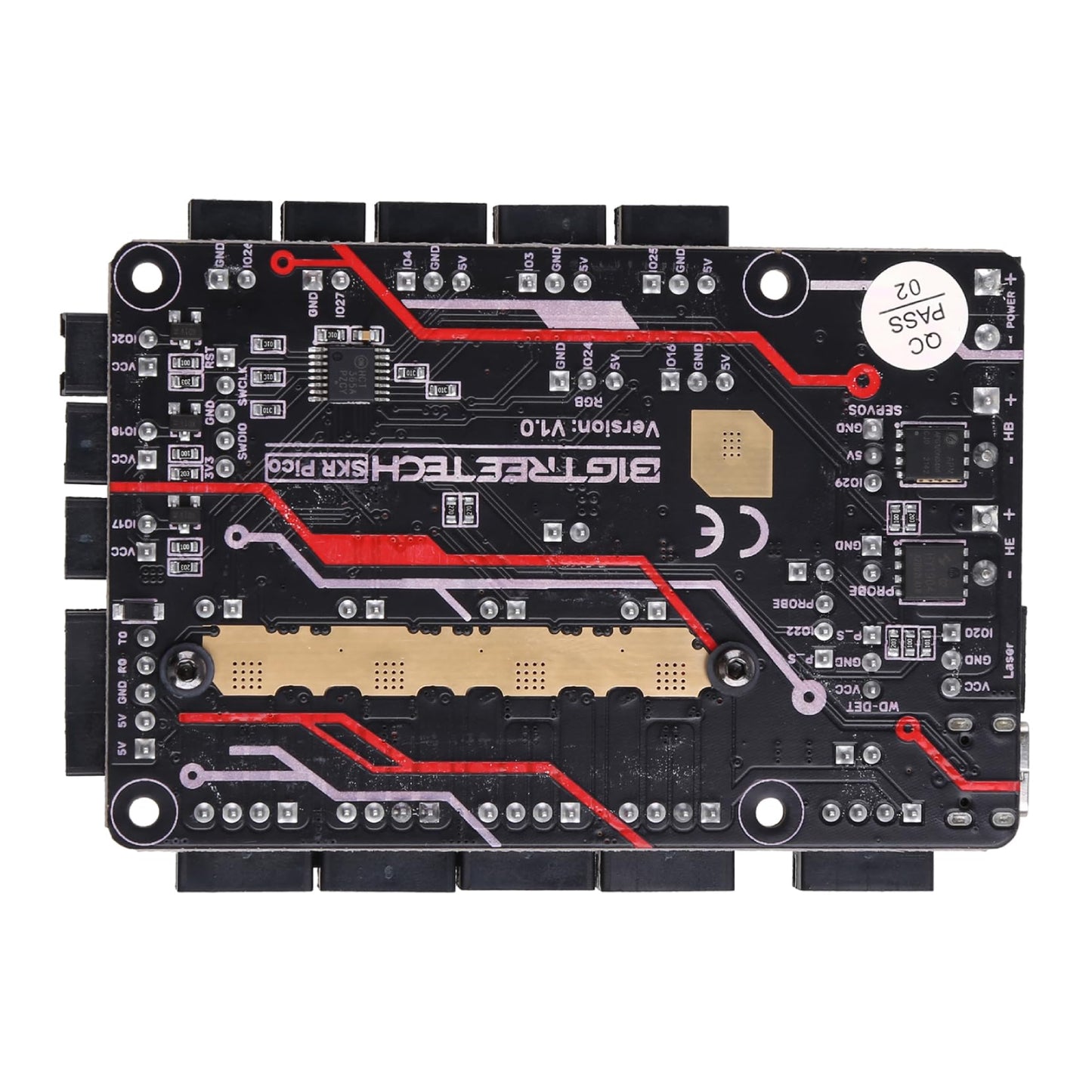

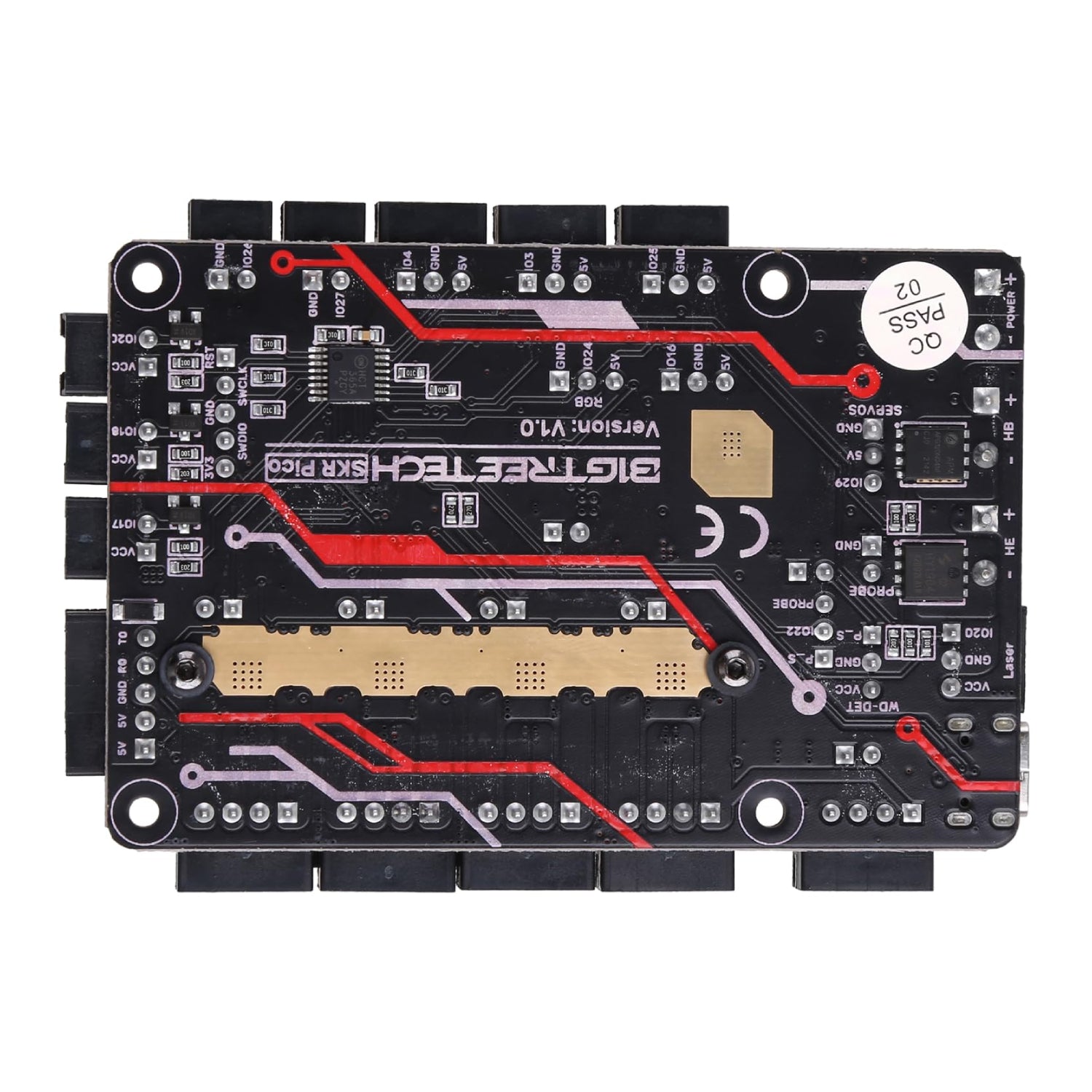

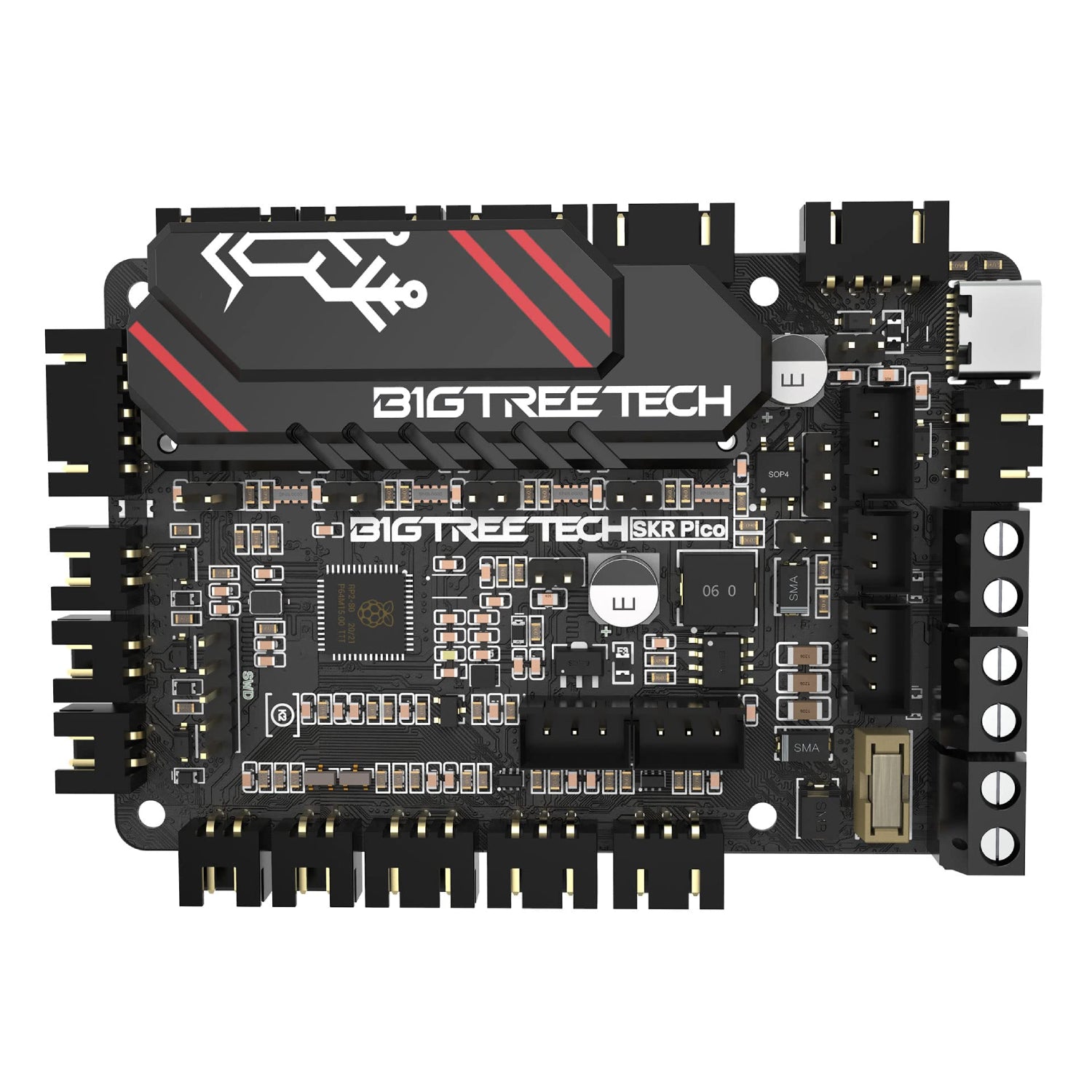

The BIGTREETECH BTT SKR Pico V1.0 is a custom-engineered control board tailored for the popular VORON V0 3D printer. Developed by Shenzhen Big Tree Technology, this motherboard offers direct compatibility with Raspberry Pi, optimizing your Klipper experience. Benefit from a significantly improved cooling system with an enlarged heatsink area, ensuring stable performance, alongside the reliability of premium Murata capacitors. Don't let its small footprint fool you – the SKR Pico V1.0 delivers substantial power and functionality.
Specifications:
- Item Type: Controller Board Only Model Series: BTT SKR Series
- Compatibility: Voron V0
- Model: SKR PICO V1.0
- Board layer: 4 layers
- Microcontroller: ARM Cortex MO + RP2040
- Input Power (W): Dc12/24
- Logic Voltage (V): 33V
- Motor Driver: UART mode of the onboard TMC2209
- Motor driver interface: X Y, Z1Z2.E
- Temperature sensor interface: 2-way 100K NTC (RTD), THB, THO
Features:

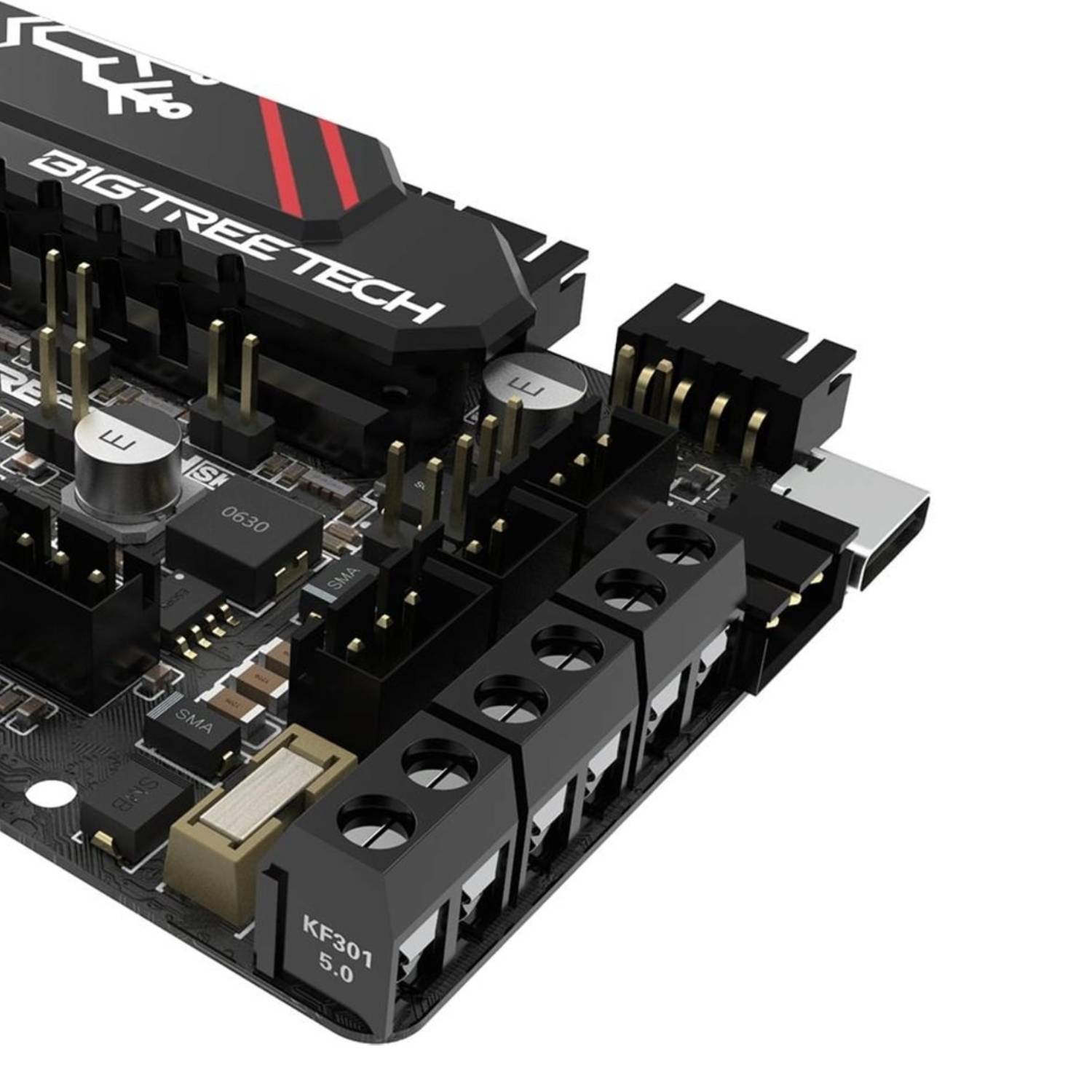

- Upgraded Heat Dissipation. Upgrade the design of the heat sink and increase the heat dissipation area. The increased controllable fan enables the lowering of the temperature of the whole machine when it’s working, effectively solving problems related to heat dissipation and improving the heat dissipation.
- Mute Printing Premium Capacitors FFeaturingwith TMC2209 mute driver UART mode, SKR PICO V1.0 supports mute 3D printing. The main version of the chip capacitor (MLCC) adopts high-quality Murata capacitors to enhance the product’s quality.
- It perfectly matches with Raspberry Pi. With the Raspberry Pi board frame, Raspberry Pi can be perfectly installed on BTT SKR Pico V1.0, saving internal space. The unique lateral design of SKR Pico‘s seat perfectly matches the space characteristics of the Voron V0 and V0.1 machine that needs to be fixed to the motherboard longitudinally.
- Brand-new Version for Voron V0 V0.1 Featuring Raspberry Pi ARM Cortex- Mo+ MCU PR2040, Bigtreetech SKR Pico V1.0 upgraded on ID design, which coexists of stylish appearance and excellent performances, ideal choice for Voron players. The fuse kit consists of a fuse and holder, which enables easy disassembling and installation. The type-C interface allows for main control communication.
Package Included:
1 x BIGTREETECH Pico V1.0 Control Board
