Description:

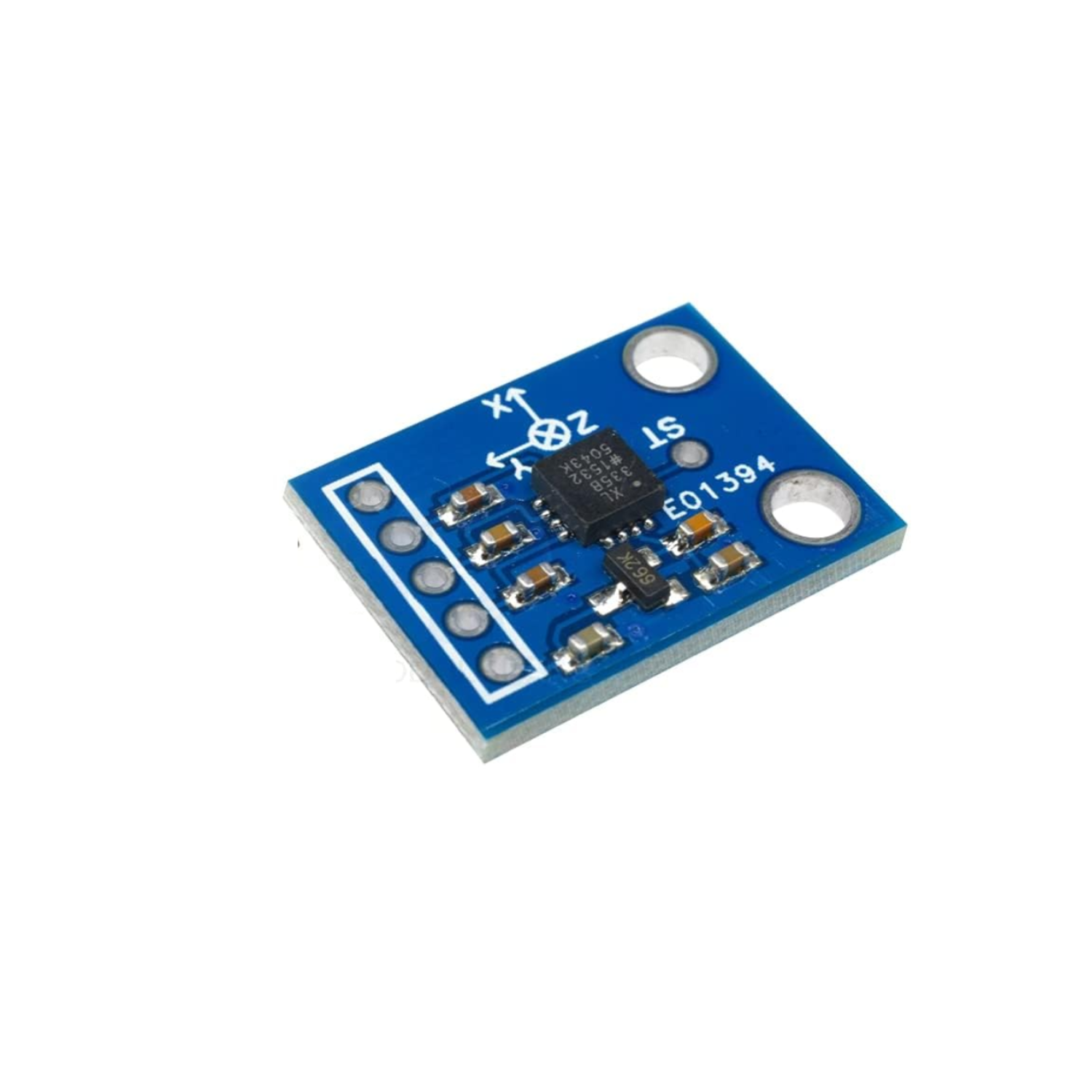

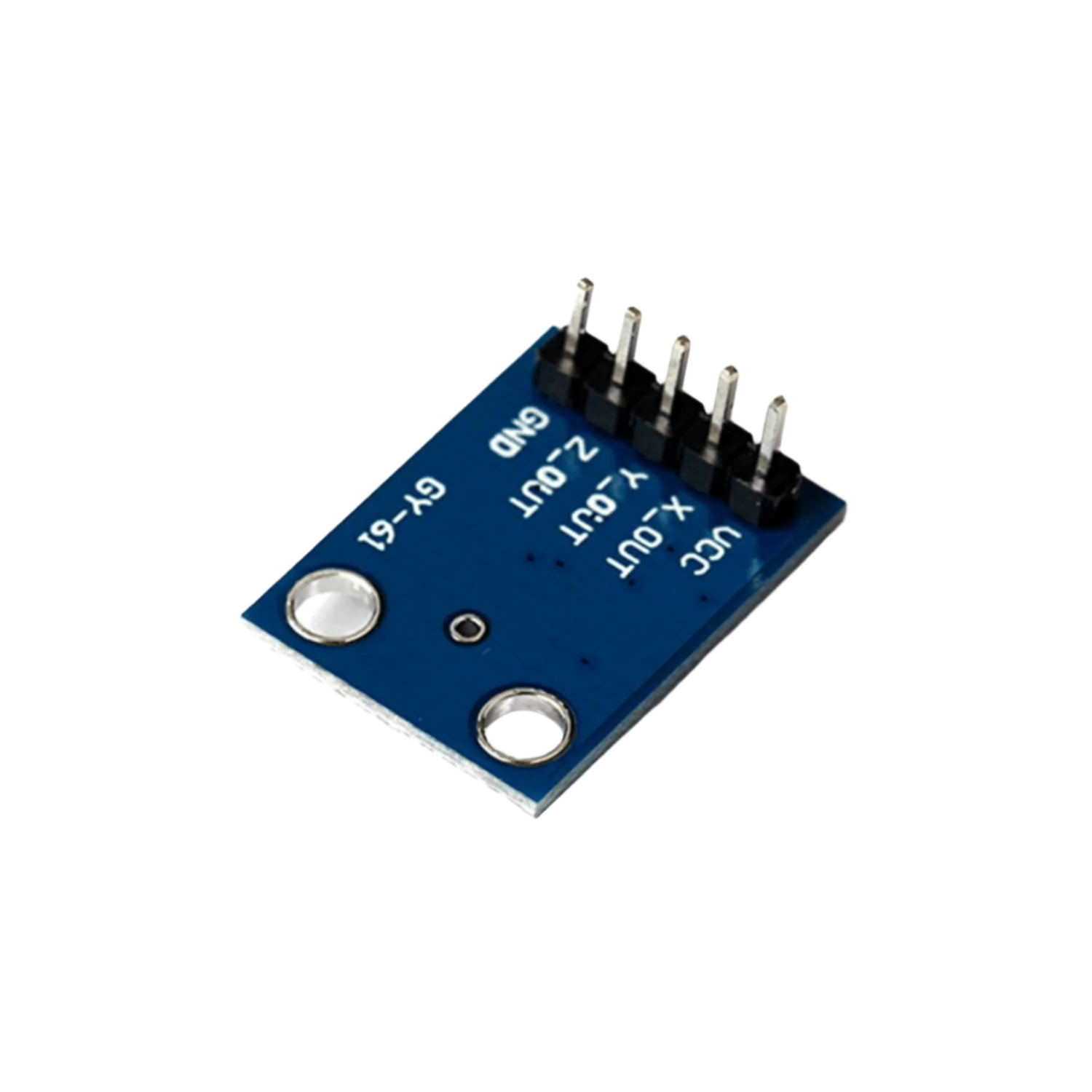

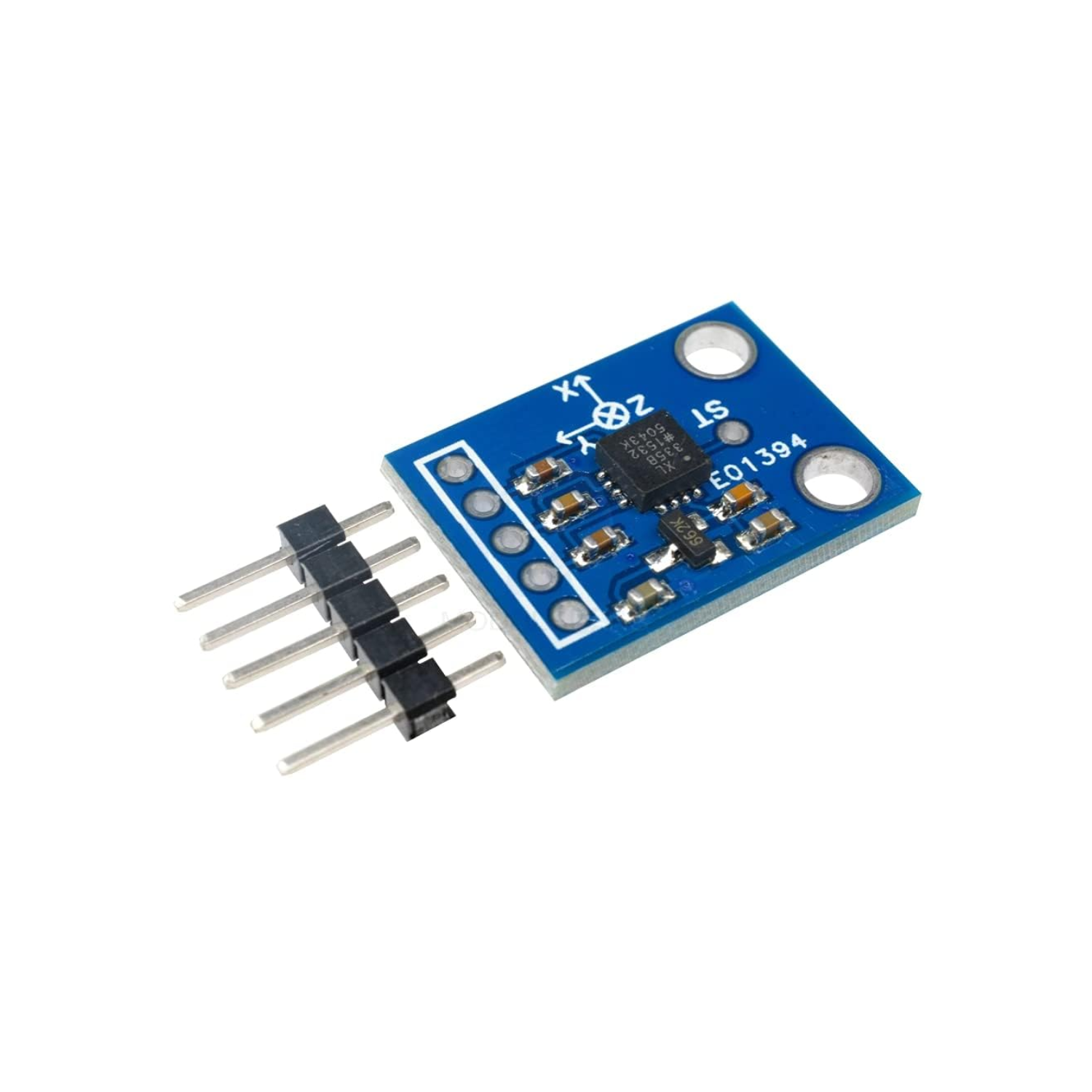

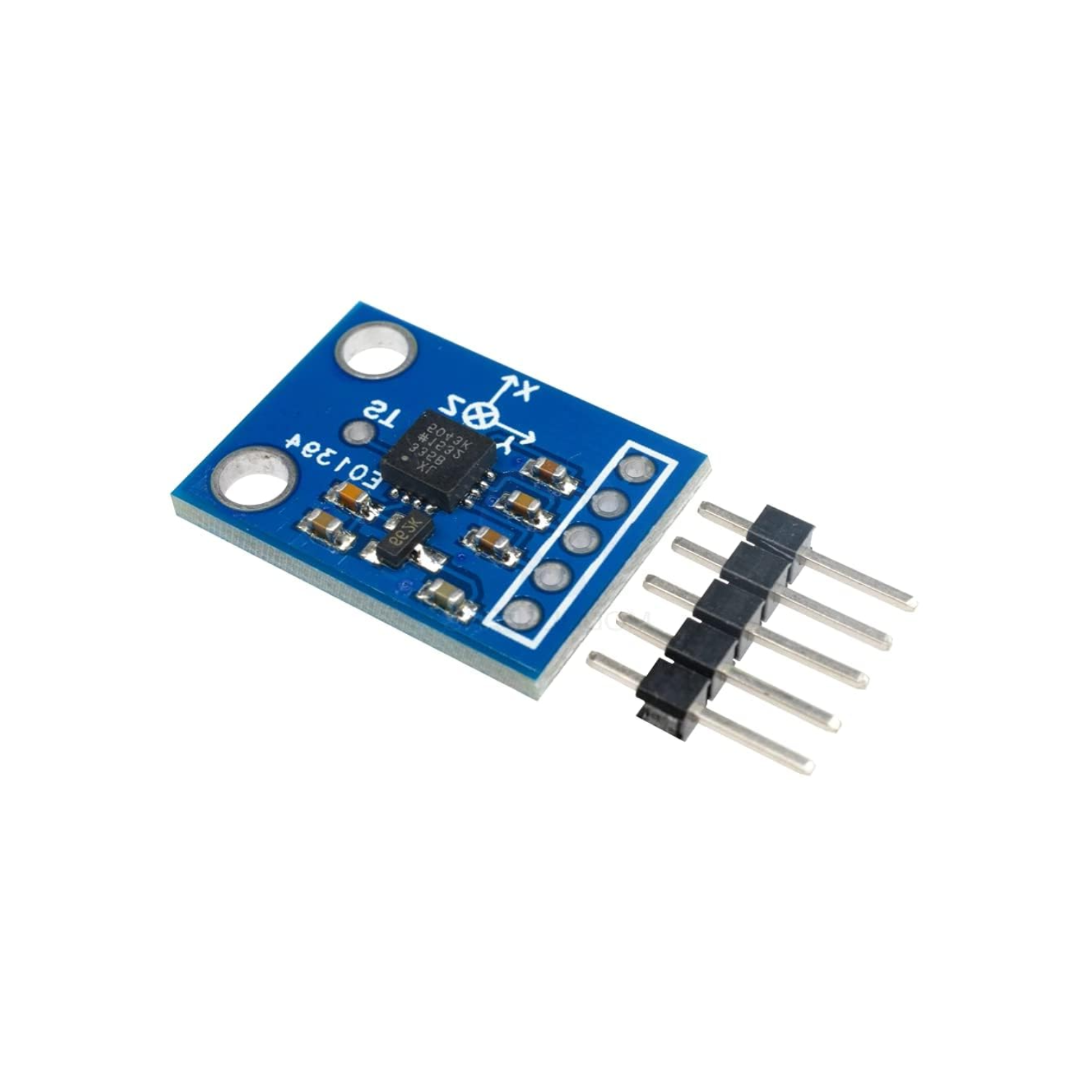

The ADXL335 Module 3-axis Accelerometer, a marvel of miniaturization, is a remarkably compact and exceptionally thin complete 3-axis accelerometer engineered for space-constrained applications. This sophisticated sensor boasts integrated signal-conditioned analog voltage outputs, ensuring ease of interface and accurate data acquisition. The ADXL335 Module 3-axis Analog Output Accelerometer provides precise acceleration measurements across a versatile minimum full-scale range of ±3 g, making it suitable for a wide array of sensing tasks.
Its capabilities extend beyond simple motion detection; it can accurately discern the static acceleration of gravity, enabling its use in high-precision tilt-sensing applications for tasks like leveling and orientation detection. Furthermore, it excels at capturing dynamic acceleration arising from motion, sudden impacts (shock), or oscillatory movements (vibration), making it ideal for activity monitoring, impact detection, and vibration analysis.
Specifications:
- Use the chip: ADXL335
- Power Supply: 3-5v
- Supply Range: 3V - 5V DC
- Full-scale range: +/- 3g
- Current: 400uA
- Sensitivity: 300mV/g (Typ)
- Operating Temperature: -40C ~ 85C
Features:
- Onboard LDO Voltage regulator
- Can be interfaced with a 3V3 or 5V Microcontroller.
- All necessary components are populated.
- Build-in ultra-low noise linear LDO voltage regulator
- Built-in onboard filters, which reduce noise from the motor and other high-current electronics
- Power LED
Package Included:
1 x ADXL335 Module 3-axis Accelerometer
