AD8232 ECG Heart Rate Monitor Sensor Module For Arduino, ESP32 & Raspberry Pi - RC005
AD8232 ECG Heart Rate Monitor Sensor Module For Arduino, ESP32 & Raspberry Pi - RC005
SKU:RC005
Low stock: 6 left
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.
If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.
For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:
The AD8232 ECG Sensor Complete Module is a compact and high-performance biomedical sensor designed to measure and monitor the electrical activity of the human heart. Built around the advanced AD8232 integrated circuit, this module amplifies and filters weak ECG signals, making it ideal for heart rate monitoring, fitness tracking, wearable devices, medical research, and educational projects.
The module provides a clean analog output that can be easily interfaced with popular development boards such as Arduino, ESP32, STM32, and Raspberry Pi. It includes lead-off detection functionality to ensure proper electrode connection and reliable signal acquisition. With its low power consumption and compact design, the AD8232 ECG module is perfect for portable and battery-powered health monitoring applications.
Whether you're building a heartbeat monitor, a biomedical data logger, IoT healthcare device, or a real-time ECG visualization system, the AD8232 ECG Sensor Module offers an accurate and cost-effective solution for capturing cardiac signals.
Specifications:
- Operating Voltage: 3.3V DC
- Operating Temperature: -40 to +90°C
- Output Signal: Analog ECG Signal
Features:
- Based on the high-performance AD8232 ECG front-end IC
- Captures and amplifies real-time heart electrical signals
- Single-lead ECG monitoring for biomedical applications
- Built-in signal filtering for cleaner ECG waveforms
- Lead-off detection for reliable electrode connection monitoring
- Low power consumption, ideal for portable devices
- Analog output for easy interfacing with microcontrollers
- Compatible with Arduino, ESP32, STM32 Raspberry Pi
- Compact and lightweight design for wearable projects
- Perfect for health monitoring, fitness tracking, and medical research applications
Applications:
- Fitness and Sports Heart Rate Monitoring
- Portable ECG
- Remote Health Monitor
- Game Peripheral Equipment
- Bioelectricity Signal Collection

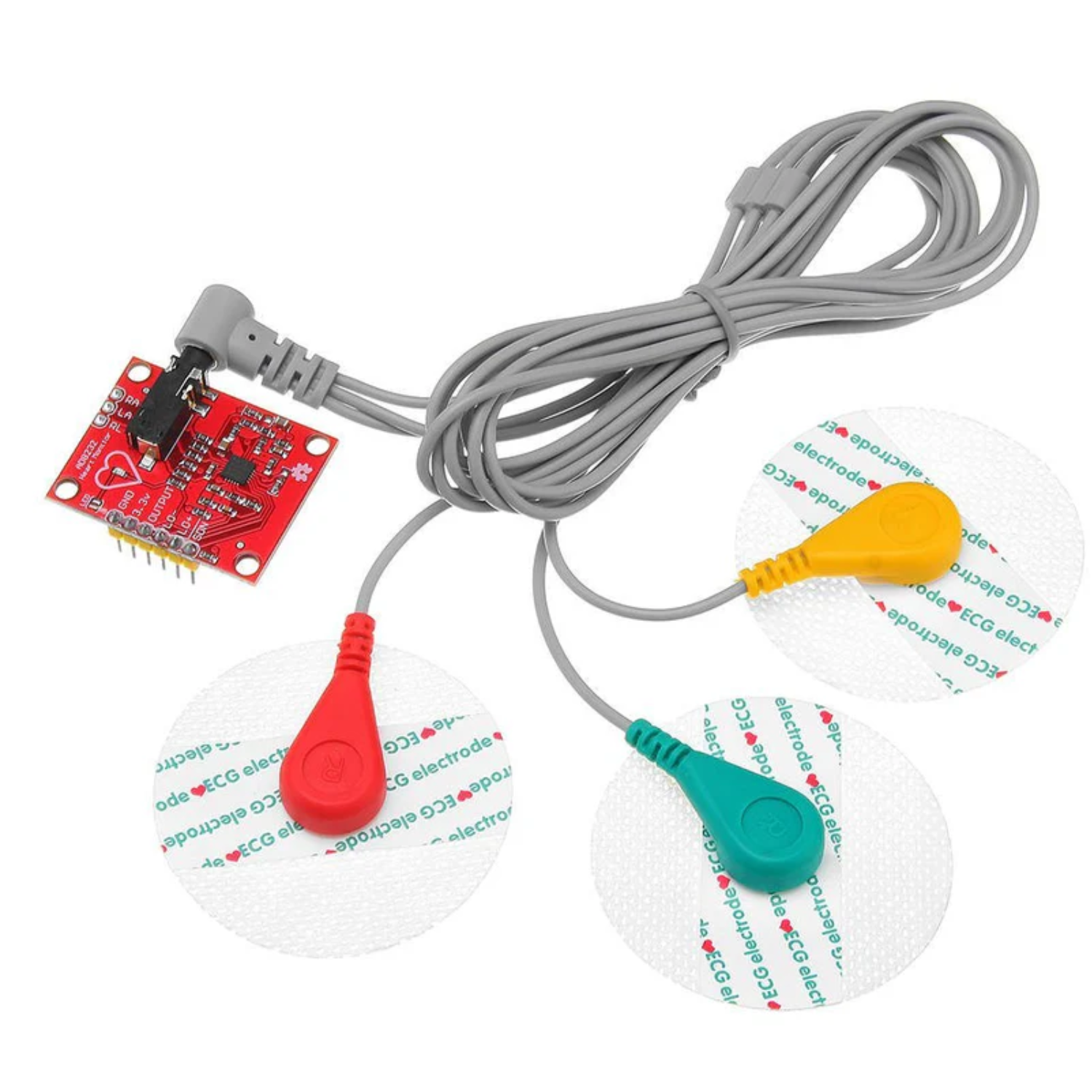

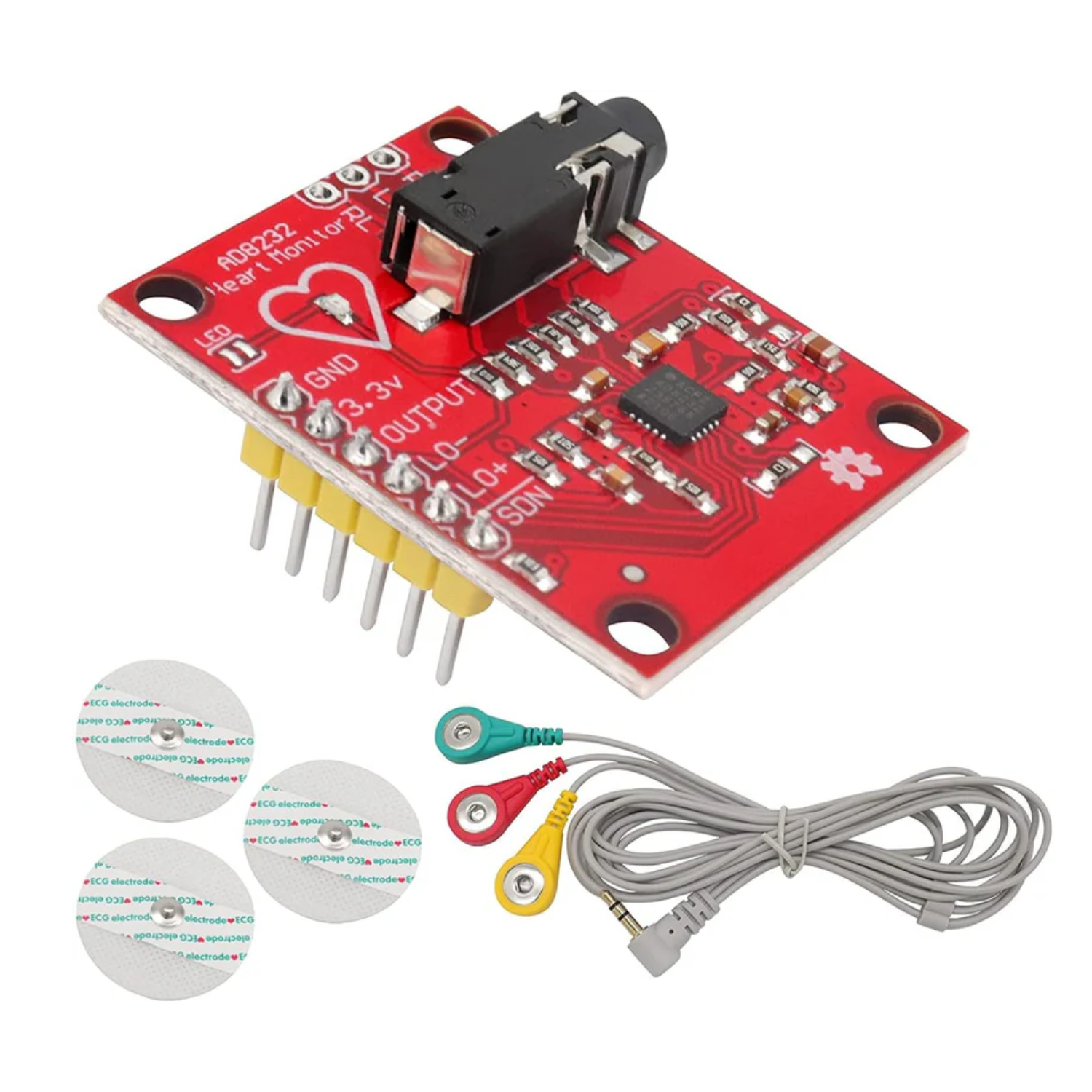

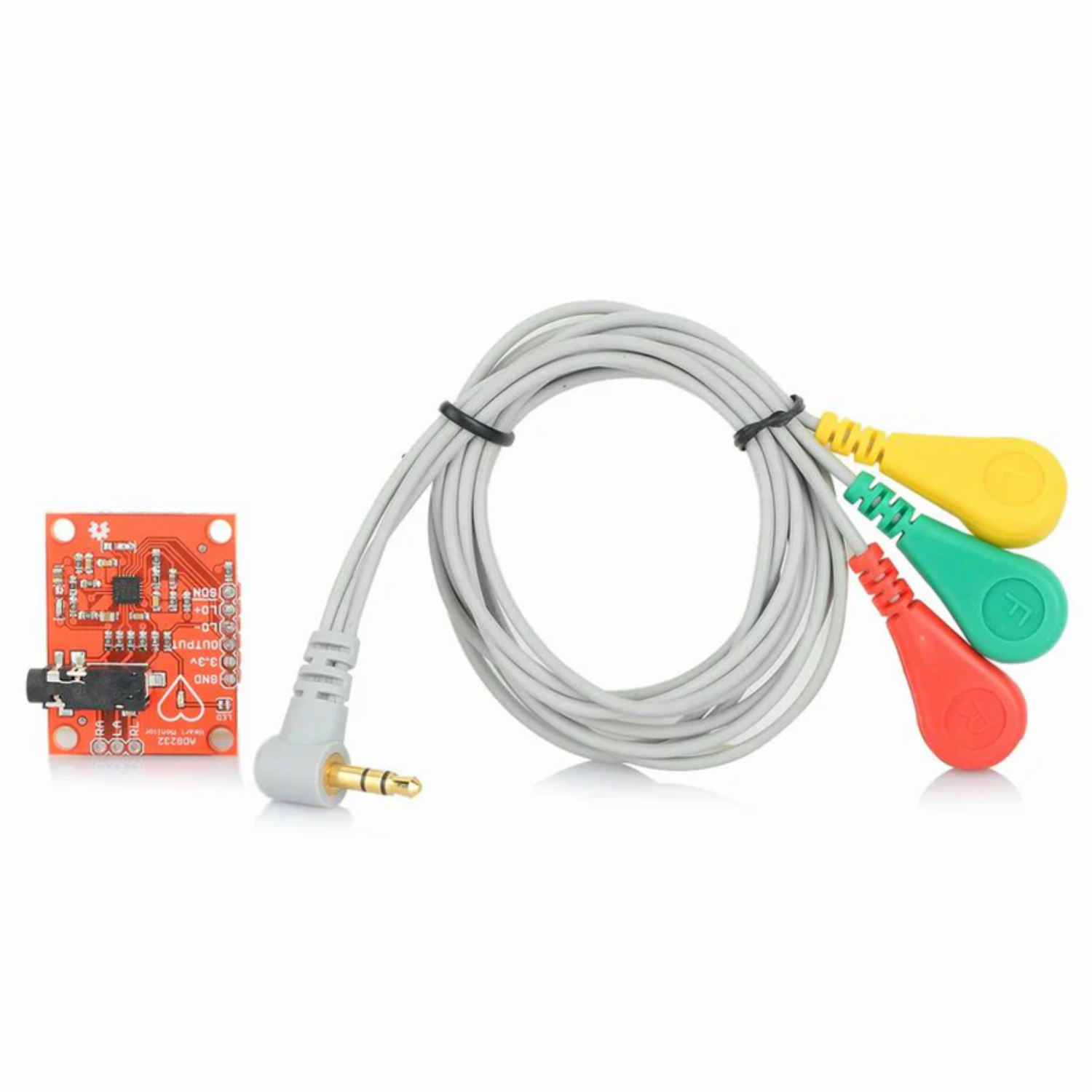

Package Included:
- 1 x ECG module AD8232 heart ECG monitoring sensor module
- 1 x Sensor cable

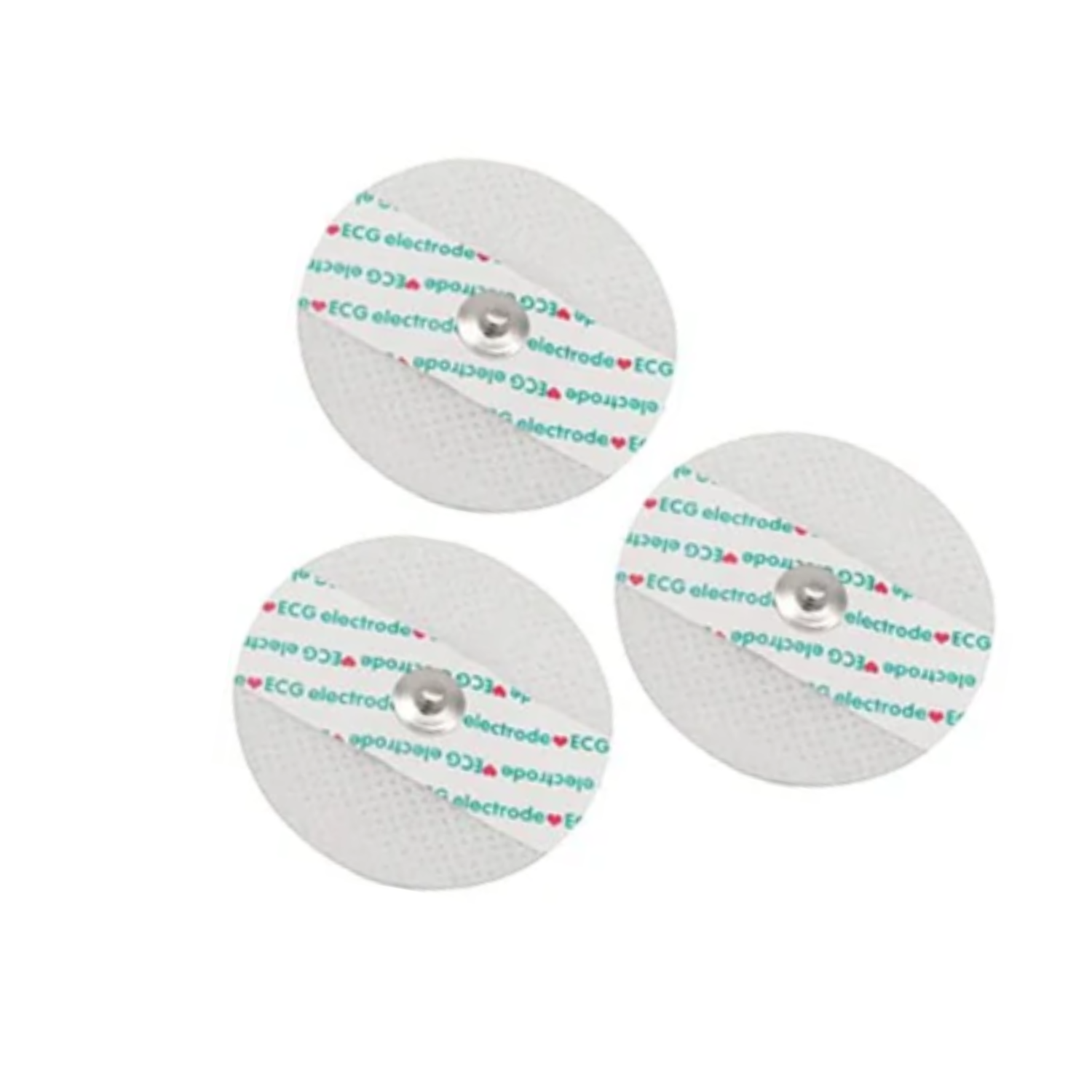

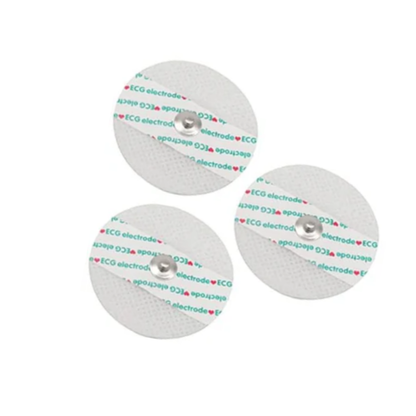

- 3 x Electrode Pads
