Description:

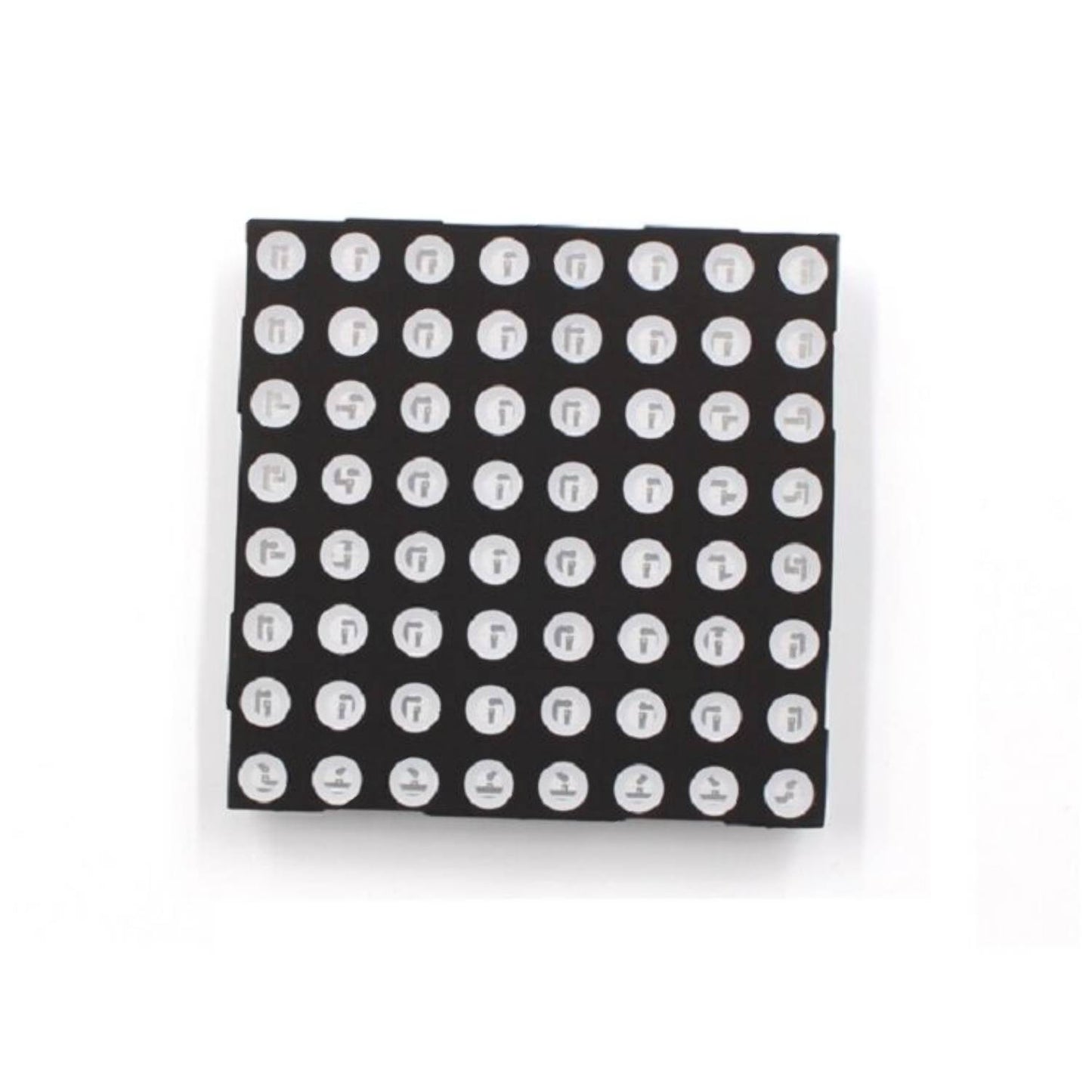

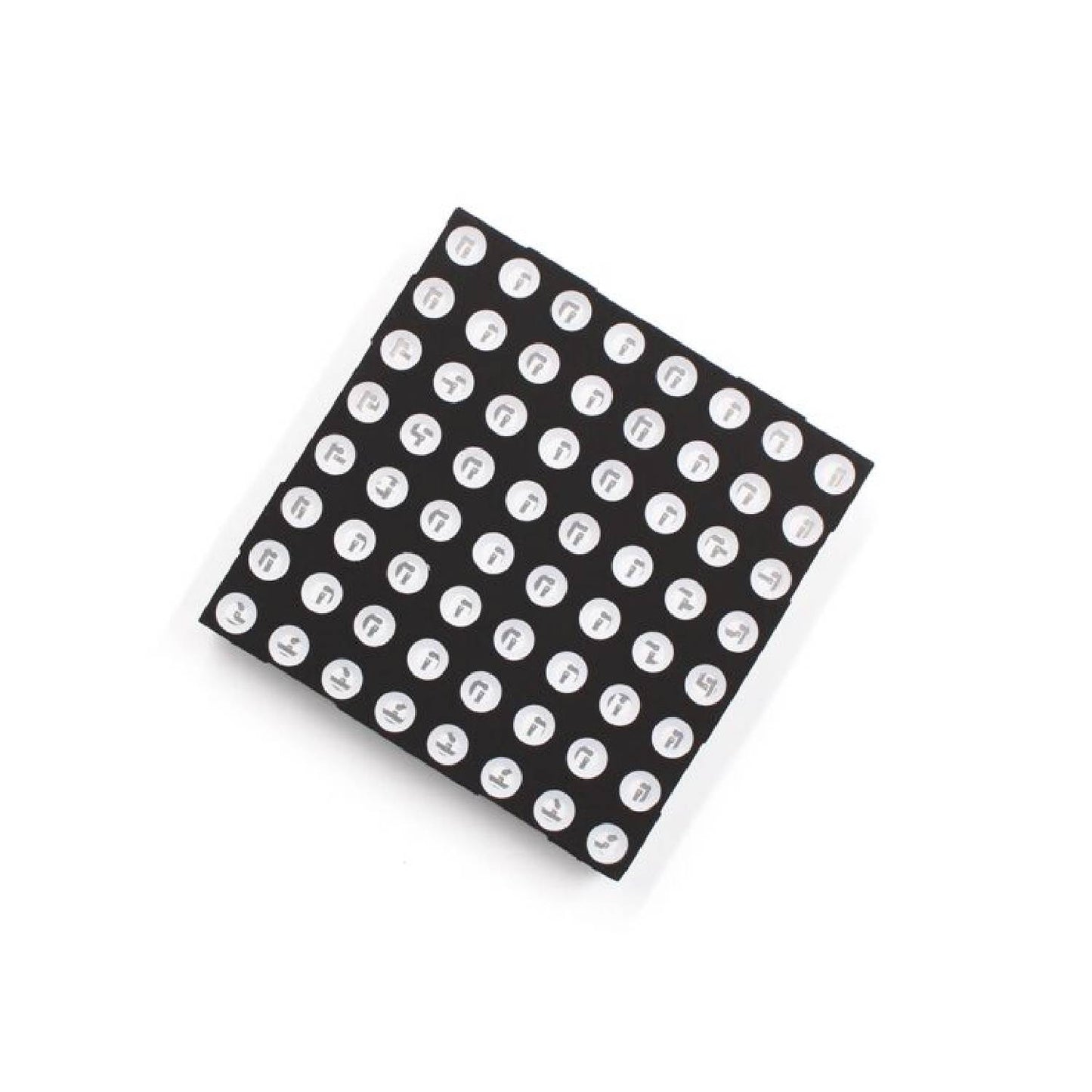

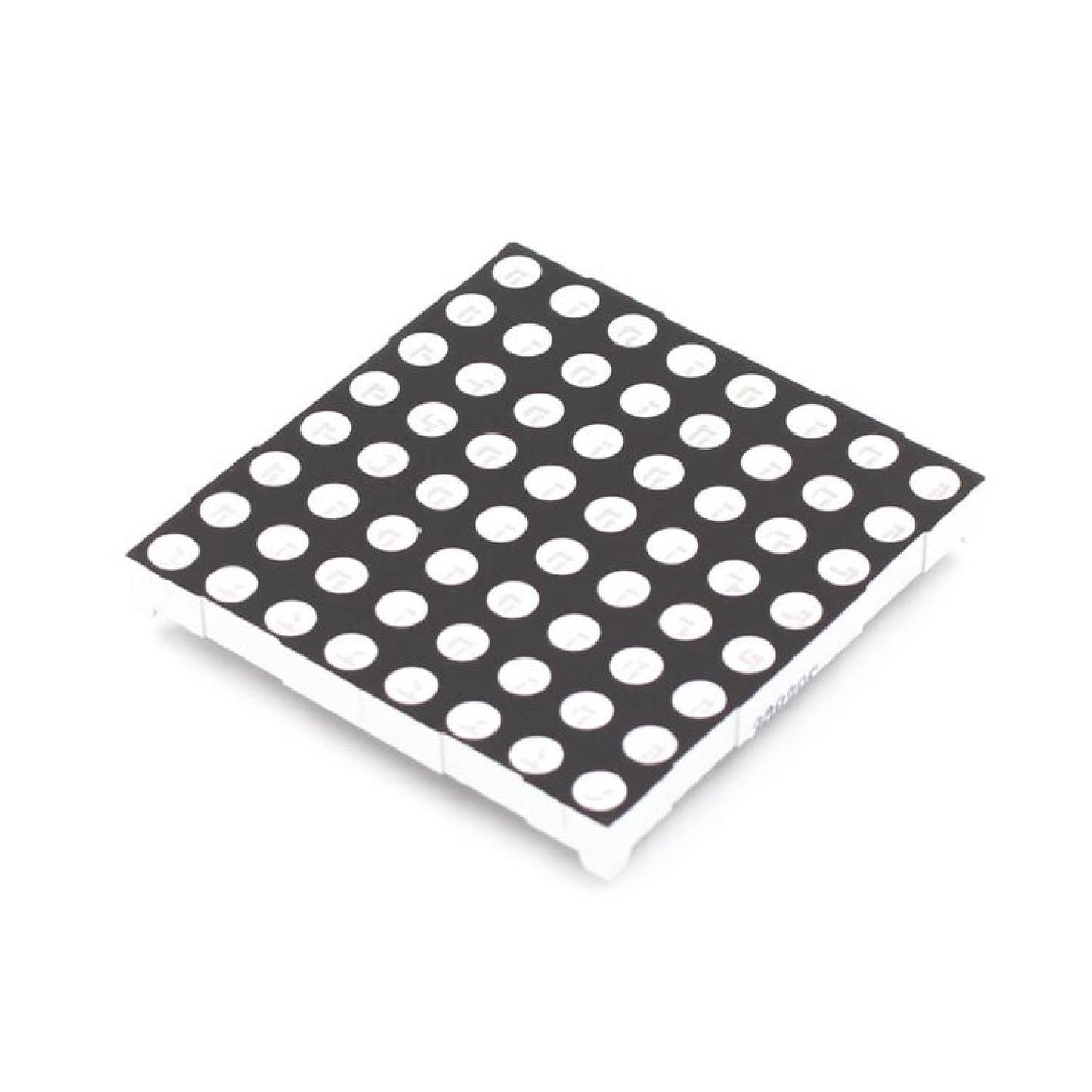

This larger 60 x 60mm Red LED Matrix is an excellent way to display data or create cool light patterns. Matrices like these are ‘multiplexed’ – so to control 64 LEDs you typically would only need 16 pins on your microcontroller or a driver chip, which would require even less.

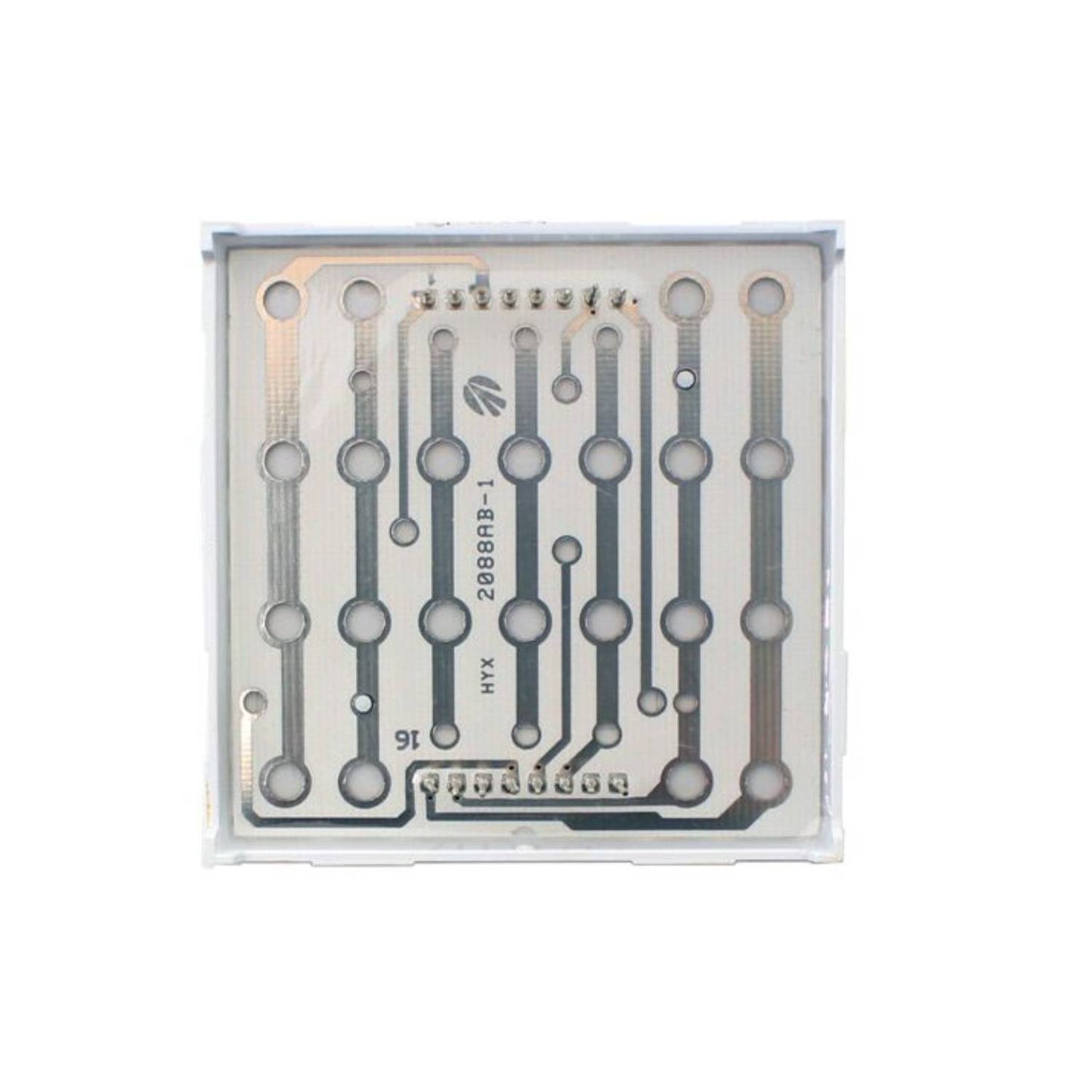

The pins are 2.54mm / 0.100” breadboard pitch and can be connected as shown in the attached diagram. Each matrix has small notches to aid in aligning multiple matrices to create larger displays.
Specifications:
- Emitted Colour: Red
- LED Colour: Red
- Matrix Type: Common Anode
- Dot Size: 5.0mm
- Pixel Array: 8×8
- Luminous Intensity: 40mcd
- Reverse Voltage(Max): 5V
- Forward Current(Max): 20mA
- Peak Forward Current(Max): 80mA
- Power Dissipation(Max): 120mW
- Operating Temperature(Max): -40~+80℃
- Storage Temperature(Max): -40~+80℃
- Lead Solder Temperature(Max): 260℃ for 5 seconds
Features:
- Footprint: 60 x 60mm
- Breadboard compatible pins
- 64 Red LEDs
Package Included:
1 x 8x8 LED Matrix Display 64 Bits LED Matrix Panel Module Create Stunning Displays with 8x8 LED Matrix For Electronic Signs and Displays - RED
