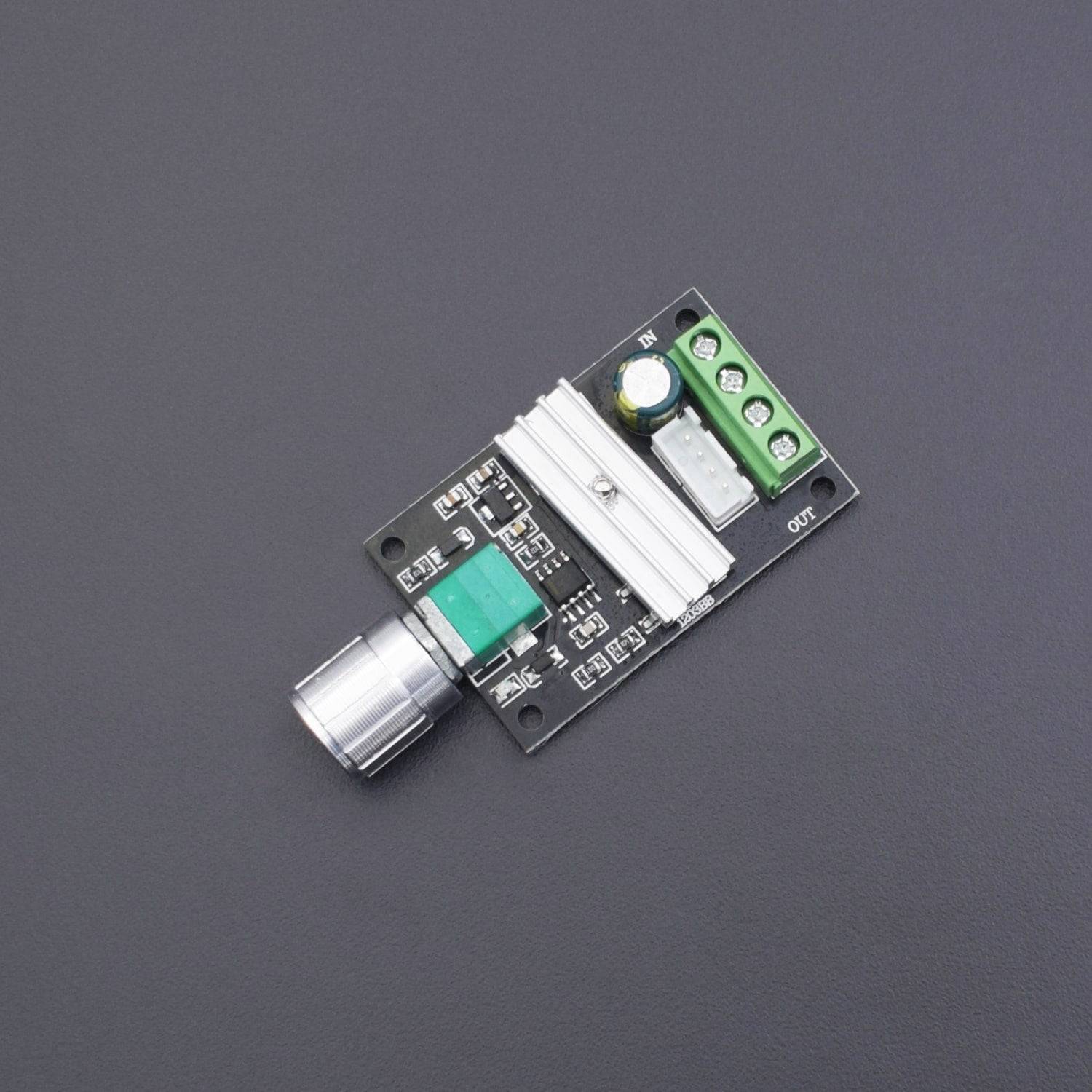

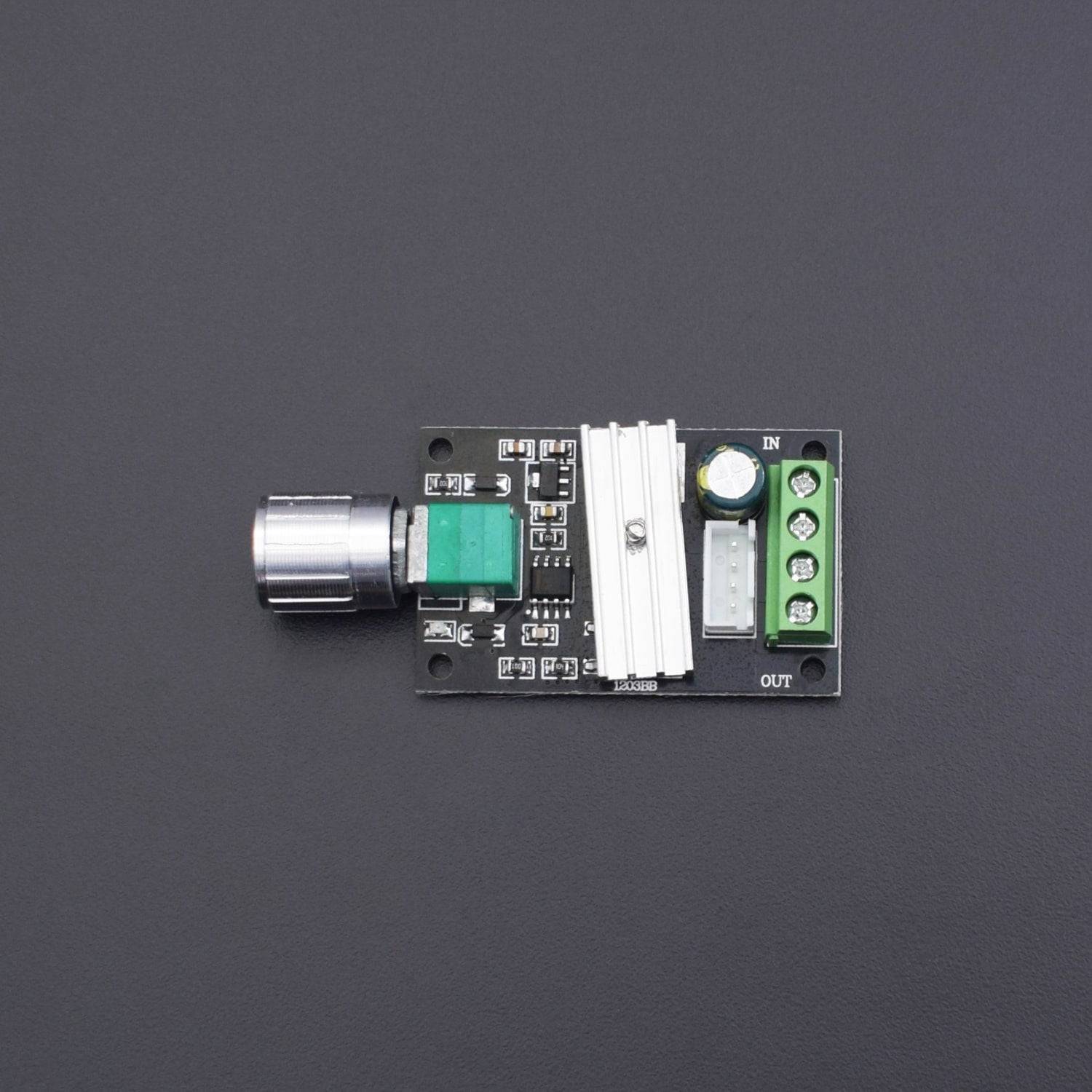

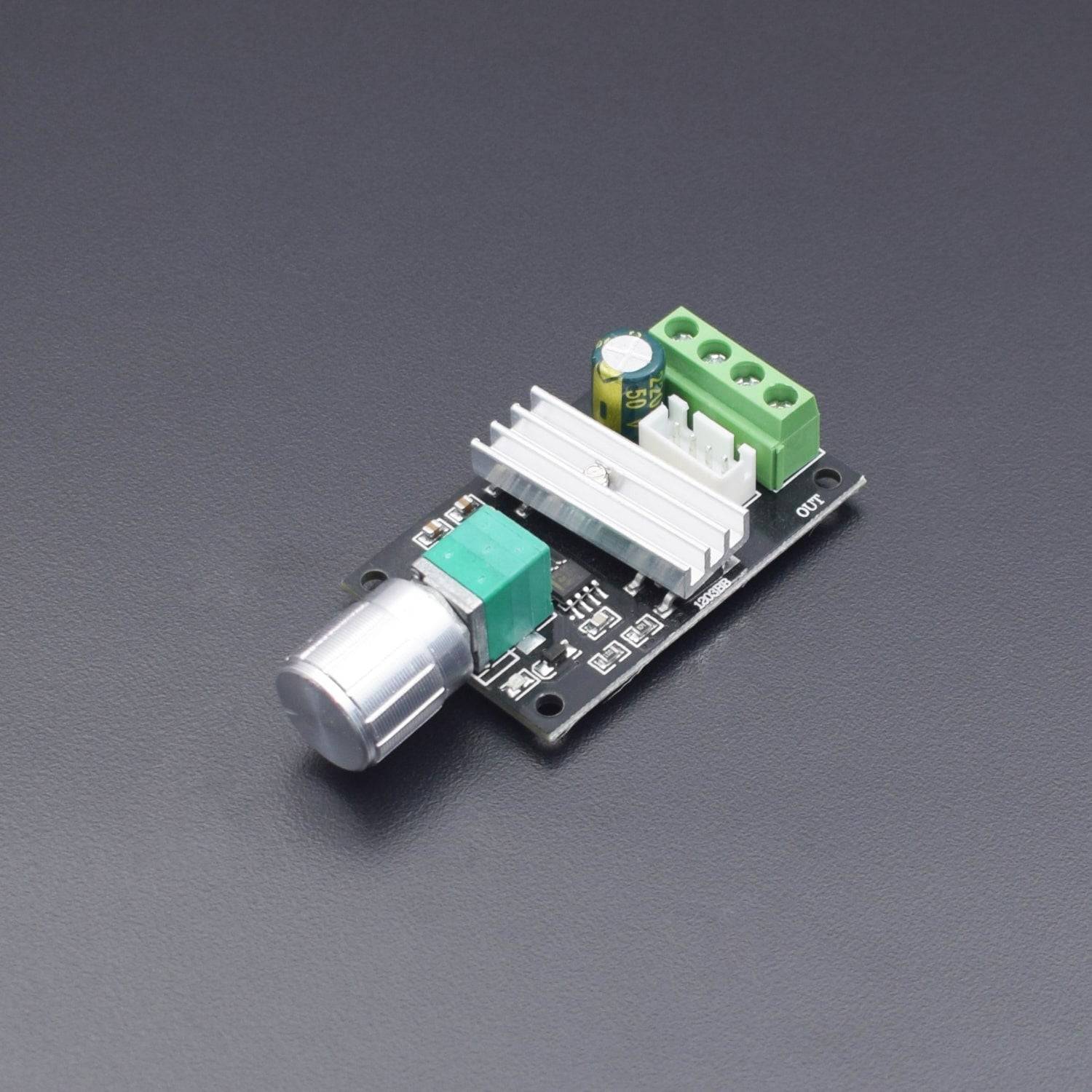

6V 12V 24V 28V 3A 80W DC Motor Speed Controller (PWM) Speed Adjustable Reversible Switch 1203B DC Motor Driver Reversing- RS697

6V 12V 24V 28V 3A 80W DC Motor Speed Controller (PWM) Speed Adjustable Reversible Switch 1203B DC Motor Driver Reversing- RS697

RS697

138 in stock

Rs. 234.00
Rs. 234.00
Sale Sold out
Shipping calculated at checkout.

Pickup available at REES52 OFFICE

Usually ready in 24 hours

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.
  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details
  • Input Power Range: DC6V-28V
  • Maximum Continuous Output Current: 3A
  • Maximum Output Power: 80W
  • Duty Cycle Adjustable: 5%-100%

Description:

The 1203BB DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM). It provides a continuous current of 3A to your DC motor or other DC load. Besides, the circuit also includes a 3A fuse, with reverse connection of power supply and control the forward or reverse direction and the stop of DC motor by switch. It controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM).It provides a continuous current of 3A to your DC motor or other DC load.

Specification:

  • Input Power Range: DC6V-28V
  • Maximum Continuous Output Current: 3A
  • Maximum Output Power: 80W
  • Duty Cycle Adjustable: 5%-100%

Features:

  • Control the forward or reverse direction and the stop of DC motor by switch.
  • Potentiometer with switch function.

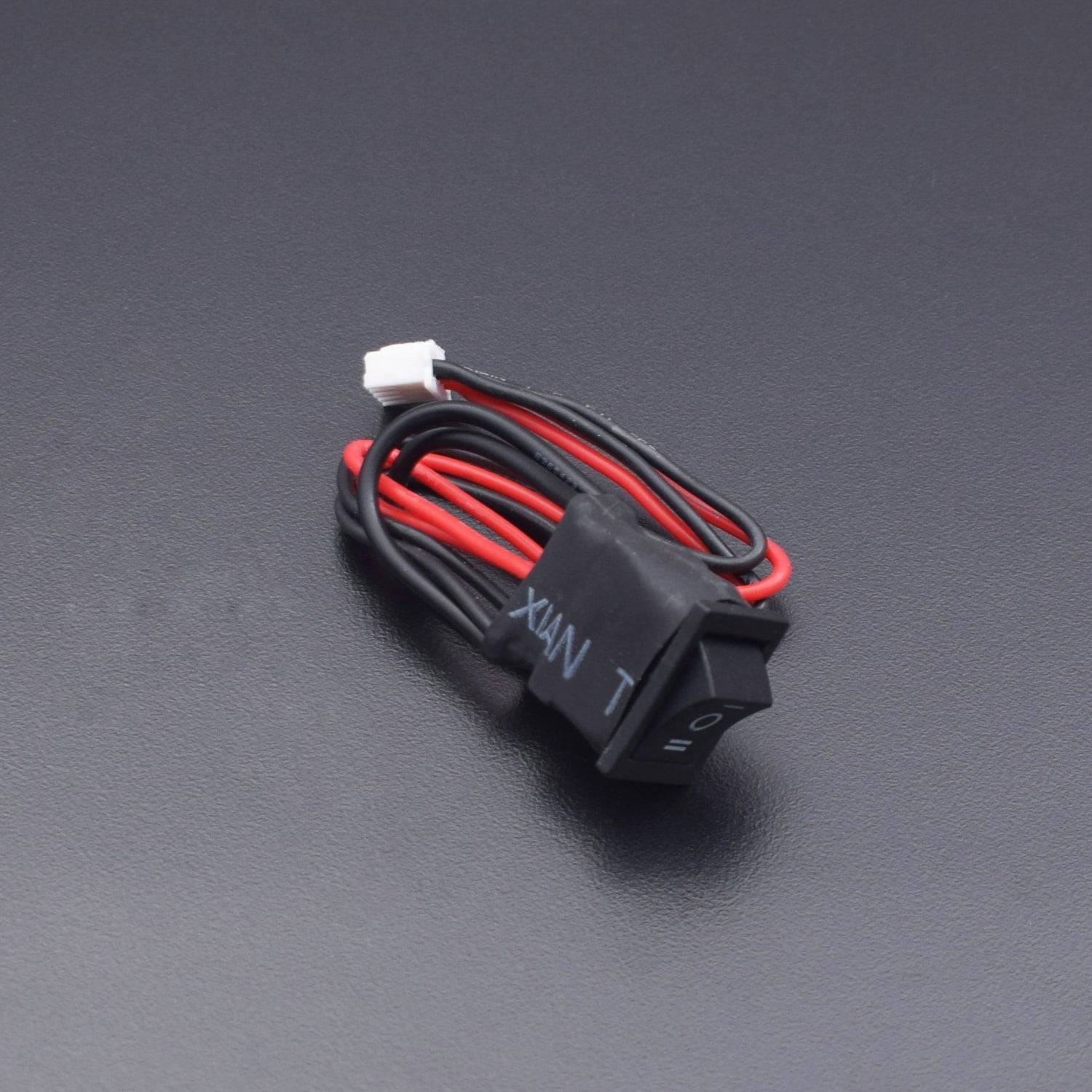

  • The switch cable length 15cm.

Operating Instruction:

  • Before you attempt to wire the controller, make sure that the power is off.
    1. Connect wires refer to the wiring diagram.
    2. Turn on the power, and adjust the potentiometer.
    3. The LED indicates the power up and the speed of the motor.

Warning: Do not reverse positive and negative power loads. This will damage the controller!

Package Included:

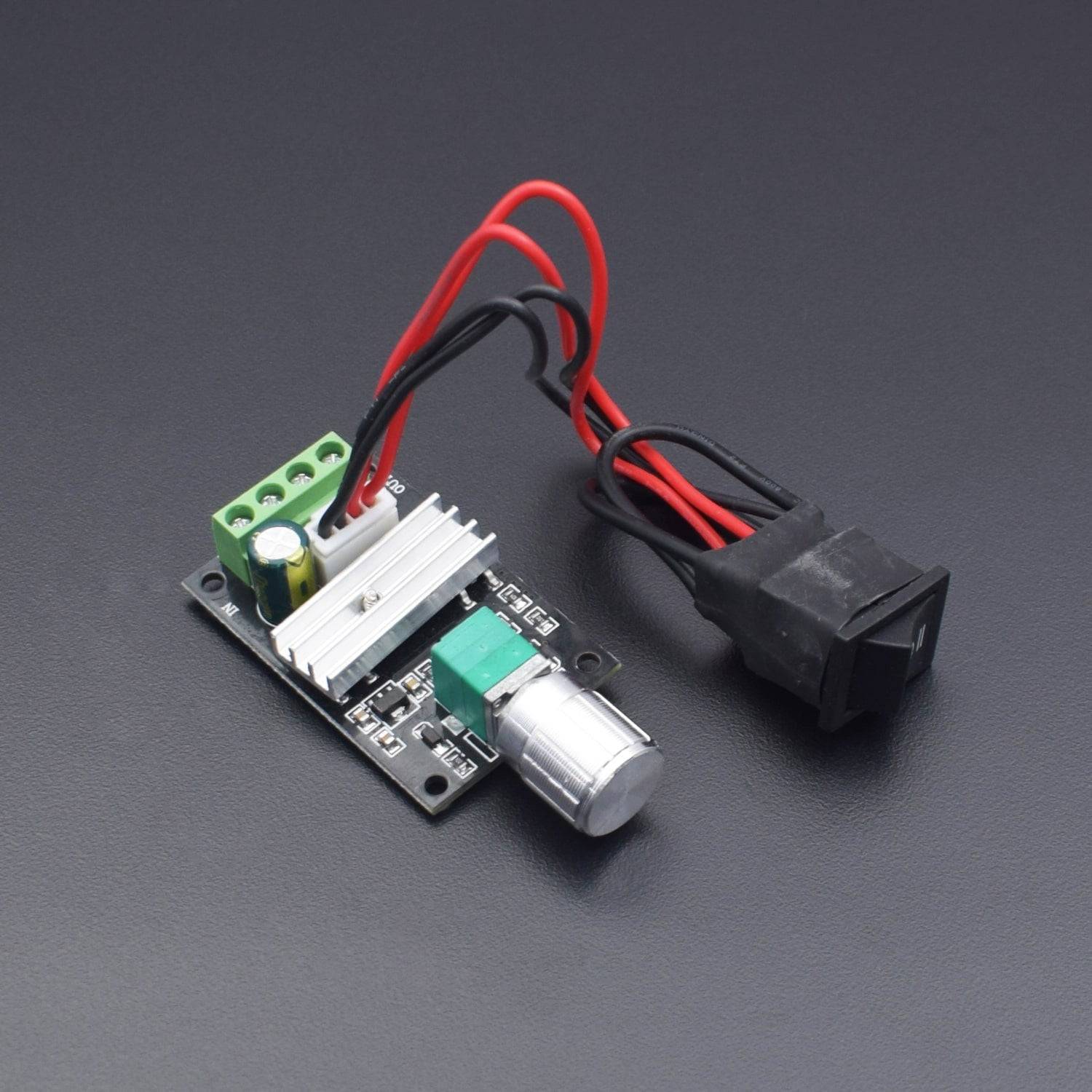

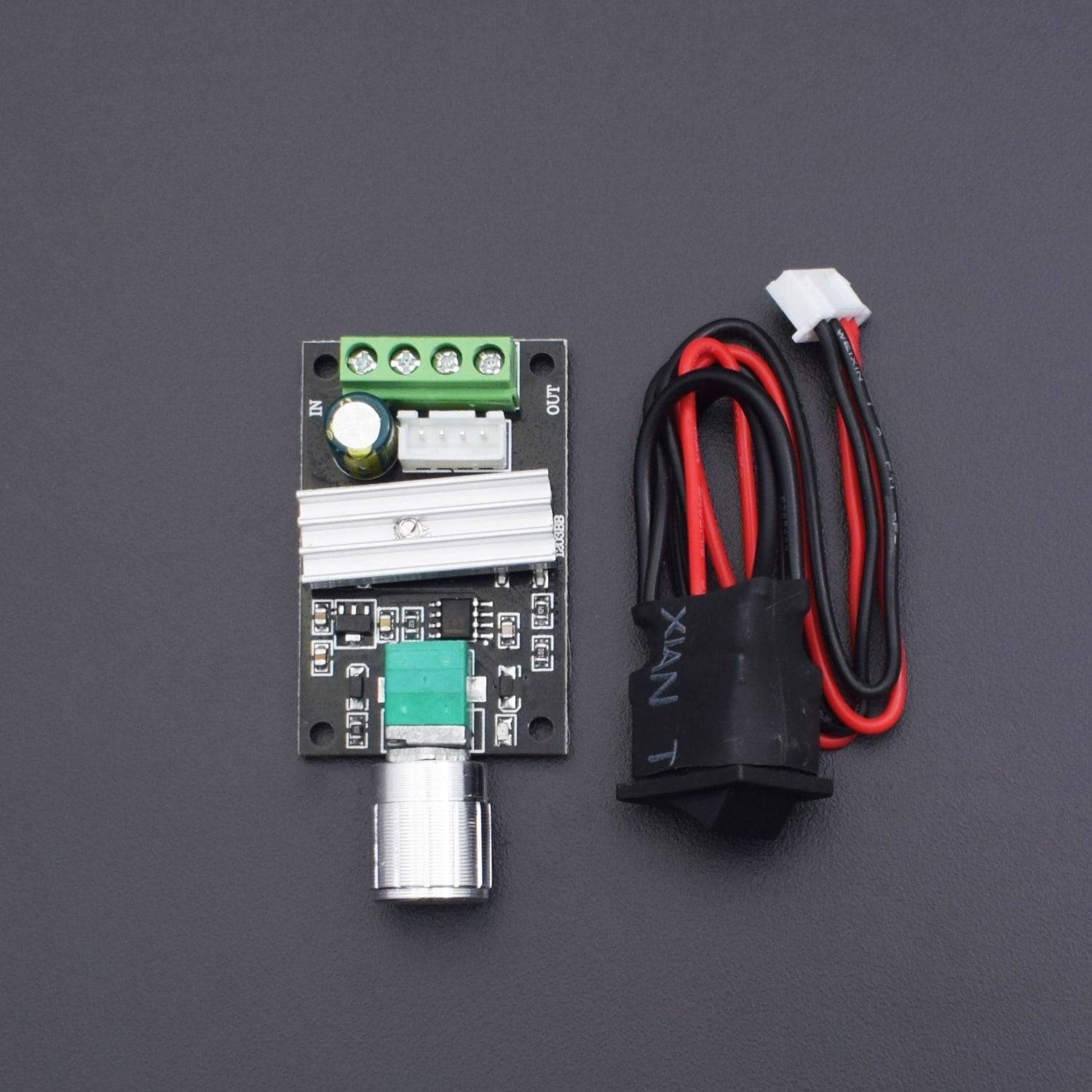

1 x 6V 12V 24V 28V 3A 80W DC Motor Speed Controller (PWM) Speed Adjustable Reversible Switch 1203BB DC Motor Driver Reversing
