Description:

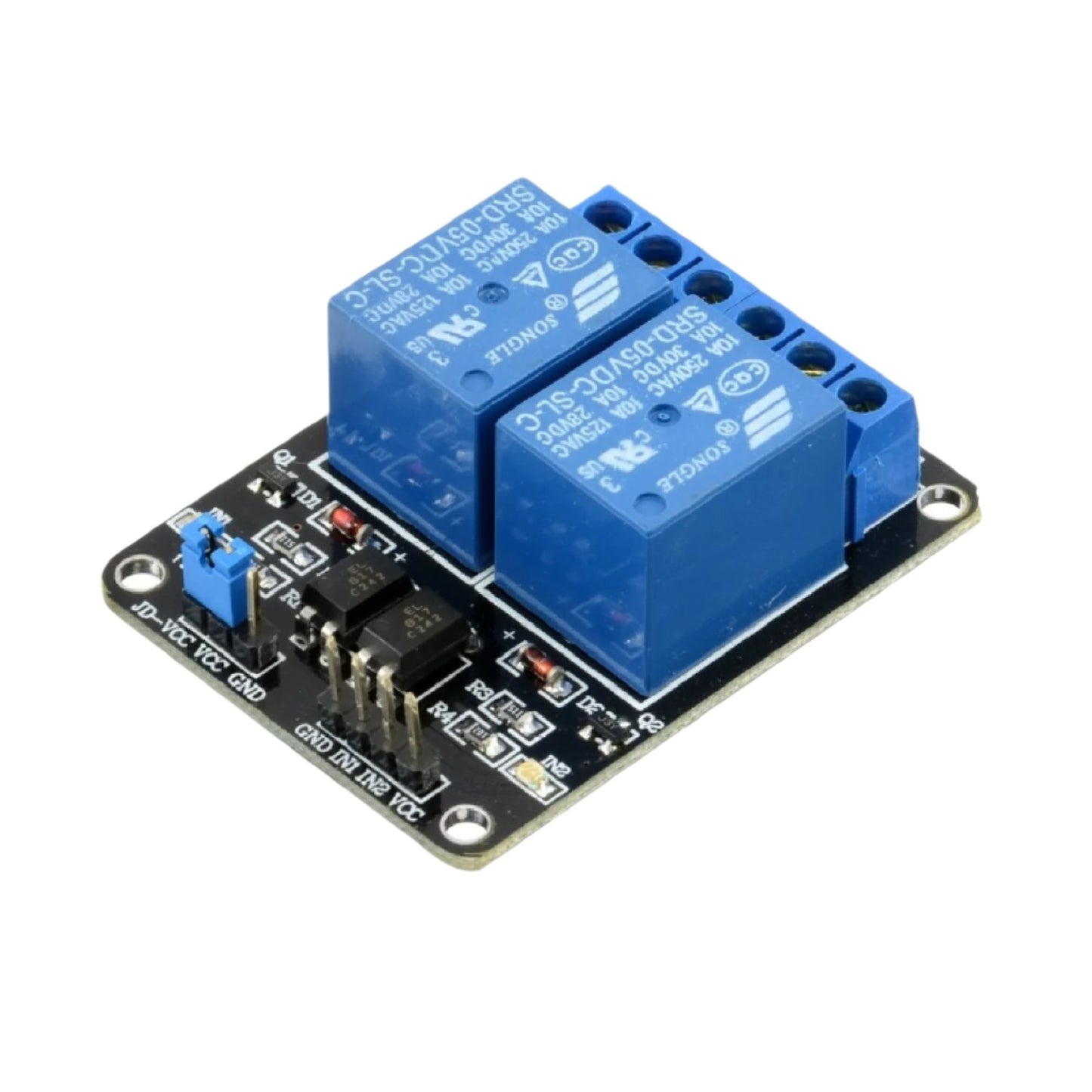

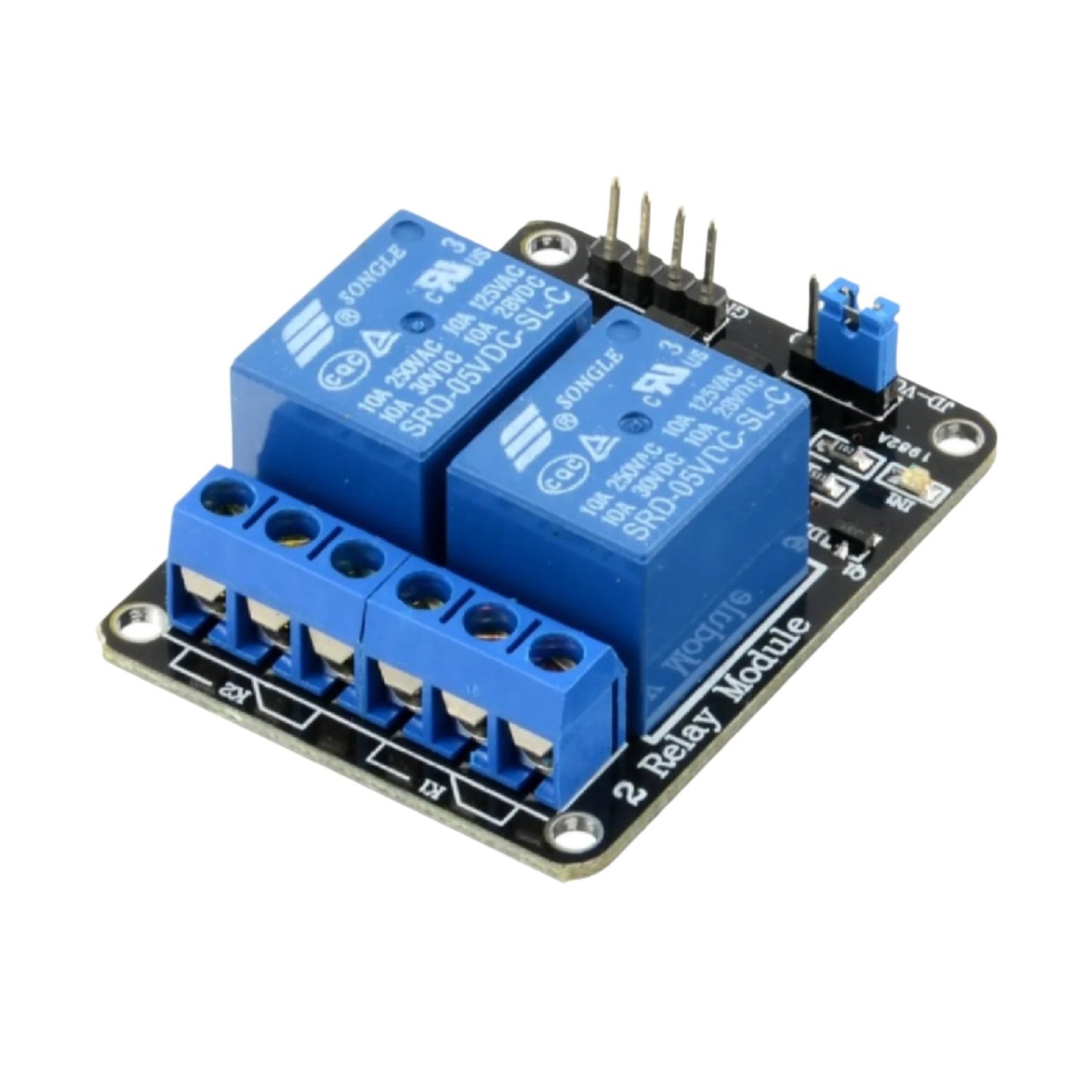

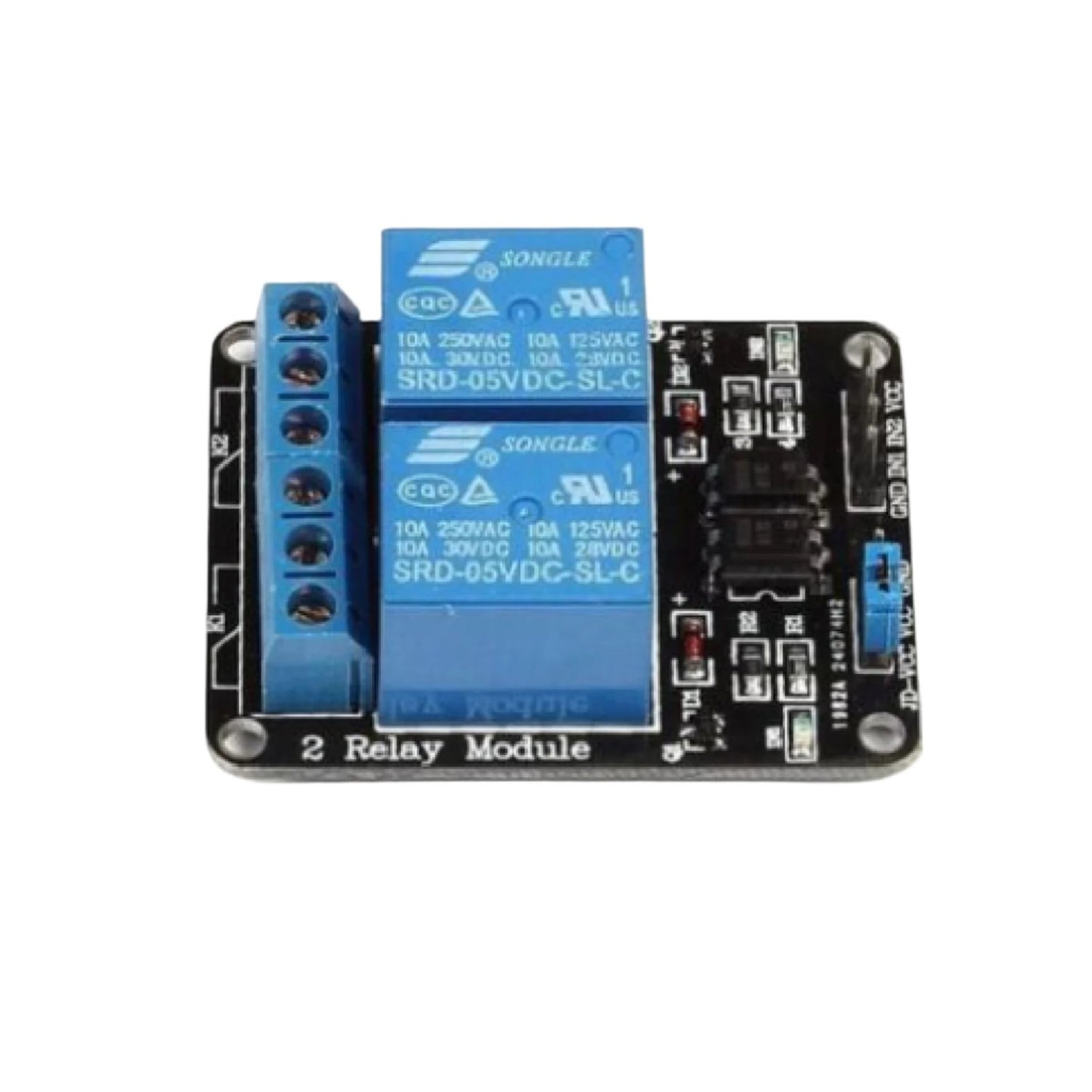

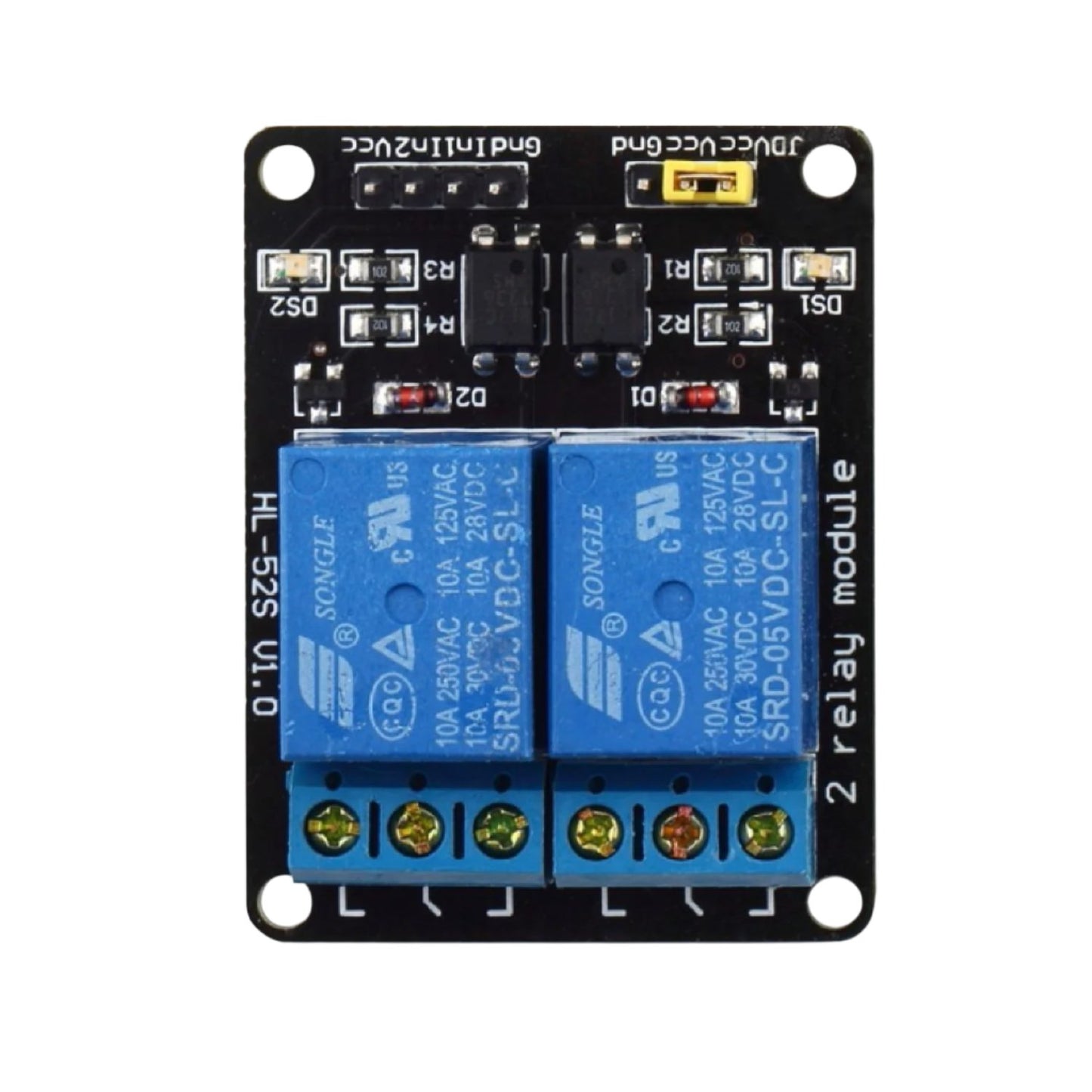

This is a 5V 2 Channel Relay Module interface board. It can be used to control various appliances, and other equipment with large current. 5V 2 Channel Relay Module can be controlled directly with 3.3V or 5V logic signals from a microcontroller (Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).
Specifications:
- Working Voltage: 5V
- Channel: 2 Channel
- PCB Color: Black
Features:
- Board around with four fixed screw holes, hole diameter 3.1mm, easy to install and fixed
- Relay selection of high-quality loose relay, single-pole double-throw. A common end, a normally open end, a normally closed end
- Optocoupler isolation, good anti-interference
- Low-level pull-in, high-level release. Pull the status indicator light, release the status indicator is off
- VCC for the system power, JD_VCC for the relay power. Plug in the jumper cap
Package Included:
1 x 5V 2 Channel Relay Module For Arduino ARM PIC Relay Module Control Board With Optocoupler
