XL4015 5A DC-DC Step-Down Module – Adjustable 1.25–36V with Heatsink Option - RS594
XL4015 5A DC-DC Step-Down Module – Adjustable 1.25–36V with Heatsink Option - RS594
SKU:RS594
615 in stock
Regular price
Rs. 180.00
Regular price
Sale price
Rs. 180.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.
For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:

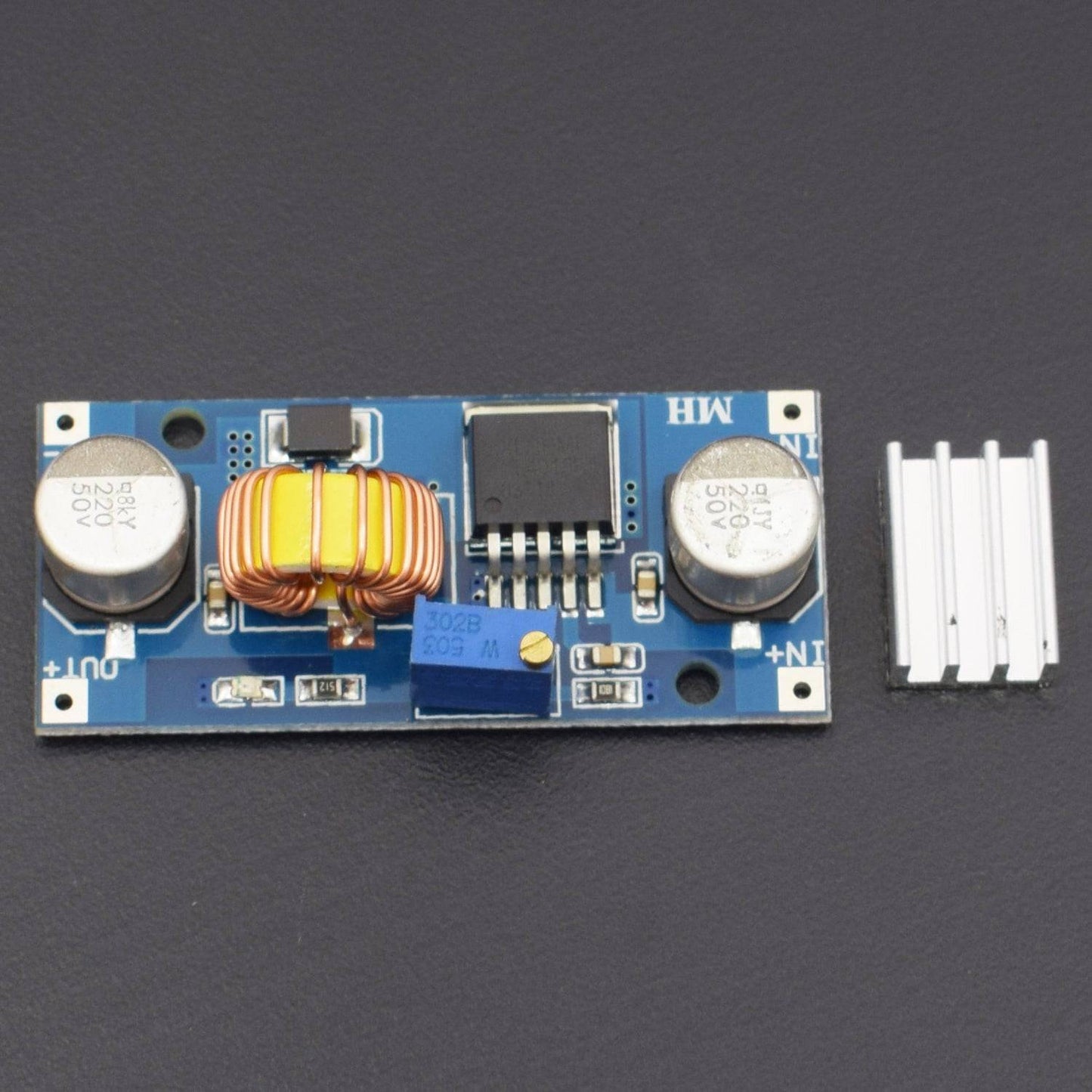

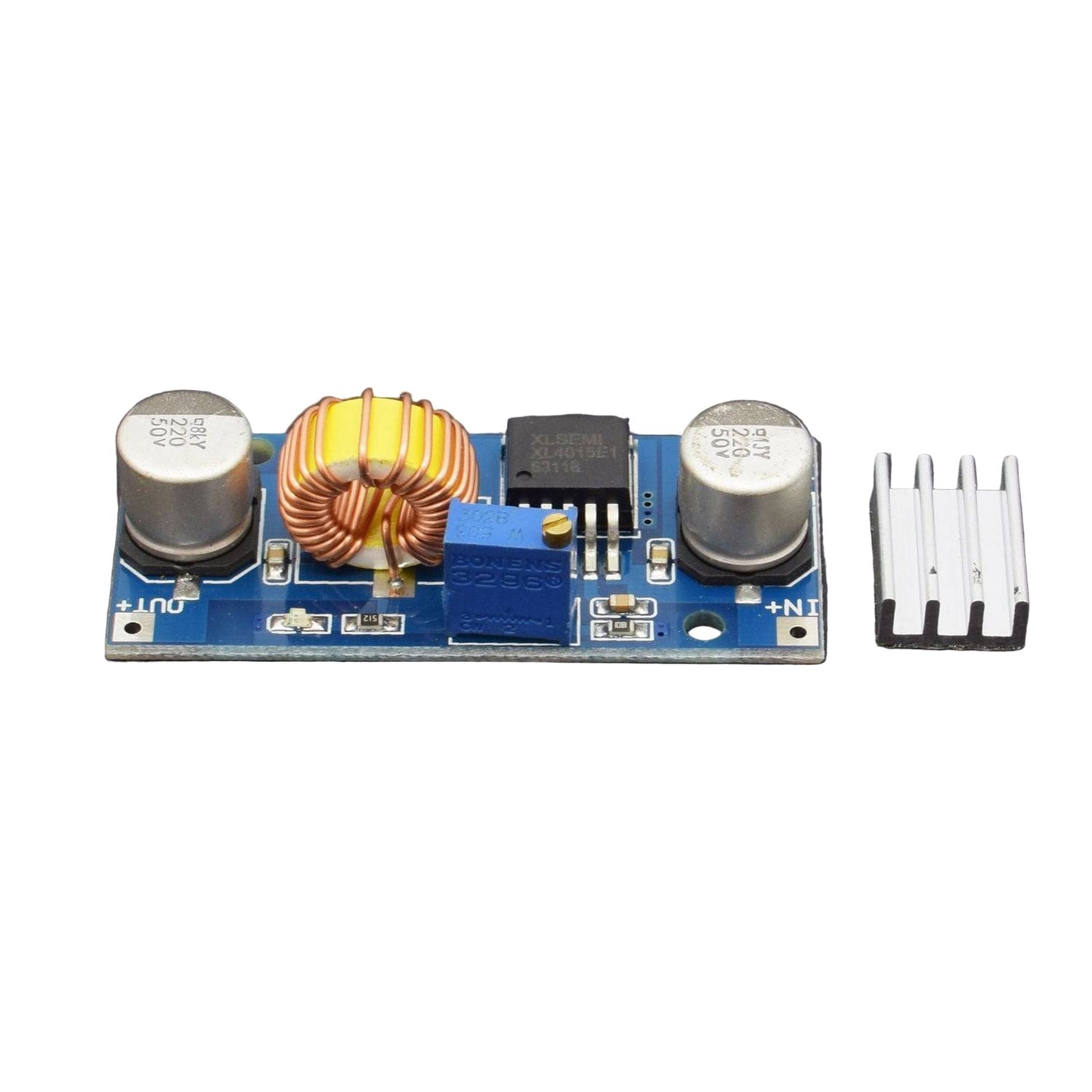

The XL4015 5A DC-DC Step-Down Module is a versatile, high-efficiency buck converter that can regulate voltage down from a higher DC input to a stable, adjustable output. It supports constant current (CC) and constant voltage (CV) modes, making it suited for LED driving, lithium battery charging, bench power supplies, and general electronics regulation.
Specifications:
| Input Voltage | 4 – 38 V DC |
| Adjustable Output Voltage | 1.25 – 36 V DC |
| Max Output Current | 5 A (recommended under ~4.5 A) |
| Efficiency | Up to 96 % |
| Switching Frequency | 180 kHz |
| Protection | Thermal shutdown, overcurrent, short circuit limit |
| Recommended Max Power | ~75 W with heatsink |
| Operating Temperature | –40 °C to +85 °C |
| Dropout (Min Headroom) | ~0.3 V |
Features:
- Input range: 4 – 38 V DC
- Output voltage: 1.25 – 36 V, adjustable via potentiometer
- Maximum output current: 5 A (recommended usage under ~4.5 A)
- Efficiency: Up to 96 % under optimal conditions
- Fixed switching frequency: 180 kHz
- Protection features: Thermal shutdown, overcurrent limit, short circuit protection
- Heatsink option: Recommended when operating above ~50 W load
- Dropout / headroom: ~0.3 V typical
Applications:
- LED / high-power LED constant current driving
- Lithium / Li-ion battery charging under CC/CV modes
- Bench / variable power supply for electronics
- Embedded systems, robotics, microcontroller projects
- Voltage regulation for sensors, modules, etc.
Usage Tips:
- Always adjust the output voltage (no-load) before connecting to your load.
- Use the current-limit knob to set safe current threshold when used as current source.
- For high-power use (>50 W), mount heatsink and ensure good airflow.
- Wiring length should be minimized to avoid voltage drop and noise.
- Polarity must be correct — module typically has no reverse polarity protection.
- Use capacitors / filtering if load is sensitive to ripple.
Package Included:
-
1 × XL4015 DC-DC Step-Down Module
