- Operating Voltage: 5V
- Number of Led: 35
- 5 x 7 LED matrix
- Red Color Matrix
- Digital device Interface
Description:

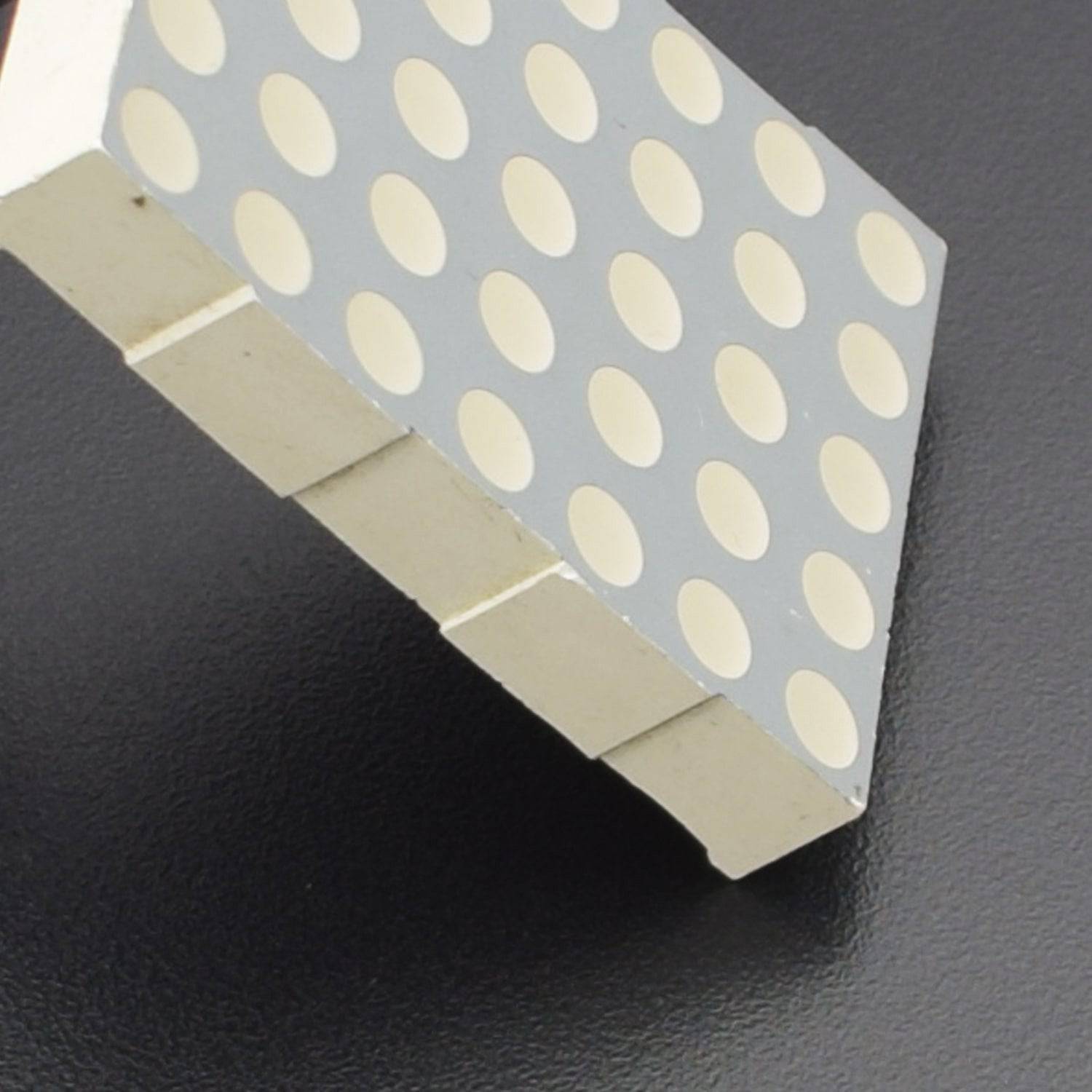

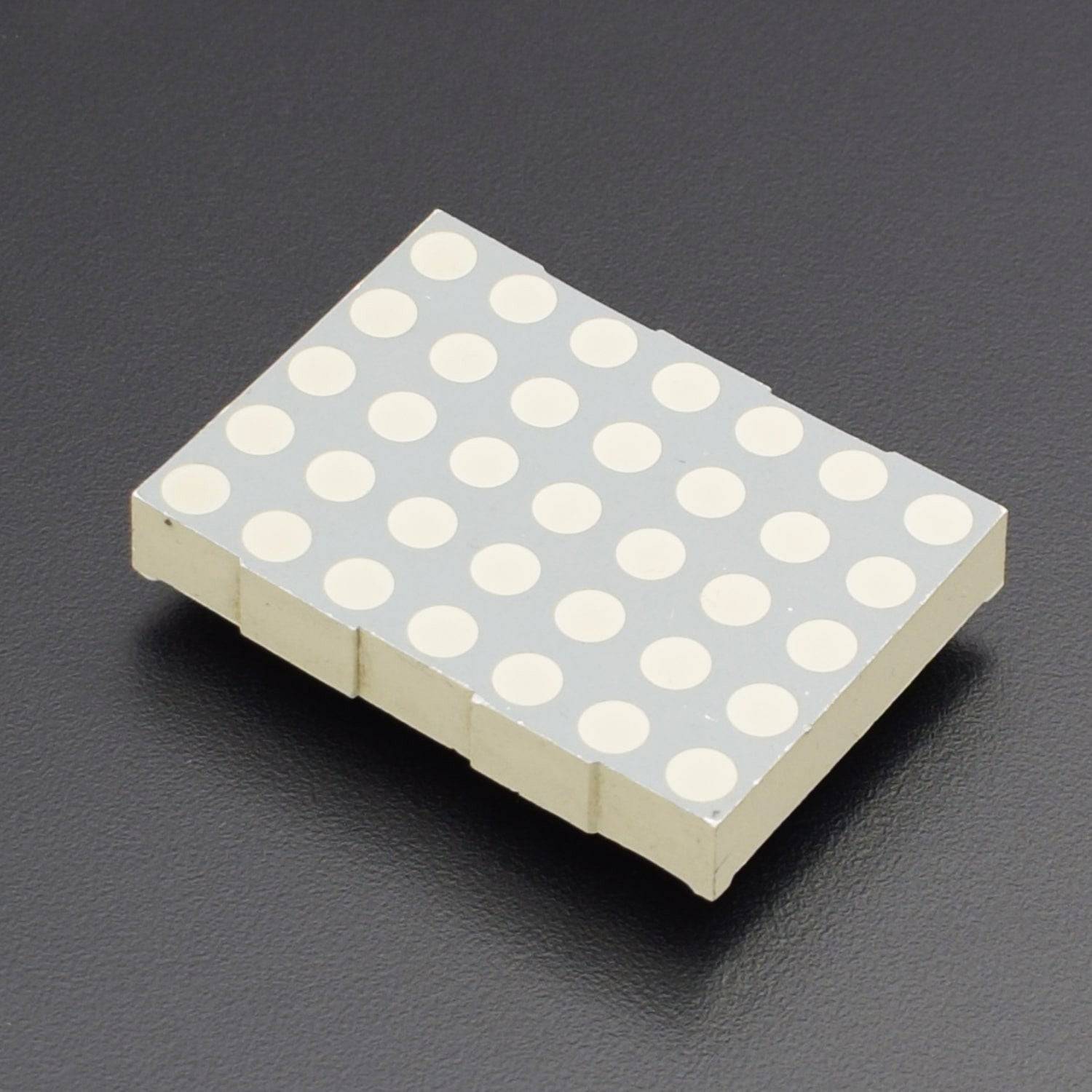

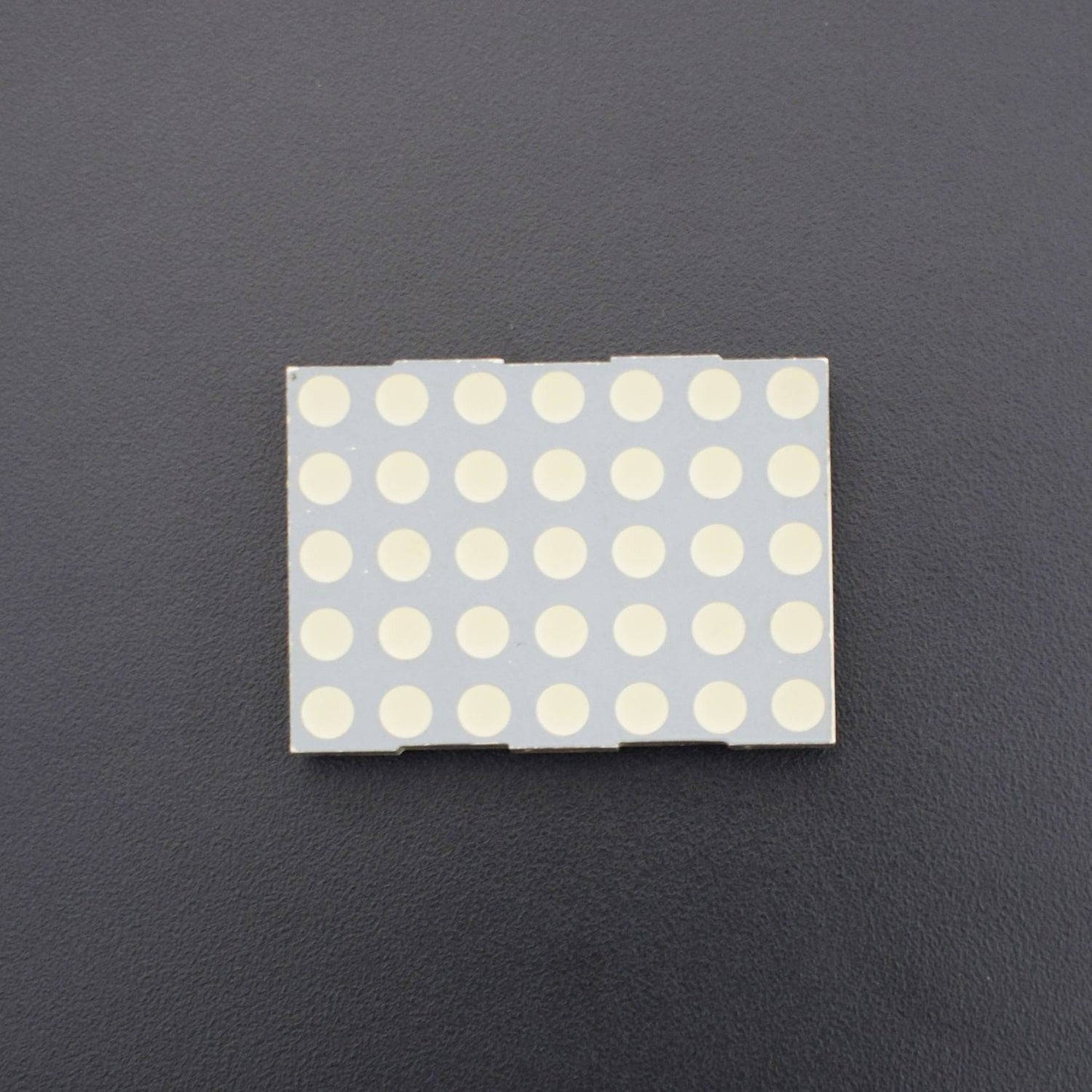

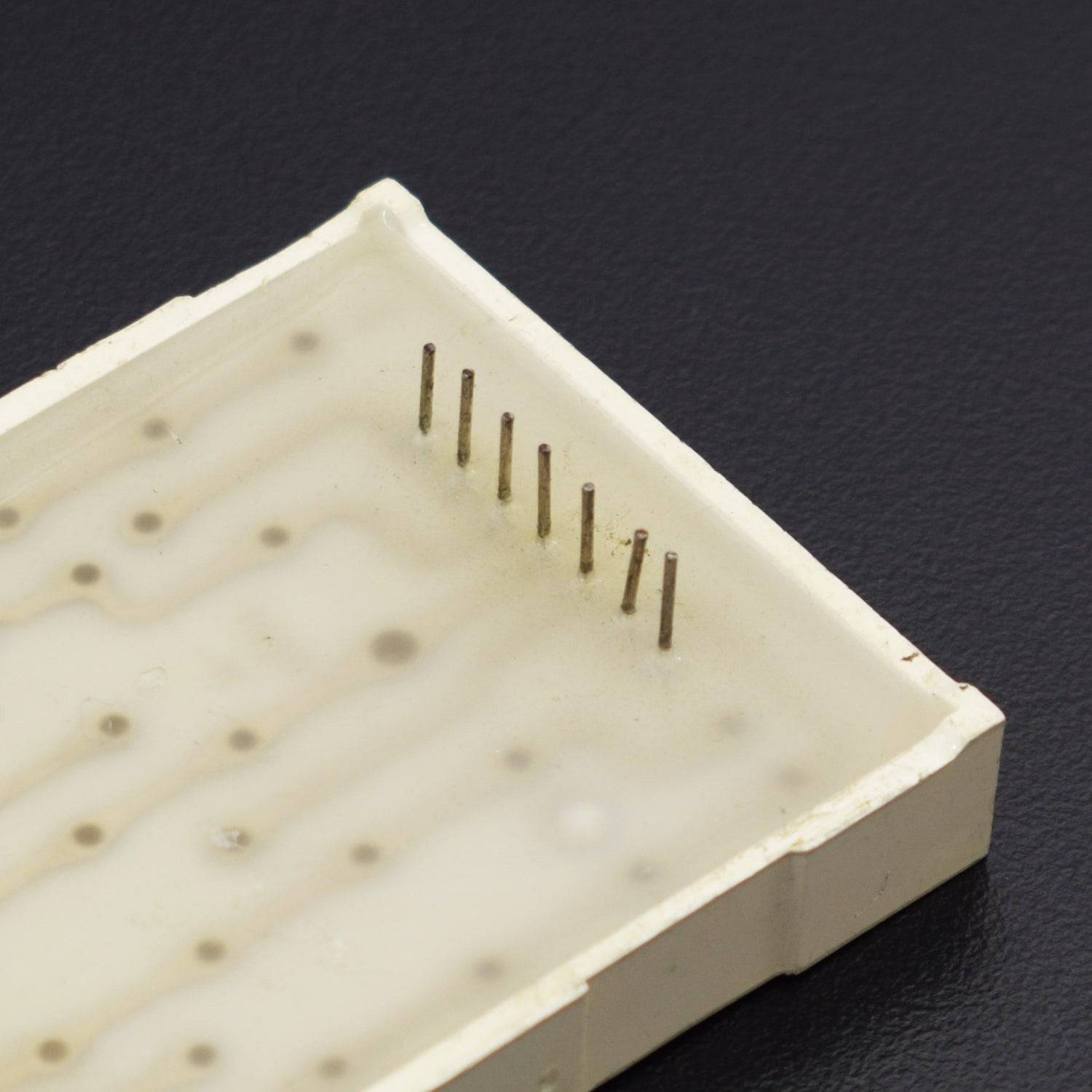

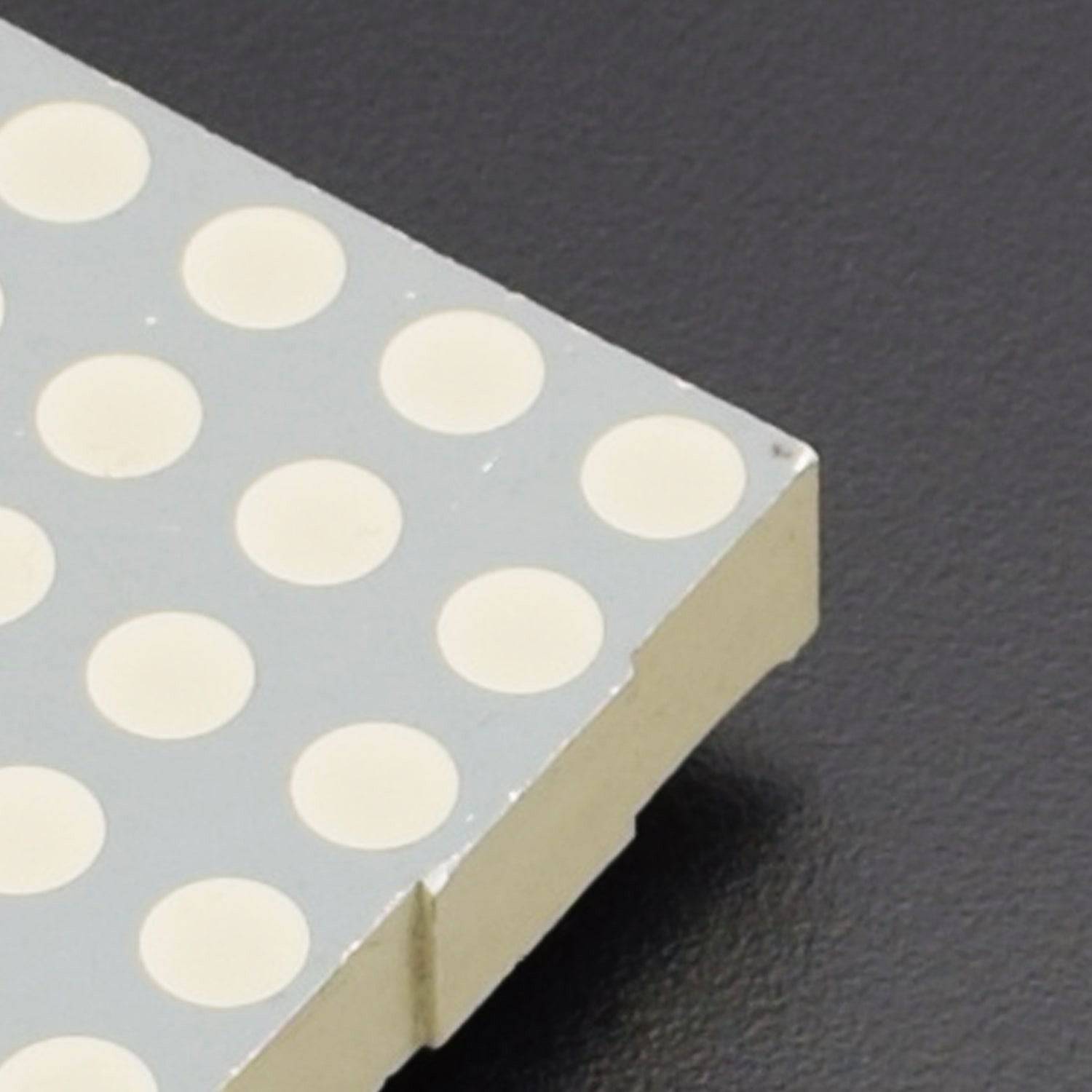

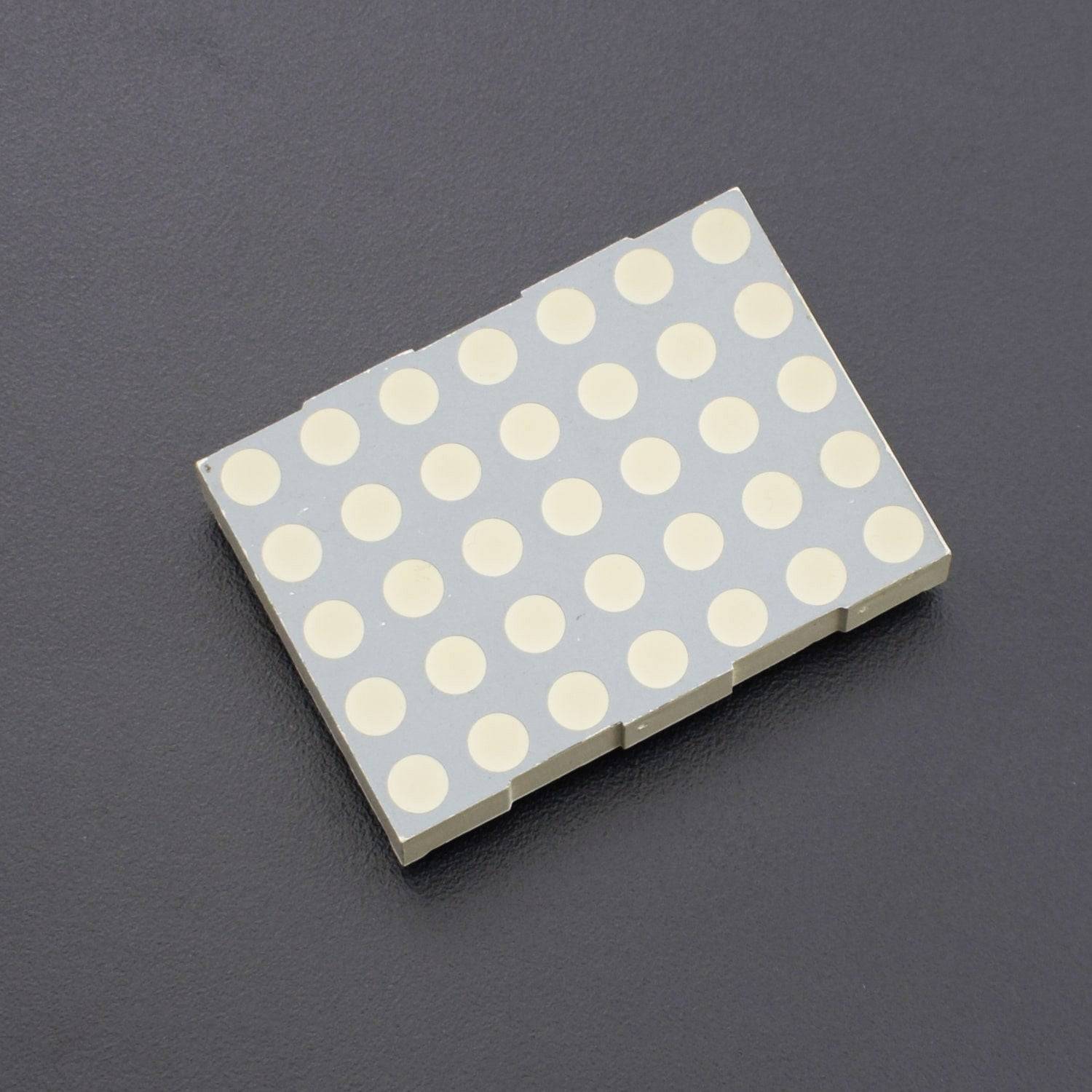

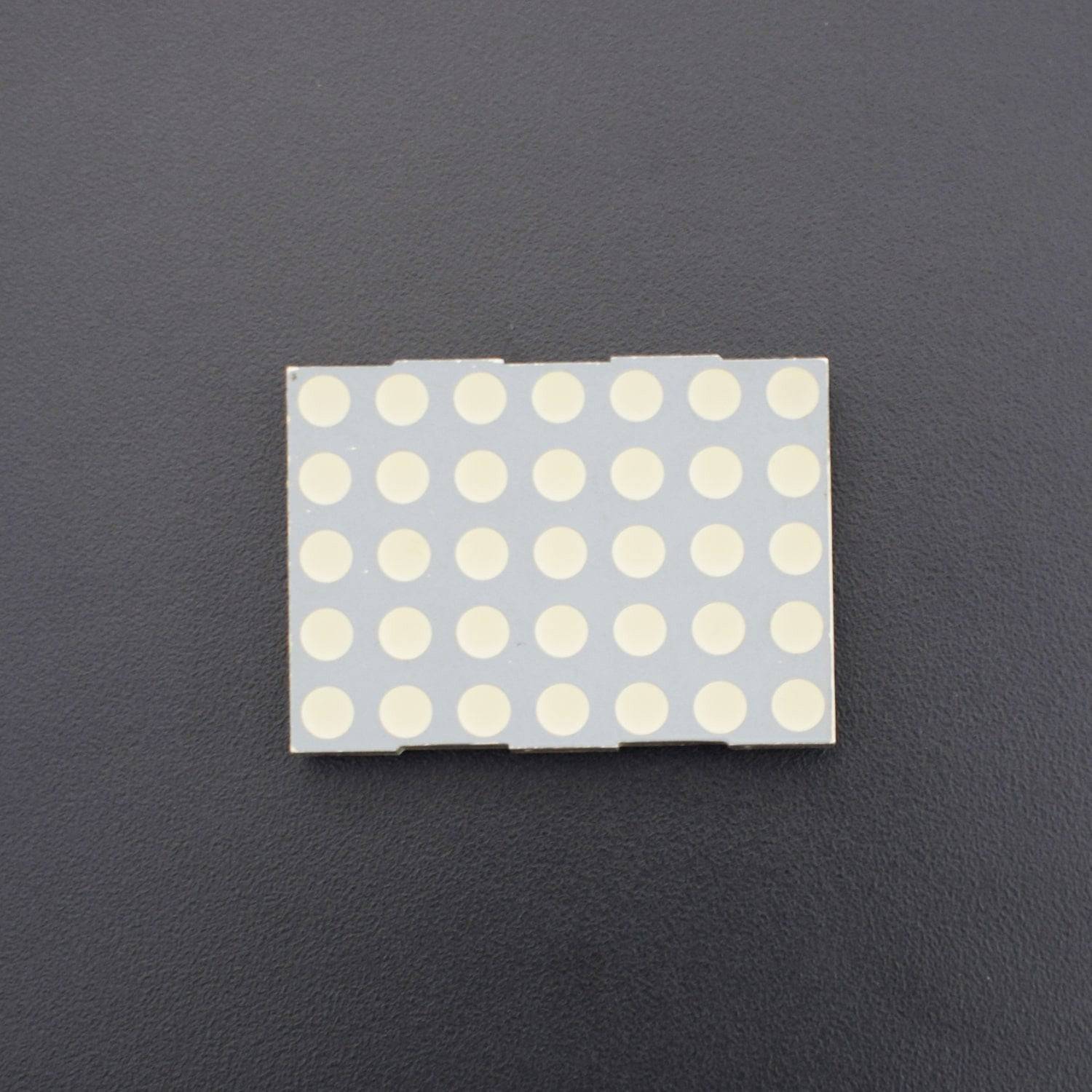

An dot led matrix display consists of a matrix of LED’s arranged in a rectangular configuration. The desired character or graphics can be displayed by switching ON /OFF a desired configuration of LED’s. Dot matrix led can be used in simple display applications where the resolution is not a big concern. The 5x7 matrix is a common anode type LED display unit. A single matrix is formed by 35 led - 7 LED's arranged in five columns and seven rows (5x7). The anodes of the five LED's forming one row are connected together. Similarly, the cathodes of the seven LED's of a column are connected together. In this arrangement of LED's, the cathodes are switched to turn the LED's of a row ON or OFF.
Specification:
- Operating Voltage: 5V
- Number of Led: 35
Features:
- 5 x 7 LED matrix
- Red Color Matrix
- Digital device Interface
- Easy to Control
Application:
- All types of electrical/electronic projects.
- DIY matrix display unit.
- 8051/AVR/ARM/PIC/NXP/Infinion/Arduino/Raspberry based matrix led display.
Package Included:
1 x 5 X 7 Dot Matrix Led Display For Arduino/Raspberry-Pi/Robotics
