Description:
PCB Adapter Board Kit gives One side for a pin pitch size of 0.65mm/0.03", other is 1.27mm/0.05", for detail size please pay attention to the picture.
SMD to DIP Converter Generally Apply to the commonly used SSOP16, TSSOP16, MSOP16 and other packages transferred into DIP. All PC boards is dual and the material is up to FR-4 class, so it is strong, and the solder of parts will firm,
Specifications:
Material:
- FR-4 TQFP(32 44 48 64 84 100): size: 38*46mm; pin pitch: (0.8mm 0.5mm)
- SOP28 SSOP28 TSSOP28: size: 20.3*35.5mm; pin pitch: (0.65mm 1.27mm)
- ]SOP24 SSOP24 TSSOP24: size: 17.78*30.48mm; pin pitch: (0.65mm 1.27mm)]
- SOP20 SSOP20 TSSOP20: size: 17.8*25.4mm; pin pitch: (0.65mm 1.27mm)
- SOP16 SSOP16 TSSOP16: size: 17.8*20.3mm; pin pitch: (0.65mm 1.27mm)
- SOP14 SSOP14 TSSOP14: size: 17.78*17.78mm; pin pitch: (0.65mm 1.27mm)
- SOT23 SSOP10 MSOP10: size: 12.7*10.16mm; pin pitch: (0.5mm 0.95mm)
- SOP8 SSOP8 TSSOP8: size: 12*12mm; pin pitch: (0.65mm 1.27mm)

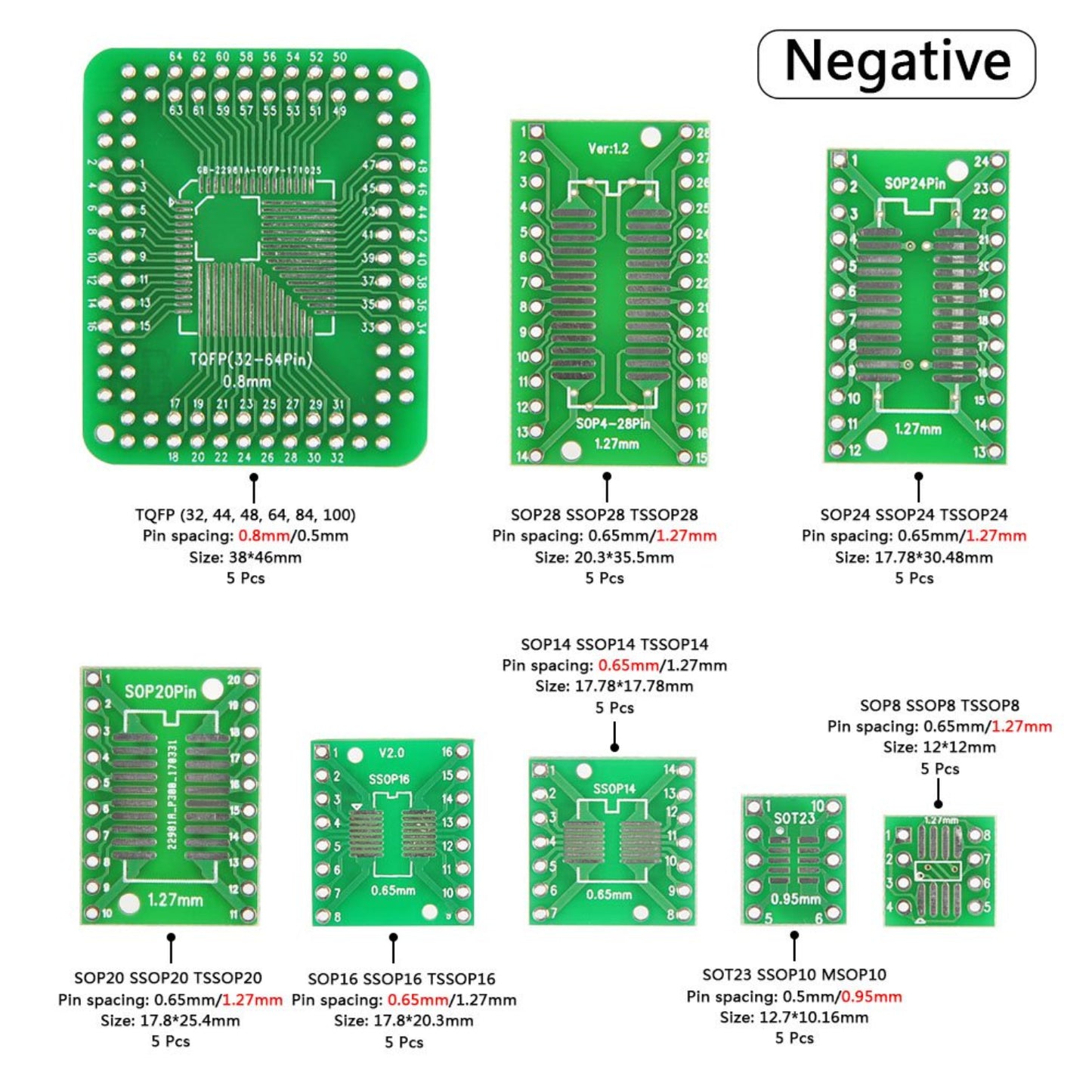

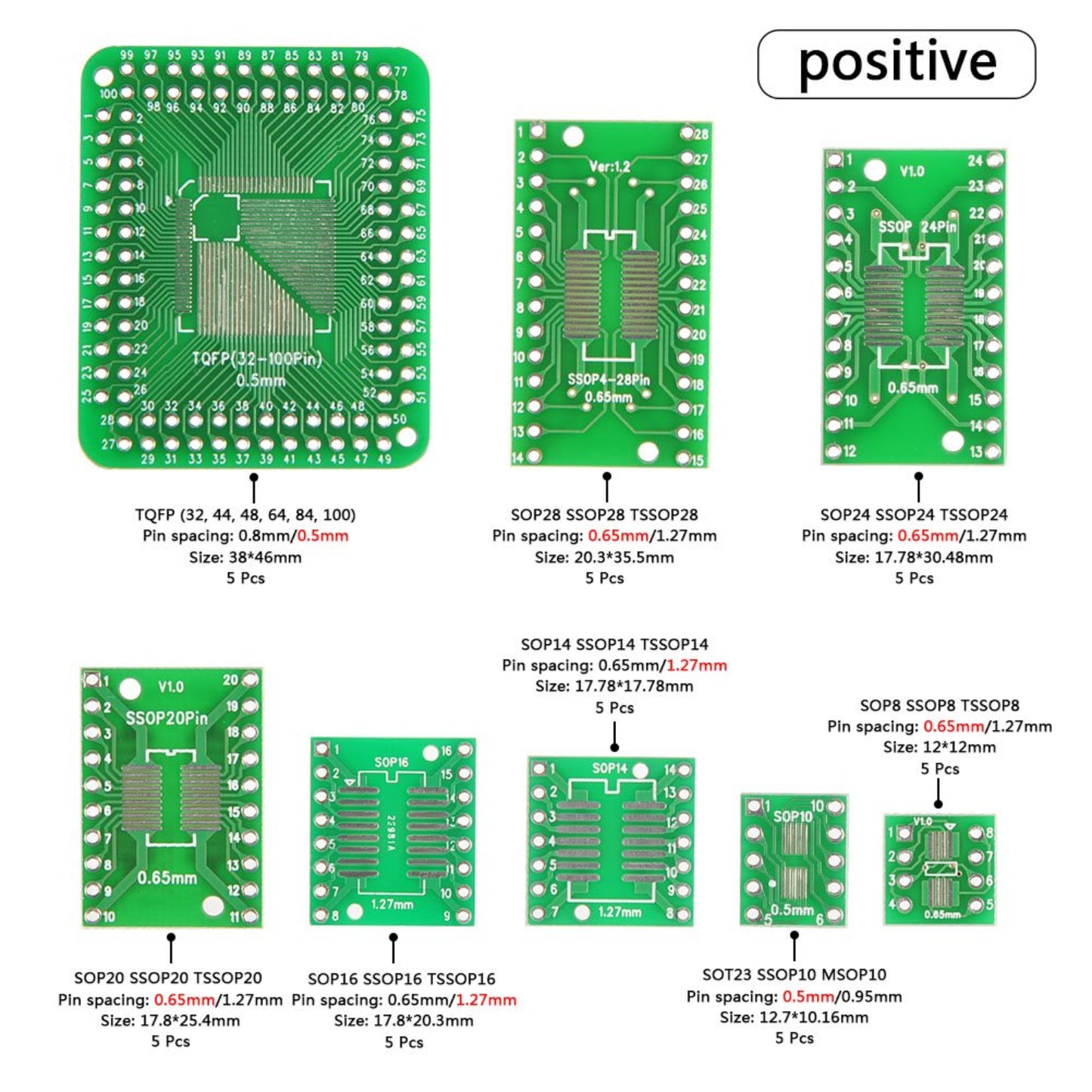

For detail size please pay attention to the picture
Features:
- QFP/TQFP/LQFP/FQFP pin switch over DIP double-sided pin board.
- A side of the patch 32 pin -100 pin turn DIP, 0.5mm spacing.
- The other side is 32 pin -64 pin, pitch 0.8mm pitch.
- High-quality PCB FR4 Grade with FPT Certified.
Note:
- Please carefully check the size you need before ordering if you use it in various projects.
Package Included:
1 x 40Pcs PCB Adapter Board Kit SMD To DIP IC PCB Converter Board Adapter Plate 8 Sizes For DIY Technical Testing, Double Sided TFQP/SOP/SSOP/TSSOP/MSOP To Dip Adaptor
