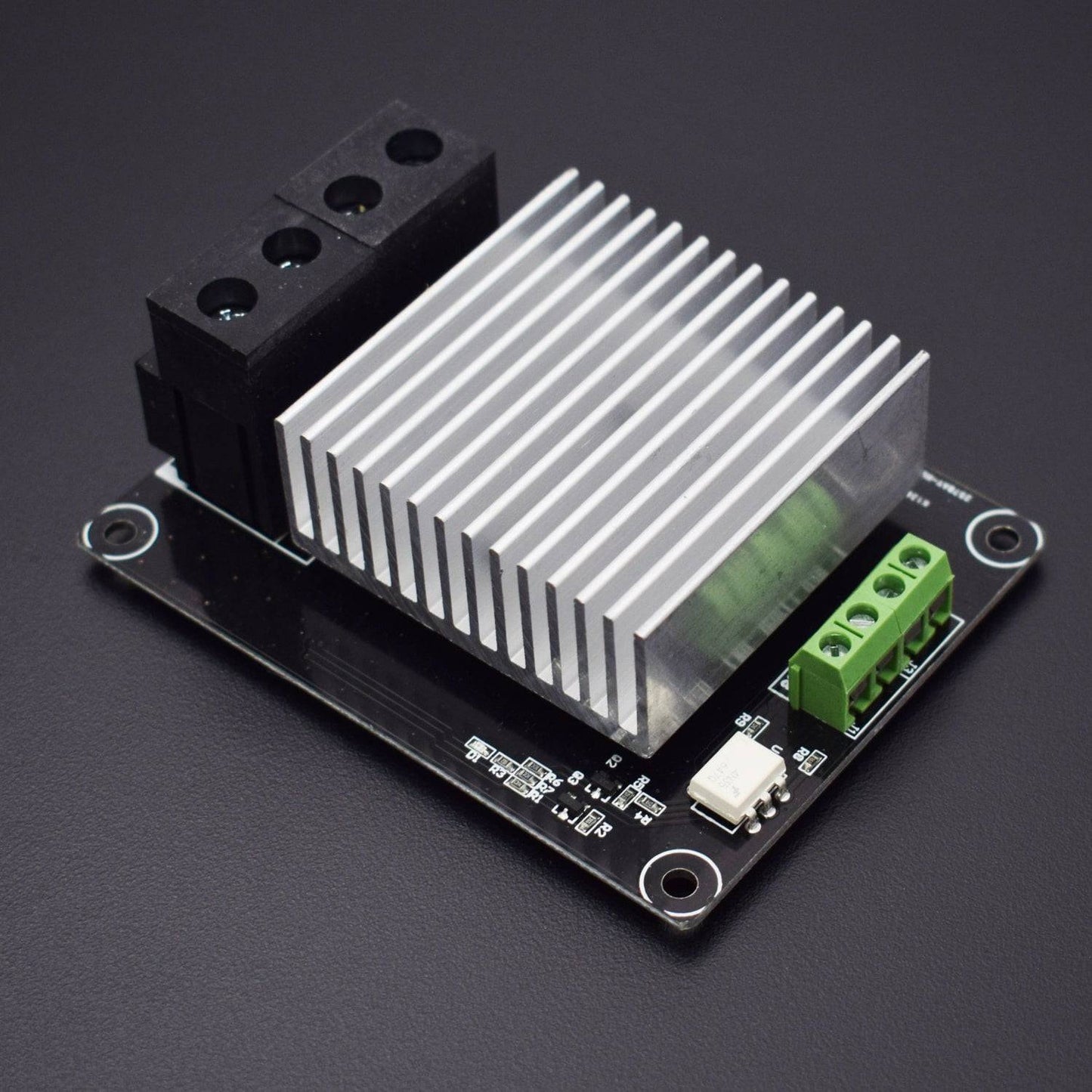

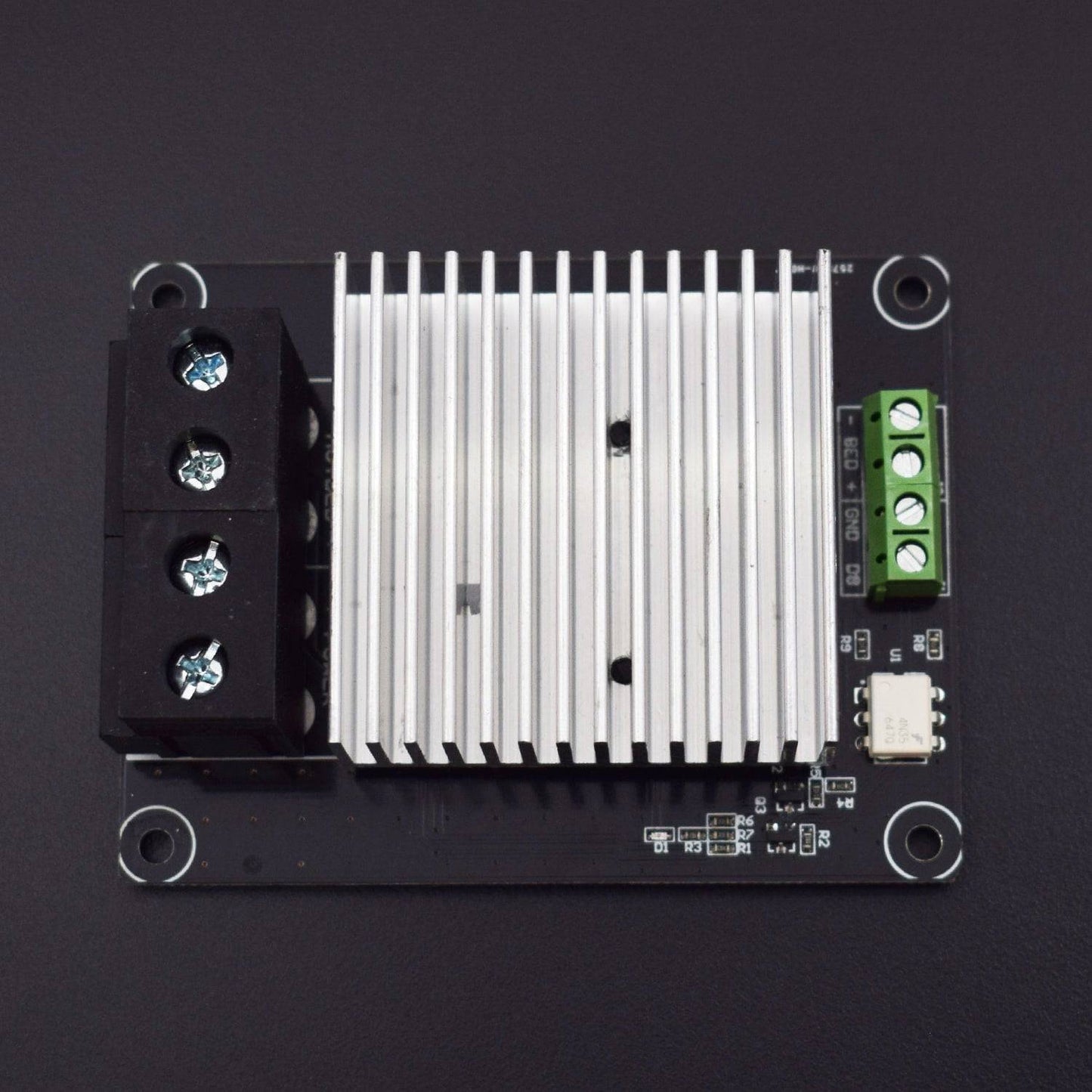

3D Printer Parts Heating Controller MKS MOSFET For Heat Bed/Extruder MOS Module Exceed 30A Support Big Current- RS1062

3D Printer Parts Heating Controller MKS MOSFET For Heat Bed/Extruder MOS Module Exceed 30A Support Big Current- RS1062

SKU:RS1062

Low stock: 3 left

Regular price Rs. 605.00
Regular price Sale price Rs. 605.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Input Voltage Range: 12~24V
  • Maximum Current: 30A
  • Each one will be done the functional test
  • The superior performance of MOSFET (Max 280A)


Description:

The New MOSFET Heating Controller for the 3D Printer heat Bed/Extruder module exceeds the 30A Current limit than that of its previous version hence it supports a big current to provide More power, is more stable than the previous version, not easy to burn. The modules come with Superior performance of MOS (Max 280A), Extra large heat sink, and therefore it can give a wide range of operating maximum currents can be up to 30A or more. With this Controller, you Can use the hot-bed output signal of Ramp1.4 and MKS series to control and can use the digital signal of 5-24v to control.

Specification:

  • Input Voltage Range: 12~24V
  • Maximum Current: 30A

Features:

  • Each one will be done with the functional test.
  • The superior performance of MOSFET (Max 280A).
  • In an extra-large heat sink, the maximum current can be up to 30A or more.
  • Can use hot-bed output signal of Ramp1.4 and MKS series to control.
  • Can use the digital signal of 5-24v to control.

How To Use:

  • Plug a power supply.
  • Connect to the heated bed.
  • Connect a digital control signal to GND, D8 of MKS MINI.
  • Connect to the heated bed signal on Ramps1.4 or MKS series controller boards.

Instructions:

  • Power supply connections, pay attention to positive and negative.
  • Hotbed connected to the hotbed plus hotline, pay attention to positive and negative.
  • Direct digital control signals can be connected to GND, D8.
  • The control signal Ramps1.4 or MKS MOS pipe output from the motherboard connection-Bed
  • Two sets of control signals can only be connected to a group.

Packaged Included:

1 x 3D Printer Parts Heating Controller MKS MOSFET For Heat Bed/Extruder MOS Module Exceed 30A Support Big Current
