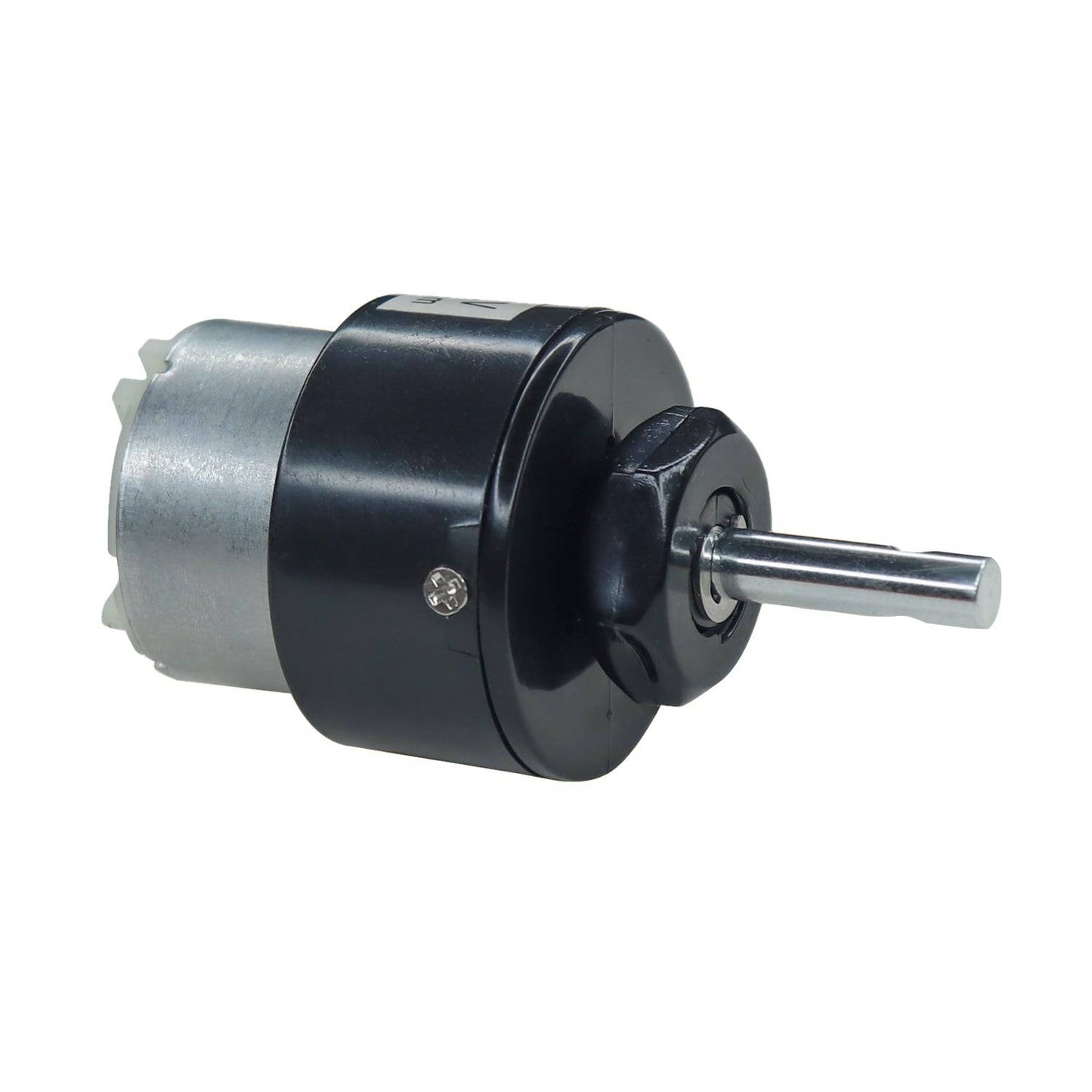

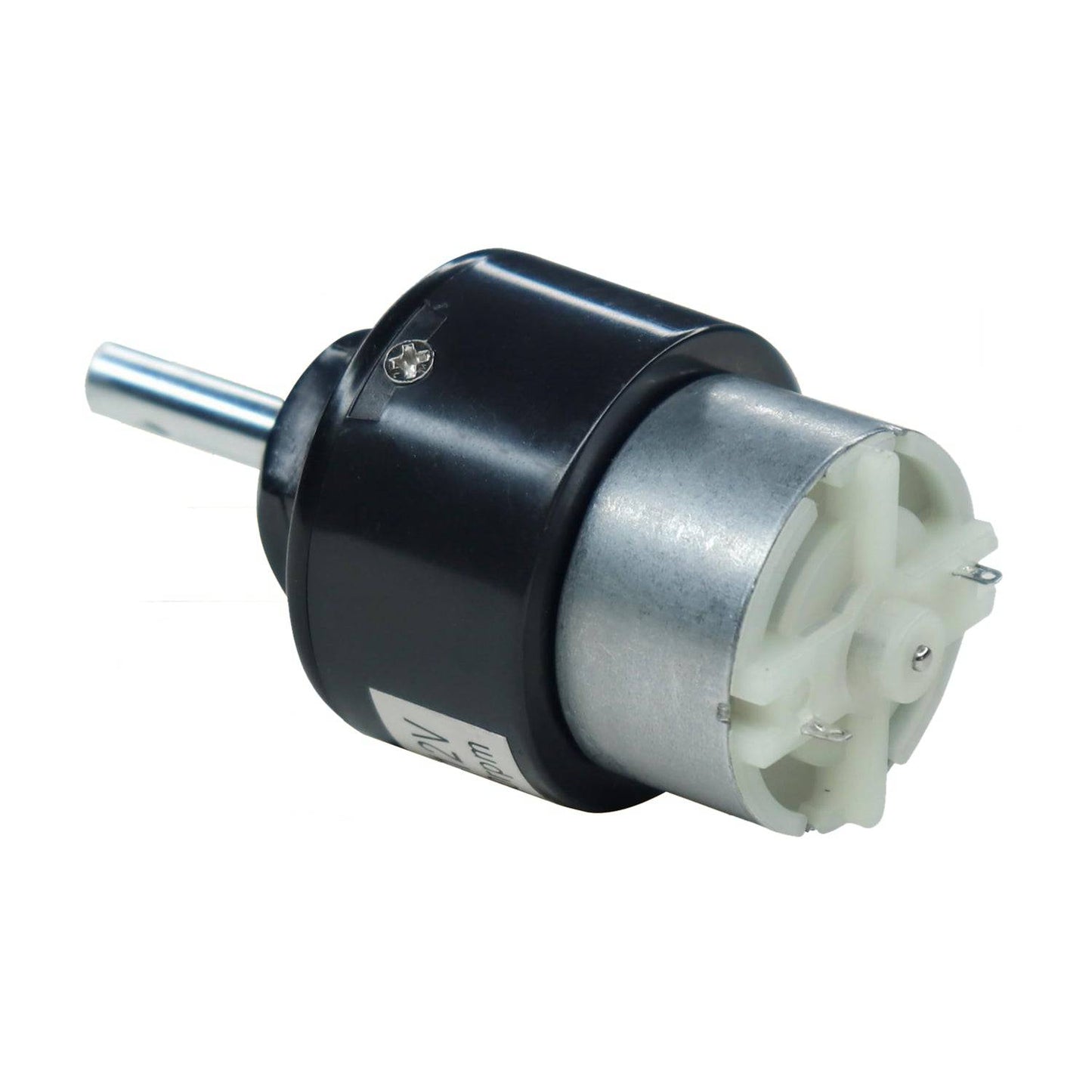

12V 150RPM Gear Motor Centre Shaft DC Geared Motor Heavy Duty Motor for Robotics - ER022

12V 150RPM Gear Motor Centre Shaft DC Geared Motor Heavy Duty Motor for Robotics - ER022

SKU:ER022

In stock

Regular price Rs. 119.00
Regular price Sale price Rs. 119.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

This 12V 150RPM Gear Motor can be used for heavy-duty applications, robotics, or any industrial or educational applications. It has a wide range of features for obtaining the optimal performance characteristics. 12V 150RPM Gear Motor is very easy to use and does not need expensive motor control circuitry.

The 12V 150RPM Gear Motor are very popularly used in robotics applications. The gearbox of the motor helps in providing greater torque that is required to drive robotic vehicles. Based on the gearbox design the RPM and Torque of the motor will vary.

Specifications:

  • Working Voltage: 12V DC
  • Rated RPM: 150RPM
  • Load Current Max: 300mA
  • No-Load Current: 60mA
  • Torque Range: 5kg-cm (Approx)
  • Stall torque: 28kg-cm (Approx)

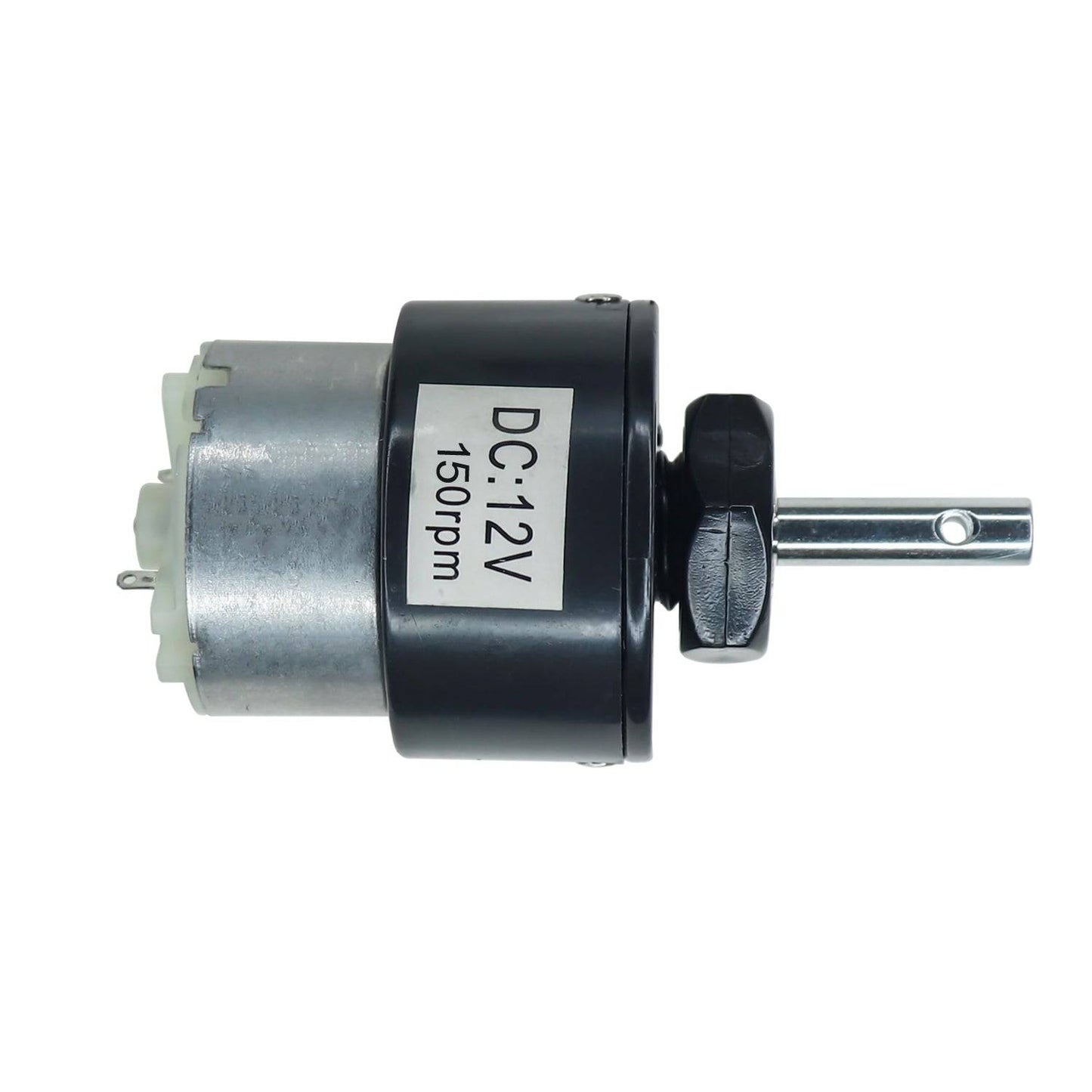

A cylindrical 12V 150RPM Gear Motor labeled "DC: 12V 150rpm" with dimensions marked. The Generic 12V 150RPM Gear Motor Centre Shaft DC Geared Motor Heavy Duty Motor for Robotics - ER022, ideal for robotics applications requiring greater torque, has a length of 8 cm and a diameter of 3.2 cm. The protruding shaft is 2.4 cm long. The body is mostly metallic with a black housing around the central part.

Features:

  • 12V 150RPM Gear Motor comes with good-quality gear.
  • The gearbox is sealed and lubricated with lithium grease and requires no maintenance.
  • Although the motor gives 150 RPM at 12V, the motor runs smoothly from 4V to 12V and gives a wide range of RPM, and torque.
  • The shaft has a hole for better coupling.

Package Included:

1 x 12V 150RPM Gear Motor Centre Shaft DC Geared Motor Heavy Duty Motor for Robotics
