Description:

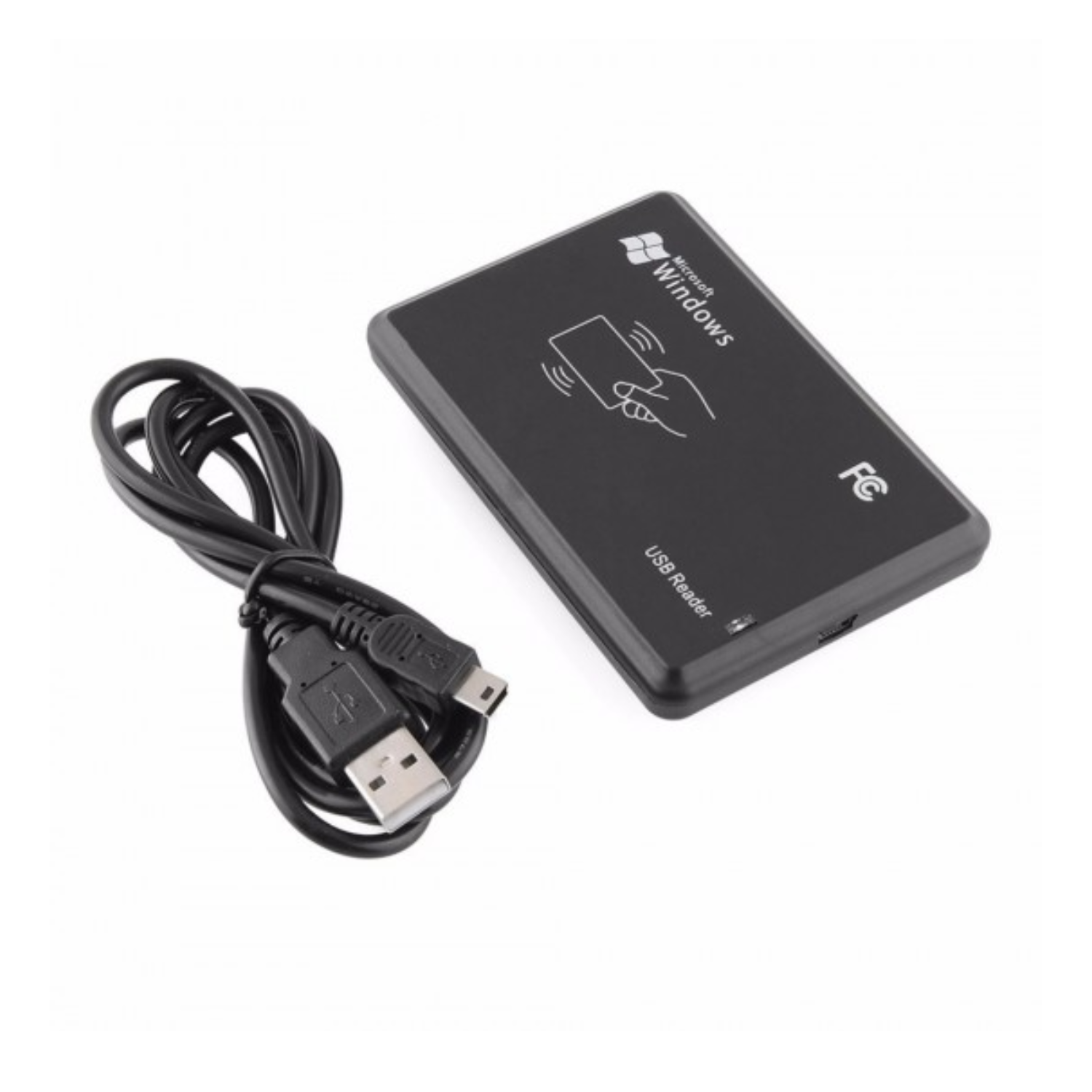

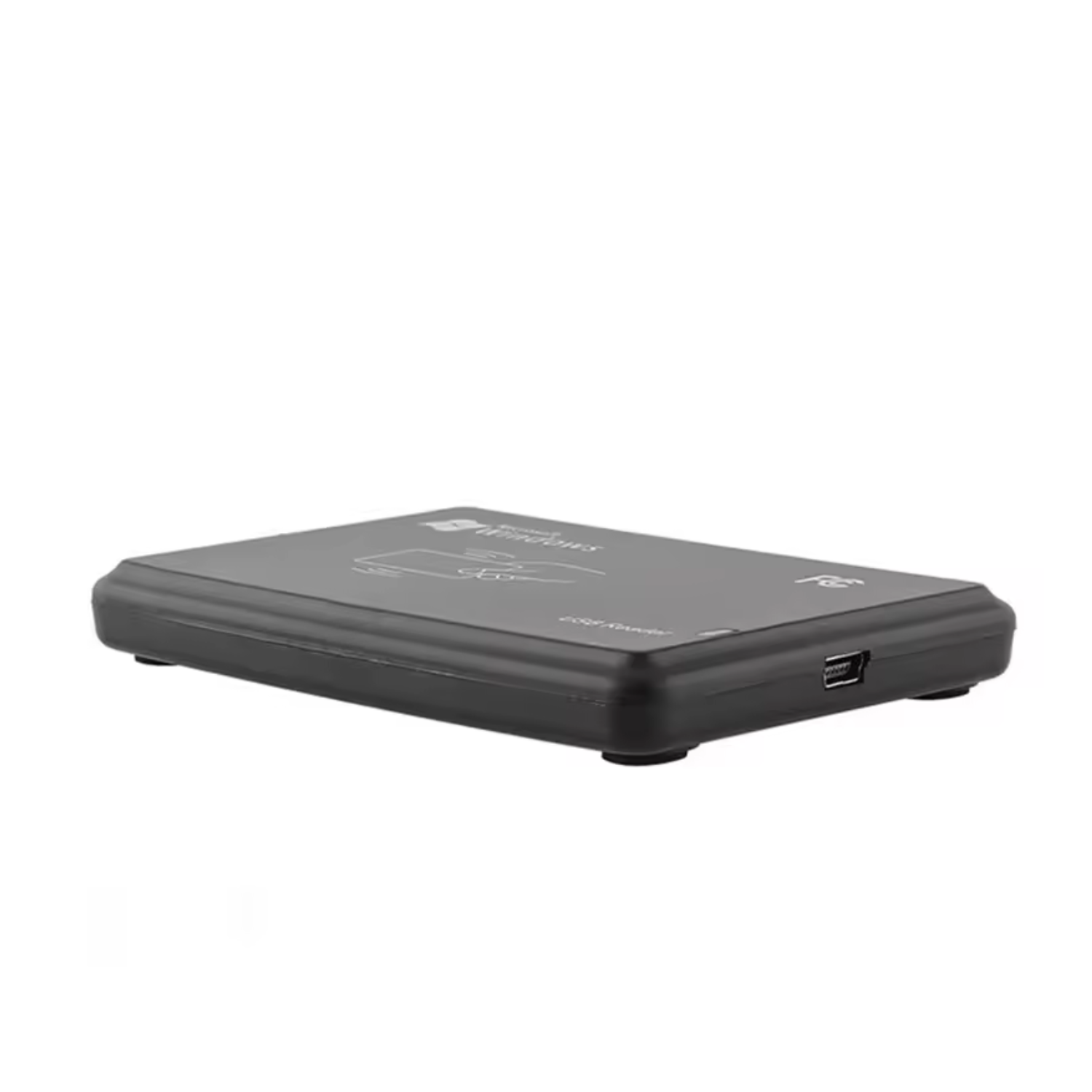

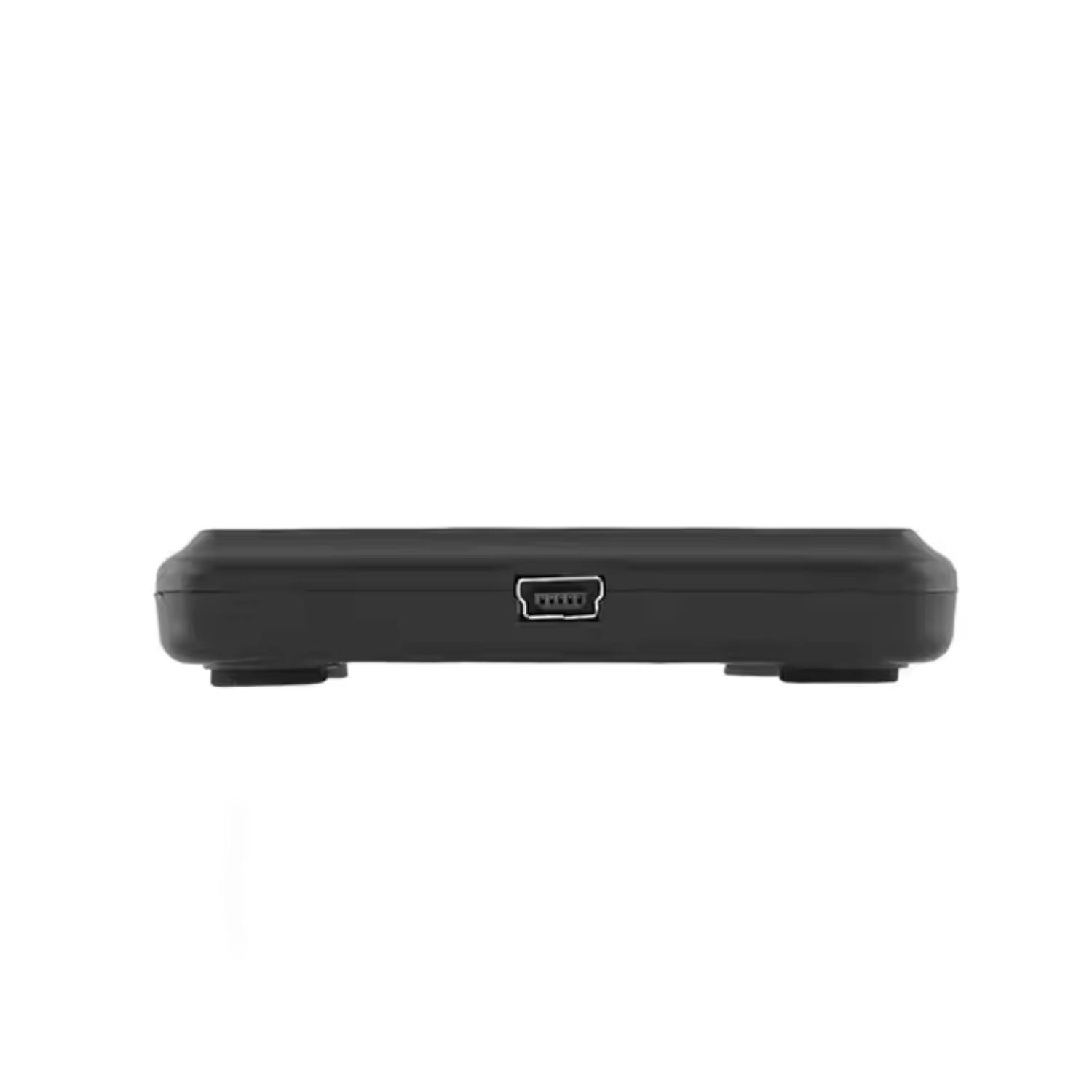

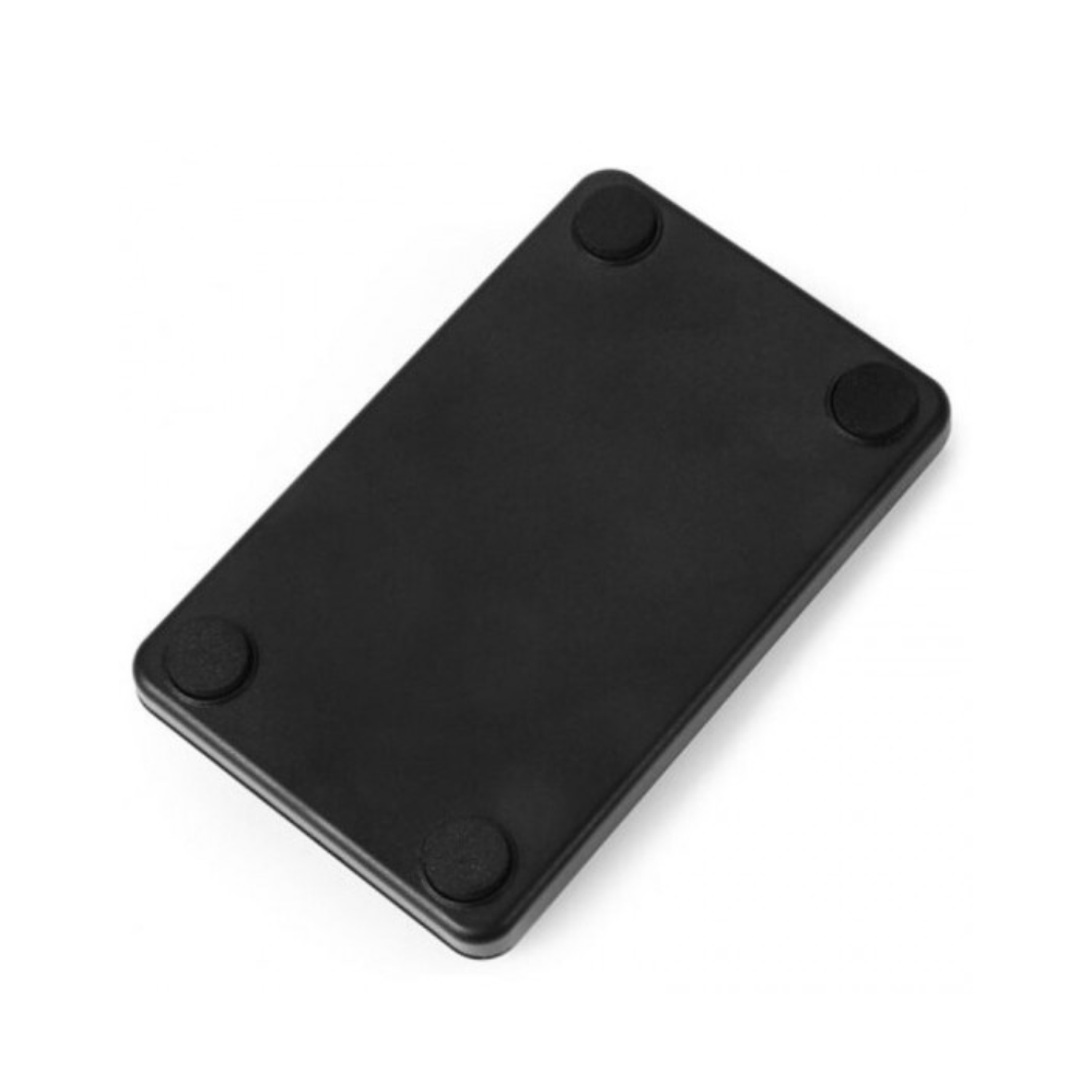

The JT308 125KHz USB Proximity Sensor Smart RFID ID Card Reader offers a simple, fast, and reliable solution for reading RFID card serial numbers. This reader quickly captures the unique identifier from RFID cards and transmits it directly to your computer in a user-configurable format. This data can then be seamlessly integrated with management software to unlock a wide range of functionalities, such as access control, time and attendance tracking, or inventory management.
As a standard HID (Human Interface Device), the JT308 is truly plug-and-play. No driver installation is required, making setup quick and easy. The reader's ability to input card numbers into any application as if they were typed from a keyboard allows for seamless integration with existing software. This eliminates the need for any modifications to your current systems, saving time and resources. Simply connect the JT308 via USB, and you're ready to read RFID cards.
Specifications:
- Frequency: 125KHz
- Communication Speed: 106Kbit/s
- Reading Distance: 5-8cm
- Operating Temperature: -10 to 60°C
- Supply Voltage: 5V
- Material: Plastic
Features:
- Support μEM4001, 4100, or its compatible RFID, ID card.
- Read first 10 digits of the RFID/Proximity card.
- Support Windows95/98/2000/XP/7/8.
- Plug and Play
- Reliable working condition
- Powered directly from USB, no need external power supply
- Diagnostic Power LED
- Built-in operating buzzer
- Easy usage
- Compact design.
Installation Instruction:
- 1st Step: Connect the USB cable with the card reader to the computer USB port.
- 2nd Step: The reader will ‘drip’ sound and flash about that power successfully, and then half a second after the ‘drip’ sound and flash about that device self-test successfully, without Install any drivers, windows will automatically recognize it.
- 3rd Step: Open one EXCEL or WORLD, the card number would be input by self.
Package Included:
- 1 x RIFD Card Reader
- 1 x USB Cable
