Description:

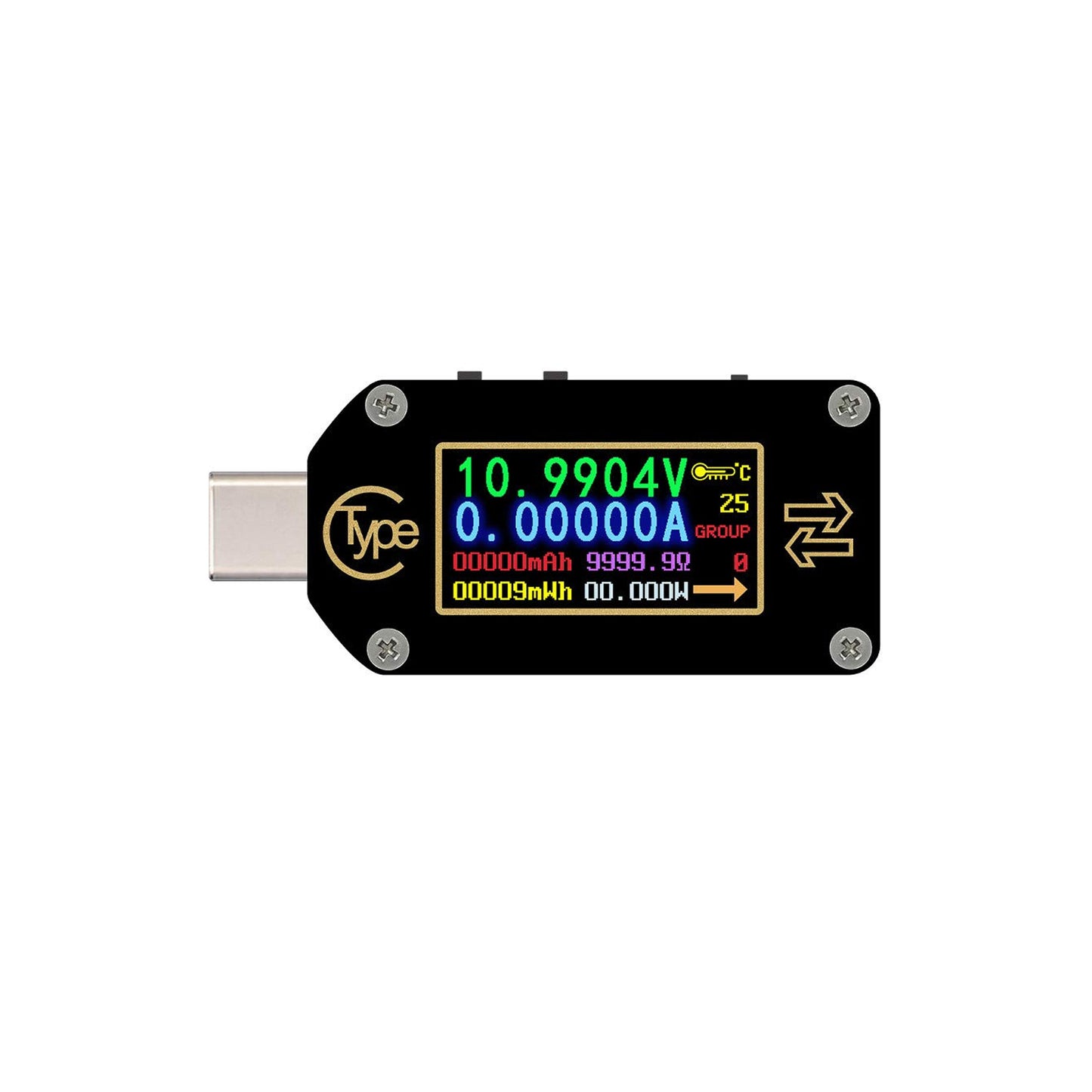

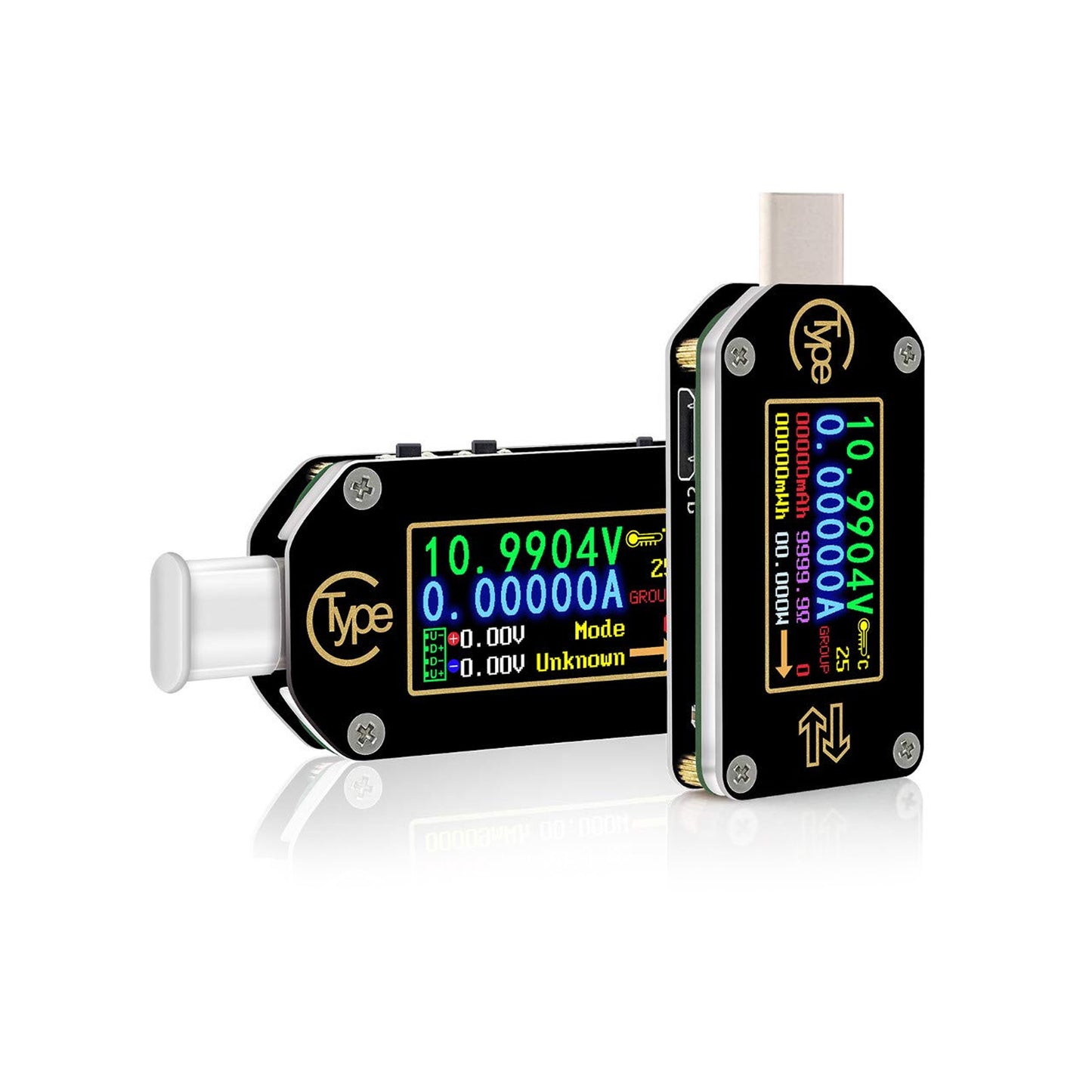

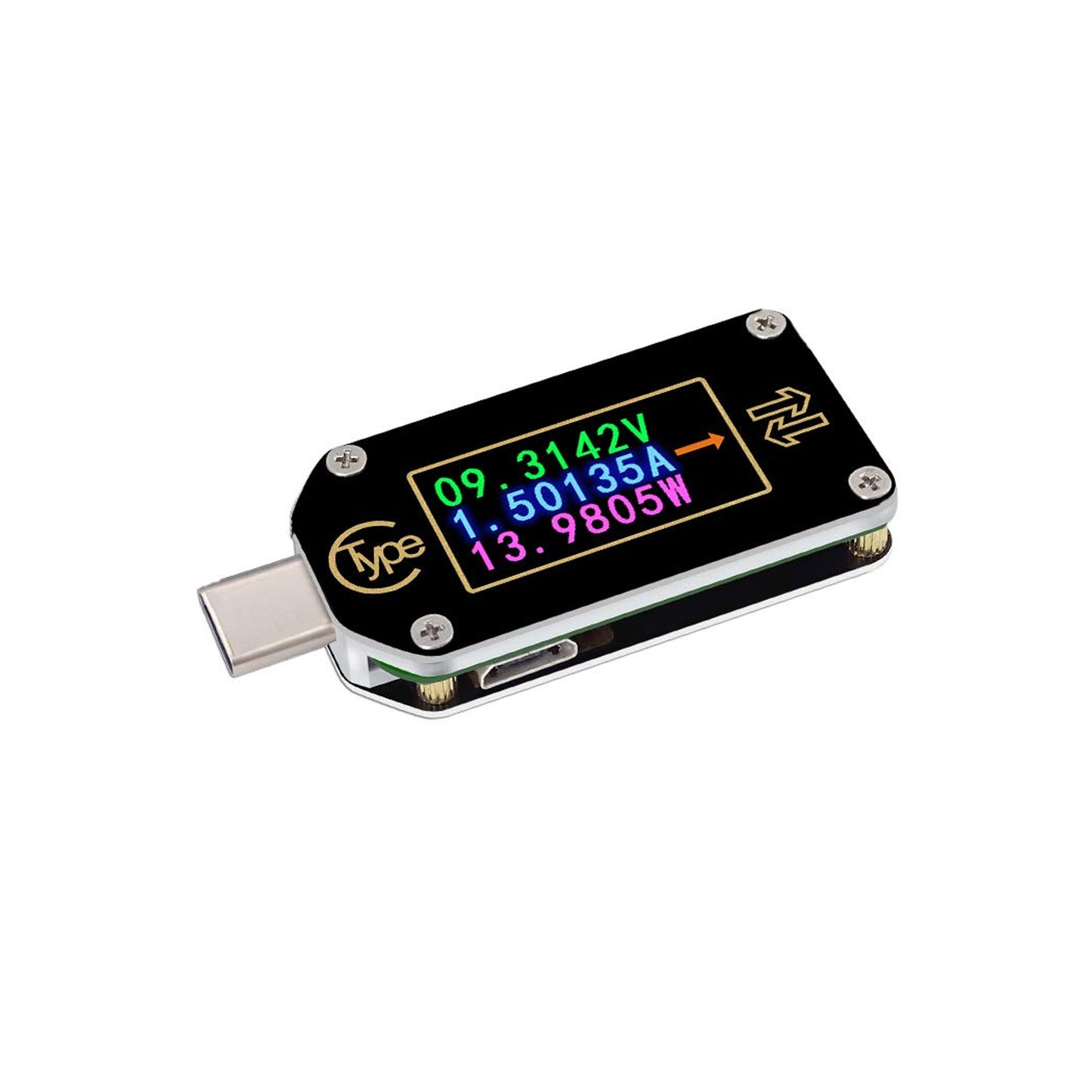

TC66C adopts a 0.96-inch LCD HD colour IPS screen to display the charging status of the appliance in real-time. Human-Computer Interaction Interface. The voltage, current, capacity, energy, power, equivalent impedance, temperature, and other indicators are clear at a glance.
It Supports Two-way current measurement, forward current, and reverse current. 6-digit measurement resolution. Independent power supply, measurement from 0V, and low voltage equipment detection are necessary. Additionally, this USB battery tester comes with Quick charge recognition modes QC2.0, QC3.0, APPLE 2.4A/2.1A/ 1A/0.5A, Android DCP, and SAMSUNG. And Offline Data Storage function. One-key mode to upgrade firmware. Support mobile phone APP(Android+IOS) and PC software to connect and control, wireless connection control(Only for TC66C).
This tester is widely used in quality testing of TYPE-C interface 3C digital peripheral products and is the first choice for digital players and electronic enthusiasts.
Specifications:
- Model: TC66(C)
- Display screen: 0.96 Inch colour IPS display
- Voltage measurement range: 0.005V-30.0000V
- Voltage measurement resolution: 0.0001V(0.1mV)
- Current measurement range: 0-5.00000A
- Current measurement resolution: 0.00001A(0.01mA)
- Power supply voltage: 3.5-24V
- Voltage measurement accuracy: ±(0.5%+20digits under23°C)
- Capacity accumulation range: 0-99999mAh
- Current measurement accuracy: ±(1%+30digits under23°C)
- Energy accumulation range: 0-99999mWh-999.99Wh
- Power measurement range: 0-150W
- Load impedance range: 10-9999.90
- Refresh rate: 2Hz
- Temperature measurement range: 0°C~80°C/32°F~176°F
- Working temperature range: 0°C-45°C/32°F~113°F
Features:
- Plug and play Device
- Two-direction test mode
- 0.96 inch HD Colorful LCD
- Buttons to change the screen for various data
- Quick charge recognition modes
- Offline data storage function
- Support both Android and IOS and PC software
Package Included:
1 x TC66/TC66C Type-C PD Trigger USB Voltage Ammeter Capacity Meter 2 Way Measurement Charger Battery APP PC USB Tester - TC66
